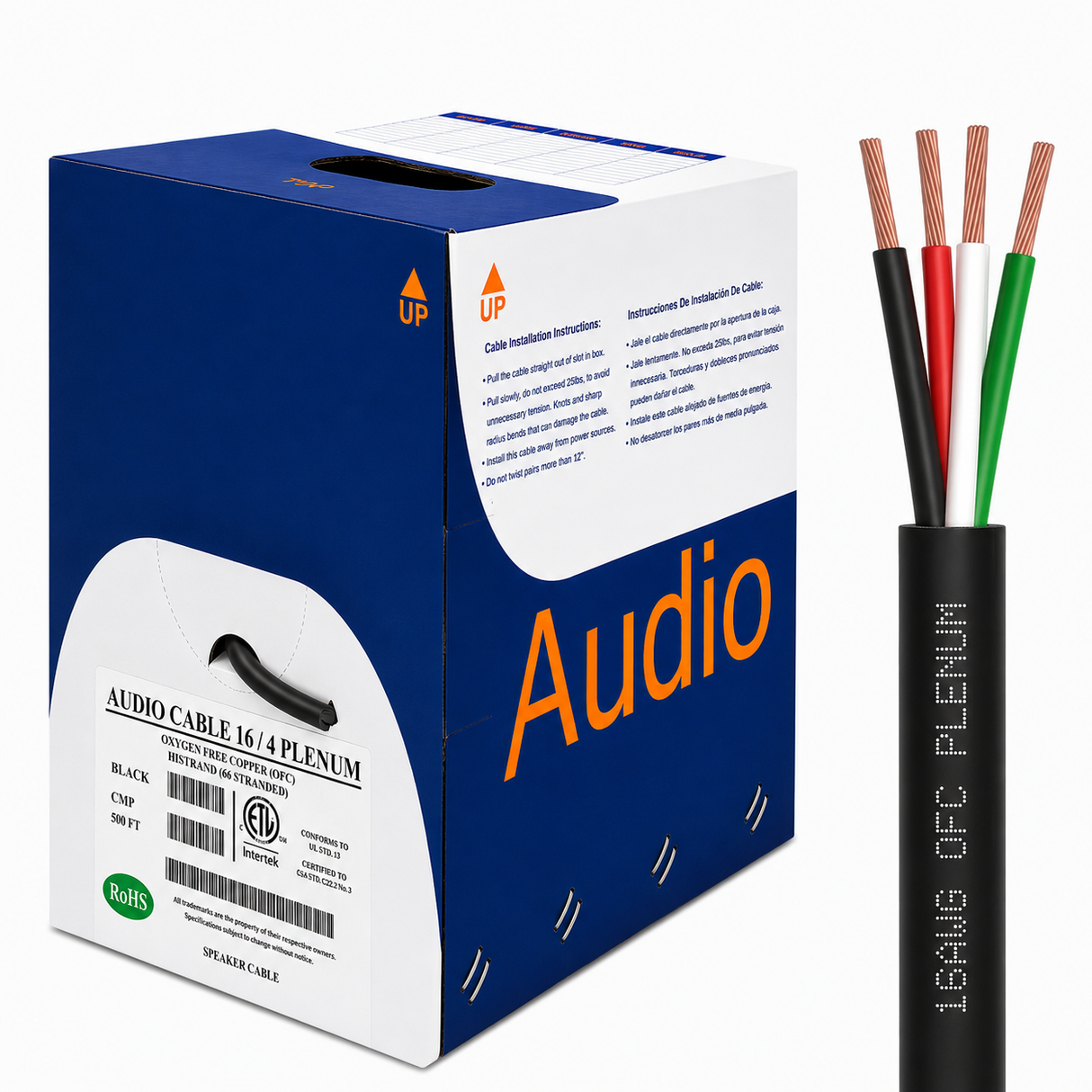

Plenum Speaker Wire 16AWG 4 Stranded Conductors OFC CMP CL3P Black 500ft
SKU:
4041-Big
Regular price
$333.99
Unit price
-
16AWG OFC · 4 Conductors · CMP/CL3P
-
Remguard Plenum Polymer · Not PVC
-
Black/Red/Green/White Color-Coded
-
Bi-Wire · Volume Control · Dual Speakers
-
OD 0.205 in. · 22 lbs/500ft · Reelex II
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Speaker Wire 16AWG 4 Stranded Conductors OFC CMP CL3P Black 500ft
$333.99
SKU:
4041-Big
Regular price
$333.99
Unit price
-
𝐂𝐌𝐏 𝐑𝐄𝐐𝐔𝐈𝐑𝐄𝐃 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 𝟒𝐂 CMP and CL3P are required by NEC for 4-conductor speaker wire in air plenum spaces above suspended ceilings or below raised floors.
-
𝐑𝐄𝐌𝐆𝐔𝐀𝐑𝐃 𝐏𝐎𝐋𝐘𝐌𝐄𝐑 𝐍𝐎𝐓 𝐏𝐕𝐂 Remguard Plenum Polymer insulation and jacket emit far less toxic smoke than PVC under fire — the material requirement that earns the CMP rating.
-
𝟒 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 𝐈𝐍 𝐏𝐋𝐄𝐍𝐔𝐌 Black/Red/Green/White handle bi-wire in-ceiling speakers, 4-conductor volume control loops, and dual speaker pairs from a single plenum cable pull.
-
𝐂𝐎𝐌𝐏𝐀𝐂𝐓 𝟒𝐂 𝐏𝐋𝐄𝐍𝐔𝐌 𝐂𝐀𝐁𝐋𝐄 At 0.205 in. OD, routes through congested above-ceiling spaces where audio, data, and power cables compete for the same limited pathway.
-
𝐂𝐌𝐏 𝐒𝐔𝐁𝐒𝐓𝐈𝐓𝐔𝐓𝐄𝐒 𝐂𝐋𝟑𝐑 𝐀𝐍𝐃 𝐂𝐋𝟐 CMP is the highest indoor fire rating — usable anywhere CL3R, CL2, or lower is required. One 4C cable spec for plenum, riser, and in-wall runs.
Description
Description
Run four conductors through plenum air-handling spaces for bi-wire in-ceiling speakers, volume control loops, and dual speaker pair distributions in offices, schools, and hotels. CMP and CL3P rated — the highest indoor fire class — this cable meets code wherever wire passes through plenum spaces above ceilings or below raised floors.
Remguard Plenum Polymer insulation and jacket emit far less toxic smoke than PVC under fire — the material requirement for CMP certification in occupied buildings. At 0.205 in. OD and 22 lbs per 500ft, it's a compact 4-conductor OFC plenum cable, leaving more room in congested spaces. CMP substitutes for CL3R or CL2 in any installation.
Standards: C(ETL)US Listed (Intertek) · CMP/CL3P · NEC Article 800 · FT6
Technical Specifications:

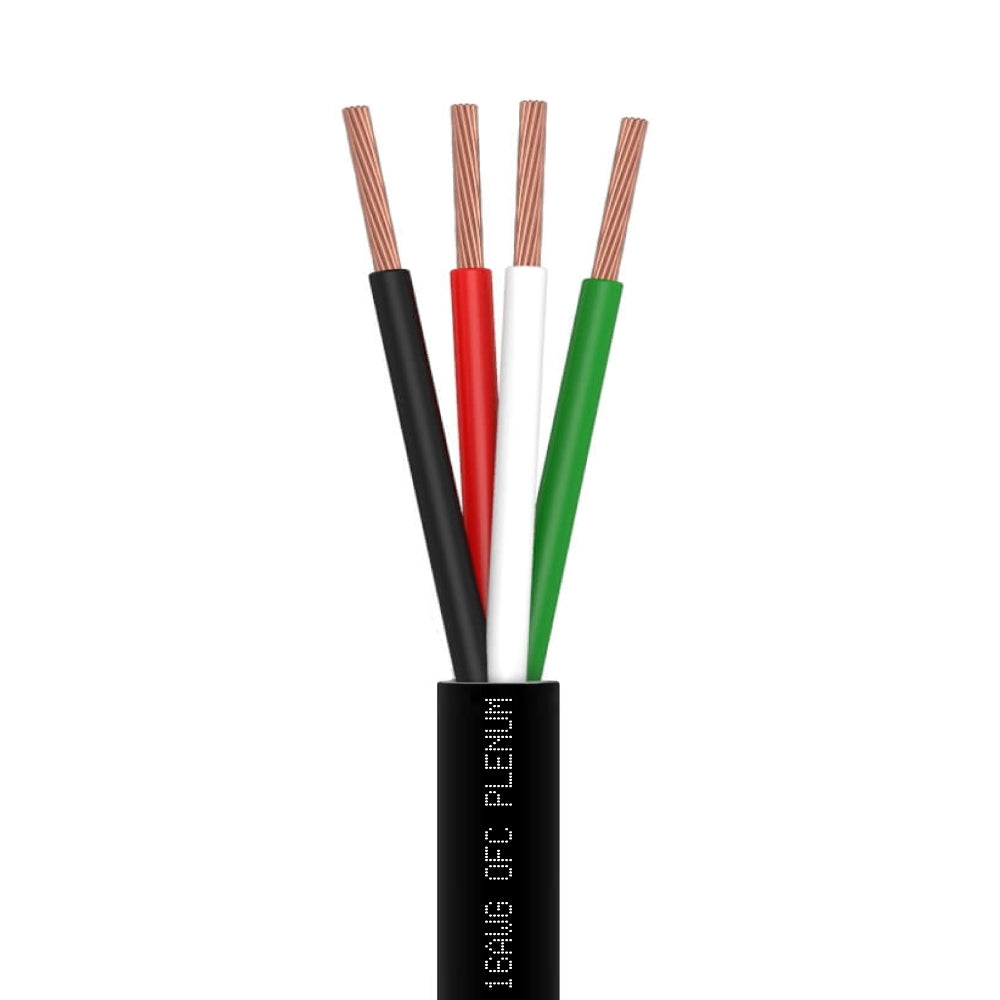

• Wire Gauge: 16AWG · Stranded · Conductors: 4 (Black/Red/Green/White)
• Conductor: Oxygen-Free Bare Copper (OFC)
• Insulation: Remguard Plenum Polymer · Jacket: Remguard Plenum Polymer CMP/CL3P
• OD: 0.205 in. · Weight: 22 lbs/500ft · Color: Black
• Packaging: 500ft Reelex II
Typical Applications:
• Bi-wire in-ceiling speaker connections
• 4-conductor volume control loops in plenum spaces
• Dual speaker pair distribution from one cable pull
• Above-ceiling plenum runs in offices, schools, and hotels
• Any install requiring the highest fire-safety cable rating
