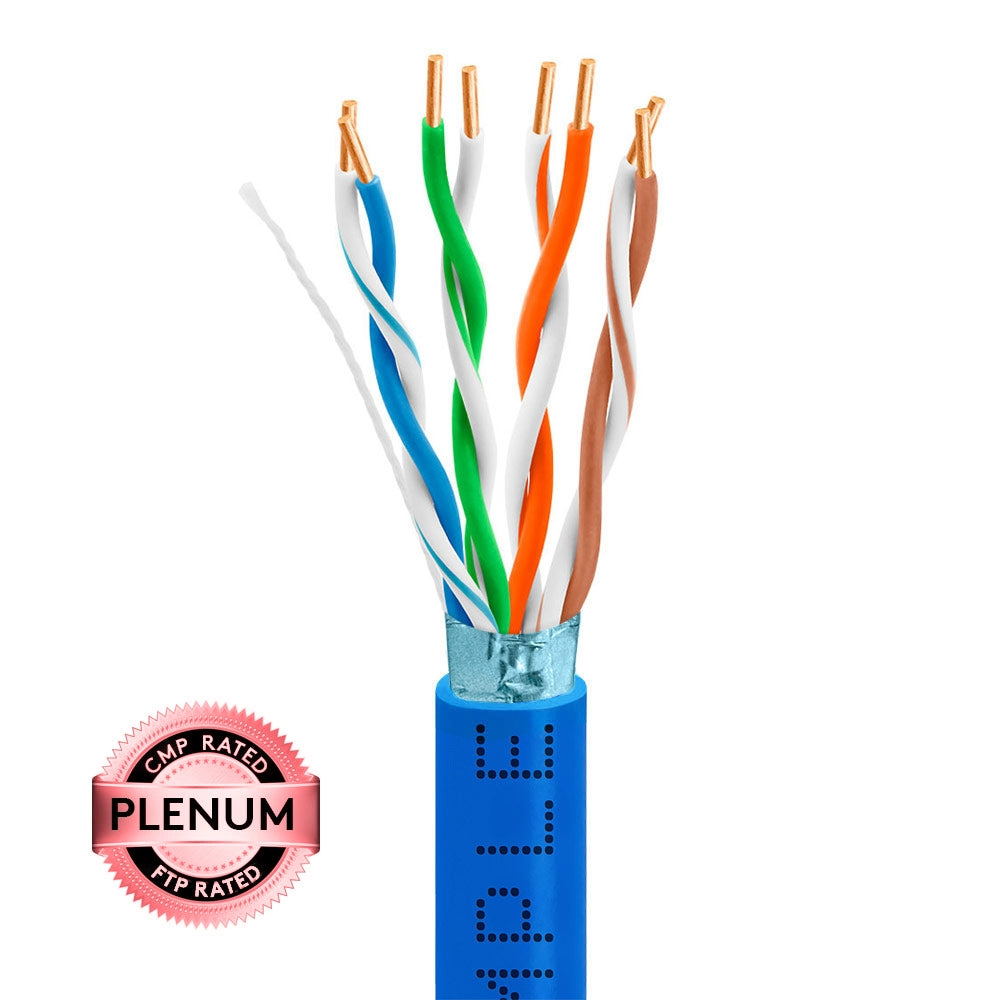

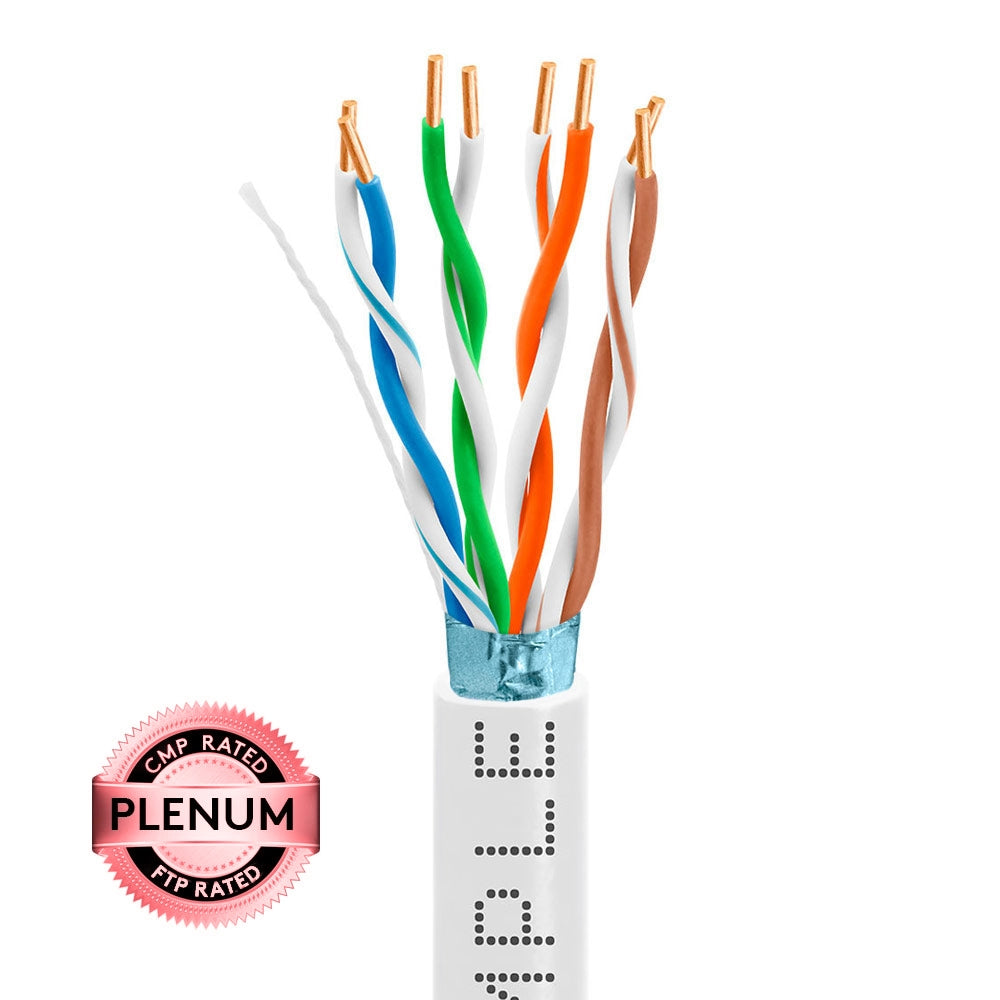

Cat5e Ethernet Cable CMP Plenum Shielded 24AWG Solid Bare Copper 350MHz 1000ft
-
24AWG Solid Bare Copper · 4 Shielded Twisted Pairs
-
FEP Insulation · Flame Retardant PVC Jacket
-
Aluminum Foil Shield · Blocks EMI and Crosstalk
-
CMP/FT6 Rated · C(ETL) Listed · ANSI/TIA-568-C.2
-
350MHz · Gigabit Ethernet · PoE/PoE+ Support
Cat5e Ethernet Cable CMP Plenum Shielded 24AWG Solid Bare Copper 350MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat5e Ethernet Cable CMP Plenum Shielded 24AWG Solid Bare Copper 35...
Cat5e Ethernet Cable CMP Plenum Shielded 24AWG Solid Bare Copper 350MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
-
𝐏𝐋𝐄𝐍𝐔𝐌 𝐂𝐄𝐑𝐓𝐈𝐅𝐈𝐄𝐃 𝐂𝐌𝐏/𝐅𝐓𝟔 CMP/FT6-rated jacket is approved for above-ceiling plenum spaces and also covers riser and in-wall runs in offices, schools, and commercial buildings.
-
𝐀𝐋𝐔𝐌𝐈𝐍𝐔𝐌 𝐅𝐎𝐈𝐋 𝐄𝐌𝐈 𝐒𝐇𝐈𝐄𝐋𝐃 Overall F/UTP aluminum foil shield blocks EMI and reduces crosstalk — ideal for cable runs near HVAC, lighting, and power lines.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟒𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent installation run.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 FEP insulation handles plenum temperatures and produces less toxic smoke in a fire than standard PVC, meeting the stricter CMP flame requirements.
-

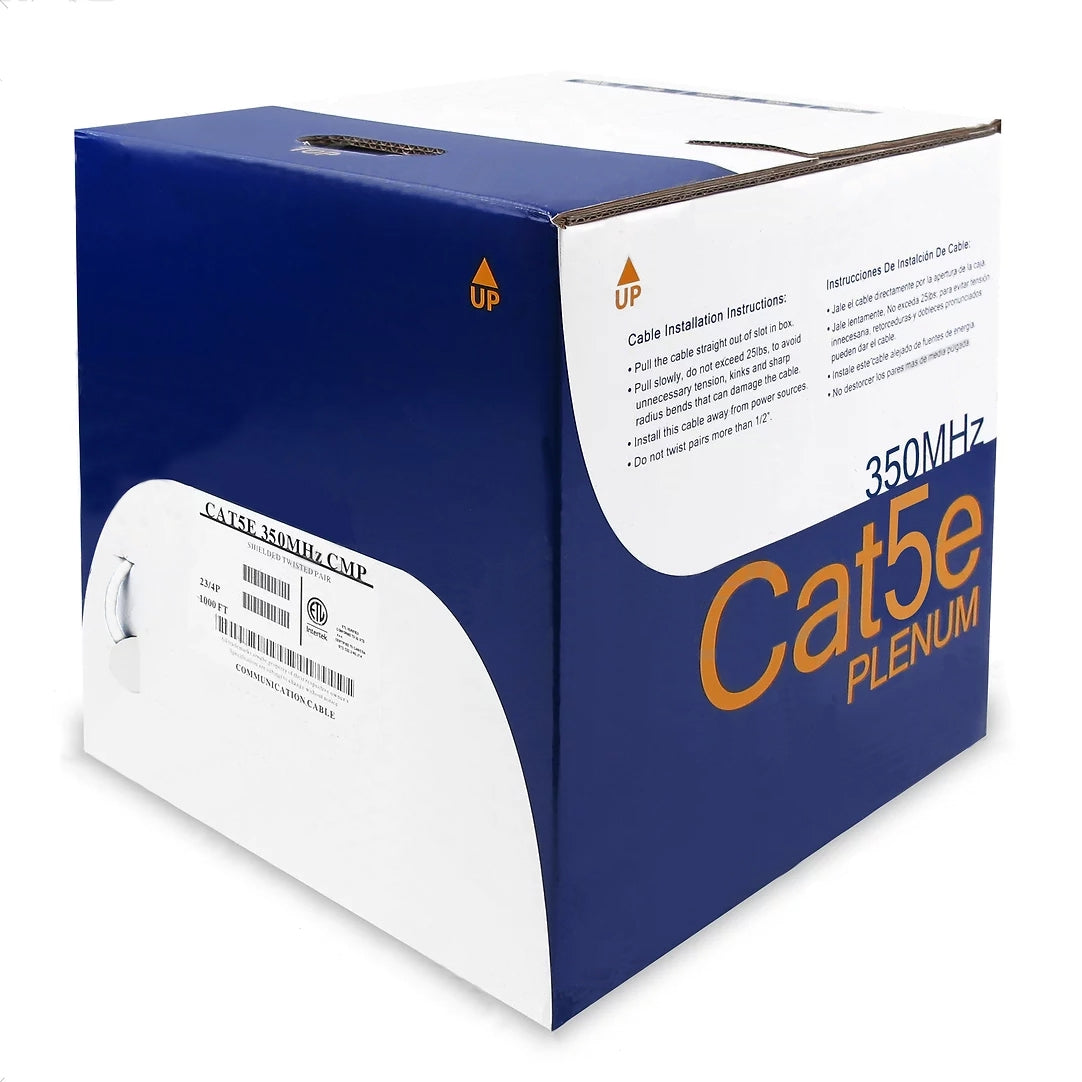

𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 1000ft reel-in-box includes ripcord and sequential footage markings for faster pulling, clean jacket removal, and accurate cuts on job sites.
Description
Description
Cat5e CMP-rated shielded plenum ethernet cable for installation in air-handling spaces above drop ceilings and below raised floors. CMP / FT6 is the highest indoor fire rating — covers plenum, riser, and in-wall installations. Supports Gigabit Ethernet at up to 328 feet with 350MHz bandwidth, PoE and PoE+ (IEEE 802.3af/at).
Overall aluminum foil (F/UTP) shield blocks EMI and reduces crosstalk. FEP insulation handles elevated temperatures and produces less toxic smoke. FR-PVC outer jacket, ripcord for clean termination, sequential foot markings. Nominal OD: 0.233 in. Weight: 31 lbs per 1000ft.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: Solid Bare Copper · AWG: 24 · Pairs: 4 F/UTP (Foil Shielded)
• Insulation: FEP · Jacket: FR-PVC CMP/FT6
• Shielding: Overall Aluminum Foil · Ripcord: Yes
• OD: 0.233 in. · Weight: 31 lbs · NVP: 69%
• Performance: 350MHz · PoE/PoE+ IEEE 802.3af/at
• Colors: Blue, White · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
