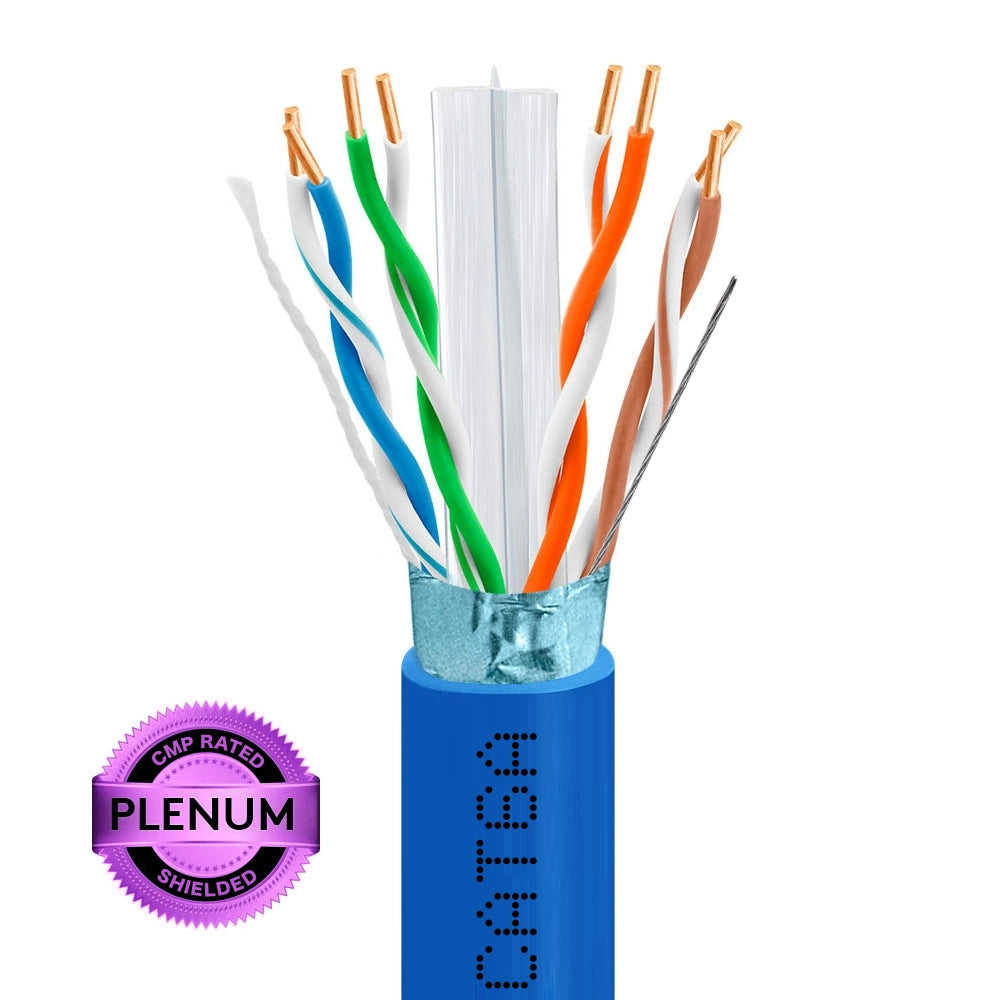

Cat6A Plenum CMP Shielded FTP Ethernet Cable 23AWG Bare Copper 1000ft
-
FTP + CMP – Shielded and Plenum Certified
-
FEP Insulation – CMP Fire Resistance
-
AL Tape Shield + Drain Wire on All 4 Pairs
-
750MHz – 10G Base-T · ANSI/TIA-568-C.2
-
ETL Listed CMP · C(ETL) FT6 · RoHS
Cat6A Plenum CMP Shielded FTP Ethernet Cable 23AWG Bare Copper 1000ft - Blue is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Plenum CMP Shielded FTP Ethernet Cable 23AWG Bare Copper 1000ft
Cat6A Plenum CMP Shielded FTP Ethernet Cable 23AWG Bare Copper 1000ft - Blue is backordered and will ship as soon as it is back in stock.
-
SHIELDED AND PLENUM RATED AL tape FTP shielding plus CMP-certified jacket — the only Cat6A rated for both EMI protection and air-handling plenum spaces in a single cable.
-
FEP INSULATION FOR PLENUM FEP insulation produces far less toxic smoke in a fire than standard PVC, meeting the stricter CMP flame-spread requirements above drop ceilings.
-
BLOCKS EMI ABOVE THE CEILING Aluminum tape foil and drain wire block EMI from HVAC systems, motors, and dense wiring in the plenum space where unshielded UTP would degrade.
-
SOLID BARE COPPER QUALITY Every conductor is 23AWG solid bare copper — not aluminum-clad — for maximum signal strength and reliable 10G performance across the full 1000ft.
-
FUTURE-PROOF 10G NETWORK Cat6A delivers full 10 Gigabit performance in the most demanding shielded plenum environments and stays ahead of bandwidth demands for years to come.
Description
Description
Cat6A FTP shielded plenum cable combining aluminum tape foil shielding with CMP fire certification — the most demanding Cat6A configuration for air-handling spaces with high electromagnetic interference. Required by code for installation above drop ceilings and below raised floors. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz.
FEP (Fluorinated Ethylene Propylene) insulation produces significantly less toxic smoke in a fire than standard PVC and meets the stricter CMP flame-spread requirements. Aluminum tape foil wraps all four twisted pairs with a drain wire for full, groundable EMI shielding. 23AWG solid bare copper conductors. Spline separator between pairs reduces NEXT crosstalk. Rip cord for clean jacket removal. Plenum-rated PVC outer jacket. OD 0.3153 in., 53 lbs per 1000ft reel.
• Conductor: 23 AWG Solid Bare Copper · 4 pairs FTP
• Shield: Aluminum Tape + Drain Wire
• Insulation: FEP · Jacket: Plenum Rated PVC · CMP
• OD: 0.3153 in. · Weight: 53 lbs · Performance: 750MHz
• Separator: Yes · Rip Cord: Yes
• Standards: ETL Listed CMP · C(ETL) FT6 · ANSI/TIA-568-C.2 · ISO/IEC 11801 · RoHS
• Colors: Blue, White · Length: 1000ft
