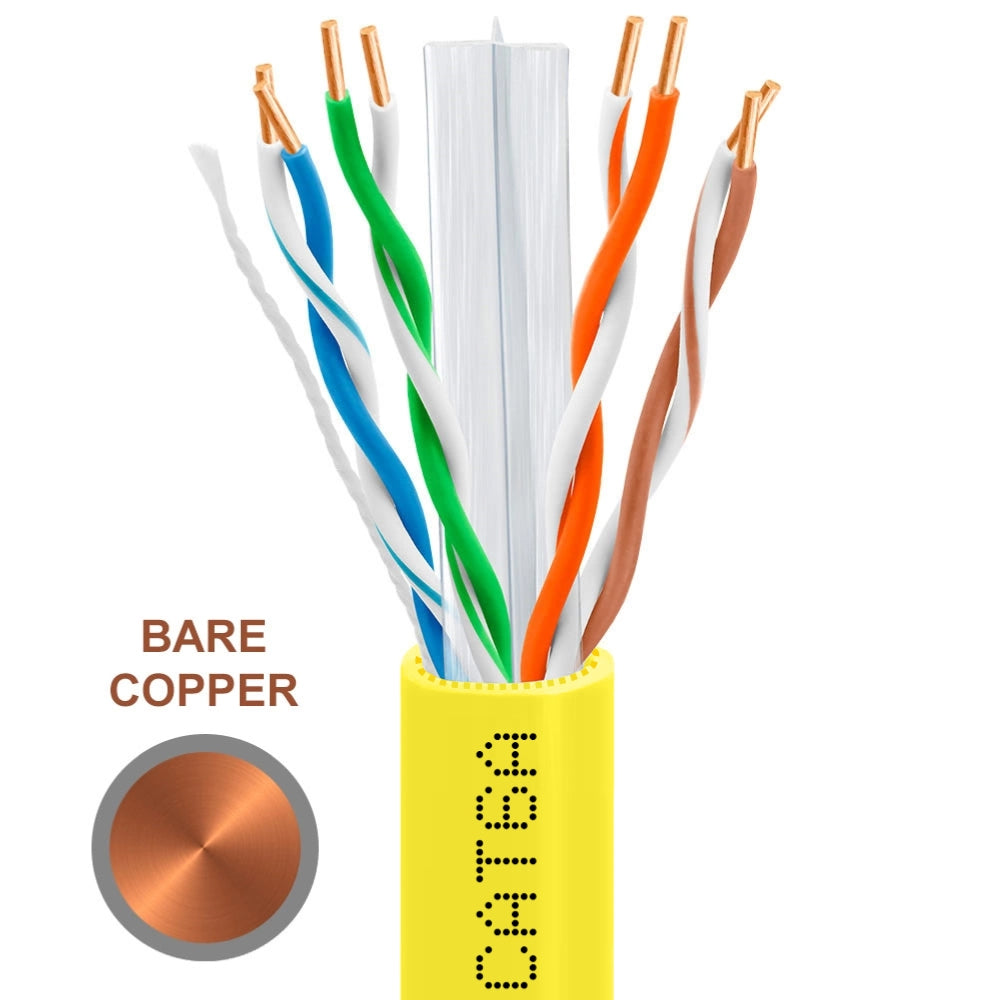

Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
HDPE Insulation · Flame Retardant PVC Jacket
-
CMR/FT4 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · OD 0.3 in. · NVP 69%
-
Spline Separator · Rip Cord · 51 lbs/1000ft
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1...
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
-
𝟏𝟎𝐆 𝐂𝐀𝐓𝟔𝐀 𝐑𝐈𝐒𝐄𝐑 𝐂𝐀𝐁𝐋𝐄 Built for 10 Gigabit network backbones, office cabling, data closets, and high-bandwidth LAN installations where Cat6A performance is required.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 23AWG solid annealed bare copper delivers stronger conductivity and long-term signal reliability compared with CCA conductors.
-
𝟕𝟓𝟎𝐌𝐇𝐳 𝐔𝐓𝐏 𝐏𝐄𝐑𝐅𝐎𝐑𝐌𝐀𝐍𝐂𝐄 Unshielded twisted pair design with spline separator helps reduce NEXT crosstalk in dense cable bundles and high-traffic network runs.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 Flame-retardant PVC jacket is rated for riser and permanent in-wall installations between floors, walls, and commercial pathways.
-
𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft bulk reel includes rip cord and sequential footage markings for faster pulling, clean jacket removal, and accurate cuts on job sites.
Description
Description
Cat6A (Augmented Category 6) 23AWG unshielded twisted pair riser cable for 10G network infrastructure. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz. Backward compatible with Cat6 and Cat5e. Designed for horizontal distribution and backbone cabling in offices, data centers, and commercial buildings.
23AWG solid annealed bare copper conductors for maximum conductivity and signal integrity. HDPE insulation maintains consistent electrical characteristics. A spline separator between pairs reduces Near-End Crosstalk (NEXT) and Alien Crosstalk (AXT) in high-density cable runs. Rip cord for clean jacket removal. Flame Retardant PVC outer jacket rated CMR/FT4 for in-wall and riser installation. Nominal OD: 0.3 in. Weight: 51 lbs per 1000ft. NVP: 69%.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: 23 AWG Solid Annealed Bare Copper · Pairs: 4 UTP
• Insulation: HDPE · Jacket: Flame Retardant PVC CMR/FT4
• OD: 0.3 in. · Weight: 51 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T · Spline Separator: Yes · Rip Cord: Yes
• Packaging: 1000ft Reel
• Colors: Blue, Black, Grey, Green, Red, White, Yellow · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
