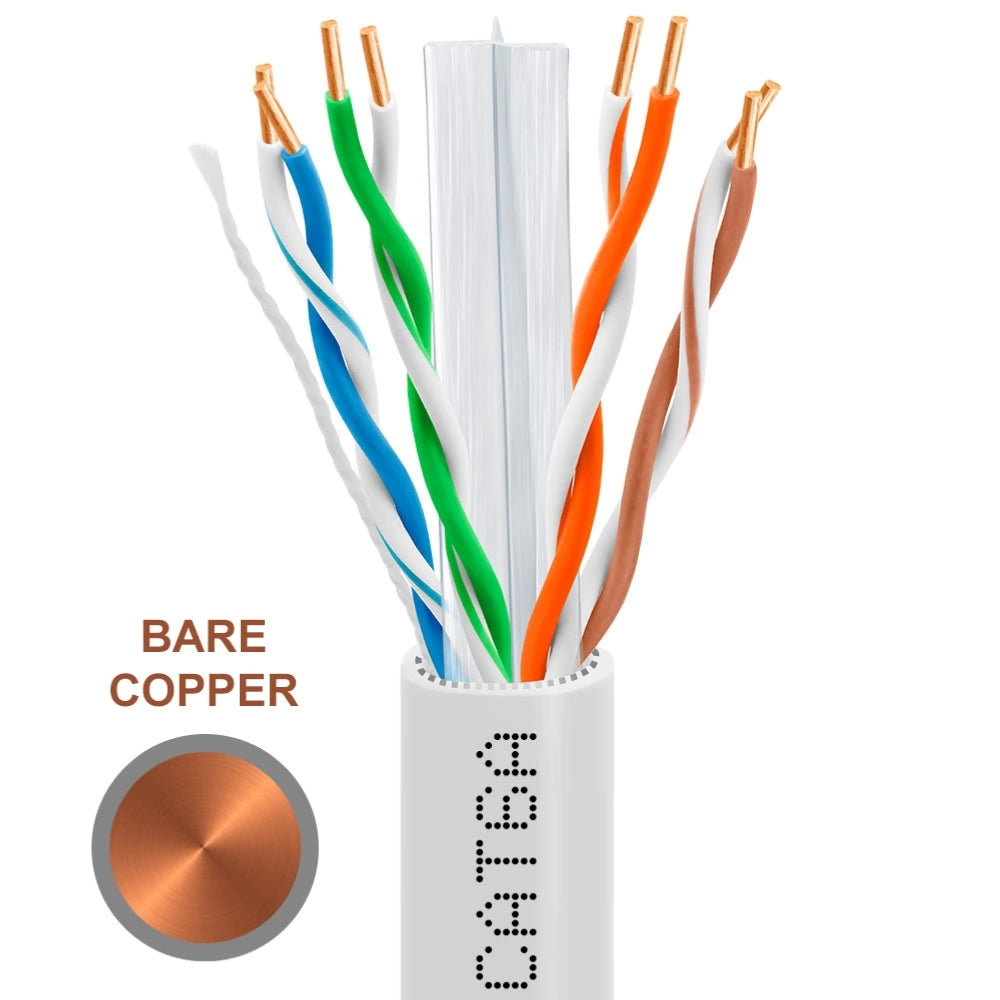

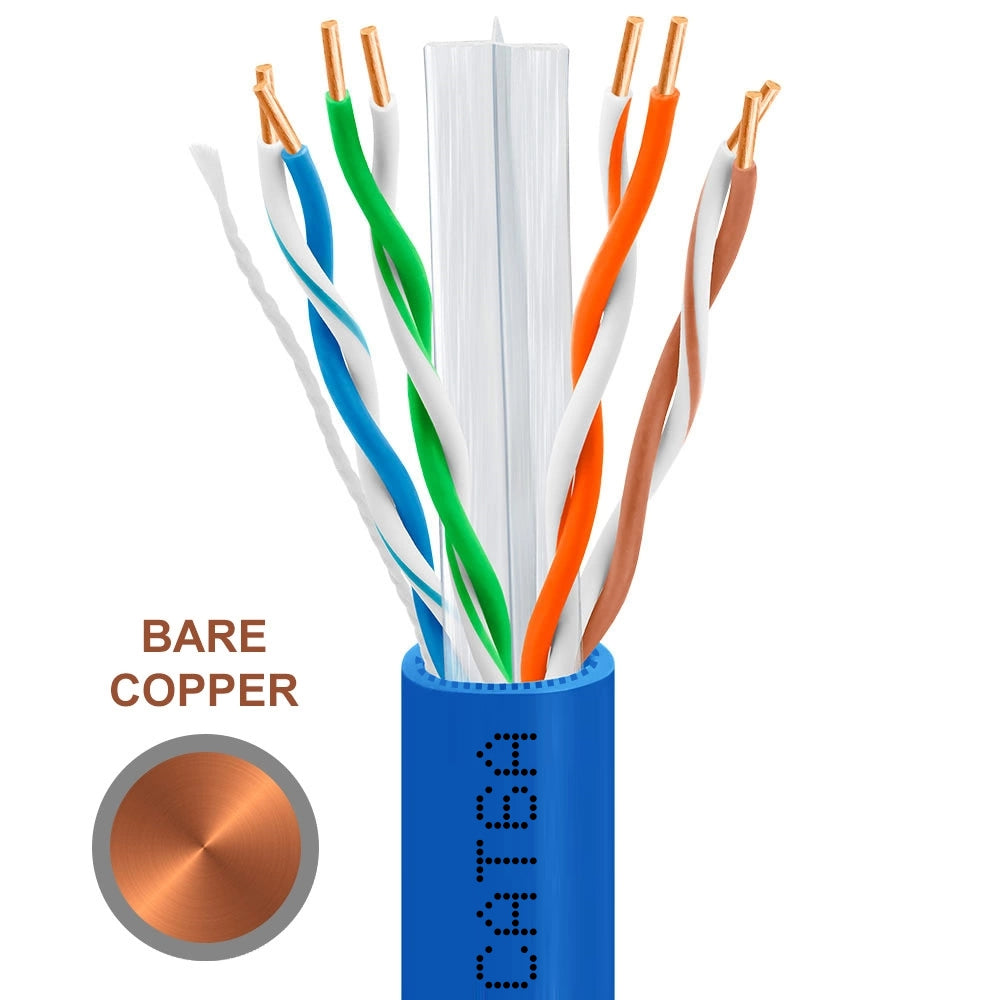

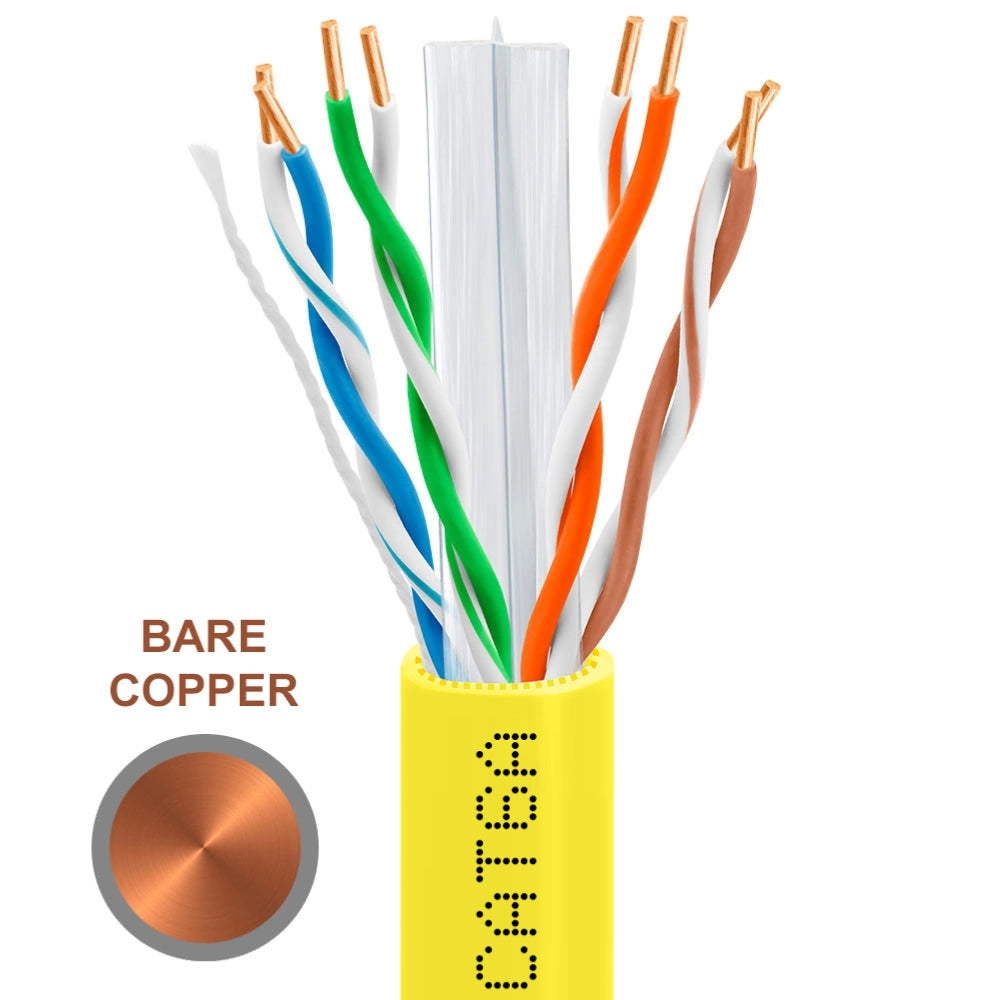

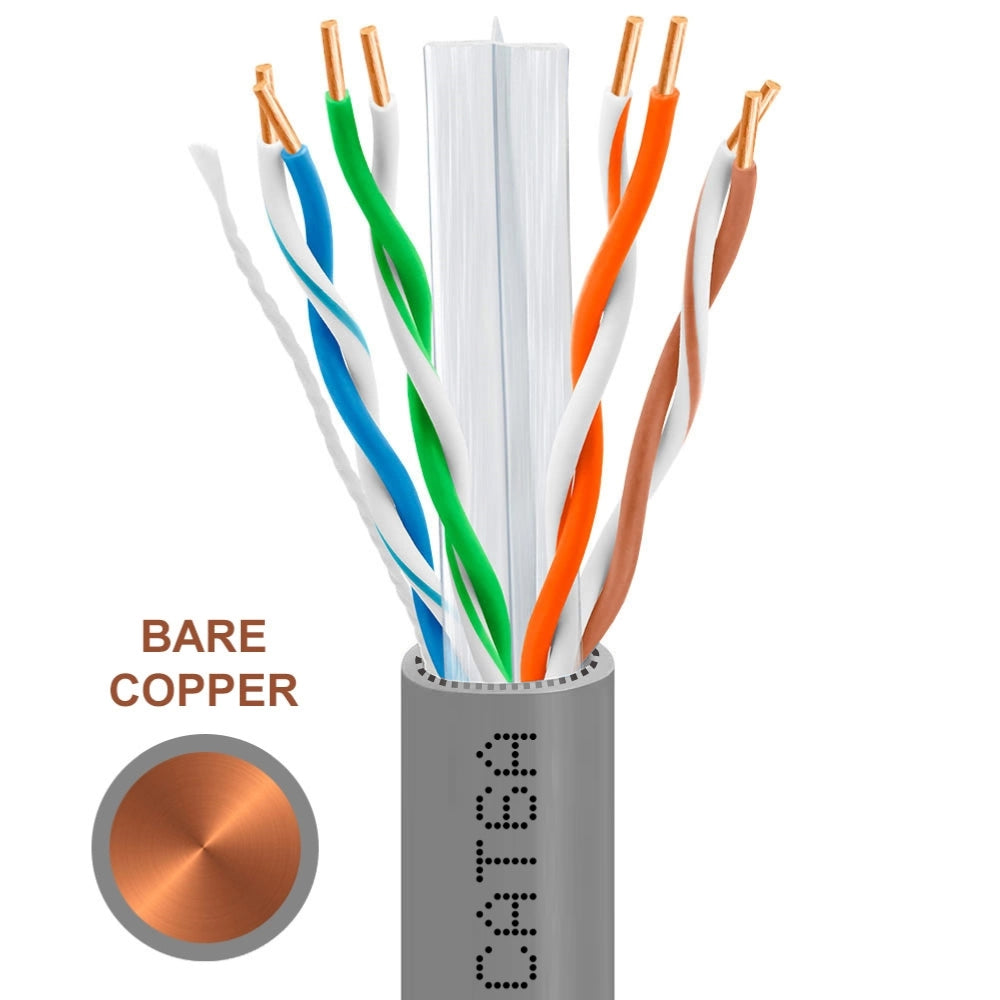

Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
HDPE Insulation · Flame Retardant PVC Jacket
-
CMR/FT4 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · OD 0.3 in. · NVP 69%
-
Spline Separator · Rip Cord · 51 lbs/1000ft
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1...
Cat6A Ethernet Cable CMR Riser 23AWG Solid Bare Copper UTP 750MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
-
𝐁𝐔𝐈𝐋𝐓 𝐅𝐎𝐑 𝟏𝟎𝐆 𝐁𝐀𝐂𝐊𝐁𝐎𝐍𝐄 Cat6A delivers full 10 Gigabit performance at 750MHz across 100 meters — built for data centers, server rooms, and high-density LAN deployments.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid annealed bare copper conductors deliver superior conductivity and long-term signal reliability compared with CCA — across every run, every time.
-
𝐒𝐏𝐋𝐈𝐍𝐄 𝐂𝐔𝐓𝐒 𝐂𝐑𝐎𝐒𝐒𝐓𝐀𝐋𝐊 Built-in spline separator reduces NEXT and Alien Crosstalk in dense cable bundles, patch panels, and crowded data closets where Cat6 would struggle.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐄𝐕𝐄𝐑𝐘 𝐖𝐀𝐋𝐋 CMR/FT4-rated jacket meets fire code for permanent in-wall and riser installations — one cable for every non-plenum run in the building.
-
𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with rip cord and sequential footage markings for fast jacket removal, accurate pulls, and reliable performance on every installation.
Description
Description
Cat6A (Augmented Category 6) 23AWG unshielded twisted pair riser cable for 10G network infrastructure. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz. Backward compatible with Cat6 and Cat5e. Designed for horizontal distribution and backbone cabling in offices, data centers, and commercial buildings.

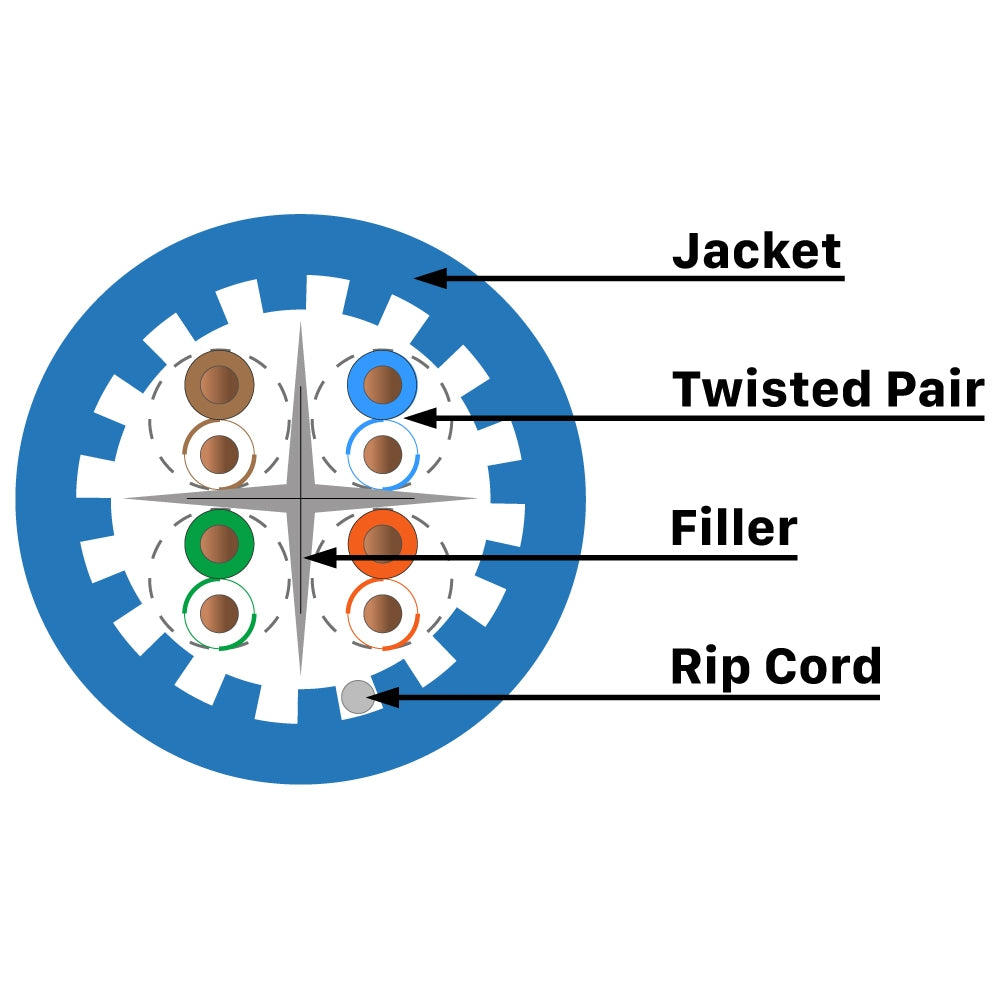

23AWG solid annealed bare copper conductors for maximum conductivity and signal integrity. HDPE insulation maintains consistent electrical characteristics. A spline separator between pairs reduces Near-End Crosstalk (NEXT) and Alien Crosstalk (AXT) in high-density cable runs. Rip cord for clean jacket removal. Flame Retardant PVC outer jacket rated CMR/FT4 for in-wall and riser installation. Nominal OD: 0.3 in. Weight: 51 lbs per 1000ft. NVP: 69%.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: 23 AWG Solid Annealed Bare Copper · Pairs: 4 UTP
• Insulation: HDPE · Jacket: Flame Retardant PVC CMR/FT4
• OD: 0.3 in. · Weight: 51 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T · Spline Separator: Yes · Rip Cord: Yes

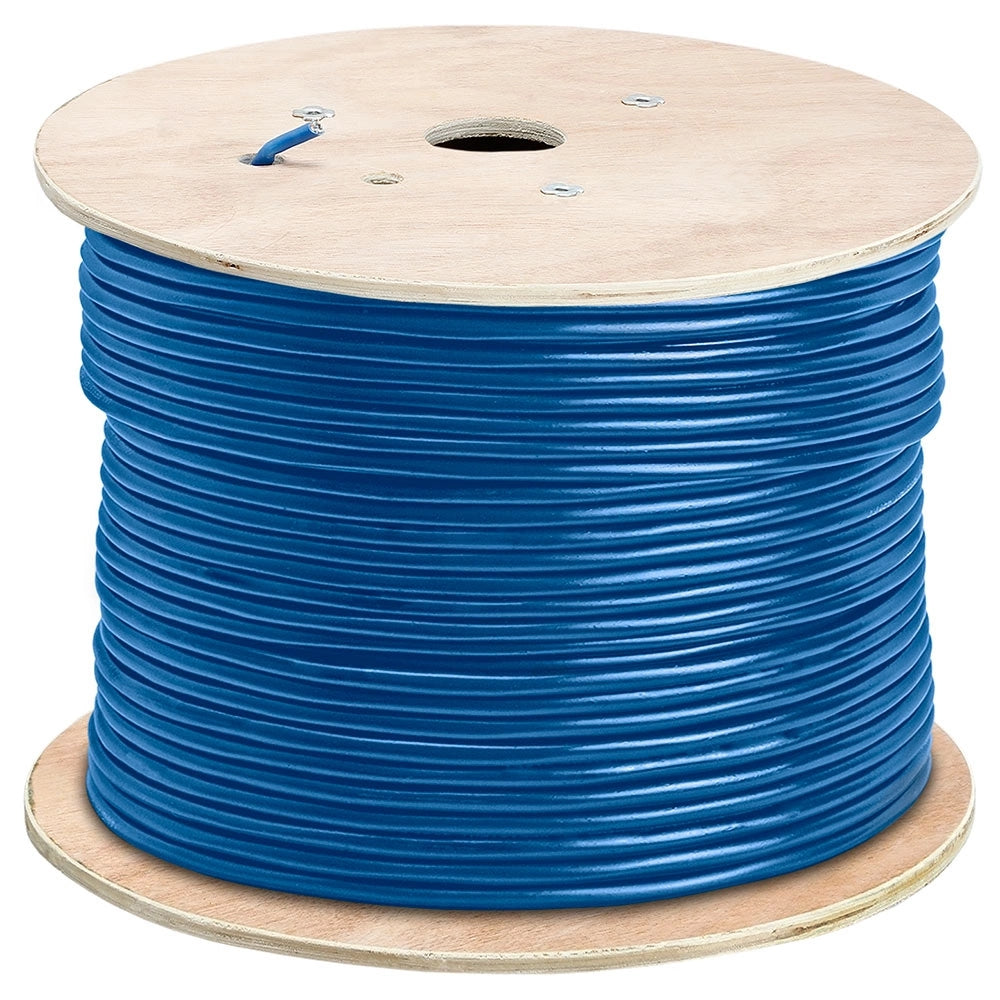

• Packaging: 1000ft Reel
• Colors: Blue, Black, Grey, Green, Red, White, Yellow · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
