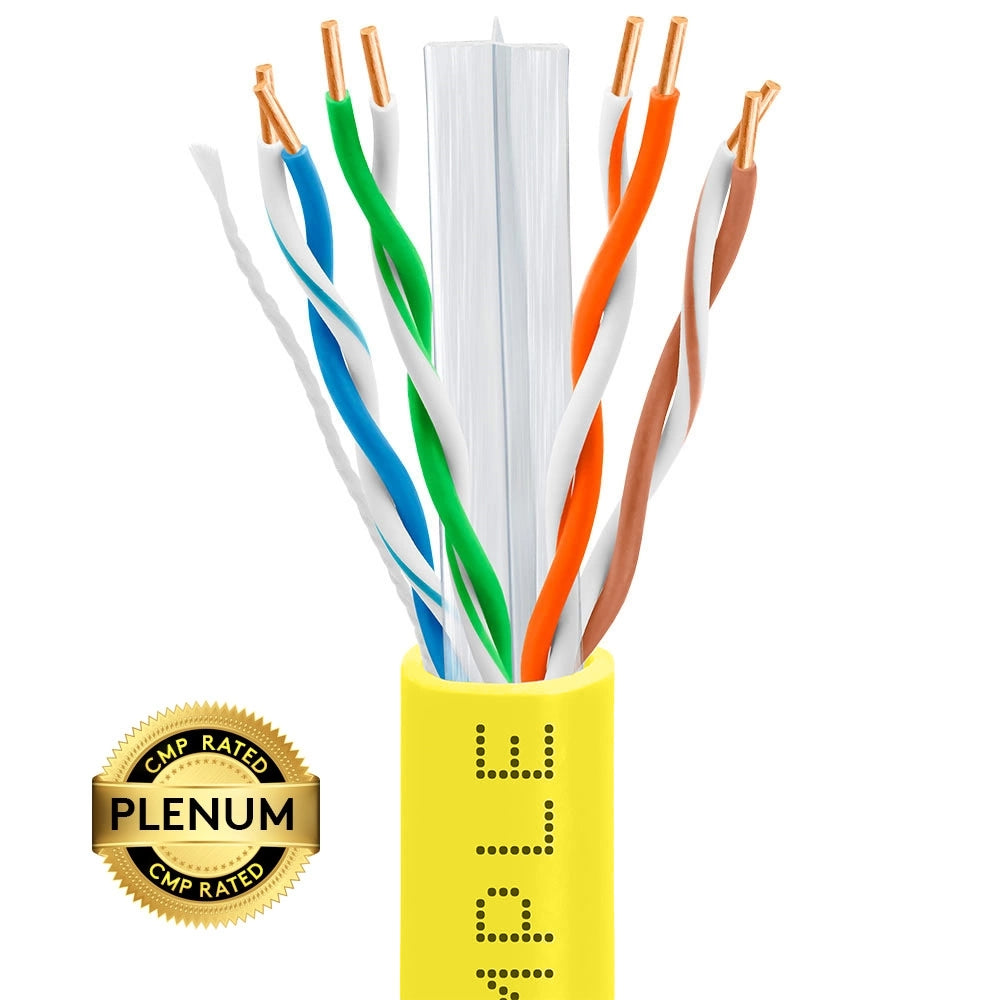

Cat6 Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP FEP 600MHz 1000ft
-
23AWG Solid Bare Copper 4 Unshielded Twisted Pairs
-
FEP Insulation · Flame Retardant PVC CMP/FT6 Jacket
-
CMP/FT6 Rated · C(ETL) Listed · TIA-568-C.2
-
600MHz · 10Gb to 165ft · PoE/PoE+ Support
-
Easy Pull Box · Spline Separator · Ripcord
Cat6 Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP FEP 600MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6 Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP FEP 600M...
Cat6 Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP FEP 600MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
-
𝐏𝐋𝐄𝐍𝐔𝐌 𝐂𝐄𝐑𝐓𝐈𝐅𝐈𝐄𝐃 𝐂𝐌𝐏/𝐅𝐓𝟔 CMP/FT6-rated jacket is approved for above-ceiling plenum spaces and also covers riser and in-wall runs in offices, schools, and commercial buildings.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent plenum installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐋𝐎𝐖 𝐒𝐌𝐎𝐊𝐄 FEP insulation handles plenum temperatures and produces less toxic smoke in a fire than standard PVC, meeting strict CMP flame requirements.
-
𝟔𝟎𝟎𝐌𝐇𝐳 𝟏𝟎𝐆𝐛 𝐏𝐄𝐑𝐅𝐎𝐑𝐌𝐀𝐍𝐂𝐄 Supports Gigabit Ethernet at up to 328 feet and short-run 10Gb at up to 165 feet with 600MHz bandwidth and PoE/PoE+ compatibility.
-
𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 1000ft Reelex II easy pull box with spline separator, ripcord, and sequential footage markings for tangle-free payout and clean terminations.
Description
Description
Cat6 CMP-rated plenum ethernet cable for installation in air-handling spaces above drop ceilings and below raised floors. CMP/FT6 is the highest indoor fire rating — covers plenum, riser, and in-wall installations. Supports Gigabit Ethernet at up to 328 feet and short-run 10Gb at up to 165 feet with 600MHz bandwidth, PoE and PoE+ (IEEE 802.3af/at).
FEP insulation handles elevated temperatures and produces less toxic smoke than standard PVC. Built-in spline separator, ripcord for clean termination, sequential foot markings. Nominal OD: 0.236 in. Weight: 31 lbs per 1000ft. NVP: 70%.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 U/UTP (Unshielded)
• Insulation: FEP · Jacket: FR-PVC CMP/FT6
• Separator: Yes · Ripcord: Yes · OD: 0.236 in. · Weight: 31 lbs · NVP: 70%
• Performance: 600MHz · 10Gb to 165ft · PoE/PoE+ IEEE 802.3af/at
• Packaging: 1000ft Reelex II
• Colors: White, Blue, Gray, Black, Green, Red, Yellow · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
