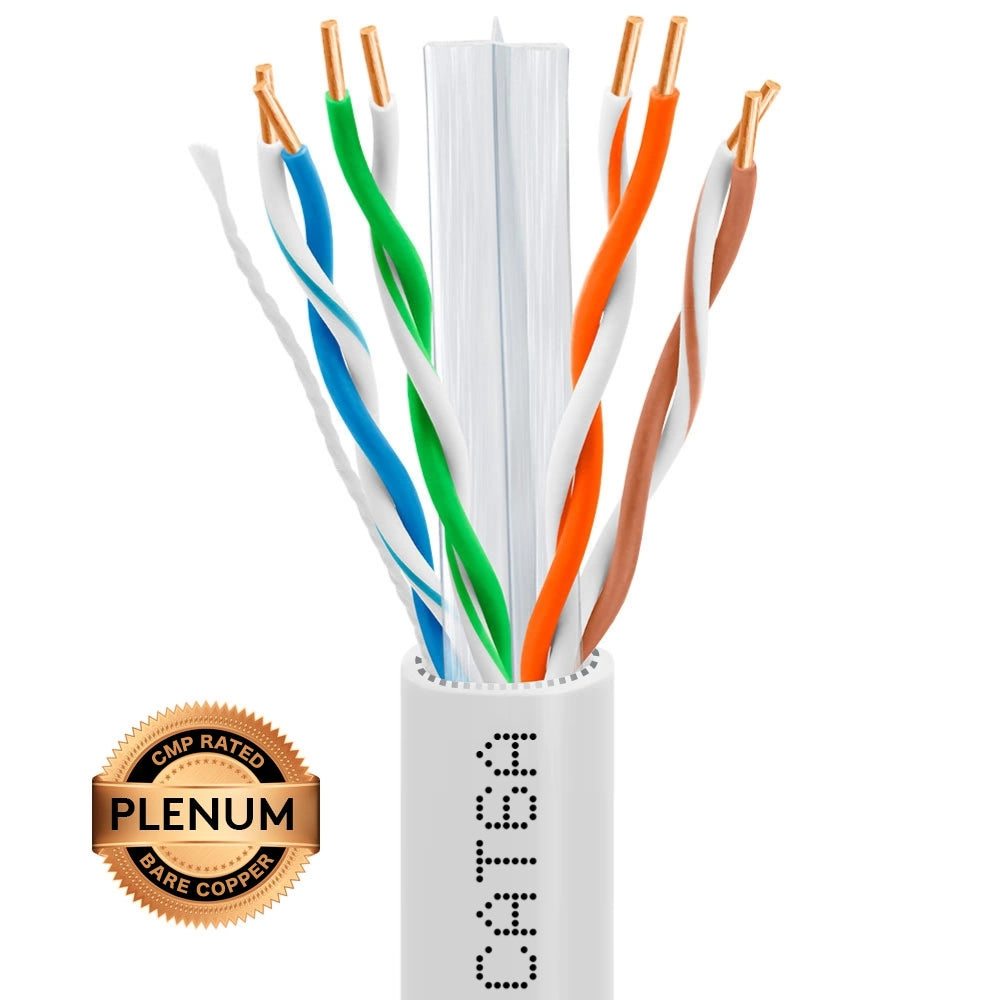

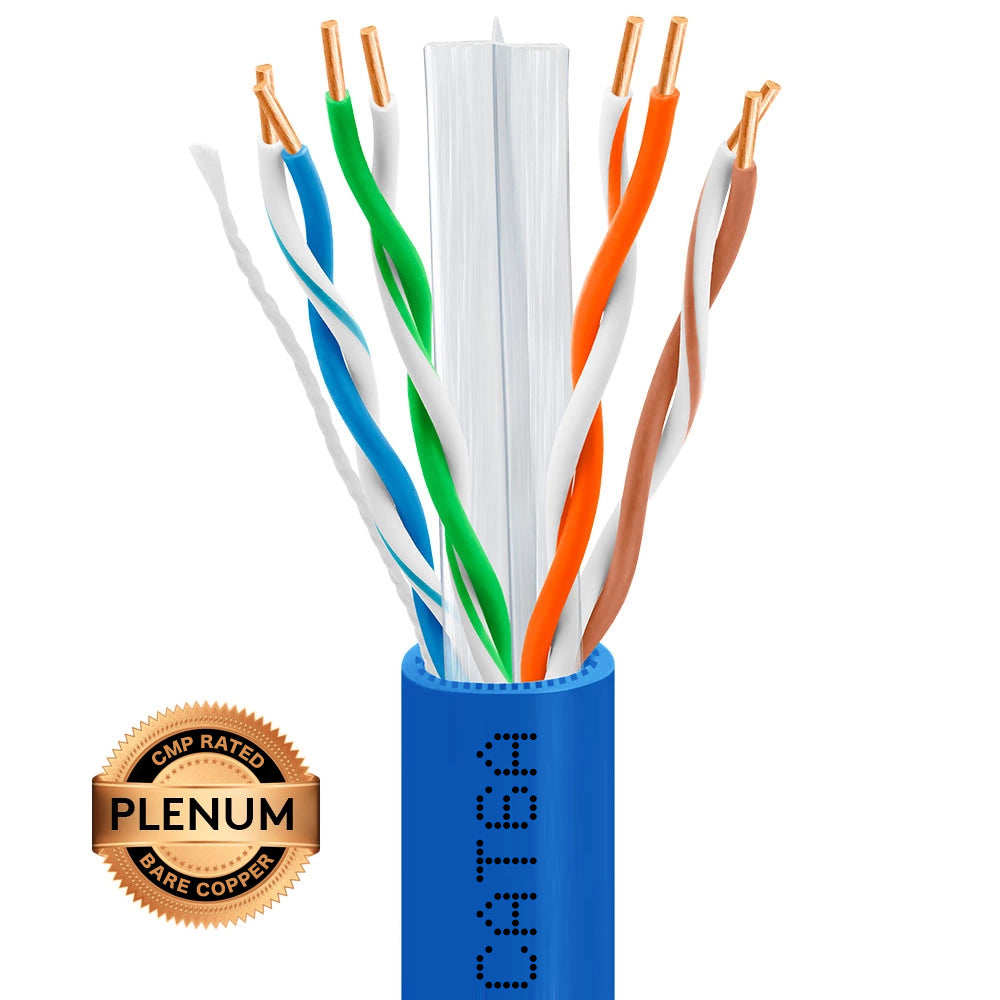

Cat6A Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP 750MHz 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
FEP Insulation · Flame Retardant PVC Jacket
-
CMP/FT6 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · OD 0.3543 in. · NVP 69%
-
Spline Separator · Rip Cord · RIB Easy Pull Box
Cat6A Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP 750MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP 750MHz ...
Cat6A Ethernet Cable CMP Plenum 23AWG Solid Bare Copper UTP 750MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
-
𝐂𝐎𝐃𝐄-𝐑𝐄𝐐𝐔𝐈𝐑𝐄𝐃 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 CMP/FT6 jacket is required by fire code for air-handling spaces above drop ceilings — and also covers CMR and every lower-rated installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 FEP produces significantly less toxic smoke than FR-PVC and meets the stricter flame spread requirements that make it essential in plenum air spaces.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver superior conductivity and reliable 10G performance at 750MHz — across every run in the plenum installation.
-

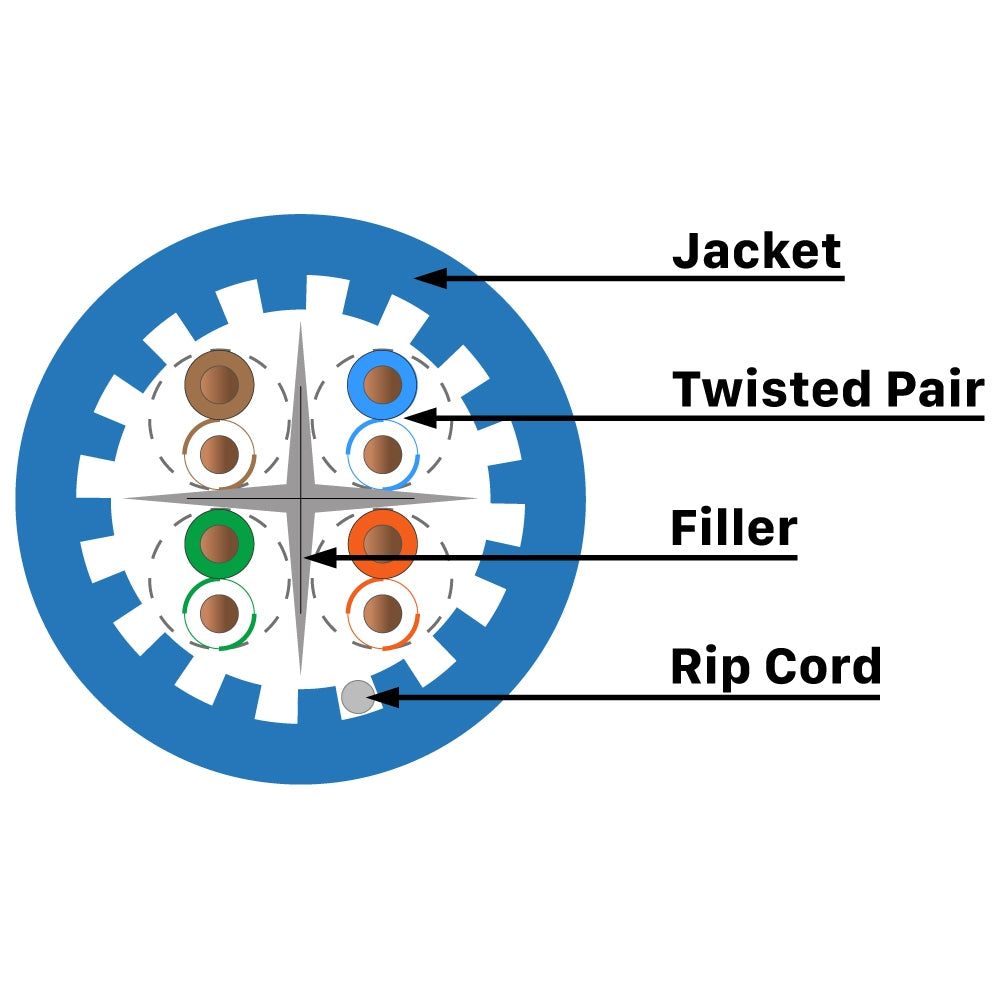

𝐒𝐏𝐋𝐈𝐍𝐄 𝐂𝐔𝐓𝐒 𝐂𝐑𝐎𝐒𝐒𝐓𝐀𝐋𝐊 Built-in spline separator reduces NEXT and Alien Crosstalk in dense above-ceiling bundles and crowded data closets where signal integrity matters.
-

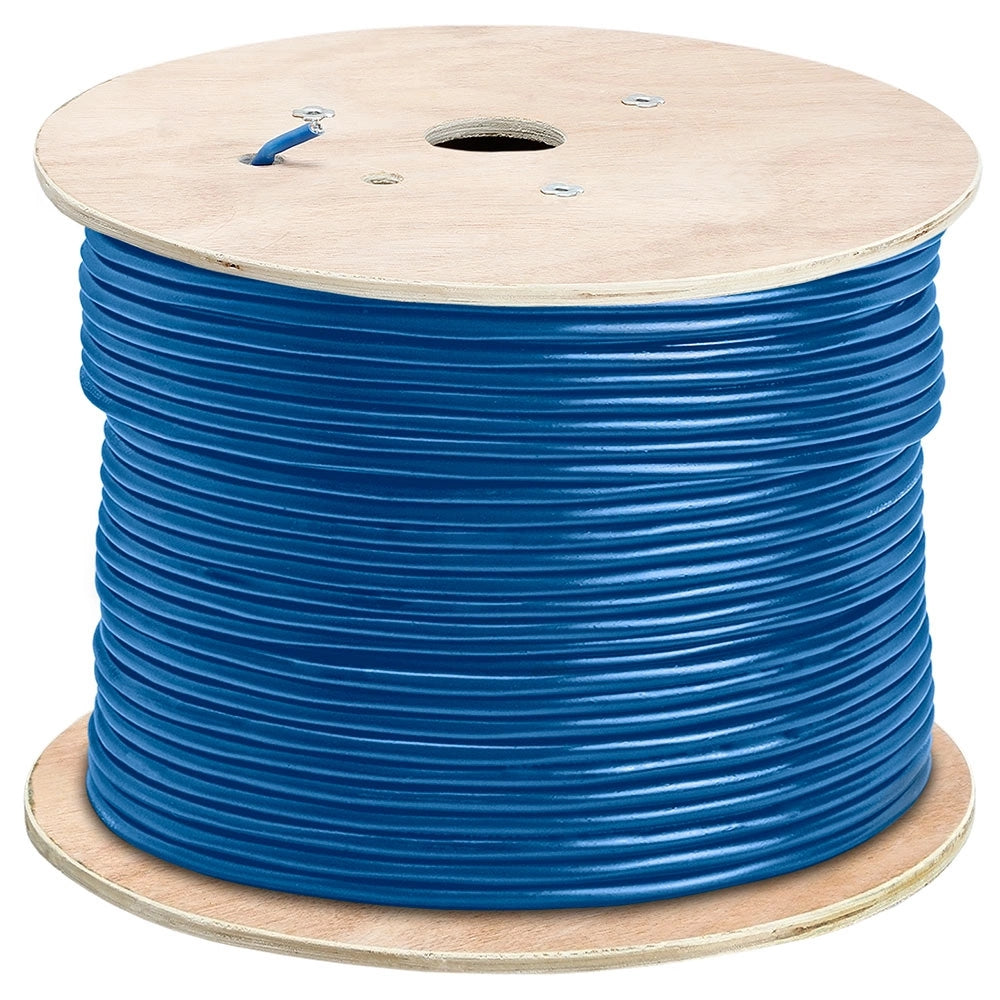

𝐑𝐈𝐁 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 1000ft Reel-In-Box with rip cord and sequential footage markings for fast jacket removal, accurate pulls, and tangle-free payout on every job.
Description
Description
Cat6A (Augmented Category 6) CMP-rated plenum ethernet cable required by code for installation in air-handling spaces — above drop ceilings and below raised access floors. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz. CMP/FT6 is the highest indoor fire rating — substitutes for CMR or lower anywhere in the building.
FEP (Fluorinated Ethylene Propylene) insulation is the key difference from riser cable: FEP produces significantly less toxic smoke and meets the stricter flame spread requirements of plenum air-handling spaces. 23AWG solid bare copper conductors. Spline separator reduces NEXT and Alien Crosstalk (AXT). Rip cord for clean jacket removal. FR-PVC outer jacket. OD: 0.3543 in. Weight: 41 lbs per 1000ft. NVP: 69%.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: 23 AWG Solid Bare Copper · Pairs: 4 UTP
• Insulation: FEP · Jacket: FR-PVC CMP/FT6
• OD: 0.3543 in. · Weight: 41 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T · Spline Separator: Yes · Rip Cord: Yes
• Packaging: 1000ft RIB (Reel-In-Box)
• Colors: Blue, Black, Grey, Green, White, Yellow · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
