Cat6 Ethernet Cable CMR Riser Shielded 23AWG Solid Bare Copper 600MHz 1000ft
-
23AWG Solid Bare Copper · 4 Shielded Twisted Pairs
-
HDPE Insulation · Flame Retardant PVC Jacket
-
AL-Foil F/UTP Shield · Blocks EMI and Crosstalk
-
CMR/FT4 Rated · C(ETL) Listed · ANSI/TIA-568-C.2
-
600MHz · 10Gb to 165ft · Spline Separator · Ripcord
Cat6 Ethernet Cable CMR Riser Shielded 23AWG Solid Bare Copper 600MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6 Ethernet Cable CMR Riser Shielded 23AWG Solid Bare Copper 600M...
Cat6 Ethernet Cable CMR Riser Shielded 23AWG Solid Bare Copper 600MHz 1000ft - Yellow is backordered and will ship as soon as it is back in stock.
-
𝐂𝐌𝐑 𝐑𝐈𝐒𝐄𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐓𝟒 CMR/FT4-rated jacket is approved for in-wall and vertical between-floor installations in offices, residential buildings, and commercial spaces.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐄𝐌𝐈 𝐒𝐇𝐈𝐄𝐋𝐃 𝐅/𝐔𝐓𝐏 Overall aluminum foil shield blocks EMI and reduces crosstalk from electrical panels, HVAC, and industrial equipment in demanding environments.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent riser and in-wall installation.
-
𝐇𝐃𝐏𝐄 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 High-density polyethylene insulation provides corrosion and chemical resistance with solid-core performance over long-distance runs.
-

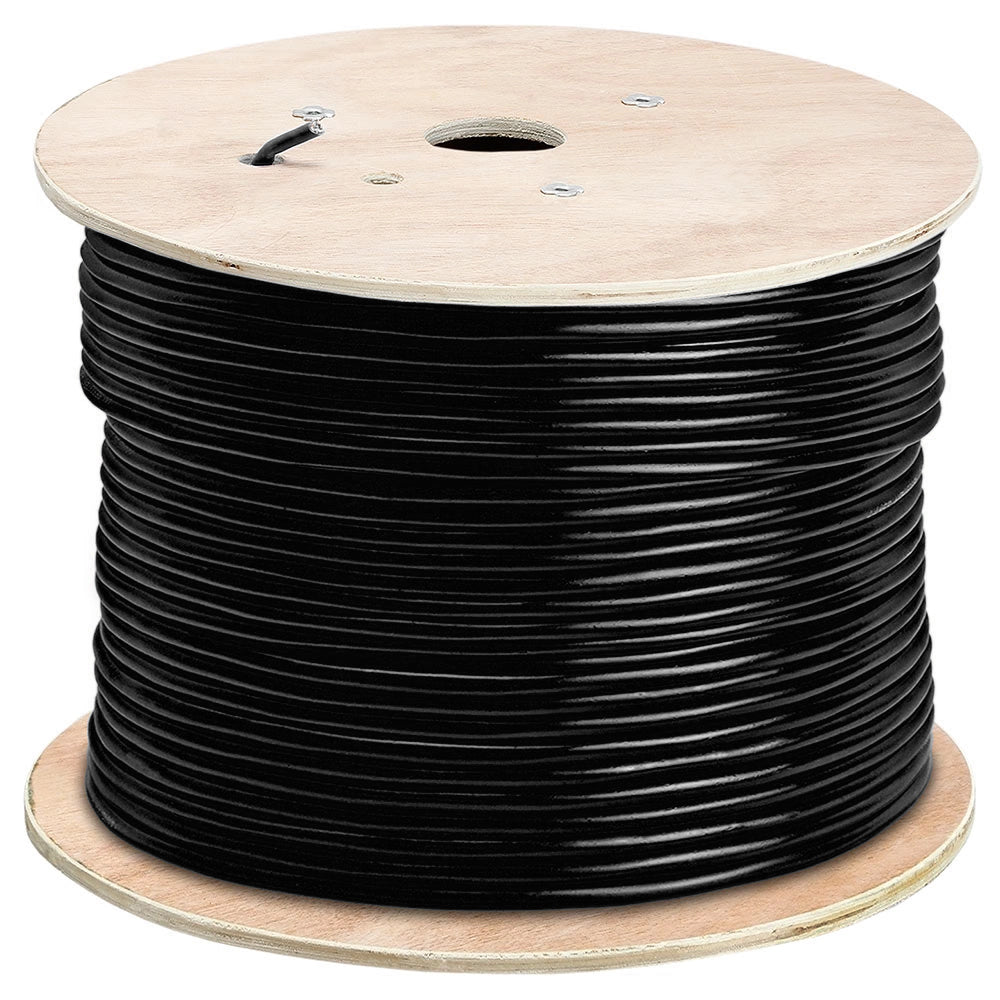

𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with spline separator, ripcord, and sequential footage markings for organized payout, clean jacket removal, and accurate cuts on the job.
Description
Description
Cat6 CMR-rated shielded riser ethernet cable for permanent in-wall and vertical between-floor installations in residential and commercial buildings. CMR/FT4 rated — approved for riser and in-wall runs. Supports Gigabit Ethernet at up to 328 feet and short-run 10Gb at up to 165 feet with 600MHz bandwidth.
Overall F/UTP aluminum foil shield blocks EMI and reduces crosstalk from electrical panels, HVAC, and industrial equipment. HDPE insulation provides corrosion and chemical resistance. FR-PVC outer jacket, spline separator, ripcord for clean termination, sequential foot markings. Nominal OD: 0.299 in. Weight: 37 lbs per 1000ft. NVP: 69%.
Note: Shielded cable requires shielded RJ45 connectors and proper grounding for full EMI protection.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.

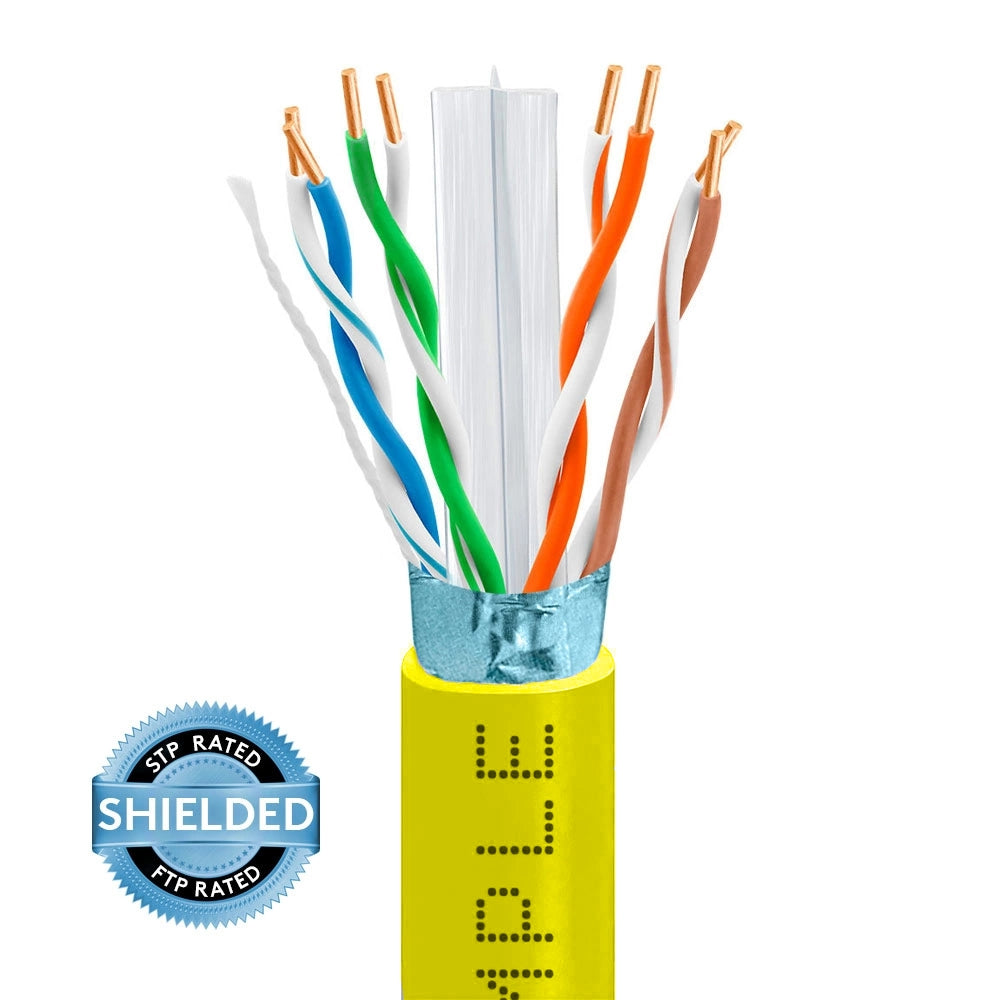

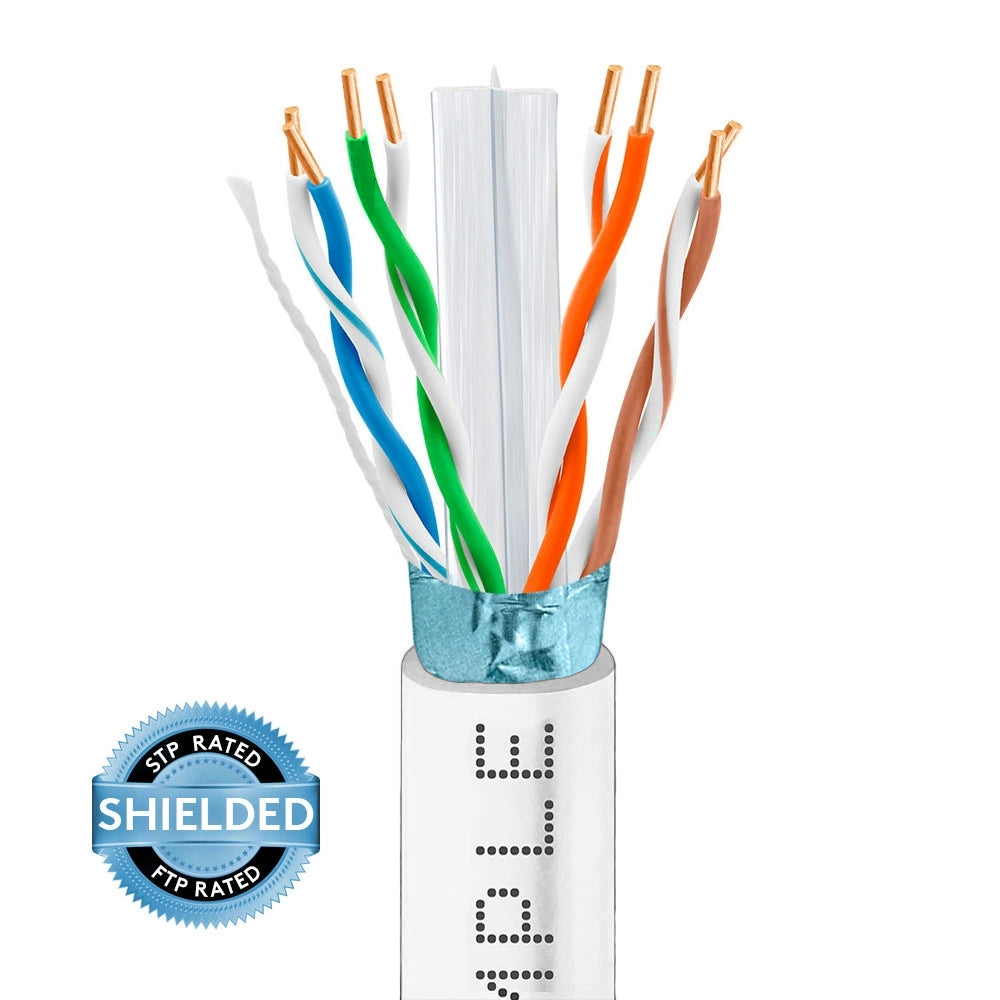

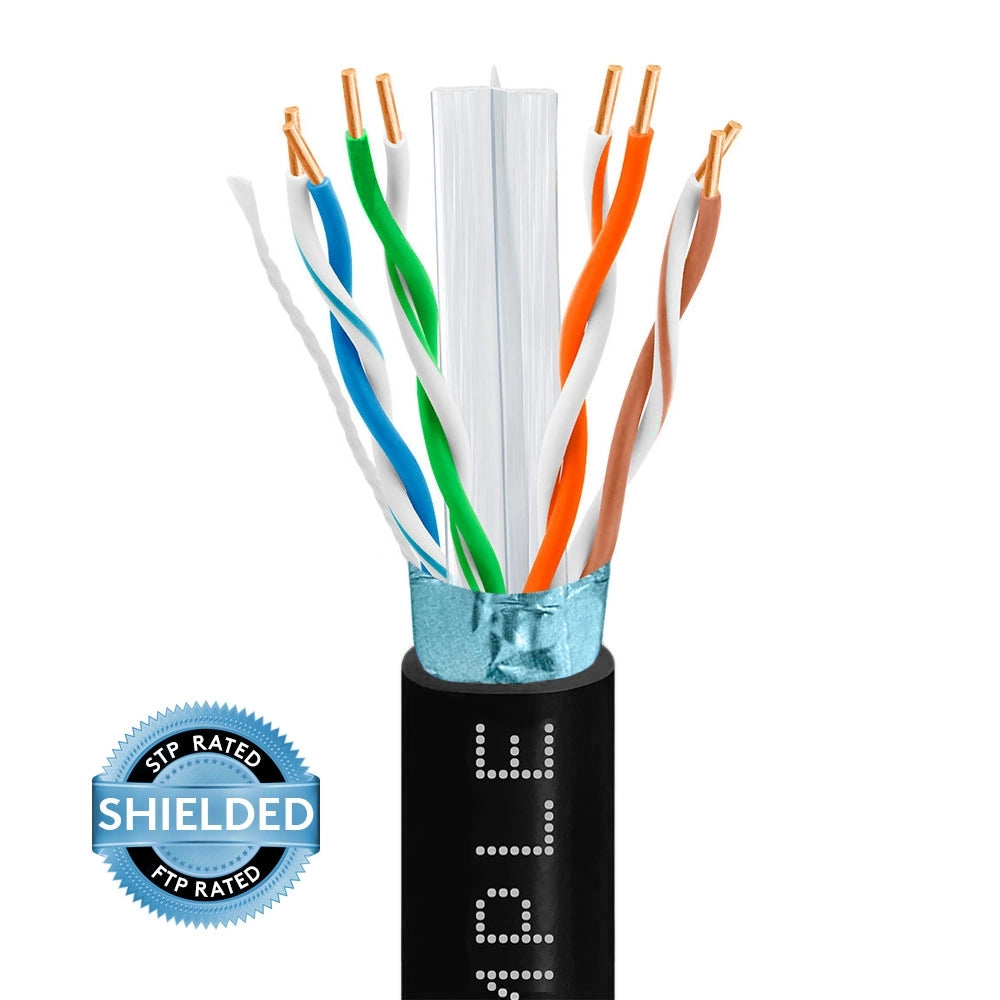

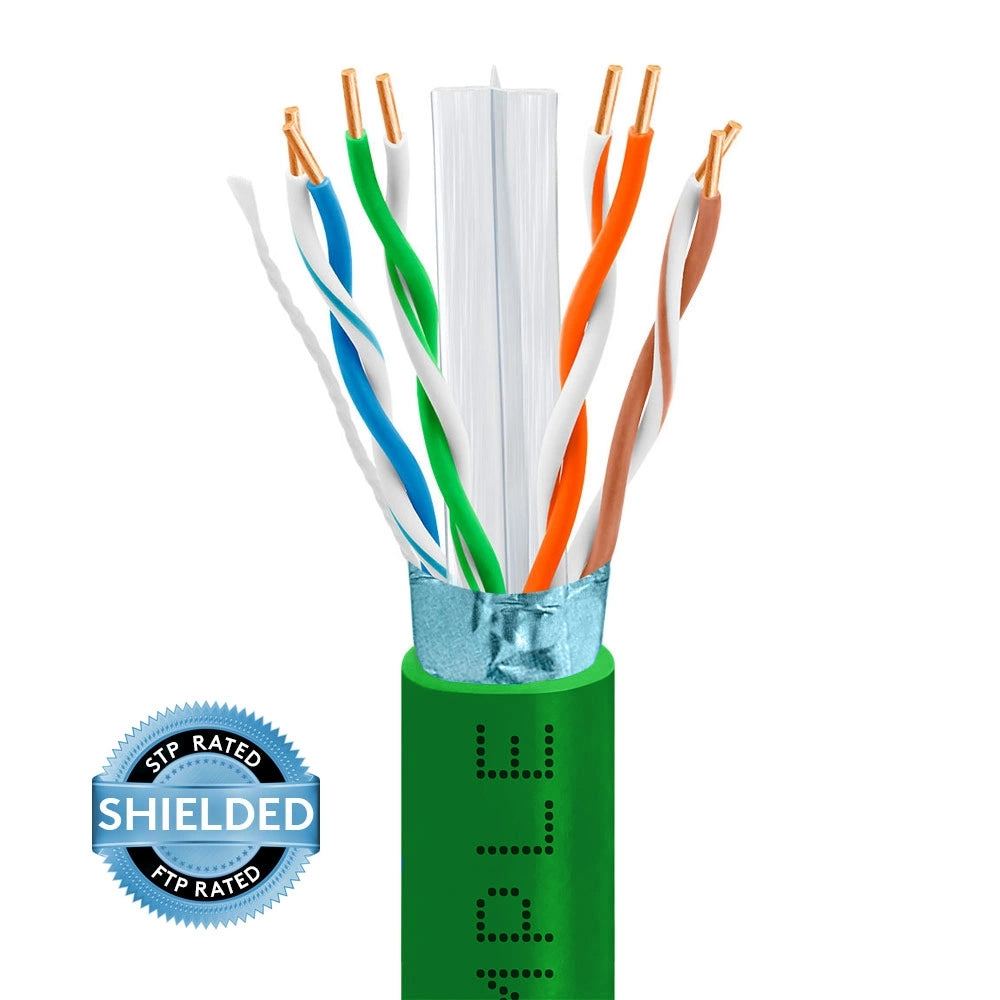

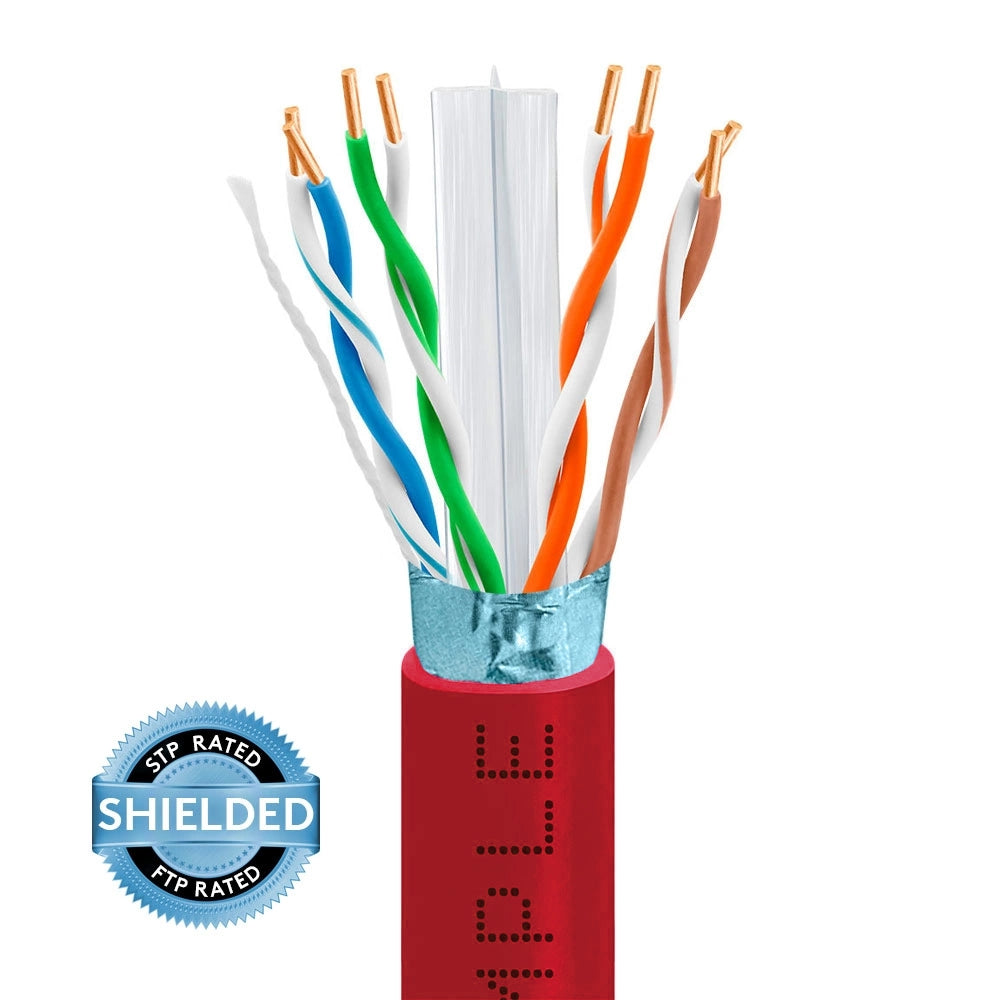

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 F/UTP (AL-Foil)
• Insulation: HDPE · Jacket: FR-PVC CMR/FT4
• Shielding: AL-Foil · Separator: Yes · Ripcord: Yes
• OD: 0.299 in. · Weight: 37 lbs · NVP: 69%
• Performance: 600MHz · 10Gb to 165ft
• Colors: Blue, Black, Gray, Green, Red, White, Yellow, Purple · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
MPN
