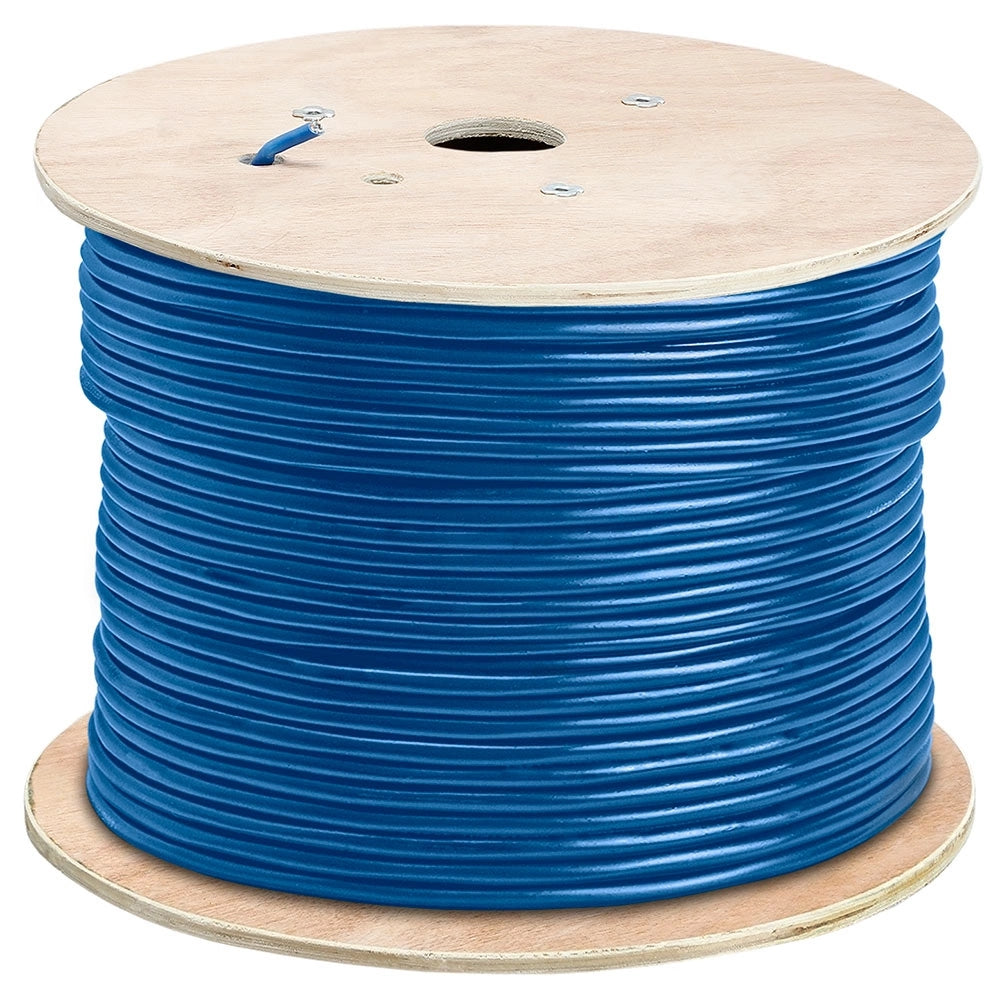

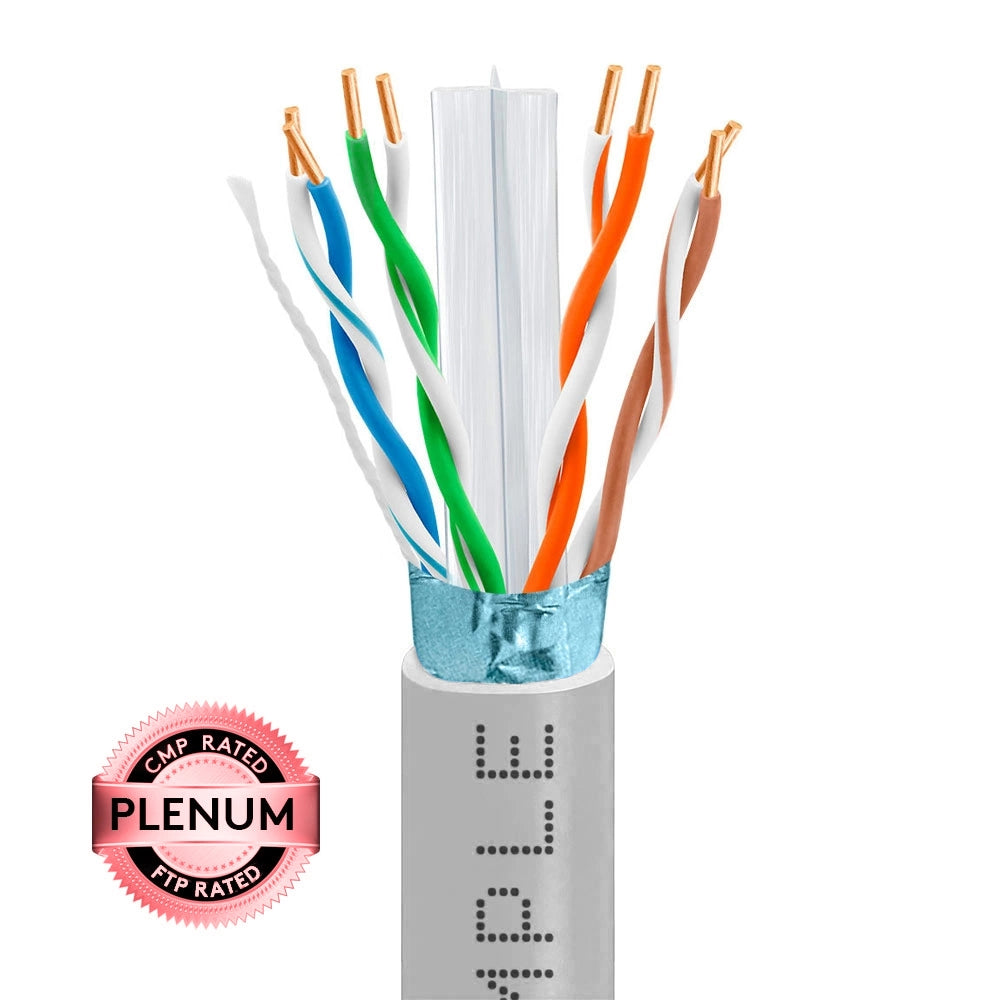

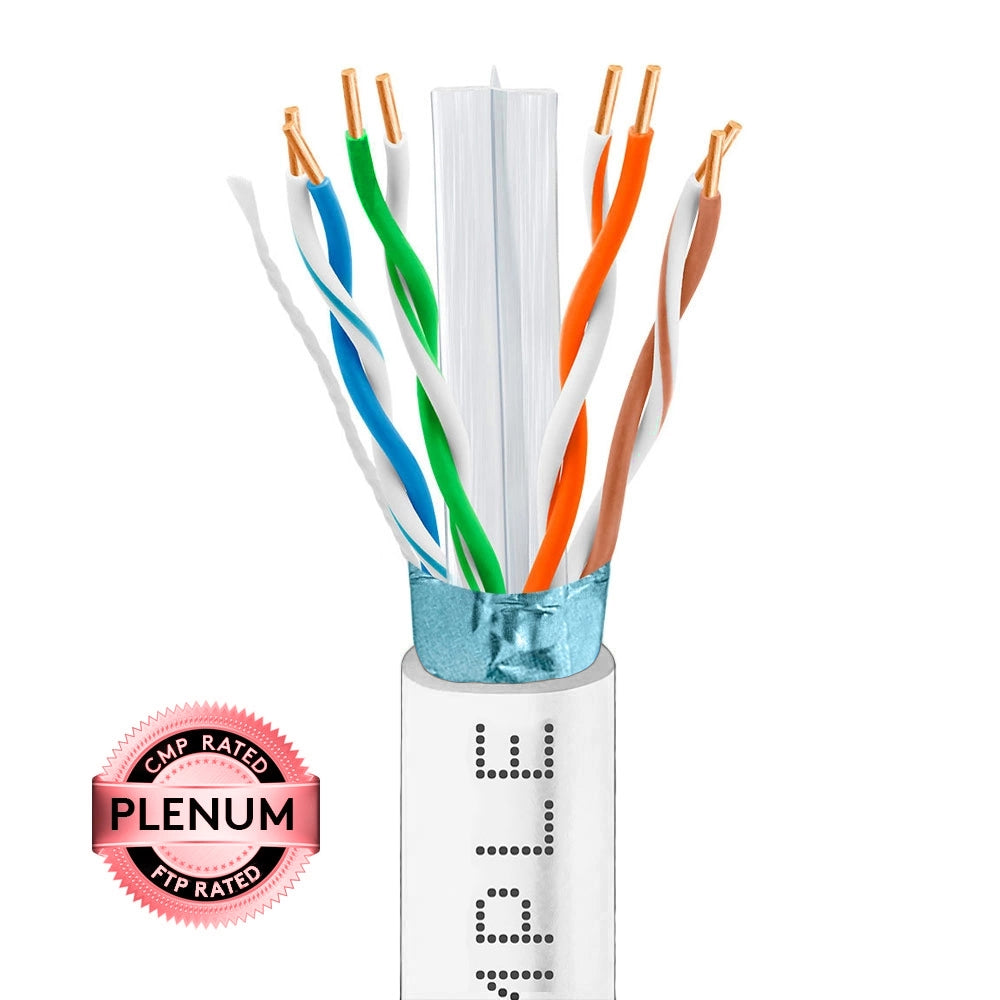

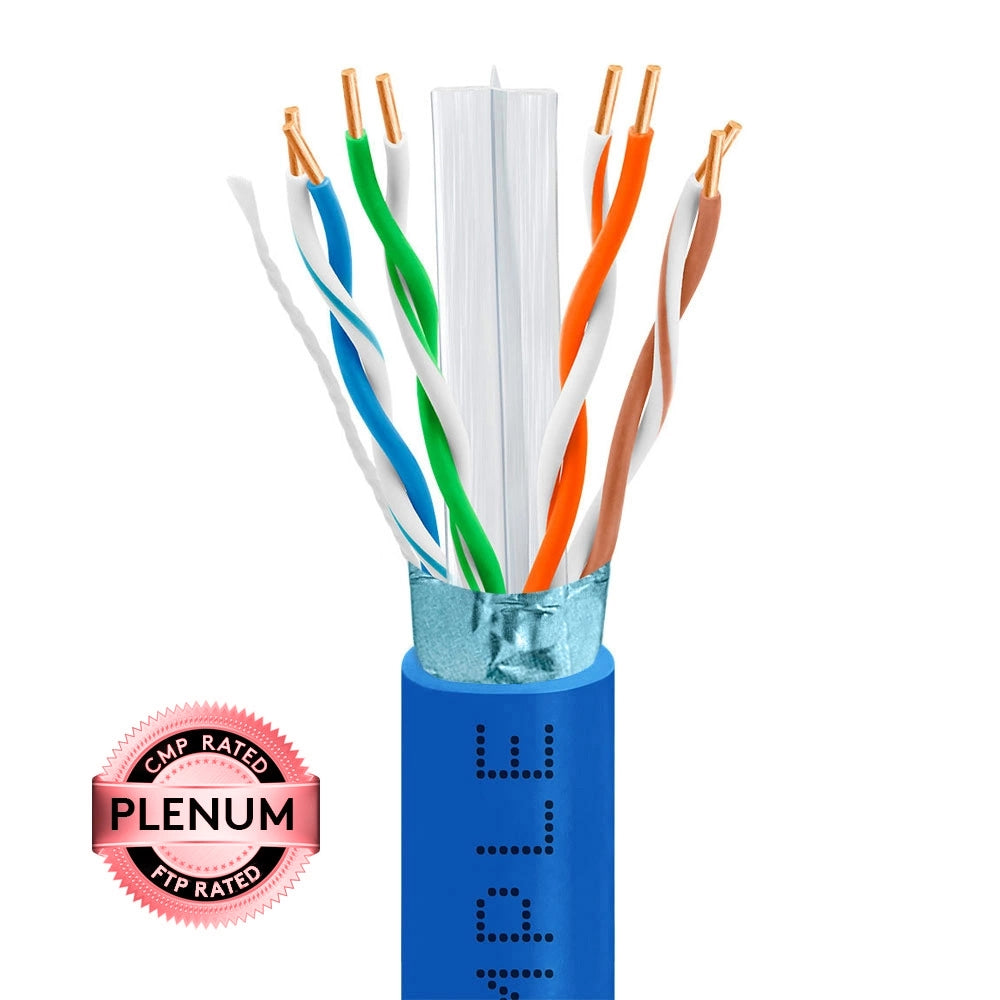

Cat6 Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 600MHz 1000ft
-
23AWG Solid Bare Copper · 4 Shielded Twisted Pairs
-
FEP Insulation · Low Smoke FR-PVC CMP/FT6 Jacket
-
AL-Foil F/UTP Shield · Blocks EMI and Crosstalk
-
C(ETL) Listed FT6 · TIA-568-C.2 · RoHS Compliant
-
600MHz · 10Gb to 165ft · Spline Separator · Ripcord
Cat6 Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 600MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6 Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 600...
Cat6 Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 600MHz 1000ft - White is backordered and will ship as soon as it is back in stock.
-
𝐏𝐋𝐄𝐍𝐔𝐌 𝐂𝐄𝐑𝐓𝐈𝐅𝐈𝐄𝐃 𝐂𝐌𝐏/𝐅𝐓𝟔 CMP/FT6-rated jacket is approved for above-ceiling plenum spaces and also covers riser and in-wall runs in commercial buildings and offices.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐄𝐌𝐈 𝐒𝐇𝐈𝐄𝐋𝐃 𝐅/𝐔𝐓𝐏 Overall aluminum foil shield blocks EMI and reduces crosstalk from HVAC, electrical panels, and dense cable runs in commercial environments.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent plenum installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐋𝐎𝐖 𝐒𝐌𝐎𝐊𝐄 FEP insulation handles plenum temperatures and produces less toxic smoke in a fire than standard PVC, meeting strict CMP flame requirements.
-
𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with spline separator, ripcord, and sequential footage markings for organized payout, clean jacket removal, and accurate cuts.
Description
Description
Cat6 CMP-rated shielded plenum ethernet cable for air-handling spaces above drop ceilings and below raised floors. CMP/FT6 is the highest indoor fire rating — covers plenum, riser, and in-wall installations. Supports Gigabit Ethernet at up to 328 feet and short-run 10Gb at up to 165 feet with 600MHz bandwidth.
Overall F/UTP aluminum foil shield blocks EMI and reduces crosstalk from HVAC, electrical panels, and dense cable runs. FEP insulation handles elevated temperatures and produces less toxic smoke. Built-in spline separator, ripcord for clean termination, sequential foot markings. Nominal OD: 0.311 in. Weight: 49 lbs per 1000ft. NVP: 69%.
Note: Shielded cable requires shielded RJ45 connectors and proper grounding for full EMI protection.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 F/UTP (AL-Foil Shielded)
• Insulation: FEP · Jacket: Low Smoke FR-PVC CMP/FT6
• Shielding: AL-Foil · Separator: Yes · Ripcord: Yes
• OD: 0.311 in. · Weight: 49 lbs · NVP: 69%
• Performance: 600MHz · 10Gb to 165ft
• Colors: Blue, Gray, White · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
