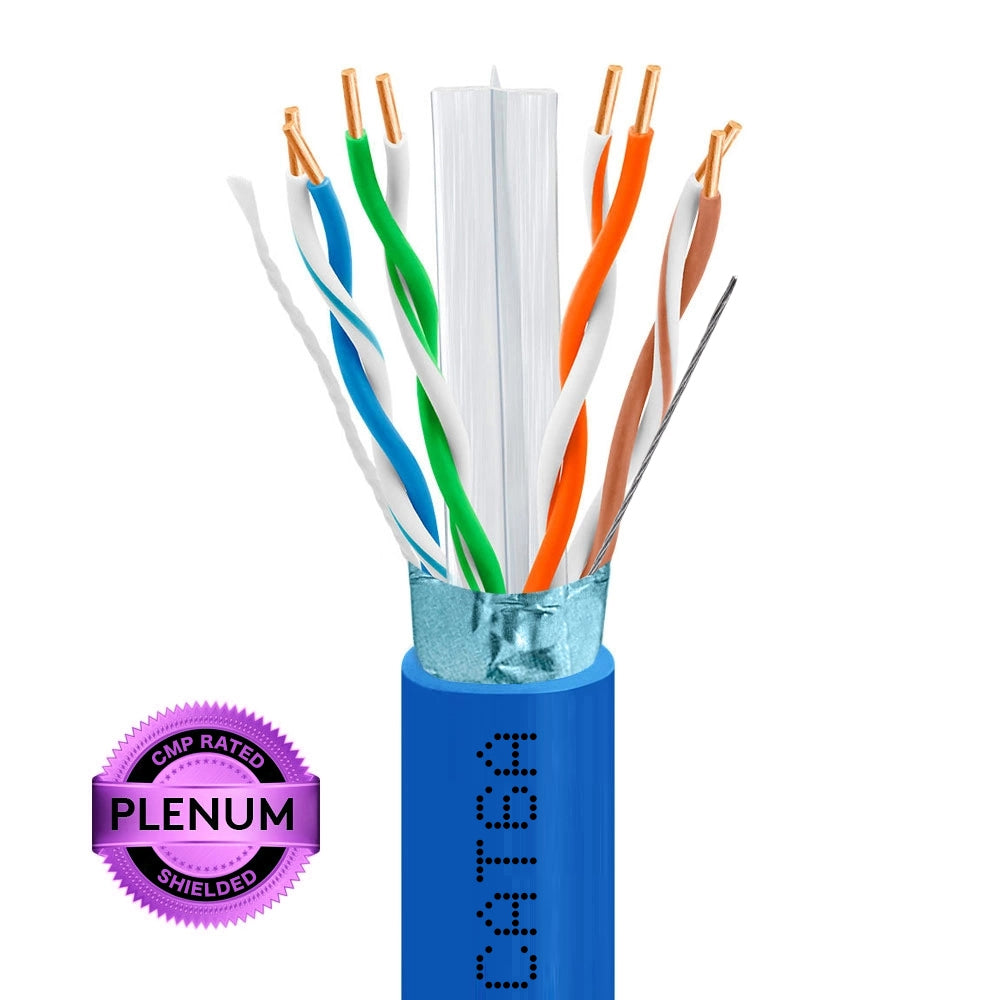

Cat6A Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 750MHz 1000ft
-
23AWG Solid Bare Copper · 4 Shielded Pairs
-
FEP Insulation · Flame Retardant PVC Jacket
-
AL-Foil FTP Shield + Drain Wire · FEP Ins.
-
CMP/FT6 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · OD 0.3153 in. · NVP 69%
Cat6A Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 750MHz 1000ft - Blue is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 75...
Cat6A Ethernet Cable CMP Plenum Shielded 23AWG Solid Bare Copper 750MHz 1000ft - Blue is backordered and will ship as soon as it is back in stock.
-
𝐂𝐎𝐃𝐄-𝐑𝐄𝐐𝐔𝐈𝐑𝐄𝐃 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 CMP/FT6 jacket is required by fire code for air-handling spaces above drop ceilings — and also covers CMR and every lower-rated installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 FEP produces significantly less toxic smoke than FR-PVC and meets the stricter CMP flame spread requirements essential in plenum air-handling spaces.
-
𝐒𝐇𝐈𝐄𝐋𝐃𝐒 𝐄𝐌𝐈 𝐀𝐁𝐎𝐕𝐄 𝐂𝐄𝐈𝐋𝐈𝐍𝐆 AL-foil and drain wire block EMI from HVAC, motors, and dense wiring in the plenum space where unshielded Cat6A UTP would degrade signal integrity.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver superior conductivity and reliable 10G performance at 750MHz — across every shielded plenum run, every time.
-

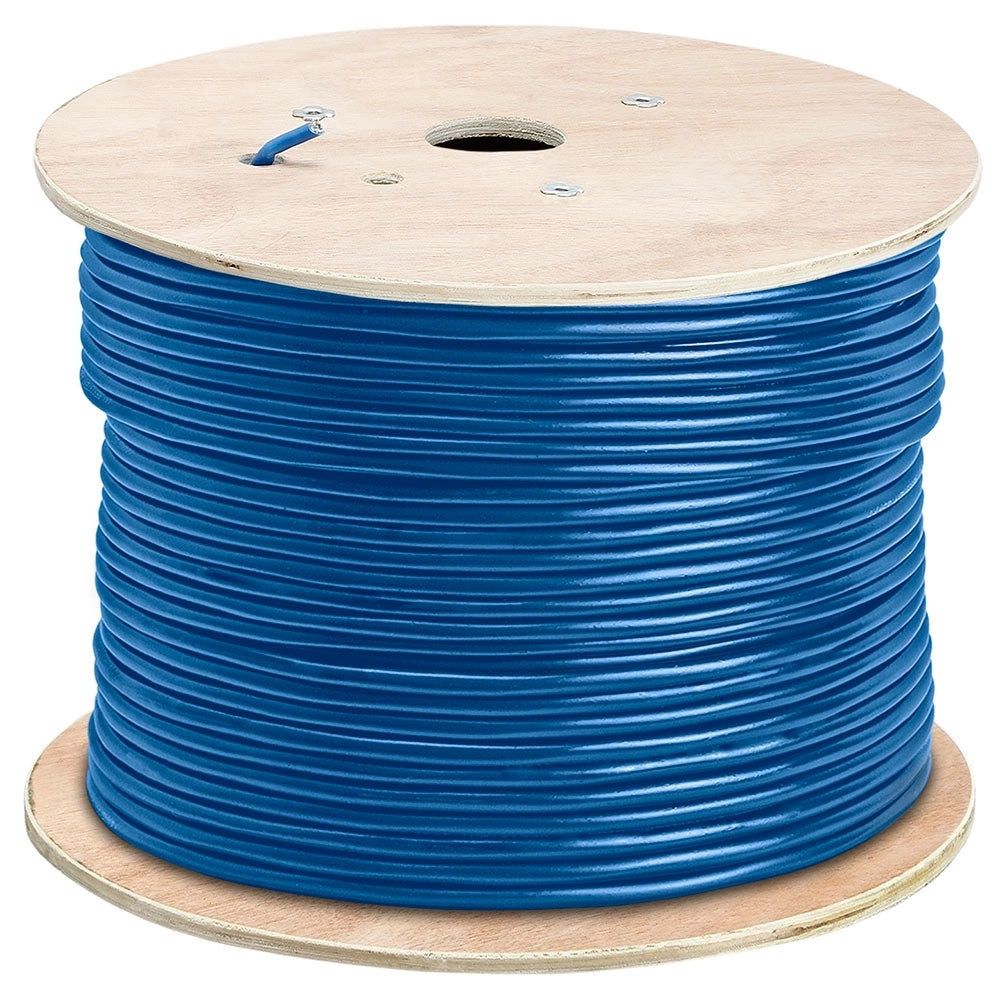

𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with spline separator, rip cord, and sequential footage markings. Requires shielded RJ45 connectors and proper grounding at both ends.
Description
Description
Cat6A FTP shielded plenum cable combining aluminum foil shielding with CMP/FT6 fire certification — the most demanding Cat6A configuration for air-handling spaces with electromagnetic interference. Required by code for installation above drop ceilings and below raised floors. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz.

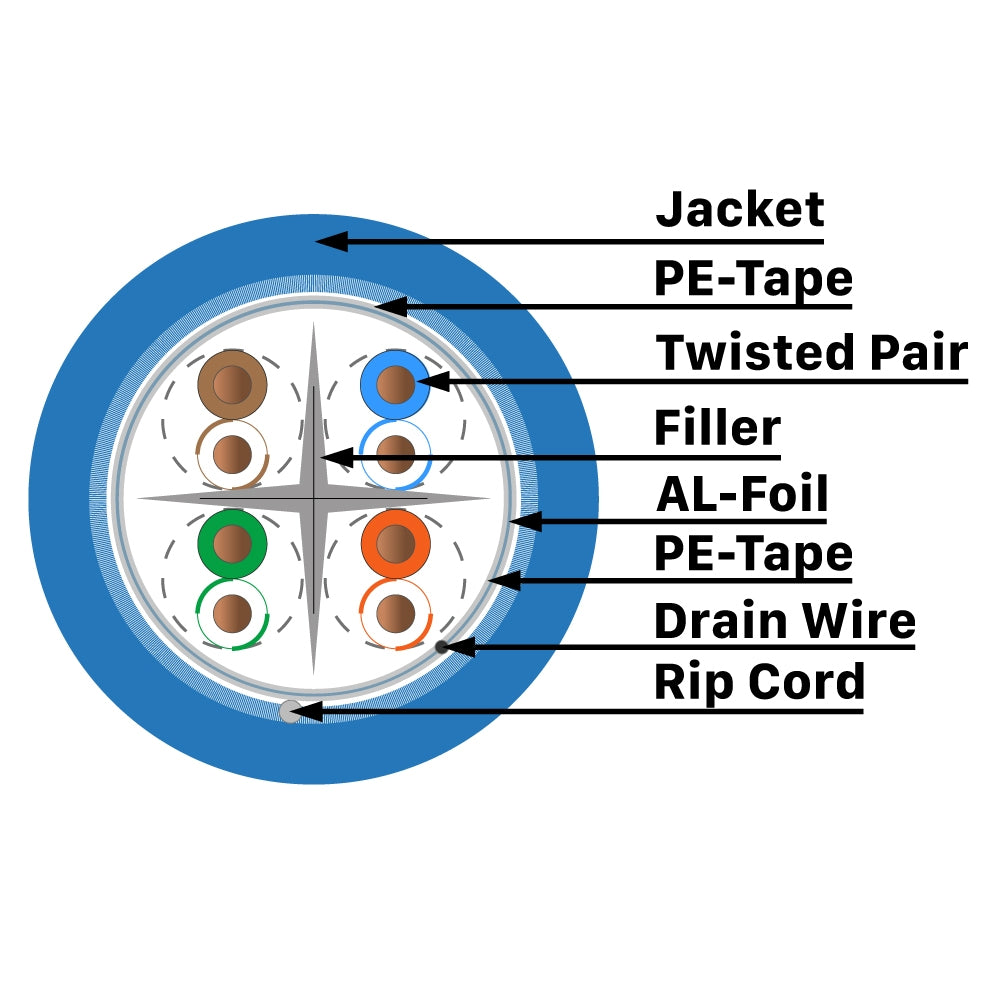

FEP (Fluorinated Ethylene Propylene) insulation produces significantly less toxic smoke in a fire than standard PVC and meets the stricter CMP flame-spread requirements. AL-foil wraps all four twisted pairs with a drain wire for full, groundable EMI shielding. 23AWG solid bare copper conductors. Spline separator reduces NEXT and Alien Crosstalk (AXT). Rip cord for clean jacket removal. FR-PVC outer jacket rated CMP/FT6. OD: 0.3153 in. Weight: 49 lbs per 1000ft. NVP: 69%.
Note: FTP cable requires shielded RJ45 connectors and proper grounding at both termination points.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: 23 AWG Solid Bare Copper · Pairs: 4 FTP
• Shield: AL-Foil + Drain Wire · Insulation: FEP
• Jacket: FR-PVC CMP/FT6 · OD: 0.3153 in. · Weight: 49 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T · Spline Separator: Yes · Rip Cord: Yes
• Packaging: 1000ft Reel
• Colors: Blue, White · Length: 1000ft
Specifications
Specifications
-
Cable Type
-
Bandwidth
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
