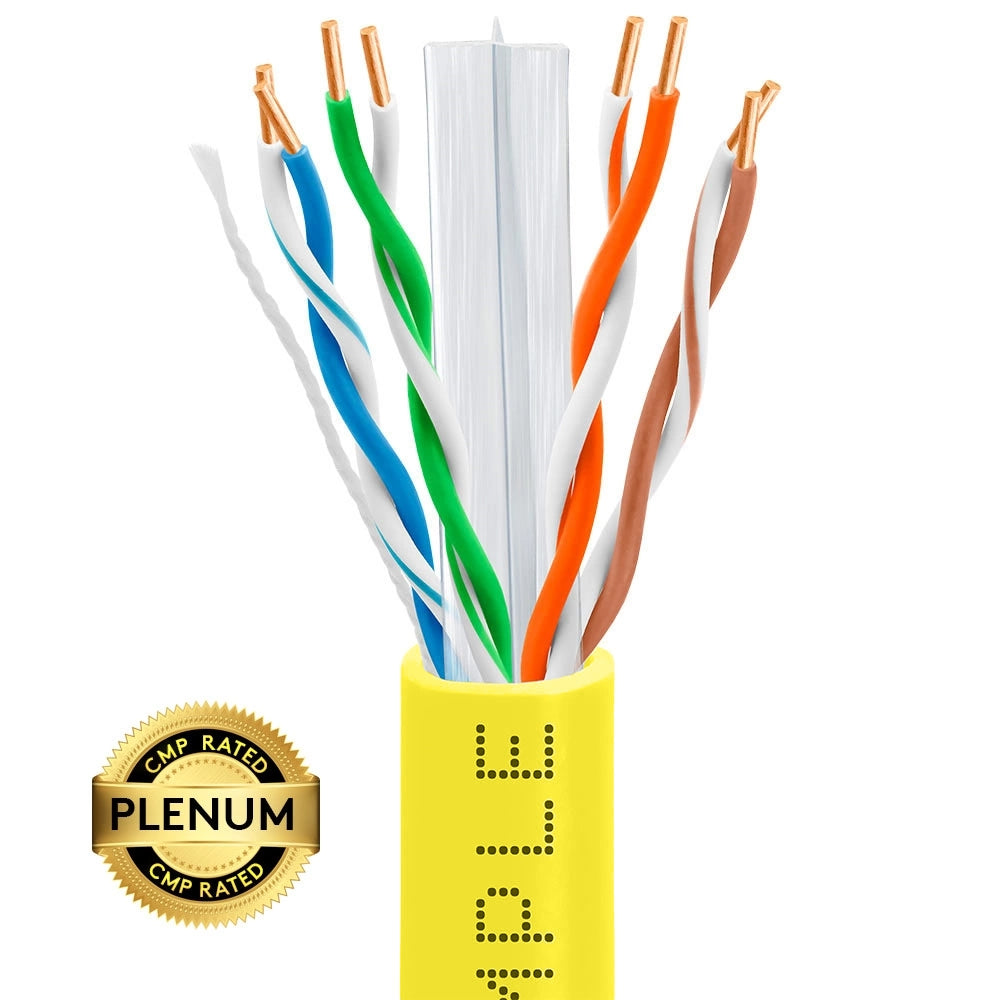

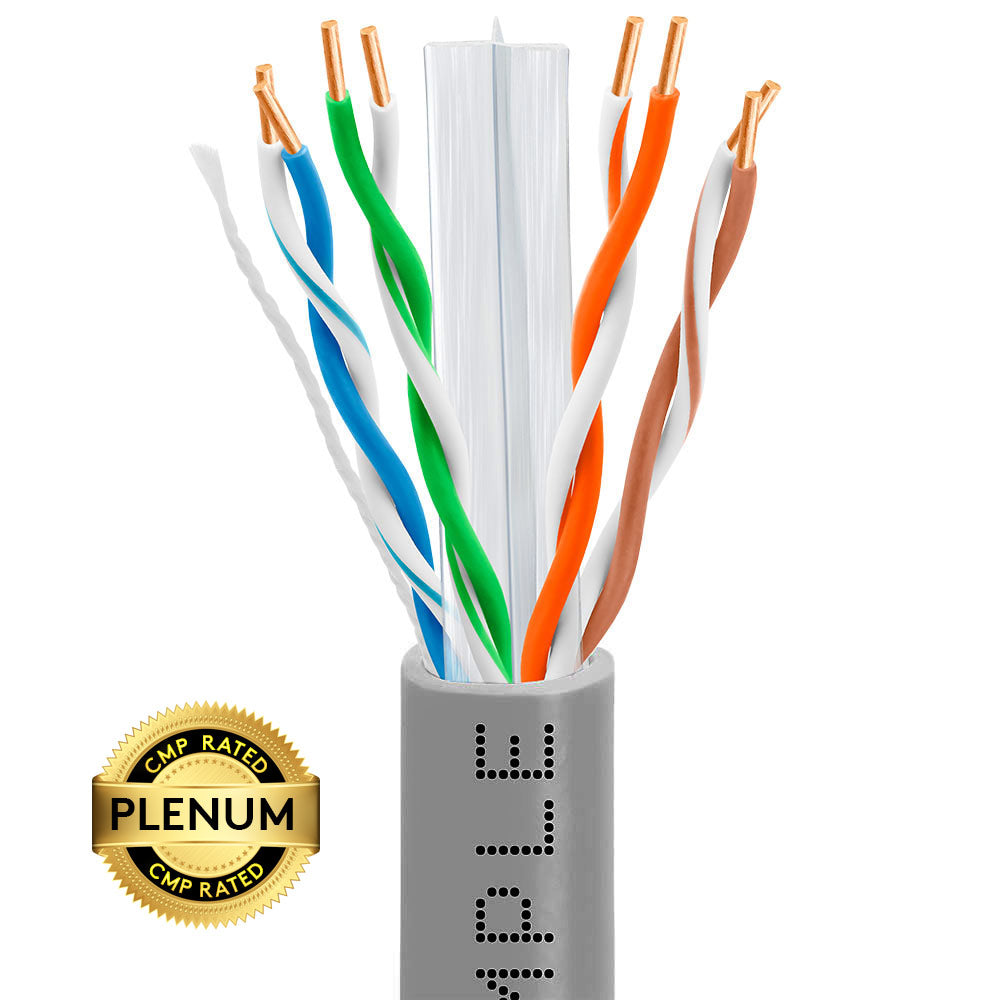

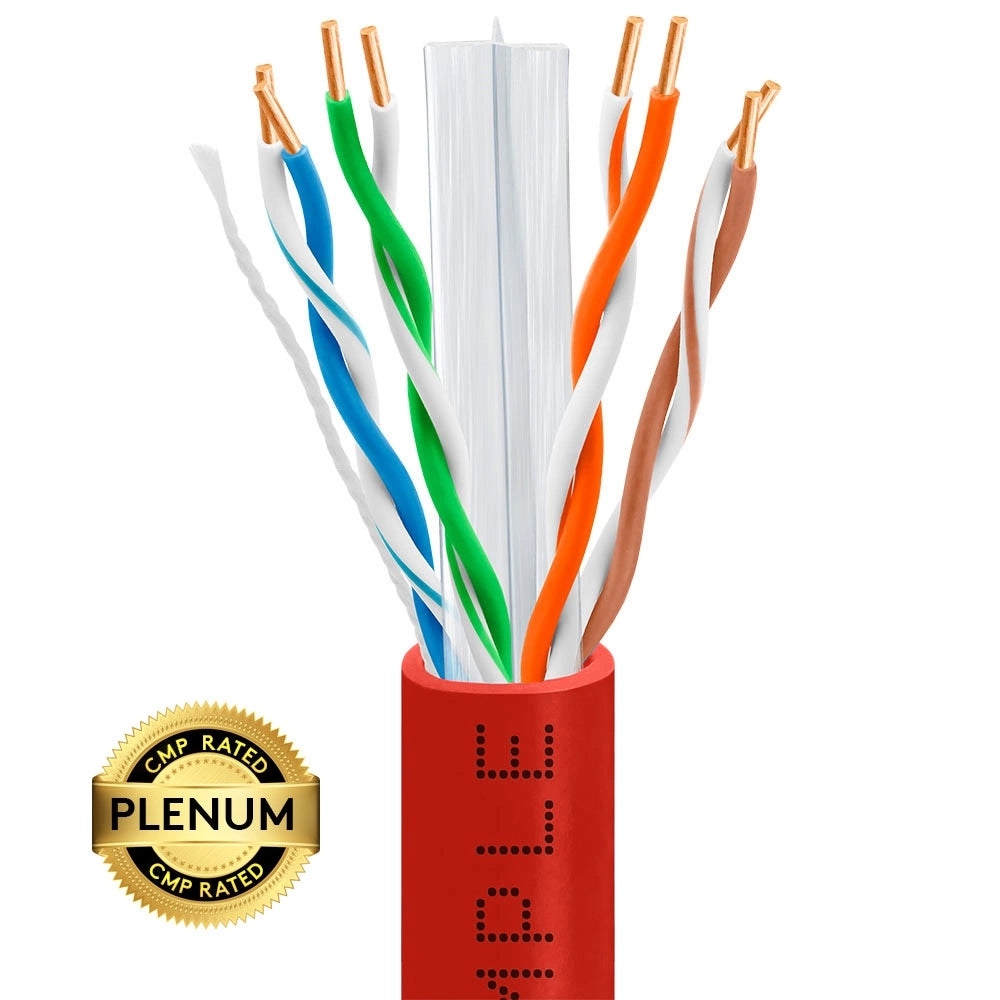

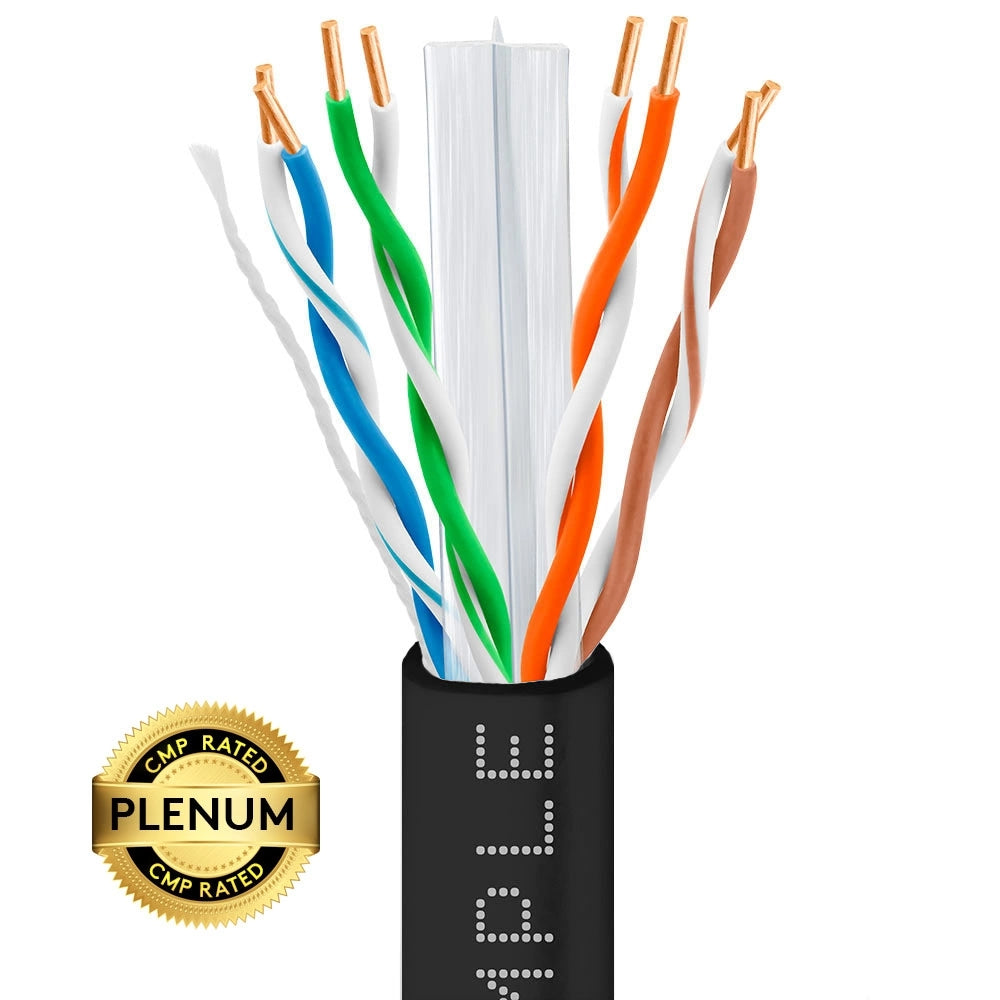

Cat6 Plenum Ethernet Cable Unshielded 550MHz Solid Copper 23AWG CMP 1000ft

When your cable runs through air-handling plenum spaces, the jacket rating isn’t optional — it’s code. This Cat6 Plenum (CMP) bulk Ethernet cable is built on solid bare copper conductors and rated CMP / FT6 for installation above suspended ceilings, below raised floors, and throughout open air spaces in residential and commercial buildings.

FEP-insulated conductors provide superior heat and flame resistance while keeping smoke toxicity low — exactly what plenum-rated installations demand. The integrated pair separator maintains proper spacing between all four twisted pairs, reducing crosstalk across the full 1,000-foot run. A built-in ripcord strips the jacket back cleanly at every termination point, while sequential foot markings let you track exactly how much cable remains on the reel.

C(ETL) Listed FT6 CMP · C(ETL)US Verified to TIA-568-C.2 · RoHS Compliant

Specifications:
• Cable Type: Cat6 Plenum (CMP) Ethernet Cable
• Length: 1,000 ft (305 m)
• Bandwidth: Up to 550 MHz
• Conductor: Solid Bare Copper, 23AWG
• Pairs: 4 Twisted Pairs (8 Conductors)
• Shielding: U/UTP (Unshielded)
• Insulation: FEP
• Jacket: Flame Retardant PVC, CMP / FT6 Rated
• Ethernet: 1000BASE-T up to 328 ft, short-run 10GBASE-T up to 180 ft
• Nominal OD: 0.236 in. (6.0 mm)
• Operating Temp: -20°C to +75°C
• NVP: 70%
• Colors: Black, Blue, Gray, Green, Red, White, Yellow

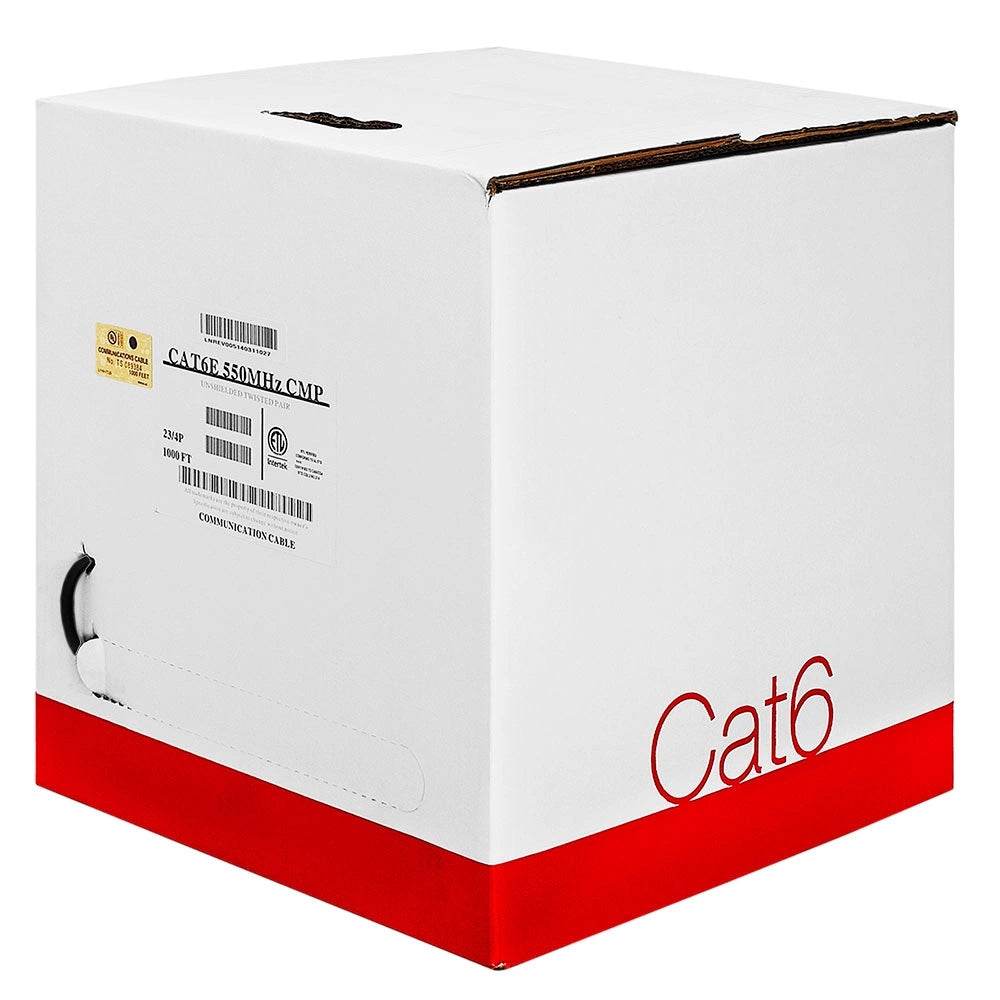

• Packaging: 1,000 ft reel-in-box (RIB) with foot-marked cable

Available in 7 jacket colors — the highest indoor fire safety rating for any structured cabling project.
