Cat6A Plenum CMP Ethernet Cable 23AWG Solid Bare Copper UTP 1000ft
-
CMP Rated – Highest Indoor Fire Safety Rating
-
FEP Insulation – Required for Plenum Spaces
-
23AWG Solid Bare Copper – 4 UTP Pairs
-
750MHz – 10G Base-T · ANSI/TIA-568-C.2
-
UL Verified CMP · C(UL) FT6 · RoHS
Cat6A Plenum CMP Ethernet Cable 23AWG Solid Bare Copper UTP 1000ft - White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Plenum CMP Ethernet Cable 23AWG Solid Bare Copper UTP 1000ft
Cat6A Plenum CMP Ethernet Cable 23AWG Solid Bare Copper UTP 1000ft - White is backordered and will ship as soon as it is back in stock.
-
PLENUM CERTIFIED CMP CMP-rated jacket is required by fire code for cables in air-handling plenum spaces above drop ceilings and below raised floors. No inspector issues.
-
REPLACES CMR ANYWHERE CMP is the highest indoor cable fire rating — use it in plenum spaces or anywhere CMR is specified. One cable spec for the entire building.
-
SOLID BARE COPPER QUALITY Every conductor is 23AWG solid bare copper — not aluminum-clad — for maximum signal strength and reliable 10G performance across the full 1000ft.
-
FUTURE-PROOF 10G NETWORK Cat6A delivers full 10 Gigabit performance in demanding plenum environments and keeps your network ahead of bandwidth growth for years to come.
-
6 COLORS ONE ORGANIZED CEILING Color-code above-ceiling runs by floor, department, or network function with Blue, Black, Grey, Green, White, and Yellow.
Description
Description
Cat6A (Augmented Category 6) CMP-rated plenum ethernet cable required by code for installation in air-handling spaces — above drop ceilings and below raised access floors where HVAC circulates. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz. CMP is the highest indoor fire rating and substitutes for CMR or lower anywhere in the building.

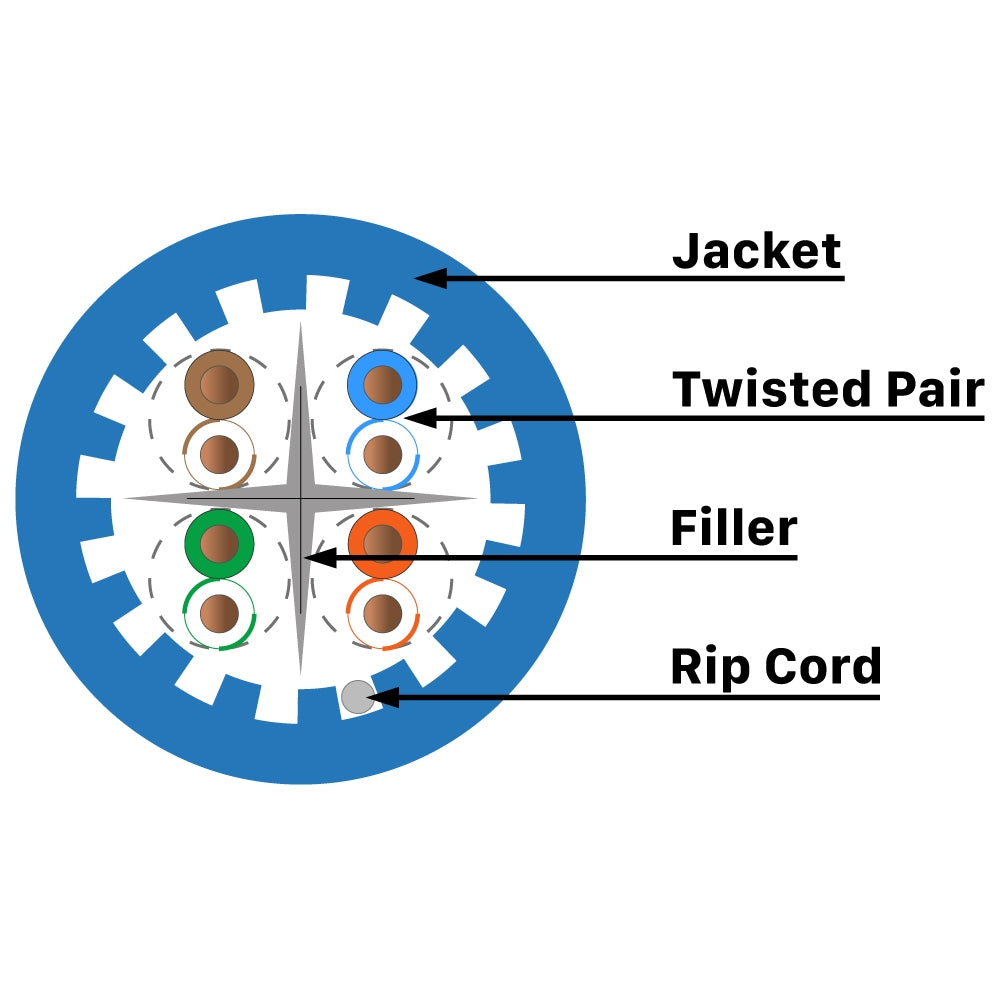

FEP (Fluorinated Ethylene Propylene) insulation is the key difference from riser cable. FEP produces significantly less toxic smoke and meets the stricter flame spread requirements that FR-PVC alone cannot satisfy in plenum air-handling spaces. 23AWG solid bare copper conductors. Spline separator between pairs reduces NEXT crosstalk. Rip cord for clean jacket removal. FR-PVC outer jacket rated CMP. OD 0.3543 in., 52 lbs per 1000ft reel.
• Conductor: 23 AWG Solid Bare Copper · 4 UTP pairs
• Insulation: FEP (Fluorinated Ethylene Propylene)
• Jacket: Flame Retardant PVC · CMP rated
• OD: 0.3543 in. · Weight: 52 lbs
• Performance: 750MHz · Spline Separator: Yes · Rip Cord: Yes
• Standards: UL Verified CMP · C(UL) FT6 · ANSI/TIA-568-C.2 · ISO/IEC 11801 · RoHS
• Colors: Blue, Black, Grey, Green, White, Yellow · Length: 1000ft
