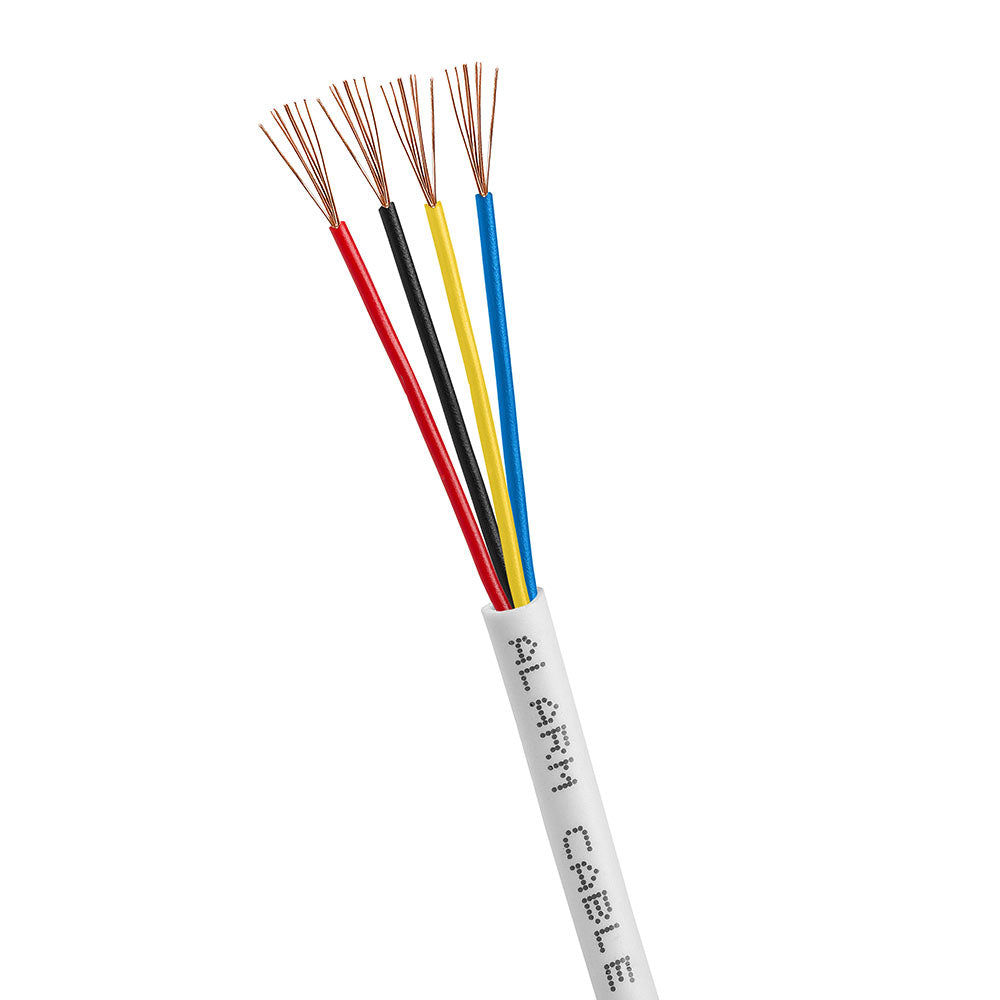

22/4 Alarm Security Wire Stranded Conductor Unshielded CMR 22AWG 500ft White
-
Stranded Bare Copper, 22AWG, 4 Conductors
-
PVC Insulation – Red, Black, White, Green
-
CMR / FT4 Rated PVC Jacket
-
C(ETL)US Listed · Class 2 Power Limited
-
OD 3.60mm · 300V RMS · 500ft Coil Pack
22/4 Alarm Security Wire Stranded Conductor Unshielded CMR 22AWG 500ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
22/4 Alarm Security Wire Stranded Conductor Unshielded CMR 22AWG 50...
22/4 Alarm Security Wire Stranded Conductor Unshielded CMR 22AWG 500ft White is backordered and will ship as soon as it is back in stock.
-
𝗦𝗧𝗥𝗔𝗡𝗗𝗘𝗗 𝗕𝗔𝗥𝗘 𝗖𝗢𝗣𝗣𝗘𝗥 Flexible 22AWG stranded conductors route easily through conduit and tight cabinet entries.
-
𝟰-𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥 𝗗𝗘𝗦𝗜𝗚𝗡 Powers and signals two zones over a single 4-conductor run without running separate pairs.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 CMR and FT4 rated for in-wall and riser installations in residential and commercial security.
-
𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Red, Black, White, and Green simplify termination at control panels and junction boxes.
-
𝟱𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 𝗣𝗔𝗖𝗞 500ft coil for mid-size alarm and access control system installations.
Description
Description
Wire your security system right the first time — with this 22/4 alarm security wire built on stranded bare copper conductors, rated CMR / FT4 for permanent in-wall and vertical riser installations. Stranded conductors provide the flexibility needed for security system wiring, making it easy to route through walls, conduit, and tight spaces without kinking or breaking.
Class 2 Power Limited rated, this cable is suitable for connecting sensors, motion detectors, door and window contacts, keypads, sirens, and control panels in security alarm systems. It is equally at home in home automation, intercom, and access control wiring. Four color-coded conductors (Red, Black, White, Green) simplify termination and prevent wiring errors on every installation.
C(ETL)US Listed · CMR / FT4 Rated · Class 2 Power Limited
Specifications:
• Cable Type: 22/4 Stranded Security Alarm Wire
• Conductors: 4 (Stranded Bare Copper)
• Wire Gauge: 22AWG (7/0.24mm)
• Insulation: PVC
• Insulation Colors: Red, Black, White, Green
• Jacket: PVC, CMR / FT4 Rated
• Jacket Color: White
• Overall Diameter: 3.60 mm (0.142 in.)
• Voltage Rating: 300V RMS
• Temperature Rating: 75°C
• Standard: Class 2 Power Limited Circuit
• Packaging: 500ft Coil Pack

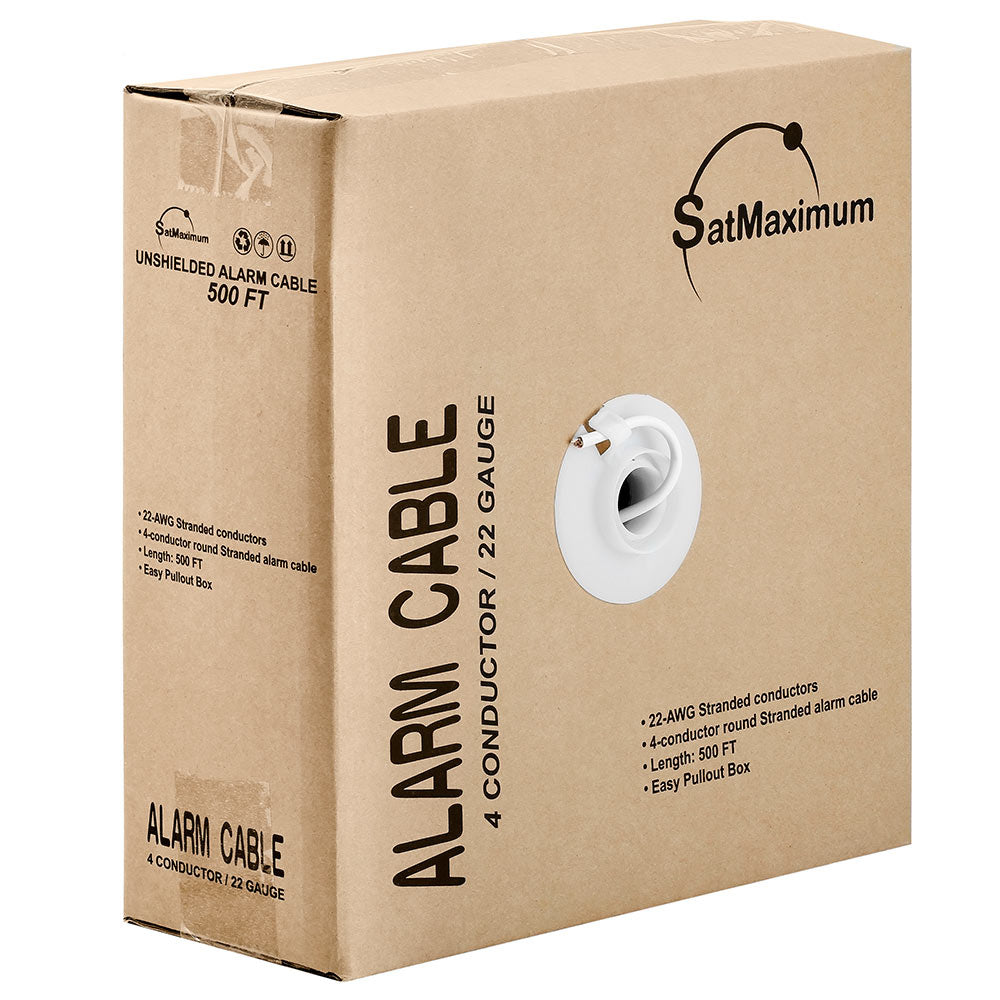

Ships in a 500ft coil pack — easy to store and dispense on any installation job.
