22/6 Alarm Security Wire Shielded Stranded Conductor CMR 22AWG 1000ft White

Wire complex, multi-zone security systems with a single cable that handles everything — this 22/6 shielded stranded bare copper alarm security wire carries six individually color-coded conductors inside a low smoke aluminum Mylar foil shield, rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings.

Six conductors give you the flexibility to handle multiple functions over a single run: dedicated power, signal, tamper loops, auxiliary zones, and access control wiring back to the alarm panel. The shield system — aluminum Mylar foil, PE tape, and a 24AWG tinned copper drain wire — provides superior protection against power frequency and radio frequency interference that causes false alarms. Stranded conductors ensure flexibility for routing through walls and tight spaces. The low smoke FR-PVC jacket and built-in ripcord round out a professional-grade package.

C(ETL)US Listed · CMR / FT4 · CL2R · Class 2 Power Limited

Specifications:

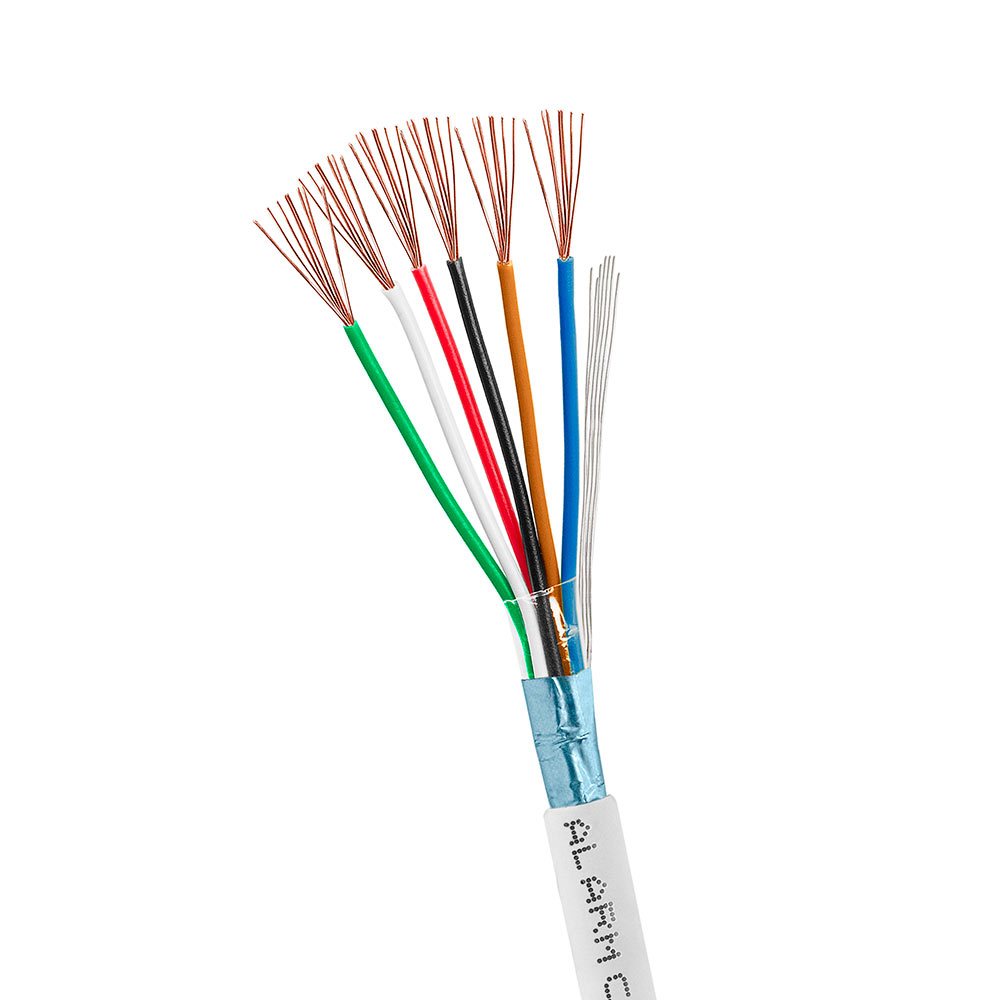

• Cable Type: 22/6 Shielded Stranded Alarm Security Wire
• Conductors: 6 (Stranded Bare Copper, 7 strands each)
• Wire Gauge: 22AWG
• Insulation: PVC
• Insulation Colors: Green, Red, Black, White, Brown, Blue
• Shield: Low Smoke AL-Mylar + PE Tape + AL Foil + 24AWG Tinned Copper Drain Wire
• Jacket: Flame Retardant PVC (FR-PVC), CMR / FT4 Rated
• Jacket Color: White
• Nominal OD: 0.163 in. (4.14 mm)
• Voltage Rating: 300V RMS
• Temperature Rating: -20°C to +75°C
• Standard: Class 2 Power Limited / CL2R
• Certifications: C(ETL)US Listed, UL STD 444, CAN/CSA STD C22.2 NO.214
• Ripcord: Yes

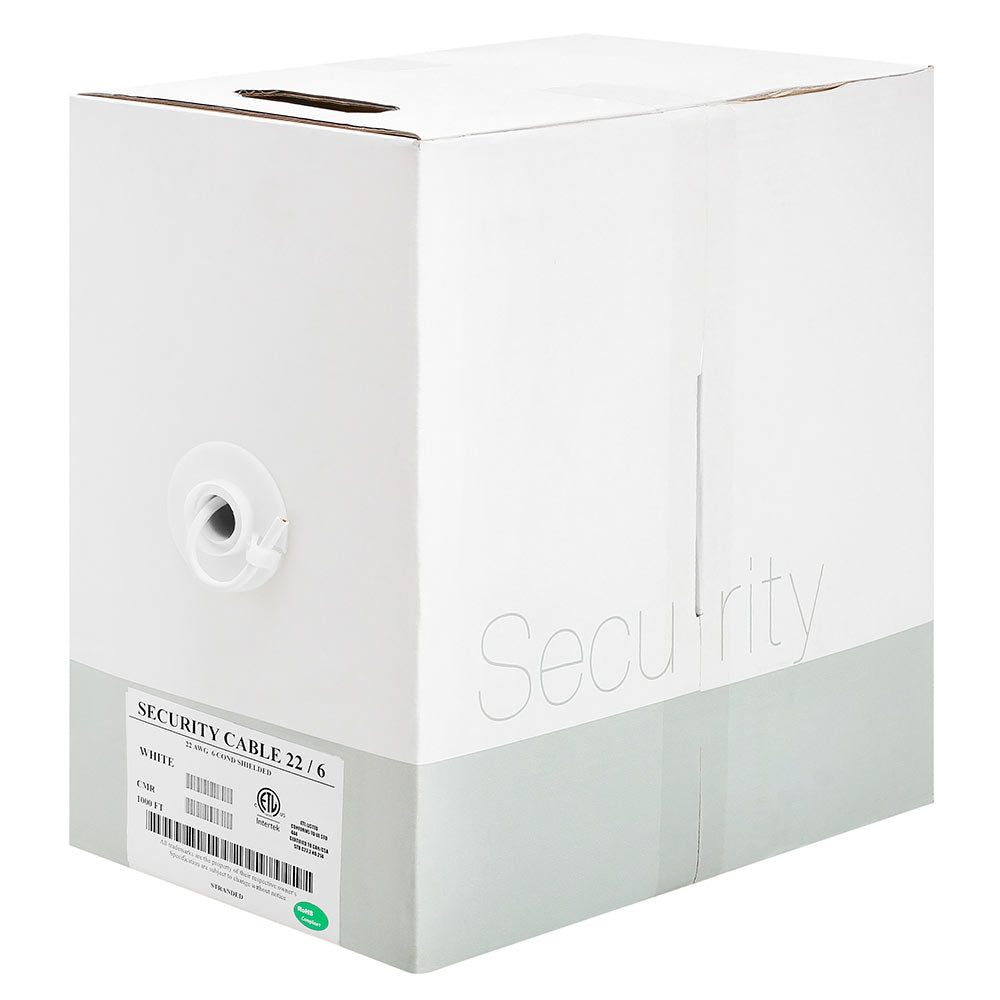

• Packaging: 1,000ft Reelex II pull box

The most capable cable in the security alarm lineup — six shielded conductors for every zone, device, and function in your installation.
