22/4 Alarm Security Wire Solid Conductor Unshielded CMR 22AWG 500ft White
-
Solid Bare Copper, 22AWG, 4 Conductors
-
PVC Insulation – Red, Black, White, Green
-
CMR / FT4 Rated PVC Jacket
-
C(ETL)US Listed · Class 2 Power Limited
-
OD 3.20mm · 300V RMS · 500ft Coil Pack
22/4 Alarm Security Wire Solid Conductor Unshielded CMR 22AWG 500ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
22/4 Alarm Security Wire Solid Conductor Unshielded CMR 22AWG 500ft White is backordered and will ship as soon as it is back in stock.
-
𝗦𝗢𝗟𝗜𝗗 𝗕𝗔𝗥𝗘 𝗖𝗢𝗣𝗣𝗘𝗥 22AWG solid conductors deliver reliable signal and power to sensors, keypads, and alarm panels.
-
𝟰-𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥 𝗗𝗘𝗦𝗜𝗚𝗡 Powers and signals two security zones or devices over a single cable run.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 Meets CMR and FT4 fire requirements for in-wall and riser installations.
-
𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Red, Black, White, and Green simplify termination at junction boxes and control panels.
-
𝟱𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 𝗣𝗔𝗖𝗞 Ships in a 500ft coil sized for multi-zone alarm and access control installations.
Description
Description
Power and signal your security system devices with confidence using this 22/4 solid bare copper alarm security wire, rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations. The 4-conductor design is the go-to choice for powered security devices — two conductors carry data or signal while the other two deliver the low-voltage power the device needs, all in a single cable run.
Solid conductor construction delivers consistent, low-resistance performance over long fixed runs between devices and control panels. Four color-coded conductors (Red, Black, White, Green) eliminate wiring confusion and make polarity identification fast and accurate at every connection. A built-in ripcord enables clean, quick jacket removal at every termination point.
C(ETL)US Listed · CMR / FT4 Rated · Class 2 Power Limited
Specifications:
• Cable Type: 22/4 Solid Alarm Security Wire
• Conductors: 4 (Solid Bare Copper)
• Wire Gauge: 22AWG (0.61 mm)
• Insulation: PVC
• Insulation Colors: Red, Black, White, Green
• Jacket: PVC, CMR / FT4 Rated
• Jacket Color: White
• Overall Diameter: 3.20 mm
• Voltage Rating: 300V RMS
• Temperature Rating: 75°C
• Standard: Class 2 Power Limited Circuit
• Ripcord: Yes
• Packaging: 500ft Coil Pack

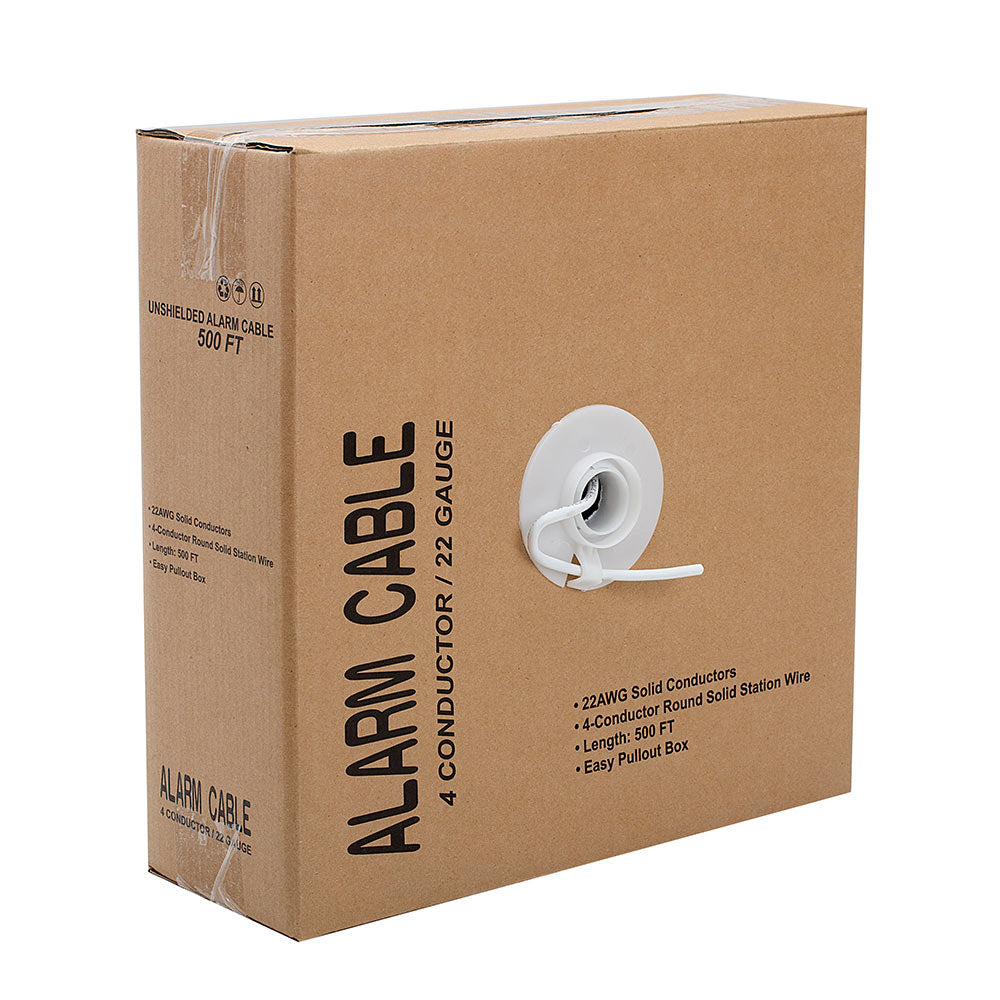

Ships in a 500ft coil pack — ready to dispense on any security installation job.
Specifications
Specifications
-
Length
-
Colors
