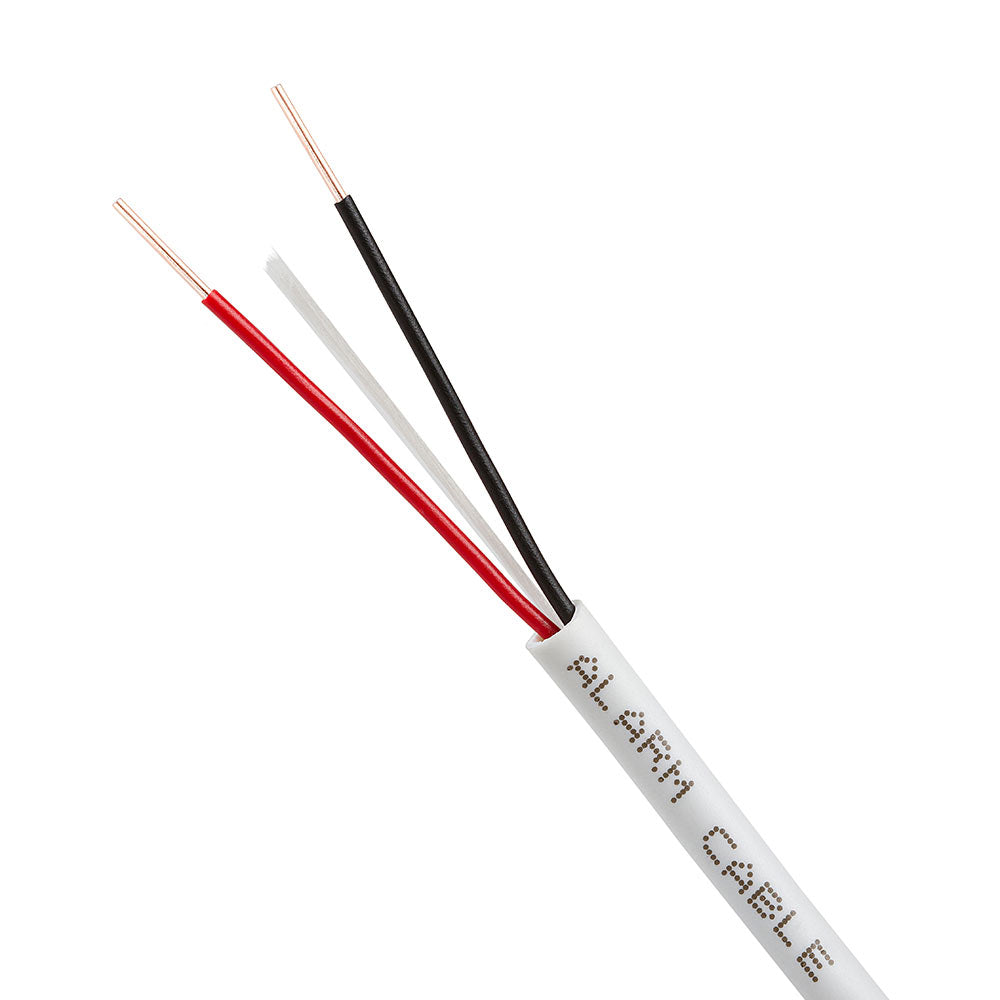

Alarm Security Wire 22/2 Solid Bare Copper Conductor Unshielded CMR 500ft White
-
Solid Bare Copper · 22AWG · 2 Conductors
-
PVC Insulation · Black/Red · Rip Cord
-
CMR/FT4 Rated PVC Jacket · Class 2 CL2R
-
C(ETL)US Listed · 300V RMS · Temp 75°C
-
OD 2.80 mm · 500ft Coil Pack · White Jacket
Alarm Security Wire 22/2 Solid Bare Copper Conductor Unshielded CMR 500ft White - Unshielded is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22/2 Solid Bare Copper Conductor Unshielded CMR...
Alarm Security Wire 22/2 Solid Bare Copper Conductor Unshielded CMR 500ft White - Unshielded is backordered and will ship as soon as it is back in stock.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟐𝐀𝐖𝐆 Solid bare copper delivers consistent signal quality over long point-to-point runs — ideal for fixed security wiring in walls and riser installations.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 CMR/FT4 jacket meets fire code for permanent in-wall and riser installations between floors in residential and commercial buildings. C(ETL)US Listed.
-
𝟐-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐁𝐋𝐀𝐂𝐊 𝐀𝐍𝐃 𝐑𝐄𝐃 Black and Red conductors make polarity identification fast — door contacts, window sensors, and alarm devices terminate correctly every time.
-
𝐂𝐋𝐀𝐒𝐒 𝟐 𝐏𝐎𝐖𝐄𝐑 𝐋𝐈𝐌𝐈𝐓𝐄𝐃 Class 2 rated for security alarms, motion detectors, door contacts, keypads, sirens, and any low-voltage application requiring a reliable 2-wire run.
-

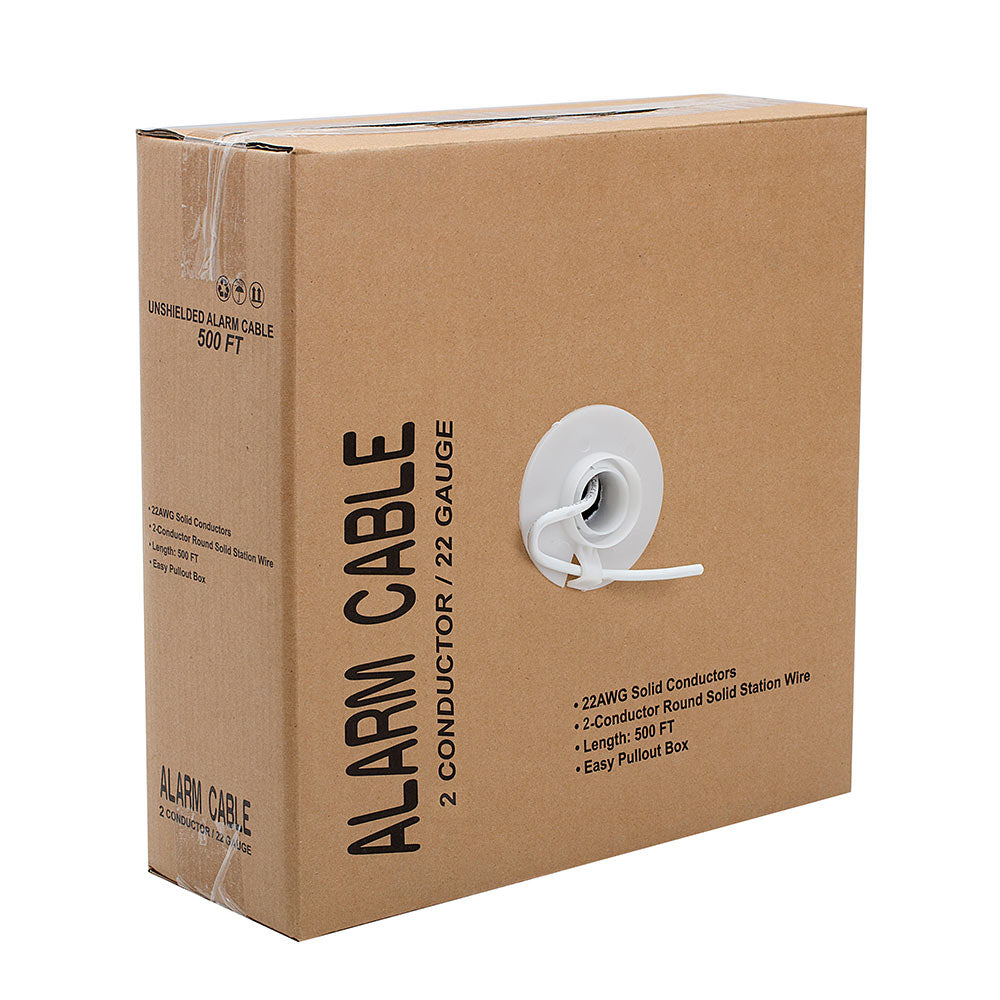

𝟓𝟎𝟎𝐅𝐓 𝐂𝐎𝐈𝐋 𝐏𝐀𝐂𝐊 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 Compact 500ft coil pack pulls tangle-free from the center — easy to carry, store, and dispense on any security system installation job.
Description
Description
Run clean, reliable connections between sensors and control panels with this 22/2 solid bare copper alarm security wire. Rated CMR/FT4 and C(ETL)US Listed, it is approved for permanent in-wall and vertical riser installations in residential and commercial buildings — the dependable choice for hardwired security alarm systems.
Solid conductor construction delivers consistent signal quality over long runs with lower resistance than stranded alternatives — ideal for point-to-point security runs where the wire stays fixed once installed. Two color-coded conductors (Black and Red) make polarity identification simple at every connection point. Rip cord for fast, clean jacket removal.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · Class 2 Power Limited · CL2R
• Conductor: Solid Bare Copper · AWG: 22 · Diameter: 0.61 mm · Conductors: 2
• Insulation: PVC · Colors: Black/Red · Rip Cord: Yes
• Jacket: PVC CMR/FT4 · Color: White
• OD: 2.80 mm · Voltage: 300V RMS · Temp: 75°C
• Packaging: 500ft Coil Pack · Length: 500ft
Specifications
Specifications
-
Cable Type
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
