Alarm Security Wire 22/4 Stranded Bare Copper Unshielded CMR 500ft White
-
7-Strand Bare Copper · 22AWG · 4 Conductors
-
PVC Insulation · Green/Red/Black/White
-
CMR/FT4 Rated PVC Jacket · Class 2 CL2R
-
C(ETL)US Listed · 300V RMS · Temp 75°C
-
OD 0.142 in. (3.60 mm) · 500ft Coil Pack
Alarm Security Wire 22/4 Stranded Bare Copper Unshielded CMR 500ft White - Unshielded is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22/4 Stranded Bare Copper Unshielded CMR 500ft ...
Alarm Security Wire 22/4 Stranded Bare Copper Unshielded CMR 500ft White - Unshielded is backordered and will ship as soon as it is back in stock.
-
𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐅𝐋𝐄𝐗𝐈𝐁𝐋𝐄 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 Stranded bare copper bends through walls and conduit without kinking — faster and cleaner than solid wire on every security system installation.
-
𝟒-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 Green, Red, Black, and White conductors eliminate wiring errors — sensors, keypads, sirens, and control panels terminate correctly every time.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 CMR/FT4 jacket meets fire code for permanent in-wall and riser installations between floors in residential and commercial buildings. C(ETL)US Listed.
-
𝐂𝐋𝐀𝐒𝐒 𝟐 𝐏𝐎𝐖𝐄𝐑 𝐋𝐈𝐌𝐈𝐓𝐄𝐃 Class 2 rated for security alarms, motion detectors, door contacts, intercoms, access control, and home automation wiring up to 300V RMS.
-

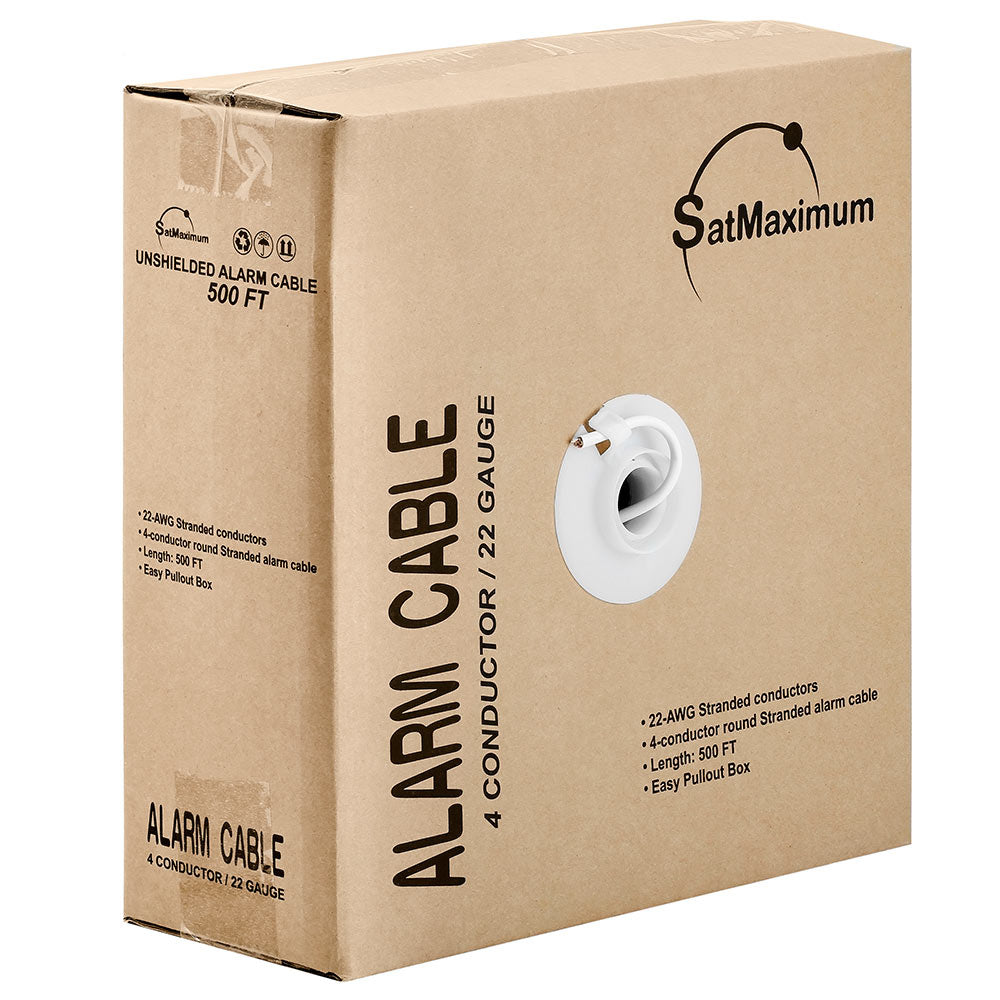

𝟓𝟎𝟎𝐅𝐓 𝐂𝐎𝐈𝐋 𝐏𝐀𝐂𝐊 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 Compact 500ft coil pack pulls tangle-free from the center — easy to carry, store, and dispense on any security system installation job.
Description
Description
Wire your security system with this 22/4 stranded alarm security wire — built on 7-strand bare copper conductors (7/0.24mm) and rated CMR/FT4 for permanent in-wall and vertical riser installations in residential and commercial buildings. Stranded construction provides the flexibility needed to route through walls, conduit, and tight spaces without kinking or breaking.
Four color-coded conductors (Green/Red/Black/White) simplify termination and prevent wiring errors across every device connection. Class 2 Power Limited rated for security alarms, motion detectors, door and window contacts, keypads, sirens, intercoms, access control, and home automation wiring. C(ETL)US Listed, CMR/FT4 rated, 300V RMS.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · Class 2 Power Limited · CL2R
• Conductor: 7-Strand Bare Copper · AWG: 22 · Diameter: 7/0.24mm · Conductors: 4
• Insulation: PVC · Colors: Green/Red/Black/White
• Jacket: PVC CMR/FT4 · Color: White · Rip Cord: Yes
• OD: 0.142 in. (3.60 mm) · Voltage: 300V RMS · Temp: 75°C
• Packaging: 500ft Coil Pack · Length: 500ft
Specifications
Specifications
-
Cable Type
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
