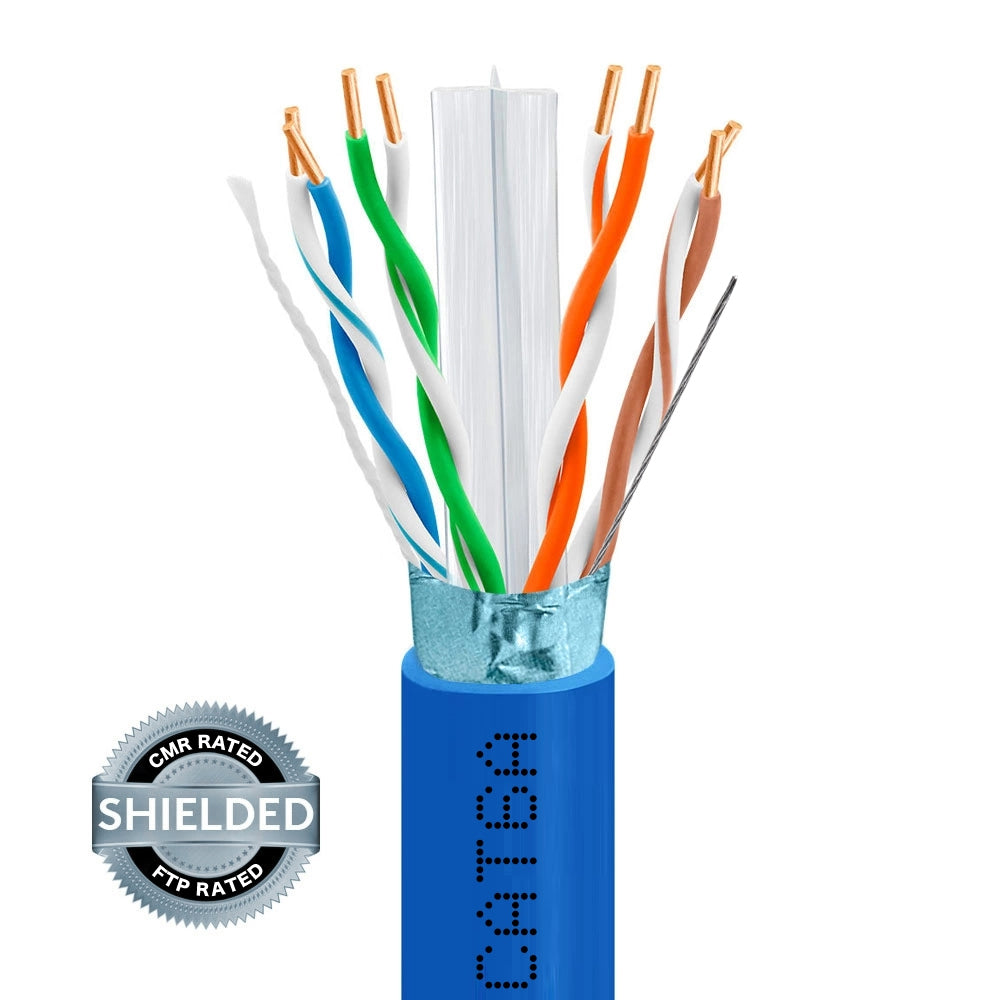

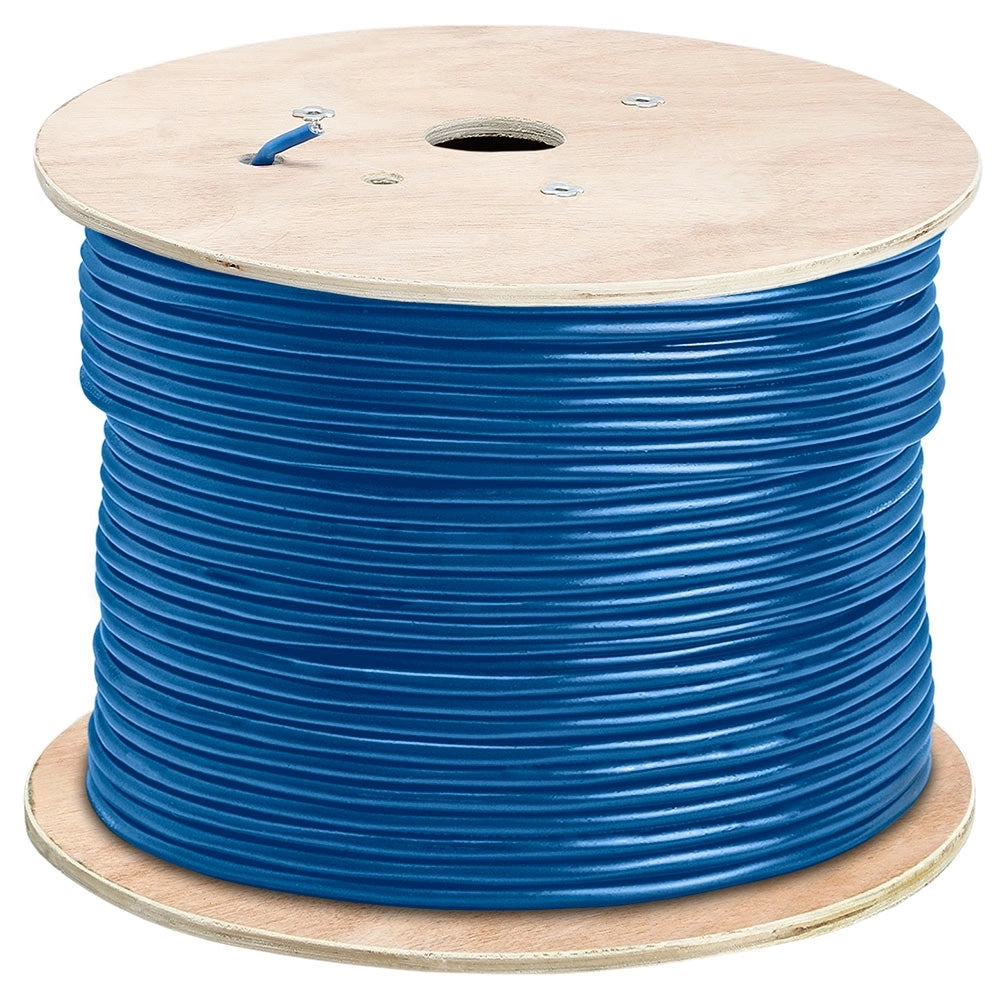

Cat6A Riser CMR Shielded FTP Ethernet Cable 23AWG Solid Bare Copper 1000ft
-
FTP – AL Tape Shield + Drain Wire on All 4 Pairs
-
23AWG Solid Bare Copper – HDPE Insulation
-
750MHz – 10G Base-T · ANSI/TIA-568-C.2
-
CMR Riser – UL Verified · C(UL) FT4 · RoHS
-
Spline Separator · Rip Cord · OD 0.3153 in.
Cat6A Riser CMR Shielded FTP Ethernet Cable 23AWG Solid Bare Copper 1000ft - Blue is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Riser CMR Shielded FTP Ethernet Cable 23AWG Solid Bare Copper...
Cat6A Riser CMR Shielded FTP Ethernet Cable 23AWG Solid Bare Copper 1000ft - Blue is backordered and will ship as soon as it is back in stock.
-
SHIELDS YOUR SIGNAL Full aluminum tape foil around all four pairs with drain wire blocks EMI from motors, power lines, and dense wiring environments at 750MHz.
-
SOLID BARE COPPER QUALITY Every conductor is 23AWG solid bare copper — not aluminum-clad — for maximum conductivity and reliable signal integrity across the full 1000ft.
-
RUNS CLEANLY INSIDE WALLS CMR-rated jacket meets fire code for permanent in-wall and riser installation. UL Verified and C(UL) FT4 certified — no inspector issues.
-
BUILT FOR INTERFERENCE ZONES When power cables, industrial equipment, or high-density wiring would degrade unshielded UTP, FTP shielding keeps your signal clean.
-
6 COLORS ONE ORGANIZED RACK Color-code shielded runs by zone, circuit, or function with Blue, Black, Grey, Red, White, and Yellow. Instant visual identification at the panel.
Description
Description
Cat6A FTP (Foiled Twisted Pair) shielded riser cable for 10G network infrastructure. An aluminum tape shield wraps all four twisted pairs with a drain wire for complete, groundable EMI protection — the key advantage over unshielded UTP in high-interference environments such as industrial floors, data centers, and locations near power equipment. Supports 10/100/1000/10G Base-T (IEEE 802.3) at up to 750MHz.
23AWG solid bare copper conductors with HDPE insulation. Spline separator between pairs reduces Near-End Crosstalk (NEXT) in addition to the foil shield. Rip cord for clean jacket removal during termination. CMR-rated Flame Retardant PVC jacket for in-wall and vertical riser installation between floors. Jacket diameter: 0.3153 in.
Important: FTP cable requires shielded RJ45 connectors (STP/FTP plugs) and proper grounding at both termination points. Do not use with standard unshielded RJ45 connectors or plugs.

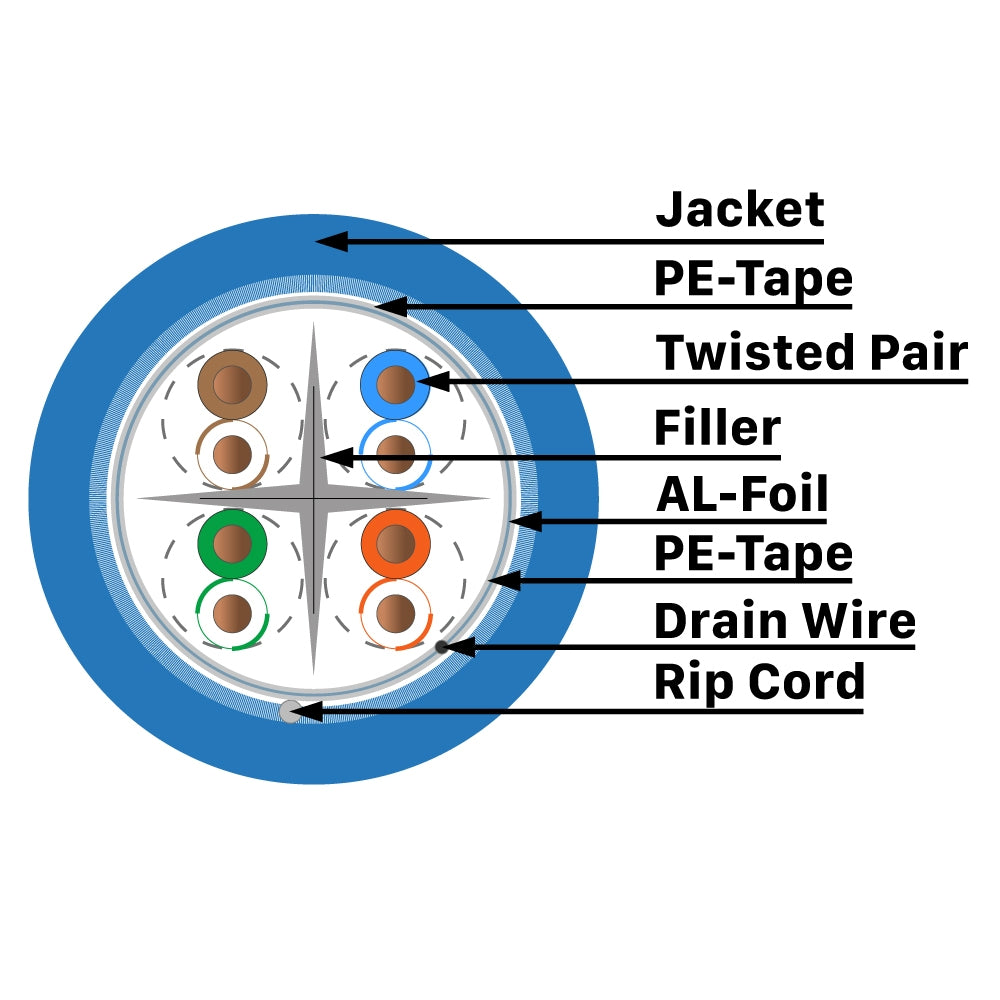

• Conductor: 23 AWG Solid Bare Copper · 4 pairs FTP
• Shield: Aluminum Tape + Drain Wire
• Insulation: HDPE · Jacket: FR-PVC CMR
• Jacket OD: 0.3153 in. · Performance: 750MHz
• Rating: CMR Riser · Separator: Yes · Rip Cord: Yes
• Standards: UL Verified · C(UL) FT4 · ANSI/TIA-568-C.2 · RoHS
• Colors: Blue, Black, Grey, Red, White, Yellow · Length: 1000ft
