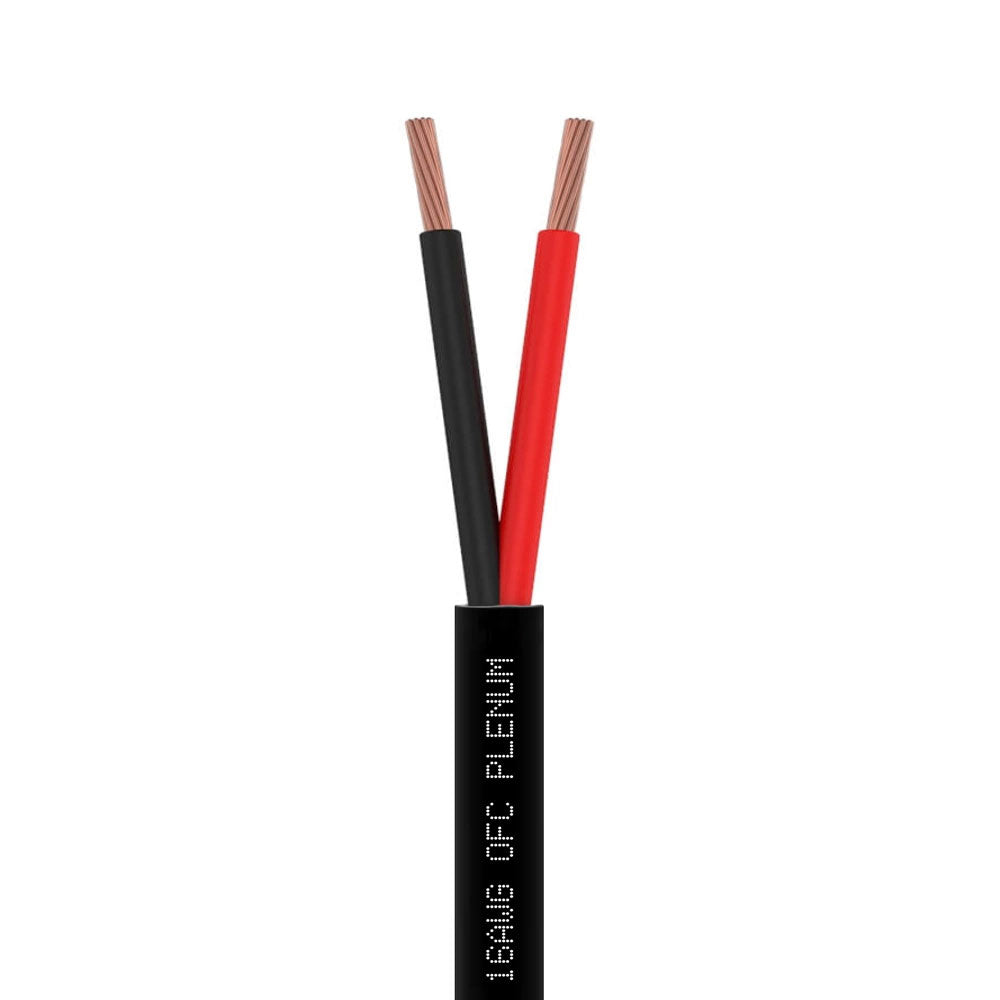

Speaker Wire 16AWG 2 Conductor Plenum CMP CL3P OFC Stranded Black 500ft

Run speaker wire through air plenum spaces in commercial buildings, offices, schools, and hotels with this 16AWG 2-conductor OFC plenum speaker wire. CMP and CL3P rated — the highest indoor fire safety classification — it is required by code wherever speaker wire passes through air-handling plenum spaces above suspended ceilings or below raised floors where a fire would spread smoke through the HVAC system. CMP-rated cable can substitute for CL3R (CMR) or CL2 rated cable in any installation environment.

Remguard Plenum Polymer insulation and jacket emit significantly less toxic smoke than standard PVC in a fire — the material requirement that earns the CMP rating for plenum spaces in occupied commercial buildings. At 0.175 in. OD and 12.5 lbs per 500ft, this is the thinnest and lightest OFC speaker wire in the lineup — easier to pull through congested plenum spaces and drop-ceiling runs where multiple cables share the same plenum cavity.

C(ETL)US Listed · CMP / CL3P · NEC Article 800 · FT6

Specifications:
• Wire Gauge: 16AWG, Stranded
• Conductors: 2 · Red (+) / Black (-)
• Conductor Material: Oxygen-Free Bare Copper (OFC)
• Insulation: Remguard Plenum Polymer
• Jacket: Remguard Plenum Polymer, CMP / CL3P Rated
• Jacket Color: Black
• OD: 0.175 in. (4.45 mm)
• Certifications: C(ETL)US Listed, CMP / CL3P, NEC Article 800, FT6

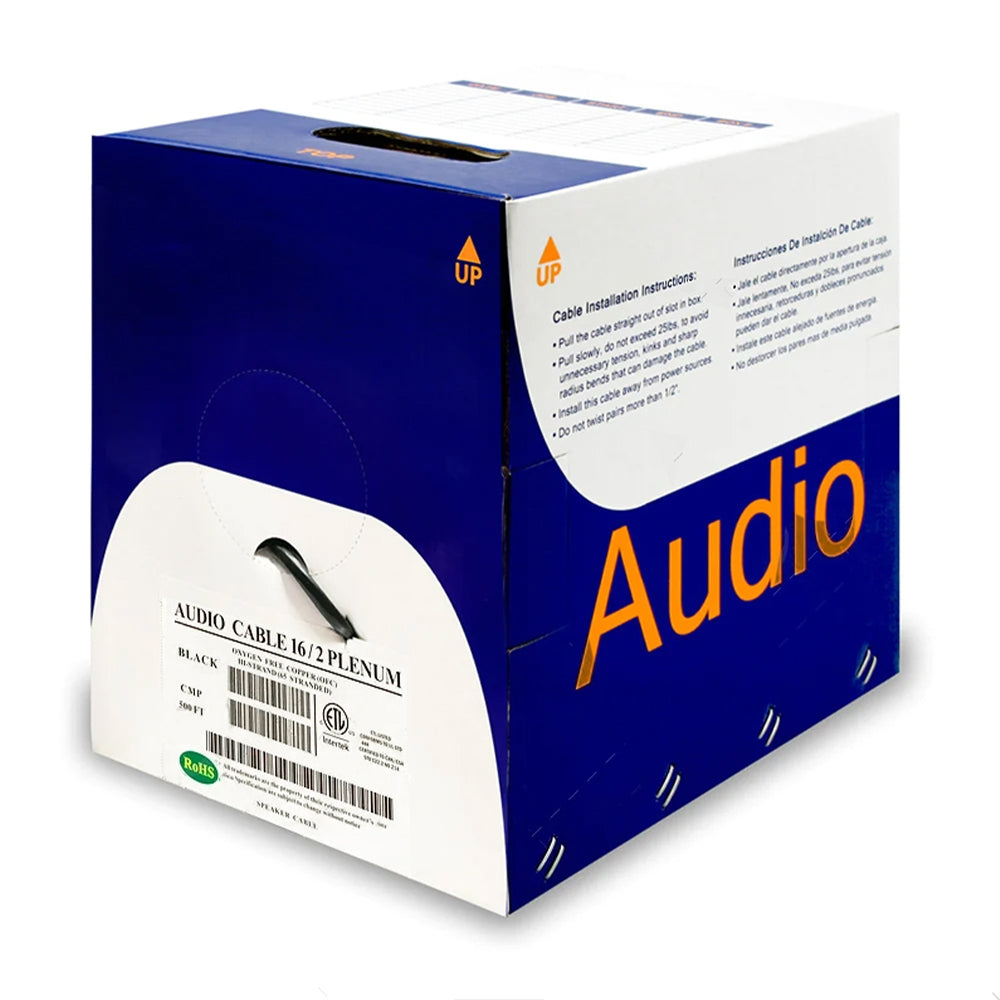

• Packaging: 500ft Reelex II

Applications: Suspended-ceiling plenum spaces, raised-floor plenum spaces, in-wall and riser runs in commercial offices, schools, hotels, and multi-tenant buildings.
