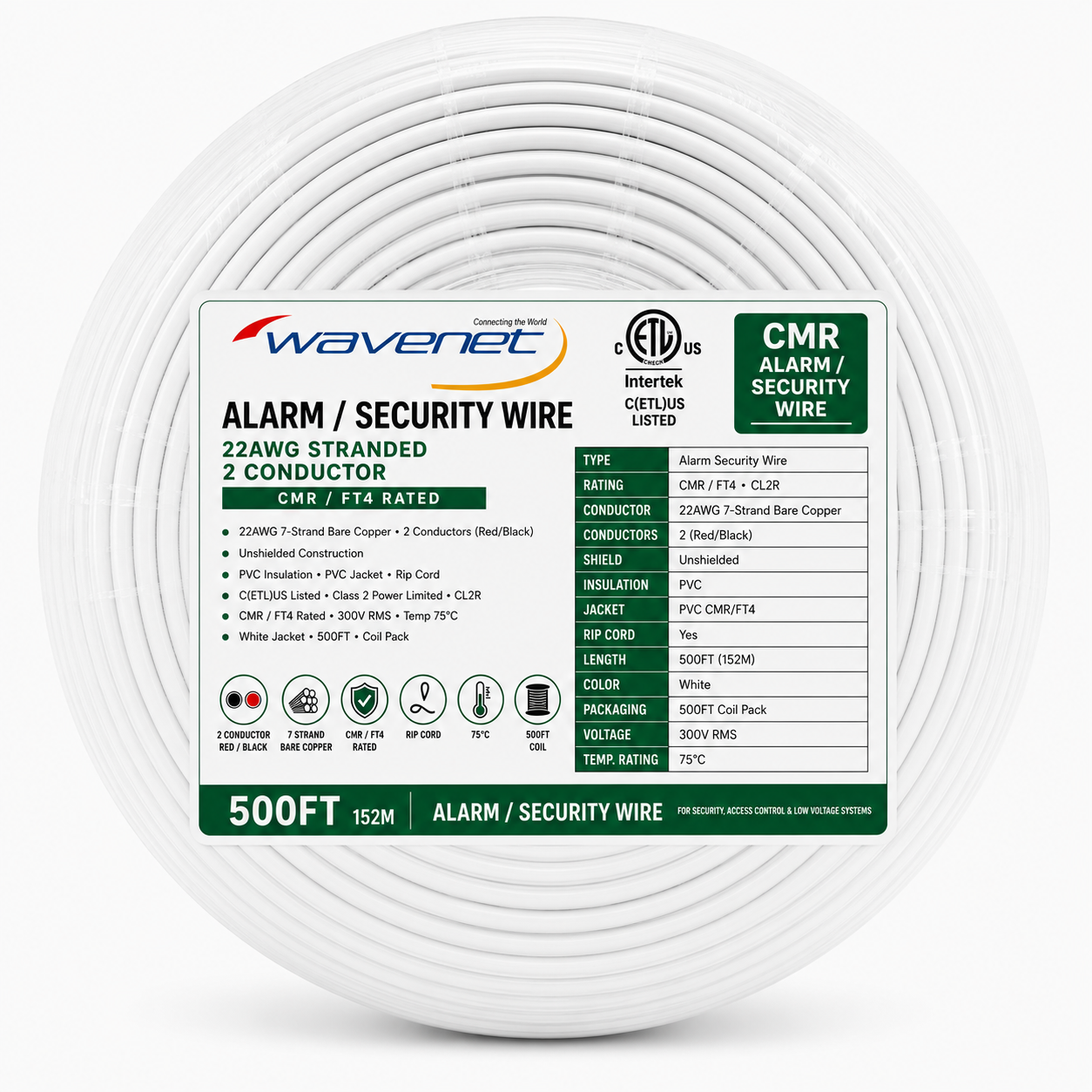

Alarm Security Wire 22AWG 2 Stranded Bare Copper Conductors CMR CL2R ETL 500ft White
-
7-Strand Bare Copper · 22AWG · 2 Conductors
-
PVC Insulation · Red/Black · Rip Cord
-
CMR/FT4 Rated PVC Jacket · Class 2 CL2R
-
C(ETL)US Listed · 300V RMS · Temp 75°C
-
OD 3.10 mm · 500ft Coil Pack · White Jacket
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $67.89 / unit | 3% |
| 10–19 units | $66.49 / unit | 5% |
| 20+ units | $65.09 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22AWG 2 Stranded Bare Copper Conductors CMR CL2R ETL 500ft White
-
𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐅𝐋𝐄𝐗𝐈𝐁𝐋𝐄 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 7-strand bare copper bends through walls and conduit without kinking — more flexible than solid wire for security installs with multiple bends.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 CMR/FT4 jacket meets fire code for permanent in-wall and riser installations between floors in residential and commercial buildings. C(ETL)US Listed.
-
𝟐-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐑𝐄𝐃 𝐀𝐍𝐃 𝐁𝐋𝐀𝐂𝐊 Red and Black conductors make polarity fast and error-free — door contacts, window sensors, and alarm devices all terminate correctly every time.
-
𝐂𝐋𝐀𝐒𝐒 𝟐 𝐏𝐎𝐖𝐄𝐑 𝐋𝐈𝐌𝐈𝐓𝐄𝐃 Class 2 rated for security alarms, motion detectors, door contacts, keypads, sirens, intercoms, and any low-voltage 2-wire security application.
-
𝟓𝟎𝟎𝐅𝐓 𝐂𝐎𝐈𝐋 𝐏𝐀𝐂𝐊 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 Compact 500ft coil pack pulls tangle-free from the center — easy to carry, store, and dispense on any security system installation job.
Description
Description
Wire your security system with confidence using this 22/2 stranded bare copper alarm security wire — rated CMR/FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations. Stranded construction (7 strands per conductor) is significantly more flexible than solid wire, ideal for installations with multiple bends and tight routing through walls.
Two color-coded conductors (Red and Black) make polarity identification straightforward at every connection point — door contacts, window sensors, motion detectors, keypads, and control panel wiring all terminate cleanly. Class 2 Power Limited rated (CL2R) for security alarms, intercoms, access control, and home automation wiring up to 300V RMS.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · Class 2 Power Limited · CL2R
Technical Specifications:
• Conductor: 7-Strand Bare Copper · AWG: 22 · Conductors: 2 (Red/Black)
• Insulation: PVC · Jacket: PVC CMR/FT4 · Color: White · Rip Cord: Yes
• OD: 3.10 mm · Voltage: 300V RMS · Rated Temp: 75°C
• Packaging: 500ft Coil Pack
Typical Applications:
• Door contacts, window sensors, and motion detectors
• Keypads, sirens, and control panel wiring
• Access control and intercom systems
• Home automation and low-voltage 2-wire signaling
• In-wall and vertical riser runs in residential and commercial buildings
