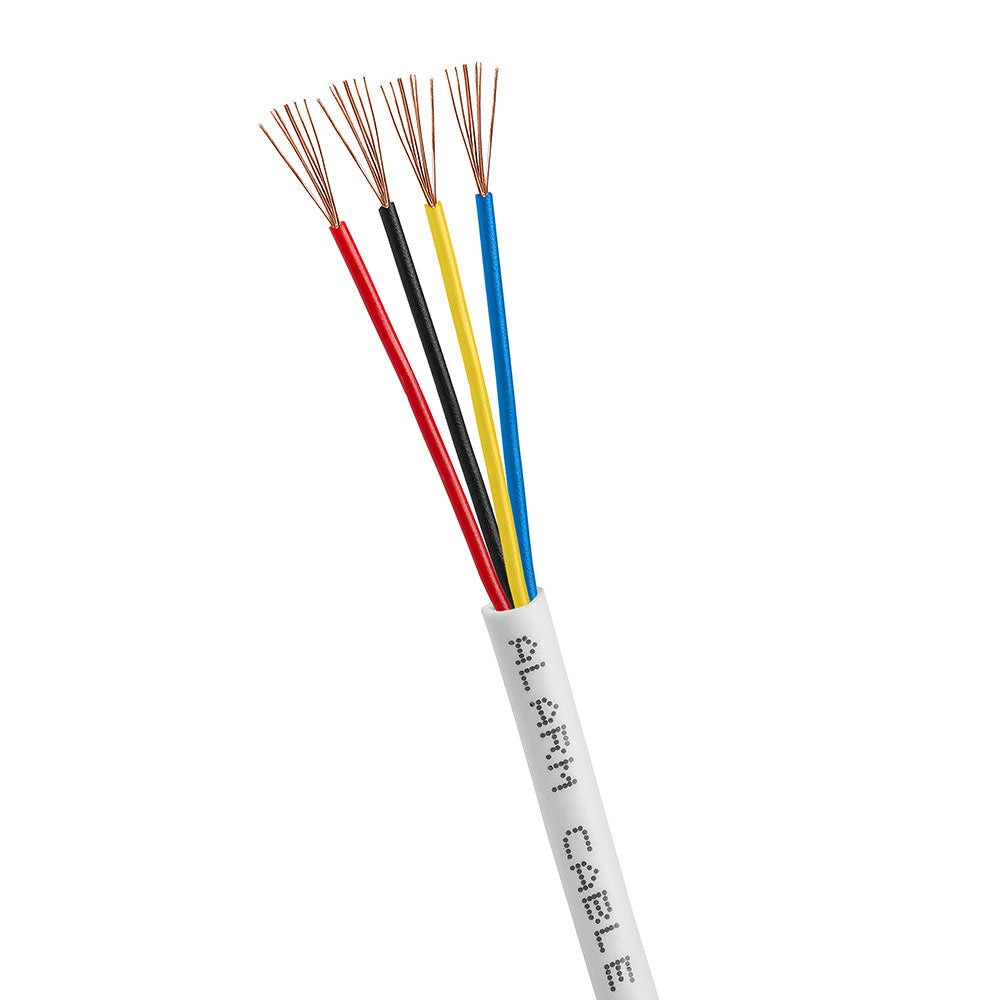

Alarm Security Wire 22AWG 4 Stranded Bare Copper Conductors CMR CL2R ETL 500ft White
-
7-Strand Bare Copper · 22AWG · 4 Conductors
-
PVC Insulation · Green/Red/Black/White
-
CMR/FT4 Rated PVC Jacket · Class 2 CL2R
-
C(ETL)US Listed · 300V RMS · Temp 75°C
-
OD 0.142 in. (3.60 mm) · 500ft Coil Pack
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $96.99 / unit | 3% |
| 10–19 units | $94.99 / unit | 5% |
| 20+ units | $92.99 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22AWG 4 Stranded Bare Copper Conductors CMR CL2R ETL 500ft White
-
𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐅𝐋𝐄𝐗𝐈𝐁𝐋𝐄 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 Stranded bare copper bends through walls and conduit without kinking — faster and cleaner than solid wire on every security system installation.
-
𝟒-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 Green, Red, Black, and White conductors eliminate wiring errors — sensors, keypads, sirens, and control panels terminate correctly every time.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 CMR/FT4 jacket meets fire code for permanent in-wall and riser installations between floors in residential and commercial buildings. C(ETL)US Listed.
-
𝐂𝐋𝐀𝐒𝐒 𝟐 𝐏𝐎𝐖𝐄𝐑 𝐋𝐈𝐌𝐈𝐓𝐄𝐃 Class 2 rated for security alarms, motion detectors, door contacts, intercoms, access control, and home automation wiring up to 300V RMS.
-
𝟓𝟎𝟎𝐅𝐓 𝐂𝐎𝐈𝐋 𝐏𝐀𝐂𝐊 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 Compact 500ft coil pack pulls tangle-free from the center — easy to carry, store, and dispense on any security system installation job.
Description
Description
Wire your security system with this 22/4 stranded alarm security wire, built on 7-strand bare copper conductors and rated CMR/FT4 for permanent in-wall and vertical riser installations in residential and commercial buildings. Stranded construction flexes through walls, conduit, and tight spaces without kinking or breaking.
Four color-coded conductors (Green/Red/Black/White) simplify termination and prevent wiring errors across every device connection. Class 2 Power Limited rated (CL2R) for security alarms, motion detectors, door and window contacts, keypads, sirens, intercoms, access control, and home automation wiring up to 300V RMS.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · Class 2 Power Limited · CL2R
Technical Specifications:
• Conductor: 7-Strand Bare Copper · AWG: 22 · Conductors: 4 (Green/Red/Black/White)
• Insulation: PVC · Jacket: PVC CMR/FT4 · Color: White · Rip Cord: Yes
• OD: 0.142 in. · Voltage: 300V RMS · Rated Temp: 75°C

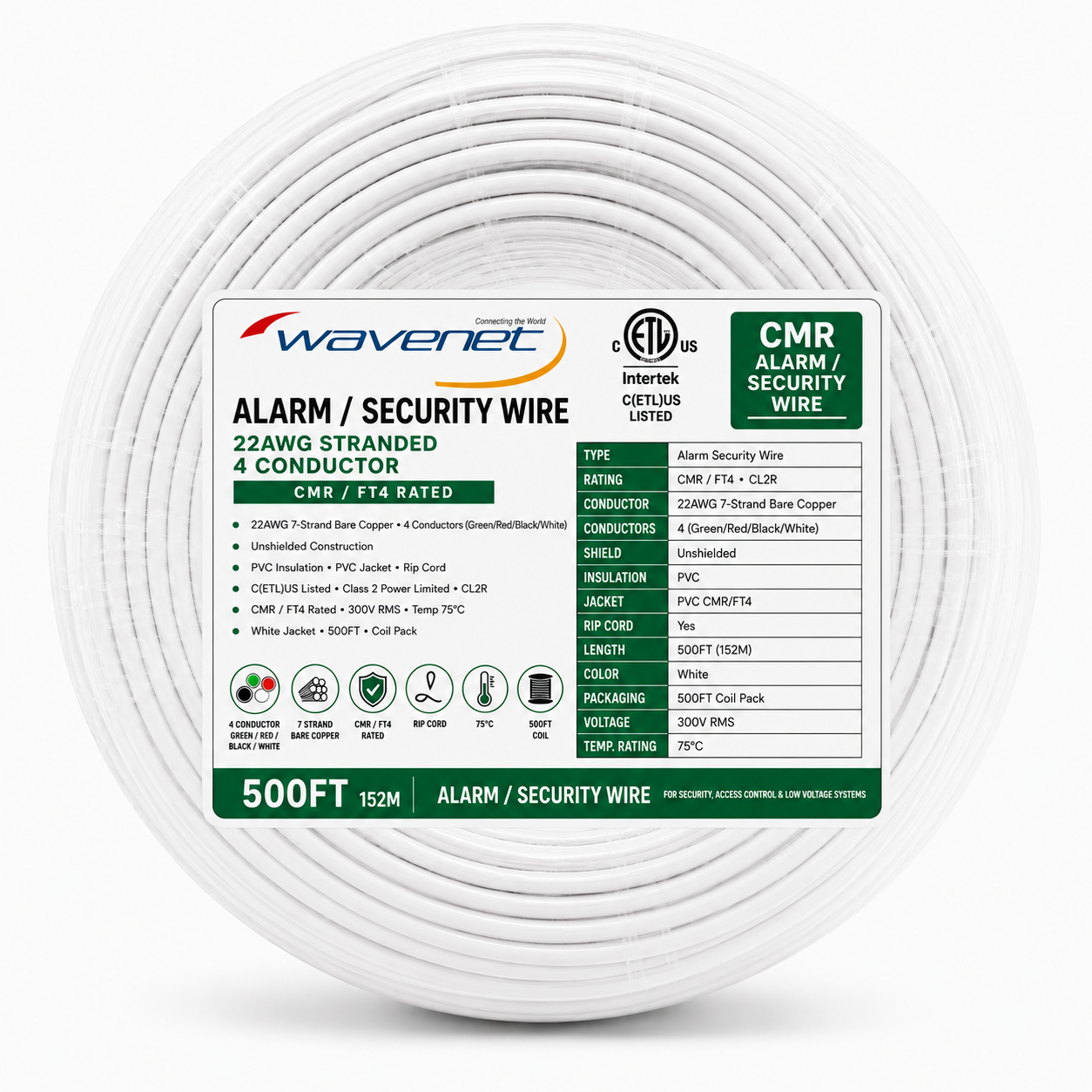

• Packaging: 500ft Coil Pack
Typical Applications:
• Security alarms, motion detectors, door and window contacts
• Keypads, sirens, and control panel wiring
• Access control and intercom systems
• Home automation and low-voltage signaling
• In-wall and vertical riser runs in residential and commercial buildings
