Cat6A Plenum Ethernet Cable 1000ft 23AWG Solid Bare Copper 750MHz CMP PoE++ ETL Listed
SKU:
4057-Big
Regular price
$550.99
Unit price
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
FEP Insulation · Flame Retardant PVC Jacket
-
CMP/FT6 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · PoE/PoE+/PoE++
-
Spline Separator · Rip Cord · Easy Pull Reel
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Plenum Ethernet Cable 1000ft 23AWG Solid Bare Copper 750MHz CMP PoE++ ETL Listed
$550.99
SKU:
4057-Big
Regular price
$550.99
Unit price
-
𝐂𝐎𝐃𝐄-𝐑𝐄𝐐𝐔𝐈𝐑𝐄𝐃 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 CMP/FT6 jacket is required by fire code for air-handling spaces above drop ceilings — and also covers CMR and every lower-rated installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 FEP produces significantly less toxic smoke than FR-PVC and meets the stricter flame spread requirements that make it essential in plenum air spaces.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver superior conductivity and reliable 10G performance at 750MHz across every run in the plenum installation.
-
𝐒𝐏𝐋𝐈𝐍𝐄 𝐂𝐔𝐓𝐒 𝐂𝐑𝐎𝐒𝐒𝐓𝐀𝐋𝐊 Built-in spline separator reduces NEXT and alien crosstalk in dense above-ceiling bundles and crowded data closets where signal integrity matters.
-
𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐑𝐄𝐄𝐋 1000ft easy-pull reel with ripcord and sequential footage markings for fast jacket removal, accurate pulls, and tangle-free payout on every job.
Description
Description
Cat6A CMP-rated plenum ethernet cable required by code for air-handling spaces above drop ceilings and below raised floors. CMP/FT6 is the highest indoor fire rating and substitutes for CMR or lower anywhere in the building. Supports 10G Base-T and PoE/PoE+/PoE++ up to 100W.
FEP insulation is the key difference from riser cable: less toxic smoke and stricter flame spread compliance for plenum spaces. 23AWG solid bare copper delivers stronger conductivity than CCA. A spline separator reduces NEXT and alien crosstalk in dense above-ceiling bundles. Backward compatible with Cat6 and Cat5e.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant
Technical Specifications:

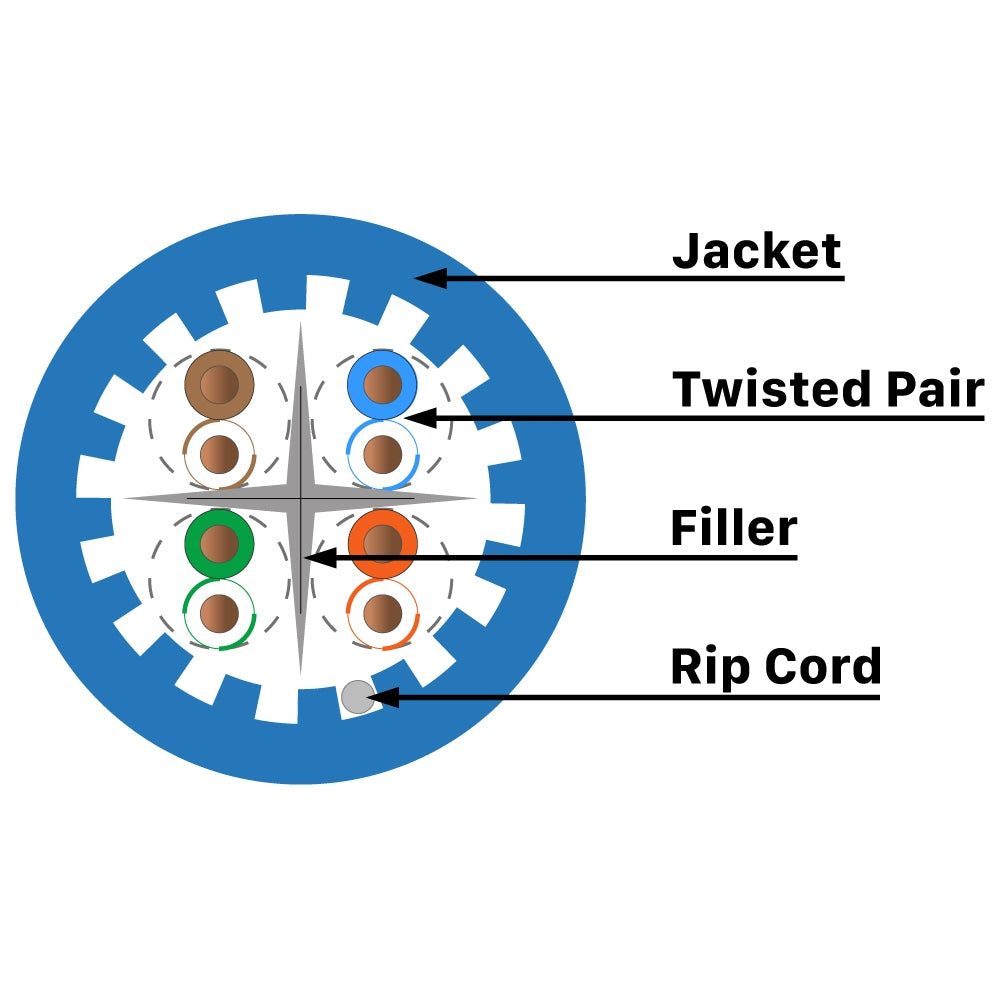

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 UTP (Unshielded)
• Insulation: FEP · Jacket: FR-PVC CMP/FT6
• Separator: Yes · Ripcord: Yes · OD: 0.3543 in. · Weight: 41 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T · PoE/PoE+/PoE++

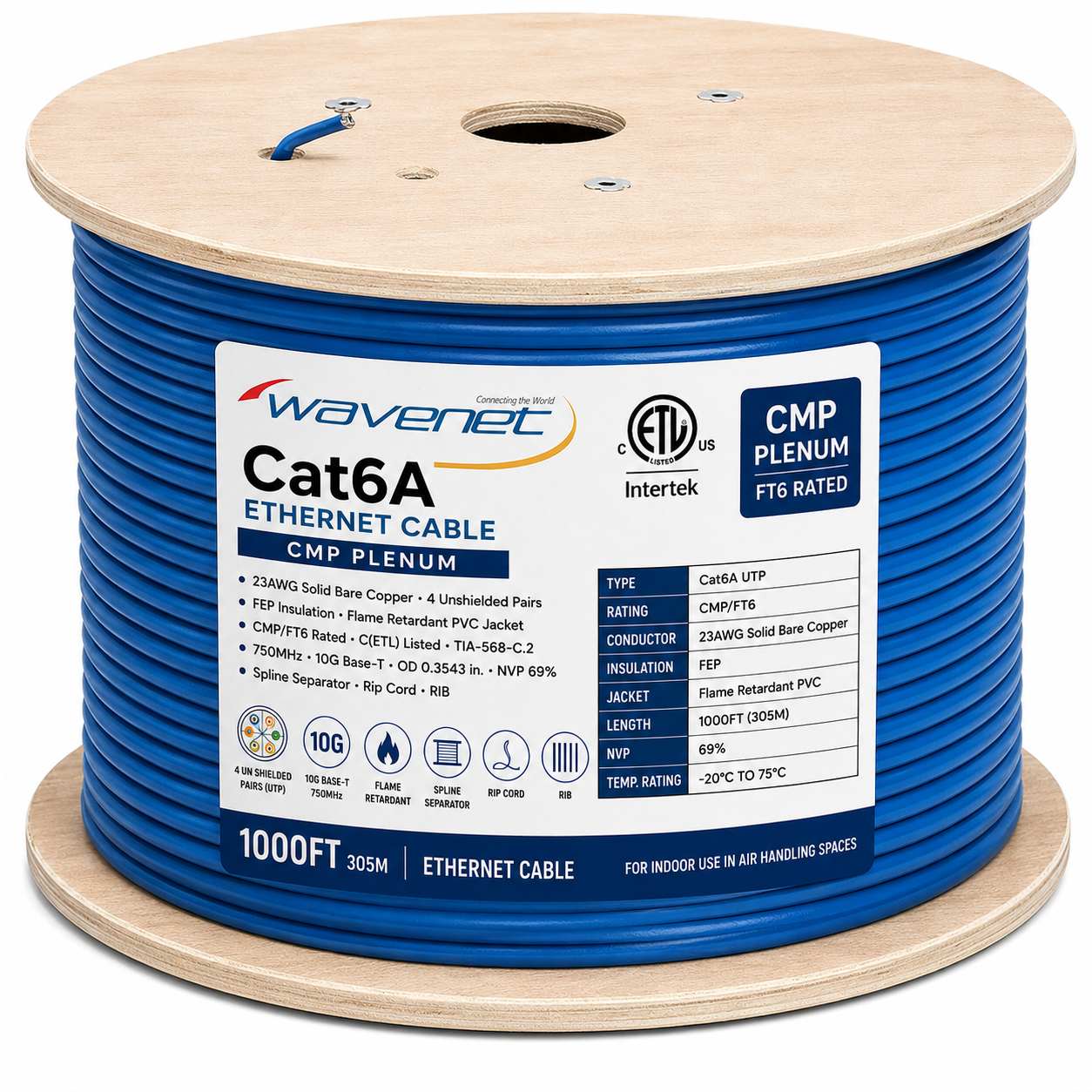

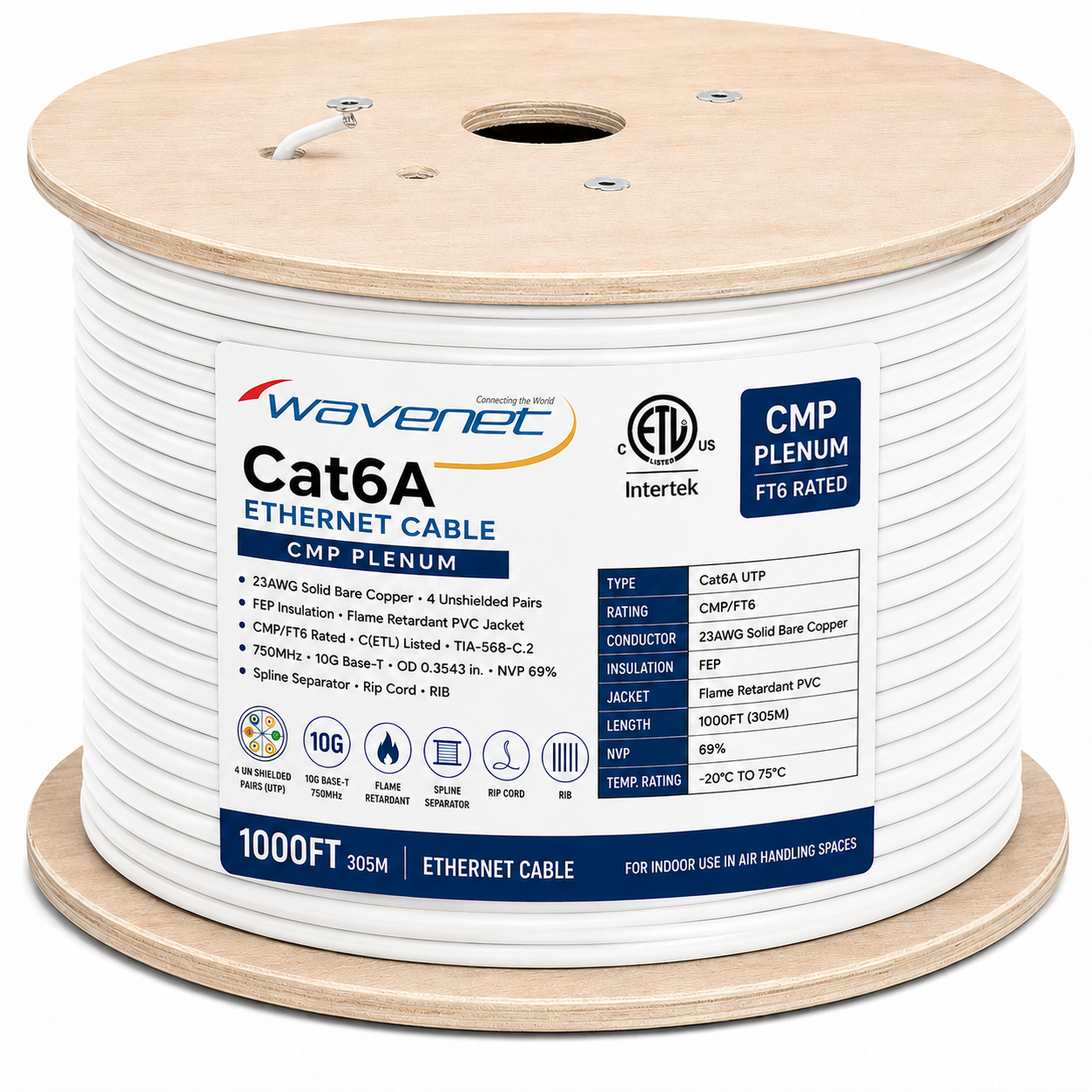

• Packaging: 1000ft Reel · 6 Colors Available
Typical Applications:
• Above-ceiling plenum runs in data centers, hospitals, and schools
• 10G network backbones and crowded data closets
• PoE-powered IP cameras, access points, and network devices
• Structured cabling for commercial and government buildings
• Any install requiring the highest fire-safety cable rating
