Cat6A Shielded Riser Ethernet Cable 1000ft 23AWG Solid Bare Copper 750MHz PoE++ ETL Listed
SKU:
4049-Big
Regular price
$313.99
Unit price
-
23AWG Solid Bare Copper · 4 Shielded Pairs
-
AL-Foil FTP Shield + Drain Wire · HDPE
-
CMR/FT4 Rated · C(ETL) Listed · TIA-568-C.2
-
750MHz · 10G Base-T · PoE/PoE+/PoE++
-
Spline Separator · Rip Cord · 1000ft Reel
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6A Shielded Riser Ethernet Cable 1000ft 23AWG Solid Bare Copper 750MHz PoE++ ETL Listed
$313.99
SKU:
4049-Big
Regular price
$313.99
Unit price
-
𝐁𝐔𝐈𝐋𝐓 𝐅𝐎𝐑 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐙𝐎𝐍𝐄𝐒 AL-foil shield with drain wire blocks EMI from motors, power lines, and dense cable runs — essential where unshielded UTP would degrade signal.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver superior conductivity and reliable 10G performance at 750MHz across every shielded run, every time.
-
𝐒𝐏𝐋𝐈𝐍𝐄 + 𝐒𝐇𝐈𝐄𝐋𝐃: 𝐃𝐎𝐔𝐁𝐋𝐄 𝐍𝐄𝐗𝐓 Spline separator reduces NEXT and AXT inside the cable while the AL-foil handles external EMI — two lines of crosstalk defense in one cable.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐄𝐕𝐄𝐑𝐘 𝐖𝐀𝐋𝐋 CMR/FT4-rated jacket meets fire code for permanent in-wall and riser installations — one cable for every non-plenum run in the building.
-
𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with rip cord and sequential footage markings for fast jacket removal and accurate pulls. Requires shielded RJ45 connectors and grounding.
Description
Description

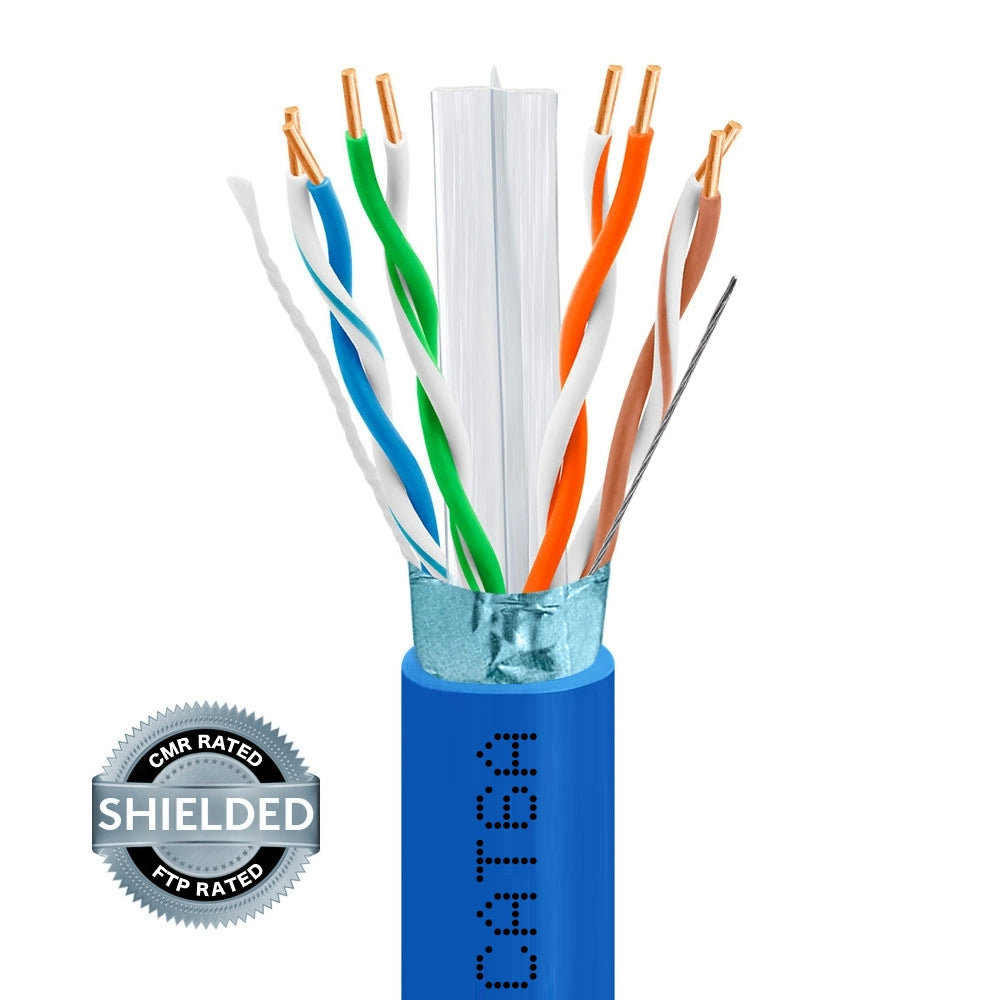

Cat6A FTP shielded riser ethernet cable for 10G network infrastructure near interference sources. An aluminum foil shield with drain wire wraps all four pairs for groundable EMI protection — the key advantage over unshielded UTP near power equipment. Supports 10G Base-T and PoE/PoE+/PoE++ up to 100W.
23AWG solid bare copper delivers stronger conductivity than CCA. A spline separator reduces NEXT and alien crosstalk in addition to the foil shield, giving two layers of interference protection. FTP cable requires shielded RJ45 and grounding at both ends. Backward compatible with Cat6 and Cat5e.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant
Technical Specifications:

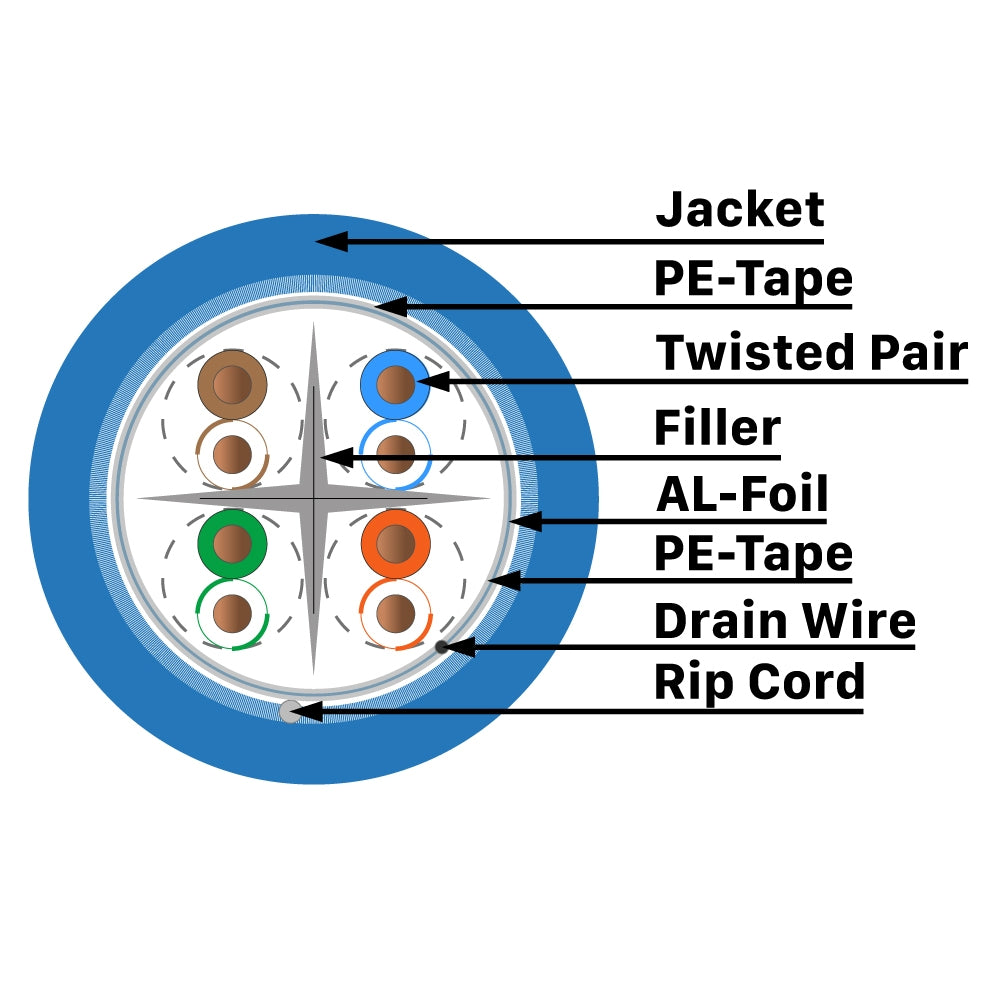

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 FTP (Shielded)
• Shield: AL-Foil + Drain Wire · Insulation: HDPE
• Jacket: FR-PVC CMR/FT4 · Separator: Yes · Ripcord: Yes
• Performance: 750MHz · 10G Base-T · OD 0.3153 in. · NVP 69% · PoE/PoE+/PoE++

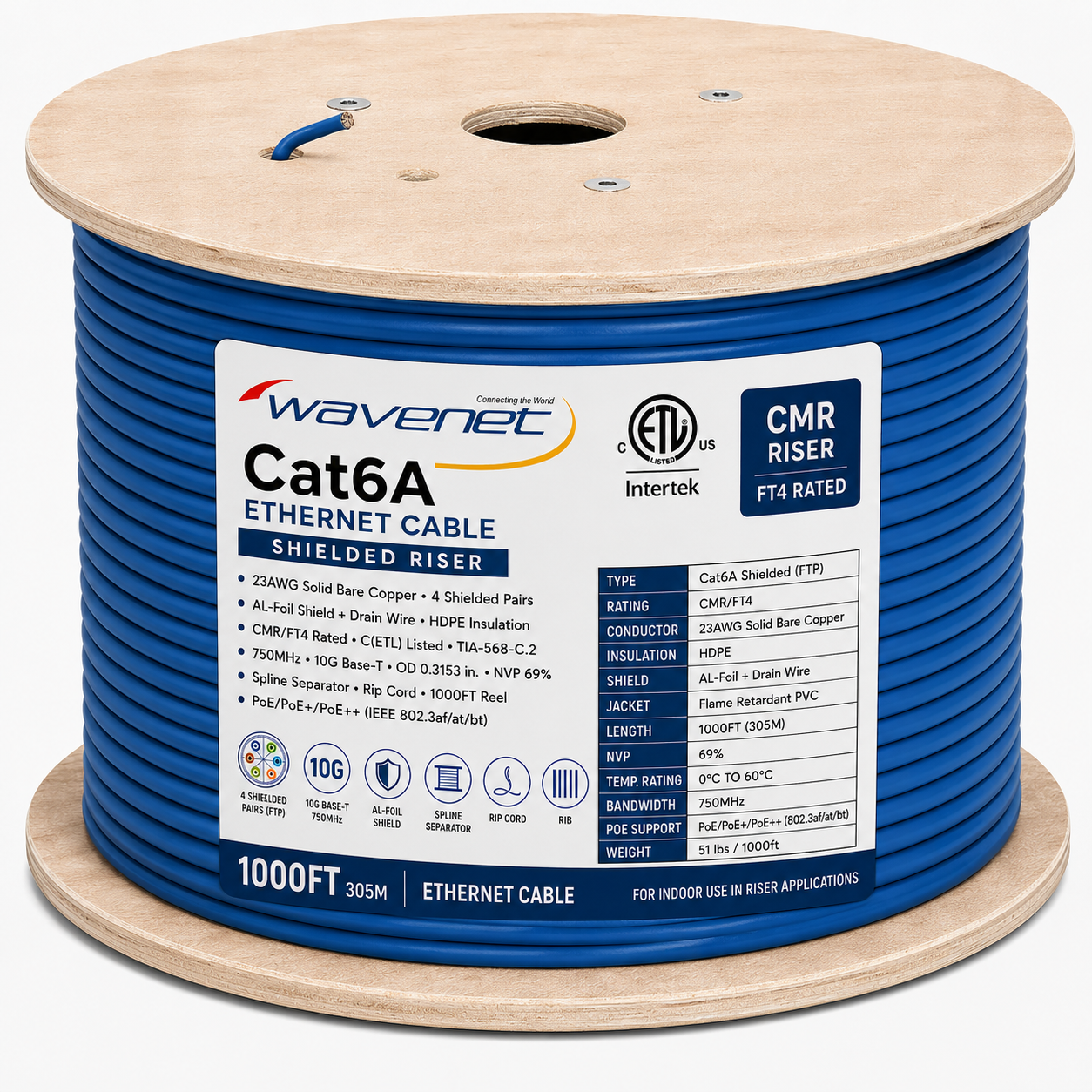

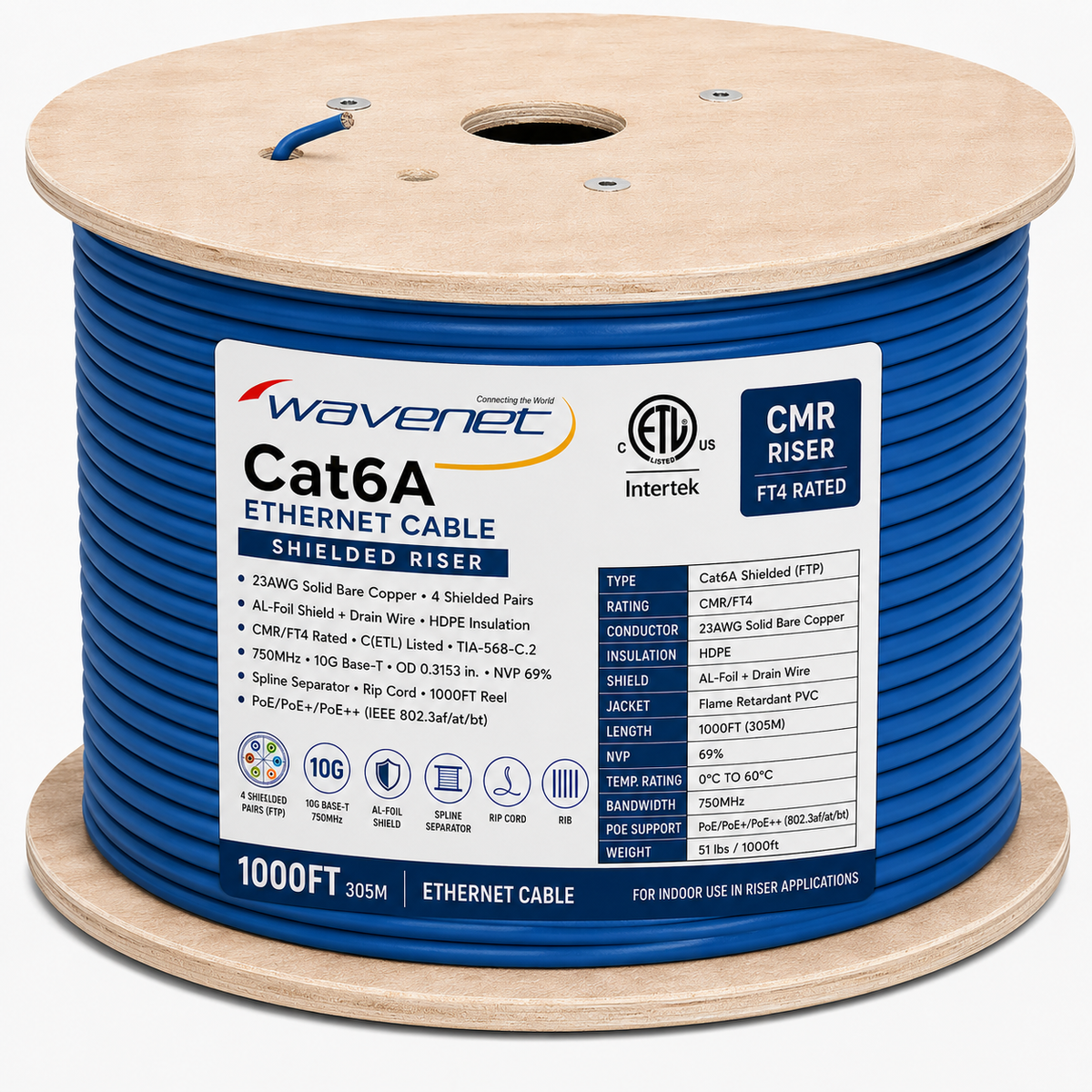

• Packaging: 1000ft Reel · 6 Colors Available
Typical Applications:
• In-wall and riser runs near motors, power lines, and dense cable trays
• 10G network backbones in industrial and data center floors
• PoE-powered IP cameras, access points, and network devices
• Structured cabling for offices and commercial buildings
• Color-coded cable management across multi-drop installs
