Control Cable Shielded 16AWG 2 Conductor Plenum CMP Stranded Copper 1000ft
-
16AWG Stranded Bare Copper, 2 Conductors
-
AL-Foil + PE Tape + Drain Wire Shield
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(UL)US Listed · UL 444 · 300V
-
OD 4.95mm · 1,000ft Reelex II
Control Cable Shielded 16AWG 2 Conductor Plenum CMP Stranded Copper 1000ft is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 16AWG 2 Conductor Plenum CMP Stranded Copper...
Control Cable Shielded 16AWG 2 Conductor Plenum CMP Stranded Copper 1000ft is backordered and will ship as soon as it is back in stock.
-
𝟭𝟲𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 16AWG stranded copper plus aluminum foil shield in a CMP-rated plenum cable for above-ceiling runs.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke CMP jacket required for control wire in air-handling plenum spaces — substitutes for CMR.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 100% foil shield and drain wire for grounding in EMI-sensitive above-ceiling environments.
-
𝟯𝟬𝟬𝗩 𝗥𝗔𝗧𝗘𝗗 Rated to 300V for HVAC actuators, relay coils, and motorized control equipment in plenum buildings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 1000ft shielded CMP coil for complete above-ceiling 16AWG control and HVAC distribution projects.
Description
Description
Run clean, interference-free control signals through the most code-critical spaces with this 16AWG shielded stranded bare copper control cable. Rated CMP and CL2P, it is approved for air-handling spaces above suspended ceilings and below raised floors — the highest indoor fire safety standard, covering plenum, riser, and in-wall installations in a single cable.
The 16AWG gauge delivers more current capacity and lower resistance than 18AWG — ideal for longer runs to powered security devices, magnetic door locks, audio amplifiers, and access control equipment where voltage drop over distance matters. The shield system (AL-foil + PE tape + tinned copper drain wire) blocks electromagnetic interference from nearby electrical equipment, HVAC systems, and fluorescent lighting for clean, reliable control signals in demanding commercial environments.
C(UL)US Listed · CMP / CL2P · UL 444
Specifications:

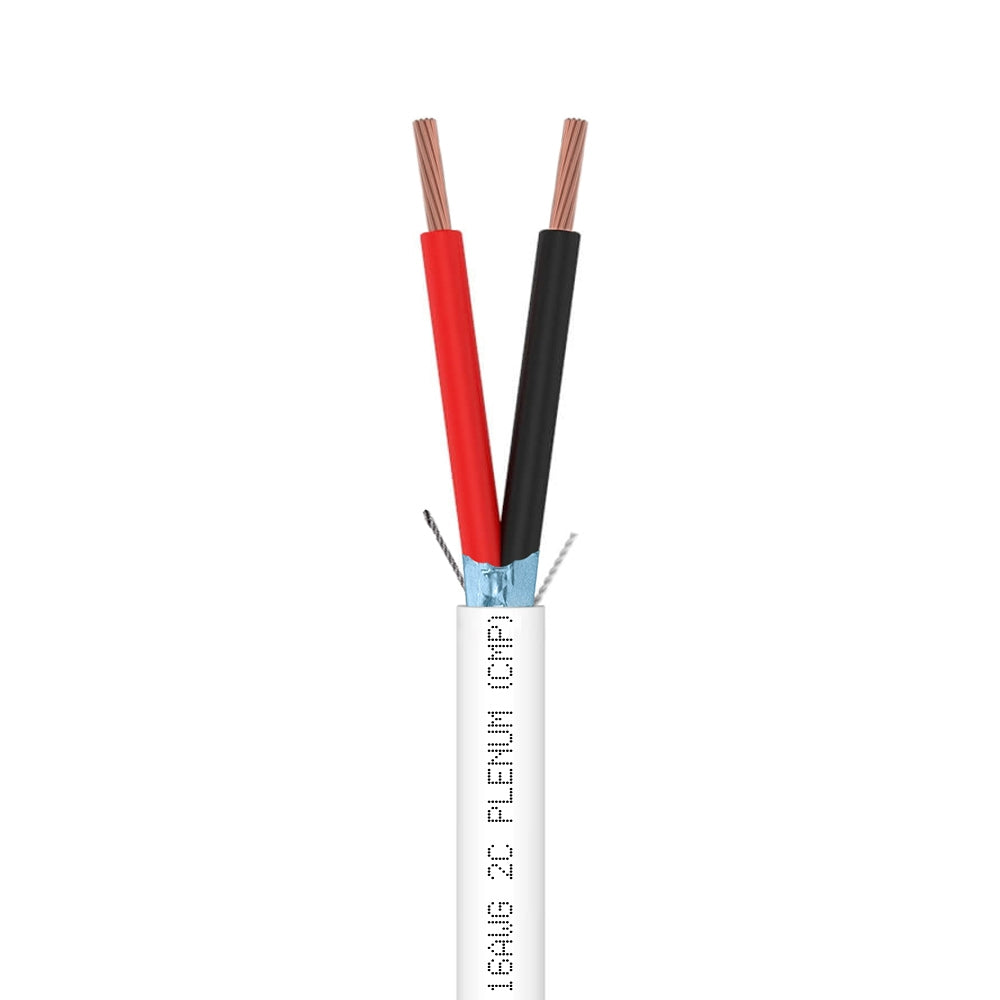

• Cable Type: 2-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 16AWG (7/0.16mm)
• Insulation: FR-PVC · Colors: Black, Red

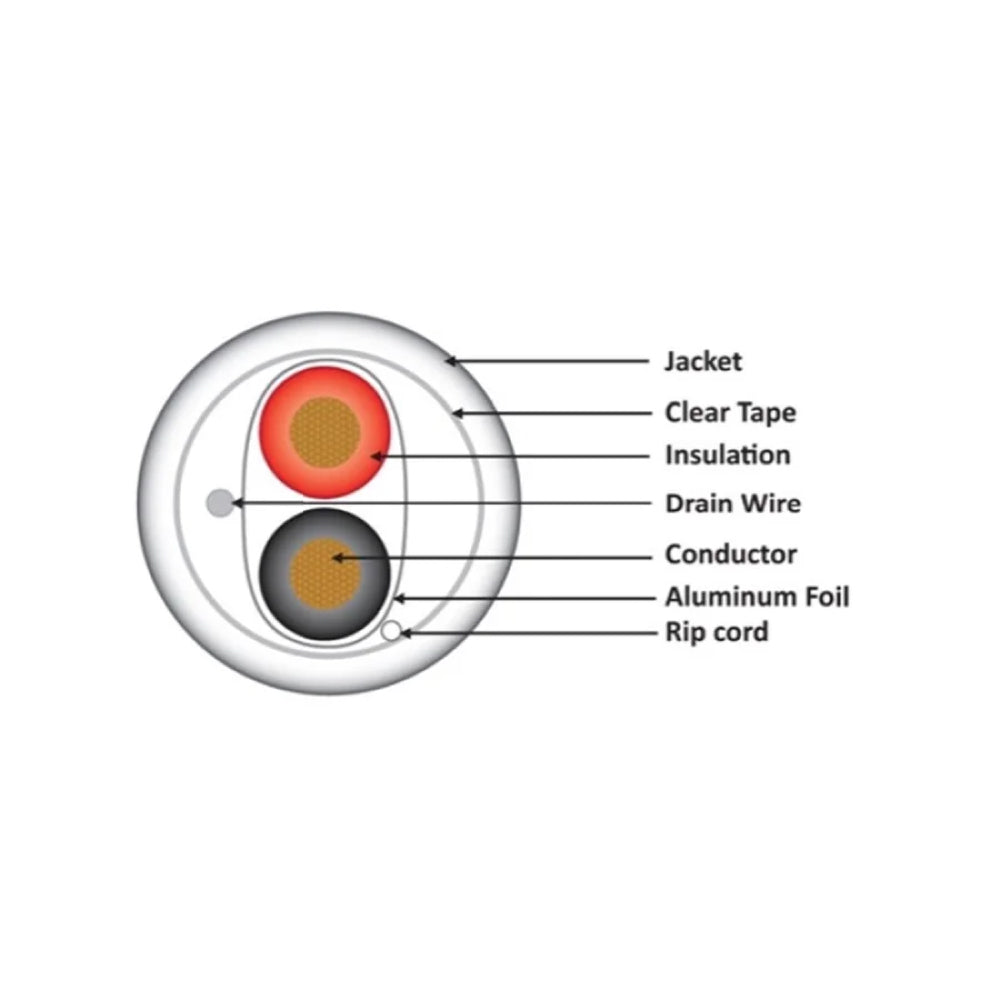

• Shield: AL-Foil + PE Tape + 7/0.20TC Tinned Copper Drain Wire
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 4.95 mm (0.195 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(UL)US Listed, UL 444, CL2P/CMP

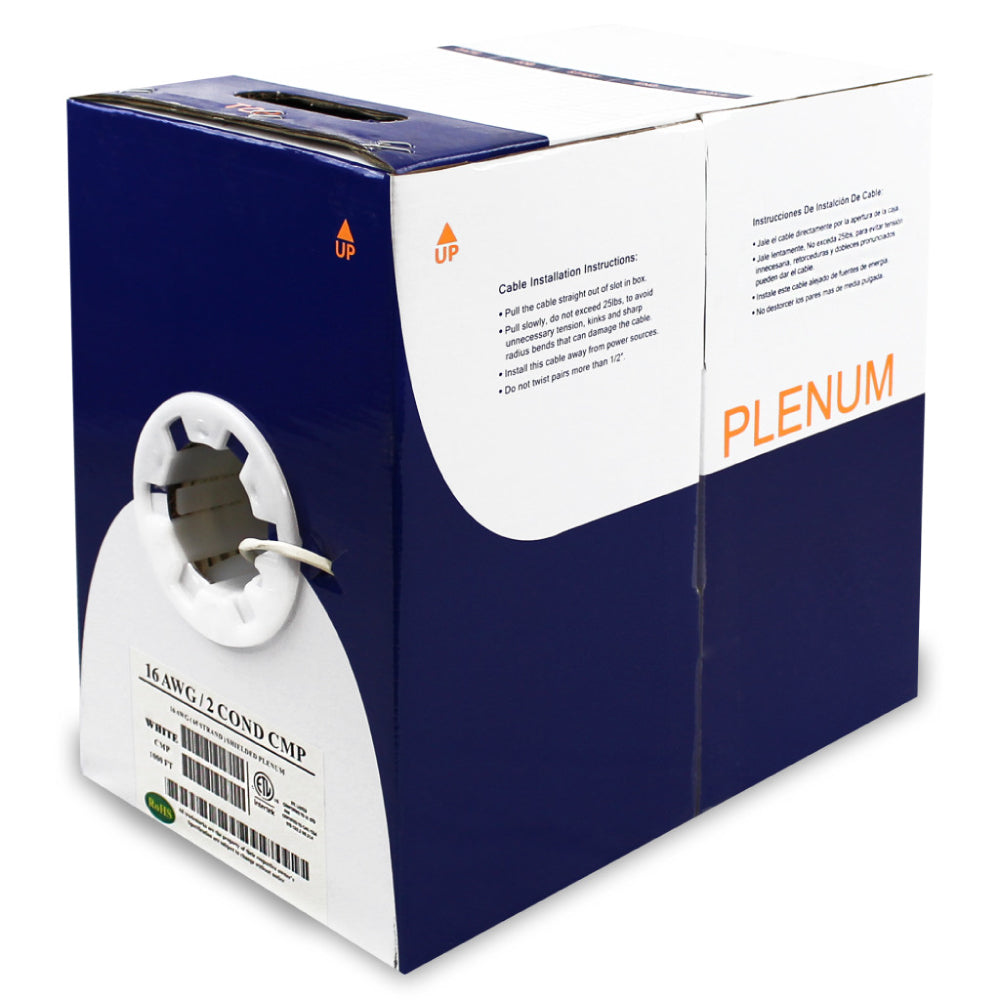

• Packaging: 1,000ft Reelex II pull box
Applications: Security systems, audio and background music distribution, access control, HVAC building automation, intercoms, and any CMP-rated power-limited control circuit.
