Choosing the right speaker wire is essential for achieving reliable audio performance and ensuring your speakers receive adequate power. Two of the most common speaker wire sizes are 12/2 and 14/2 speaker wire.
While both are excellent choices for home audio, home theater, commercial sound systems, and distributed audio installations, the ideal choice depends on speaker power requirements and cable distance.
What Does 12/2 Speaker Wire Mean?
12/2 Speaker Wire contains two conductors, each measuring 12 AWG (American Wire Gauge).
Because 12 AWG wire is thicker than 14 AWG wire, it offers lower electrical resistance and is capable of carrying more power over longer distances.
Common applications include:
- Home Theater Systems
- High-Power Speakers
- Commercial Audio Systems
- Outdoor Speaker Systems
- Long Speaker Wire Runs
What Does 14/2 Speaker Wire Mean?
14/2 Speaker Wire contains two conductors, each measuring 14 AWG.
14/2 speaker wire remains one of the most popular choices for residential audio systems because it provides excellent performance while remaining easy to install and cost-effective.
Common applications include:
- Home Audio Systems
- Bookshelf Speakers
- In-Wall Speaker Installations
- Multi-Room Audio
- Surround Sound Systems

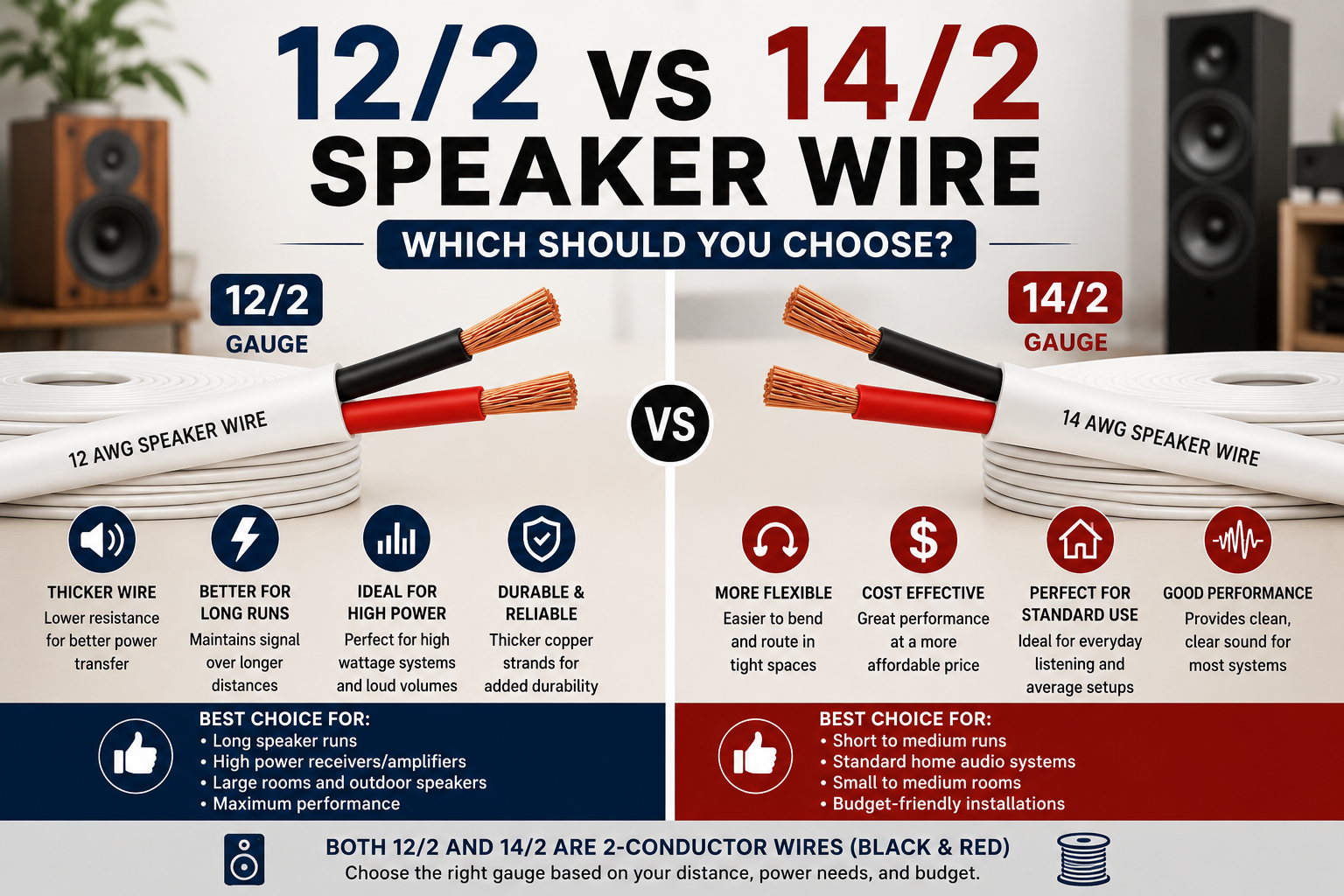

12/2 vs 14/2 Speaker Wire Comparison
| Feature | 12/2 Speaker Wire | 14/2 Speaker Wire |
|---|---|---|
| Wire Gauge | 12 AWG | 14 AWG |
| Wire Thickness | Thicker | Slightly Smaller |
| Resistance | Lower | Higher |
| Long Distance Runs | Excellent | Good |
| Power Handling | Higher | Very Good |
| Installation Flexibility | Lower | Higher |
| Cost | Higher | Lower |
Visual Wire Size Comparison
| Wire Type | Relative Size |
|---|---|
| 14/2 Speaker Wire | ██████████████ |
| 12/2 Speaker Wire | ████████████████████ |
The thicker conductors found in 12/2 speaker wire help reduce signal loss over longer distances and support higher-powered speaker systems.
How Far Can Speaker Wire Run?
Wire distance is one of the most important factors when choosing speaker cable.
| Speaker Distance | Recommended Wire |
|---|---|
| Under 50 Feet | 14/2 Speaker Wire |
| 50–100 Feet | 14/2 or 12/2 Speaker Wire |
| Over 100 Feet | 12/2 Speaker Wire |
For longer runs, the lower resistance of 12 AWG wire can help maintain audio performance and reduce power loss.
Does 12/2 Speaker Wire Sound Better?
For most residential installations, both 12/2 and 14/2 speaker wire provide excellent sound quality when used within recommended distances.
The primary advantage of 12/2 wire is not necessarily improved sound quality but rather lower resistance and improved power delivery for longer cable runs and higher-powered systems.
When Should You Use 12/2 Speaker Wire?
Choose 12/2 Speaker Wire if:
- Your speaker runs exceed 100 feet.
- You have high-power amplifiers.
- You are installing commercial audio systems.
- You want maximum performance and future scalability.
When Should You Use 14/2 Speaker Wire?
Choose 14/2 Speaker Wire if:
- Your speaker runs are under 100 feet.
- You are wiring a home theater system.
- You are installing ceiling speakers.
- You want excellent performance with easier installation.
Shop Speaker Wire
- Speaker Wire
- 12/2 Speaker Wire
- 12/4 Speaker Wire
- 14/2 Speaker Wire
- 14/4 Speaker Wire
- 16/2 Speaker Wire
- 16/4 Speaker Wire
- 18/2 Speaker Wire
Related Guides
Conclusion
Both 12/2 and 14/2 speaker wire are excellent choices for audio installations. For most residential systems, 14/2 speaker wire offers an ideal balance of performance, flexibility, and cost. For longer cable runs and higher-powered audio systems, 12/2 speaker wire provides lower resistance and greater power handling capability.
Selecting the correct speaker wire helps ensure optimal sound quality, reliable performance, and long-term system reliability.
