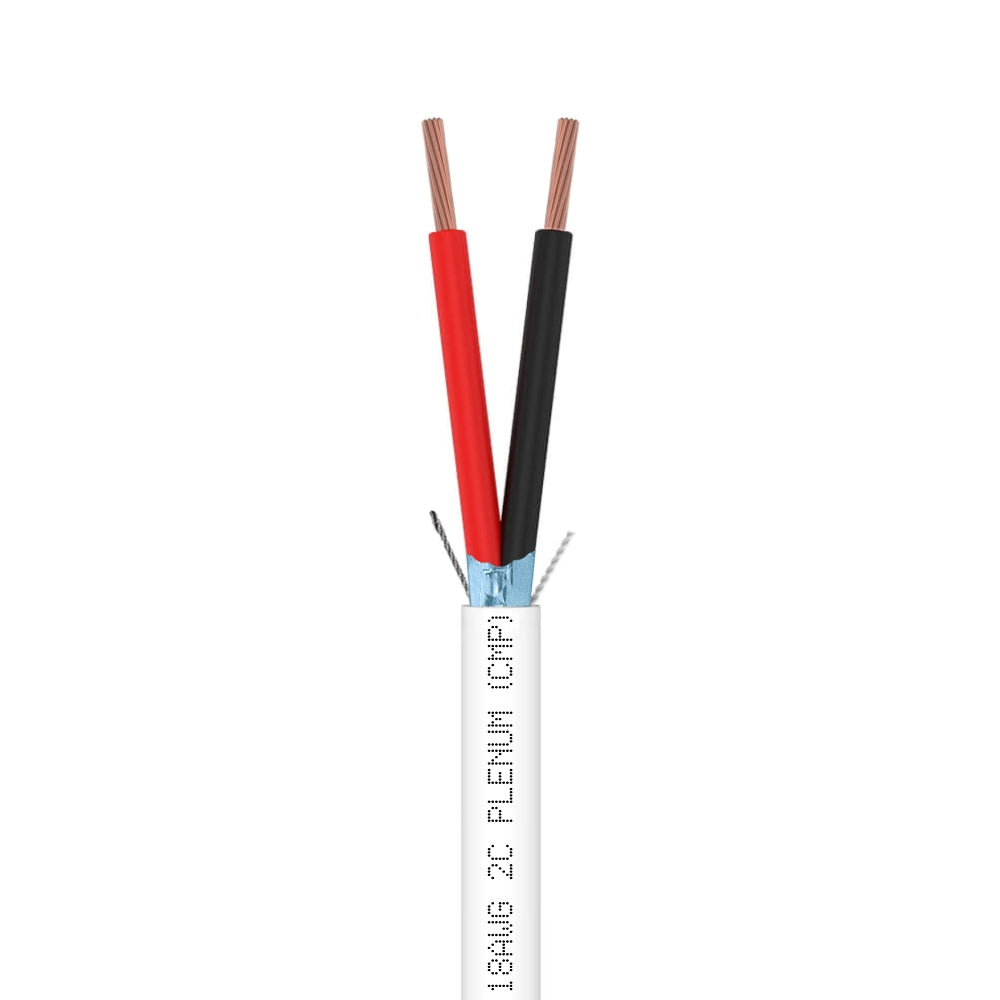

Control Cable Shielded 18AWG 2 Conductor Plenum CMP Stranded Copper 1000ft
-
18AWG Stranded Bare Copper, 2 Conductors (7 strands)
-
AL-Foil + 7/0.20TC Drain Wire Shield
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 3.96mm · White Jacket · 1,000ft Reelex II
Control Cable Shielded 18AWG 2 Conductor Plenum CMP Stranded Copper 1000ft is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 18AWG 2 Conductor Plenum CMP Stranded Copper...
Control Cable Shielded 18AWG 2 Conductor Plenum CMP Stranded Copper 1000ft is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 Aluminum foil shield and CMP plenum rating on an 18AWG 2-conductor cable for EMI-sensitive runs.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke Remguard earns CMP certification for air-handling spaces where PVC is prohibited.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 Full-coverage shield with drain wire for single-point grounding in noisy plenum environments.
-
𝟯𝟬𝟬𝗩 𝗥𝗔𝗧𝗘𝗗 Covers HVAC, audio DSP, relay, and building automation control wiring above suspended ceilings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 1000ft shielded CMP coil for complete commercial control cable above suspended ceilings.
Description
Description
Run shielded EMI-resistant control wiring through the most code-critical spaces with this 18AWG shielded stranded bare copper control cable. Rated CMP and CL2P, it meets the highest indoor fire safety standard and is approved for air-handling spaces above suspended ceilings and below raised floors, as well as risers and in-wall runs in residential and commercial buildings.
The aluminum foil shield with tinned copper drain wire blocks electromagnetic interference from HVAC systems, power wiring, and lighting ballasts for clean, stable control signals. At 18AWG, the cable is thinner and lighter than the 16AWG version — easier to pull in conduit-dense installations and ideal for devices with moderate current requirements over shorter runs. A built-in ripcord enables fast, clean jacket removal at every termination point.
C(ETL)US Listed · CMP / CL2P · UL 444
Specifications:

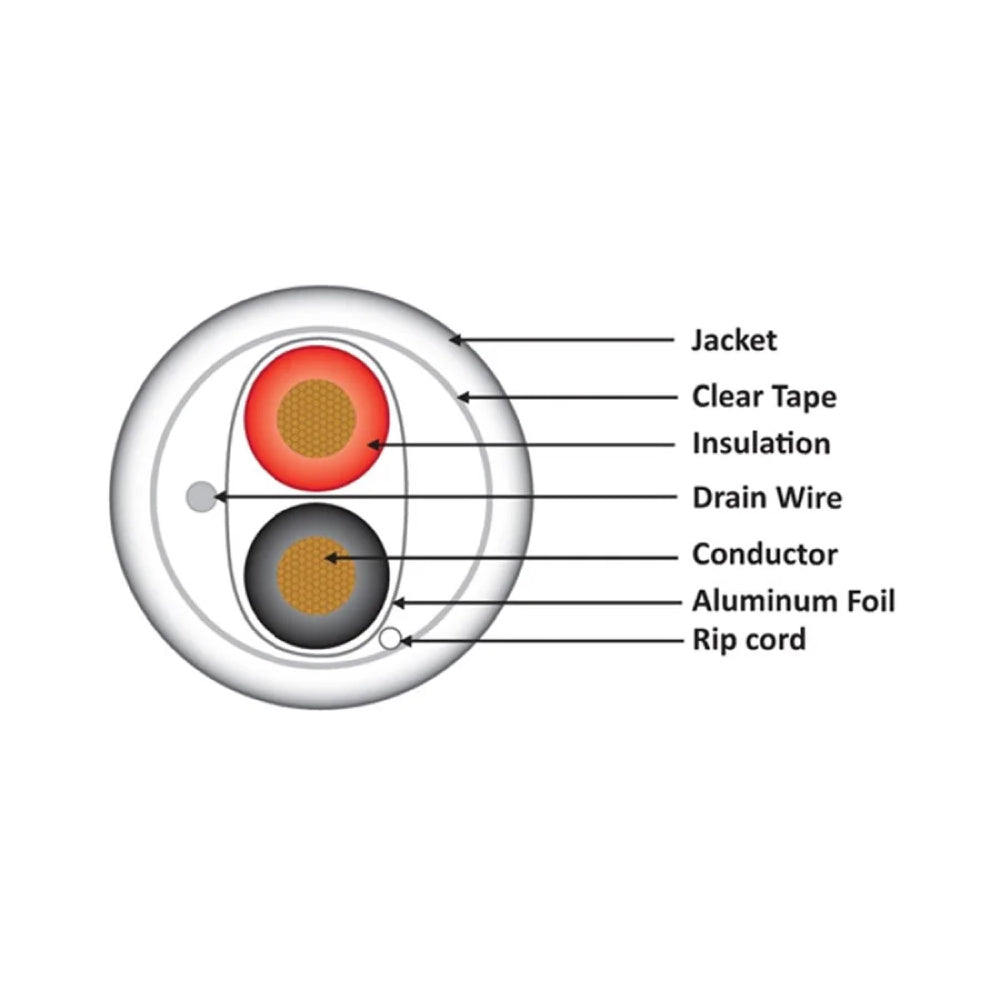

• Cable Type: 2-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.4mm)
• Insulation: FR-PVC · Colors: Black, Red
• Shield: AL-Foil + 7/0.20TC Drain Wire
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 3.96 mm (0.156 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

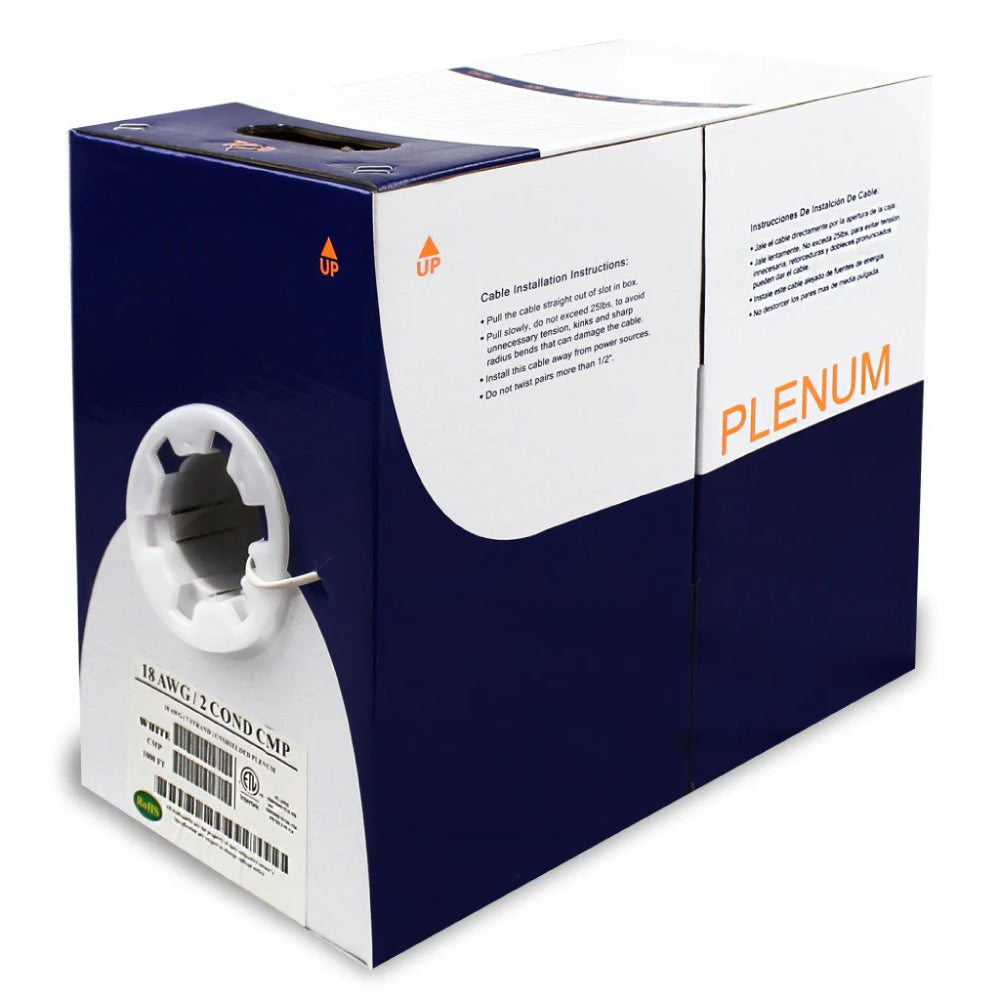

• Packaging: 1,000ft Reelex II pull box
Note: For longer runs or higher-current devices such as magnetic locks and powered amplifiers, use the 16AWG version of this cable.
