Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded 1000ft Grey
-
16AWG Stranded Bare Copper, 2 Conductors (19 strands)
-
Unshielded – Simple & Effective in Low-EMI Installs
-
FR-PVC Jacket, CMR / FT4 Rated
-
C(ETL)US Listed · CL2R · UL444
-
OD 4.60mm · Grey Jacket · 1,000ft Reelex II
Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded 1000f...
Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
-
𝟭𝟲𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 16AWG stranded copper carries more current over longer runs than 18AWG for actuators and relay coils.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 Meets CMR and FT4 fire requirements for in-wall and riser runs in commercial control systems.
-
𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝟮-𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥 Clean two-conductor design for low-noise environments where EMI shielding is not required.
-
𝟯𝟬𝟬𝗩 𝗥𝗔𝗧𝗘𝗗 Rated to 300V across the full range of low-voltage control, HVAC, and automation applications.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗚𝗥𝗘𝗬 𝗖𝗢𝗜𝗟 Ships in a 1000ft grey coil for complete floor-wide or building-wide 16AWG CMR control installs.
Description
Description
Get reliable 16AWG control cable performance in walls and risers at the lowest cost in the lineup — this unshielded stranded bare copper control cable is rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings. With no shield to add cost or installation complexity, it is the straightforward choice for clean environments without significant EMI from power lines, motors, or lighting ballasts.
The 16AWG gauge handles more current and maintains lower voltage drop over long runs than 18AWG — important for powered security devices, audio amplifiers, door strikes, and access control equipment at the end of a long cable run. With 19 strands per conductor, the cable remains flexible and easy to route through walls, conduit, and junction boxes. A built-in ripcord enables fast, clean jacket removal at every termination point.
C(ETL)US Listed · CMR / FT4 · CL2 / CL2R · UL444
Specifications:

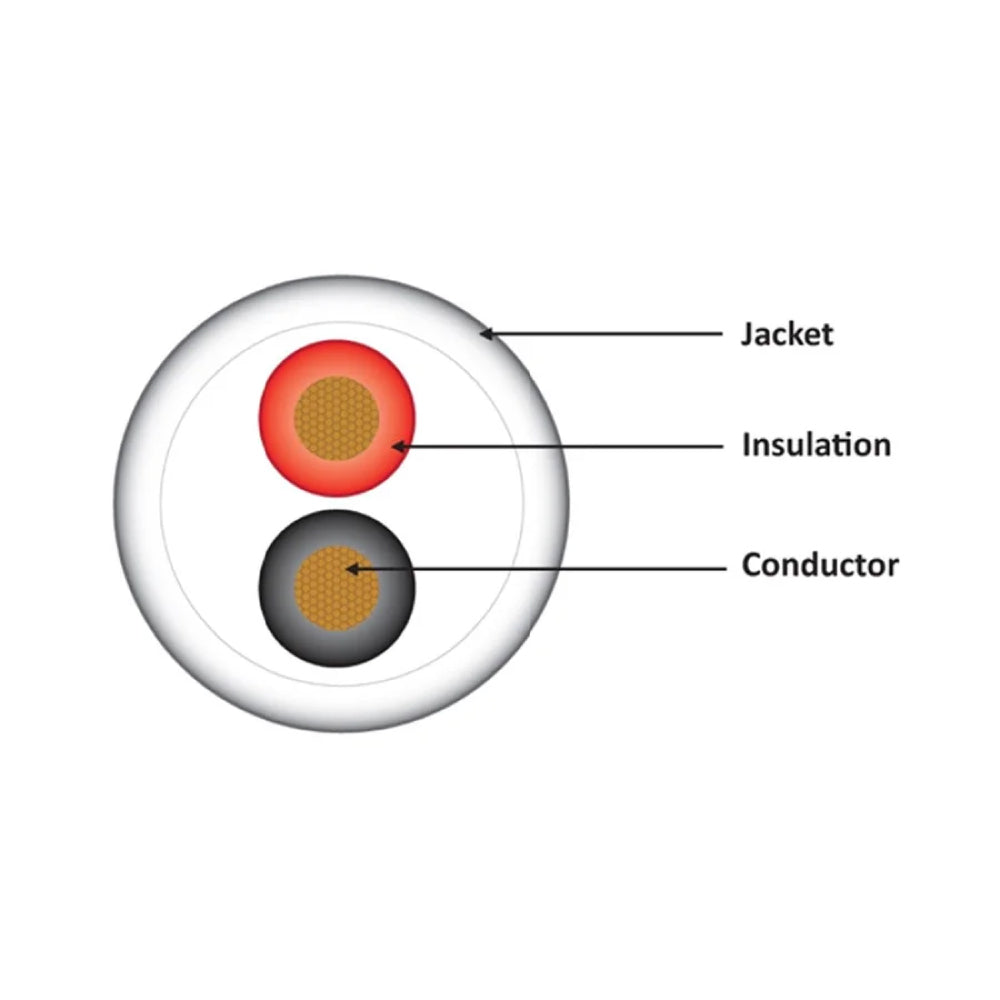

• Cable Type: 2-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 16AWG (19/0.295mm)
• Insulation: PVC · Colors: Black, Red
• Shielding: None (Unshielded)
• Jacket: FR-PVC, CMR / FT4 Rated
• Jacket Color: Grey
• Nominal OD: 4.60 mm (0.181 in.)
• Certifications: C(ETL)US Listed, UL444, CL2/CL2R
• Ripcord: Yes

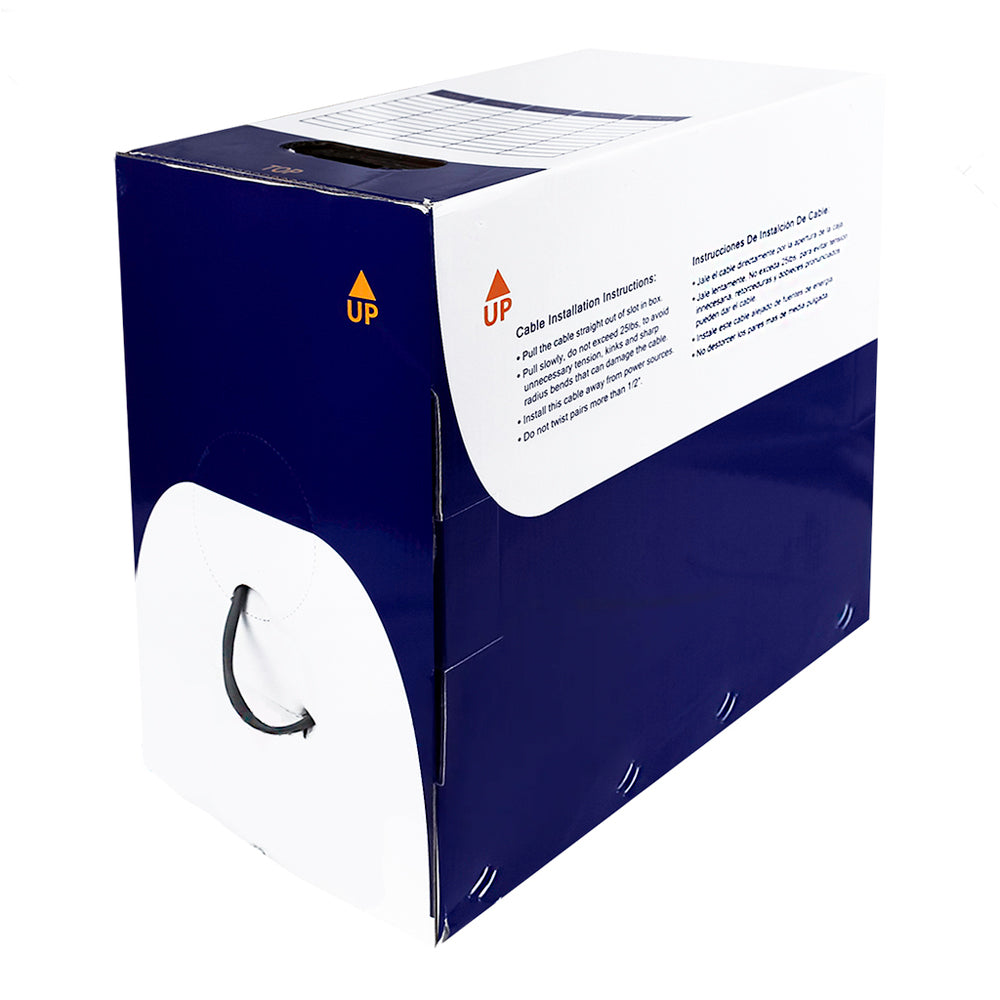

• Packaging: 1,000ft Reelex II pull box
Note: For environments with EMI, choose the shielded CMR version. For plenum spaces, choose the CMP-rated version.
