Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 1000ft Teal
-
18AWG 2C Power + 22AWG 2C Shielded Data
-
AL-Tape 100% + Drain Wire on Data Pair
-
Form PE Data Insulation – No Crosstalk
-
CMR / FT4 / CL3 · C(ETL)US Listed
-
Teal Jacket · OD 6.35mm · 1,000ft Pull Box
Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 1000ft Teal is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 100...
Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 1000ft Teal is backordered and will ship as soon as it is back in stock.
-
𝗛𝗬𝗕𝗥𝗜𝗗 𝗗𝗘𝗦𝗜𝗚𝗡 18AWG pair carries up to 80V power; 22AWG shielded pair handles low-level control data in one cable.
-
𝗟𝗨𝗧𝗥𝗢𝗡 𝗔𝗡𝗗 𝗖𝗥𝗘𝗦𝗧𝗥𝗢𝗡 𝗖𝗢𝗠𝗣𝗔𝗧𝗜𝗕𝗟𝗘 Meets wiring requirements for Lutron HomeWorks, RadioRA, and Crestron control system installations.
-
𝗖𝗟𝟯 + 𝗖𝗠𝗥 𝗥𝗔𝗧𝗘𝗗 CL3 and CMR rated for in-wall and riser installation in residential and commercial control systems.
-
𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗗𝗔𝗧𝗔 𝗣𝗔𝗜𝗥 22AWG shielded pair protects low-level control signals from interference on the same cable as power.
-
𝗧𝗘𝗔𝗟 𝗝𝗔𝗖𝗞𝗘𝗧 Distinctive teal jacket for immediate visual identification in multi-cable conduit runs.
Description
Description

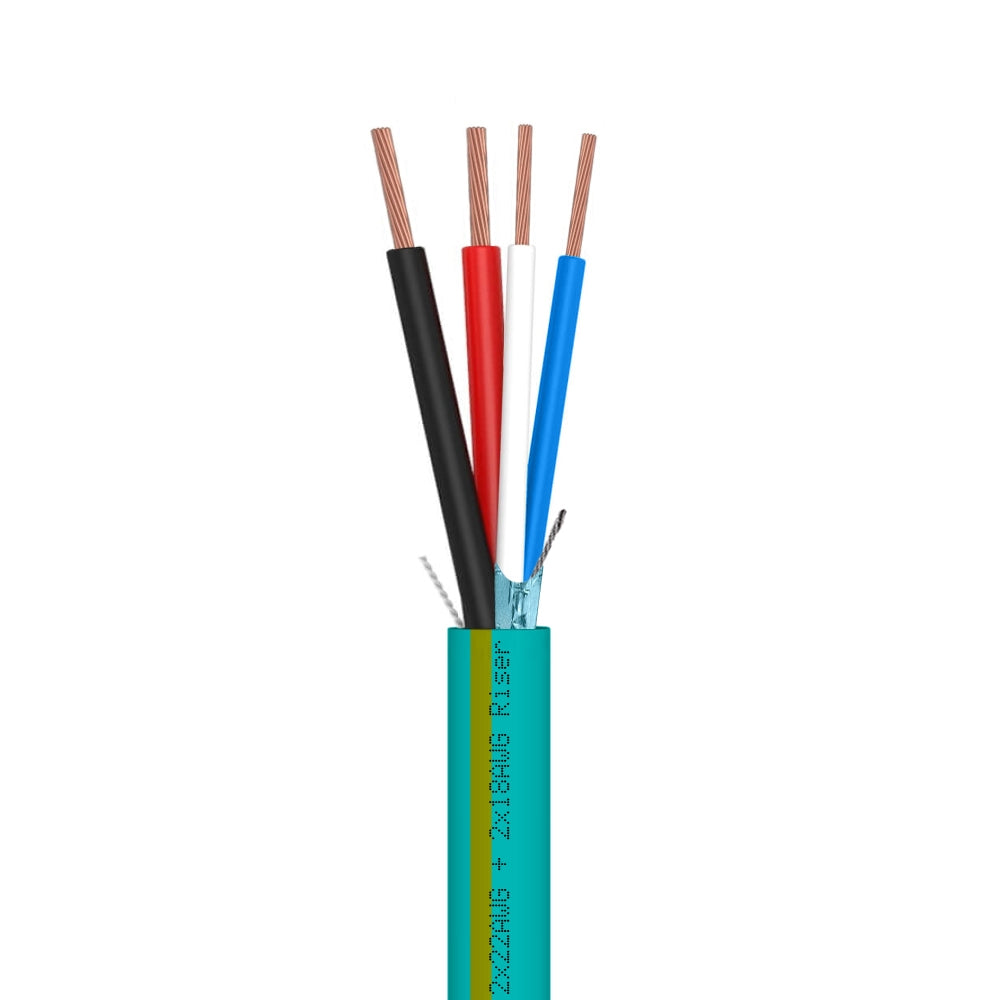

One cable. Two functions. This hybrid riser control cable carries a dedicated 18AWG power pair and a shielded 22AWG data pair inside a single CMR-rated jacket — eliminating the need to pull separate power and signal cables to automation devices, intercoms, cameras, and access control hardware in walls and risers.
The 22AWG shielded pair uses Form PE insulation and 100% aluminum tape coverage with a tinned copper drain wire to completely isolate the data signal from the 18AWG power pair running alongside it — preventing crosstalk and electromagnetic interference from the power conductors. The teal jacket with yellow stripe is the recognized industry-standard jacket color for automation and AV control cable, making identification fast and reliable on any job site.
C(ETL)US Listed · CMR / FT4 · CL3
Specifications:

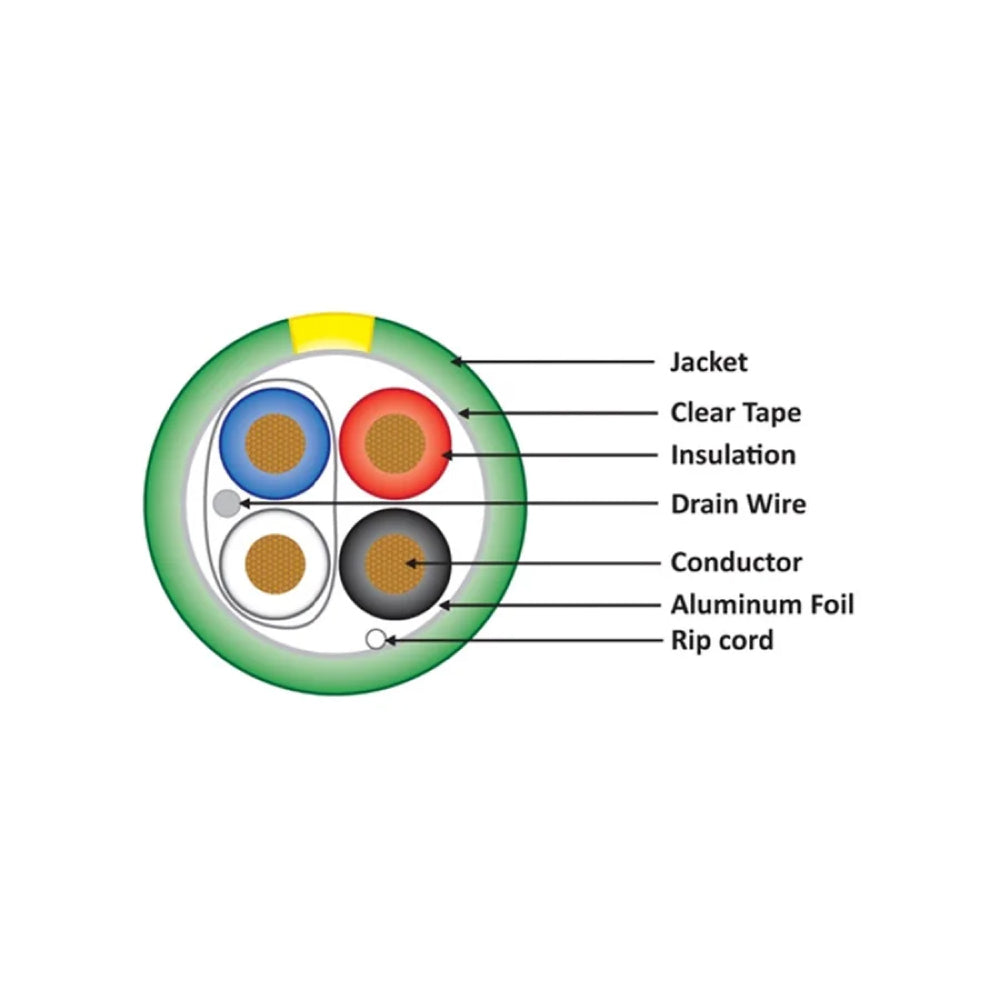

• Cable Type: Hybrid 4-Conductor (2C 18AWG Power + 2C 22AWG Shielded Data)
• Power Pair: 18AWG Stranded Bare Copper (7/0.39mm), PVC, Black & Red
• Data Pair: 22AWG Stranded Bare Copper (7/0.25mm), Form PE, White & Blue
• Data Pair Shield: AL-Tape (100% coverage) + 7/0.2 Tinned Copper Drain Wire
• Jacket: PVC, CMR / FT4 / CL3 Rated
• Jacket Color: Teal (Green with Yellow Stripe)
• Nominal OD: 6.35 mm (0.250 in.)
• Voltage Rating: 80V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, CMR / FT4, CL3

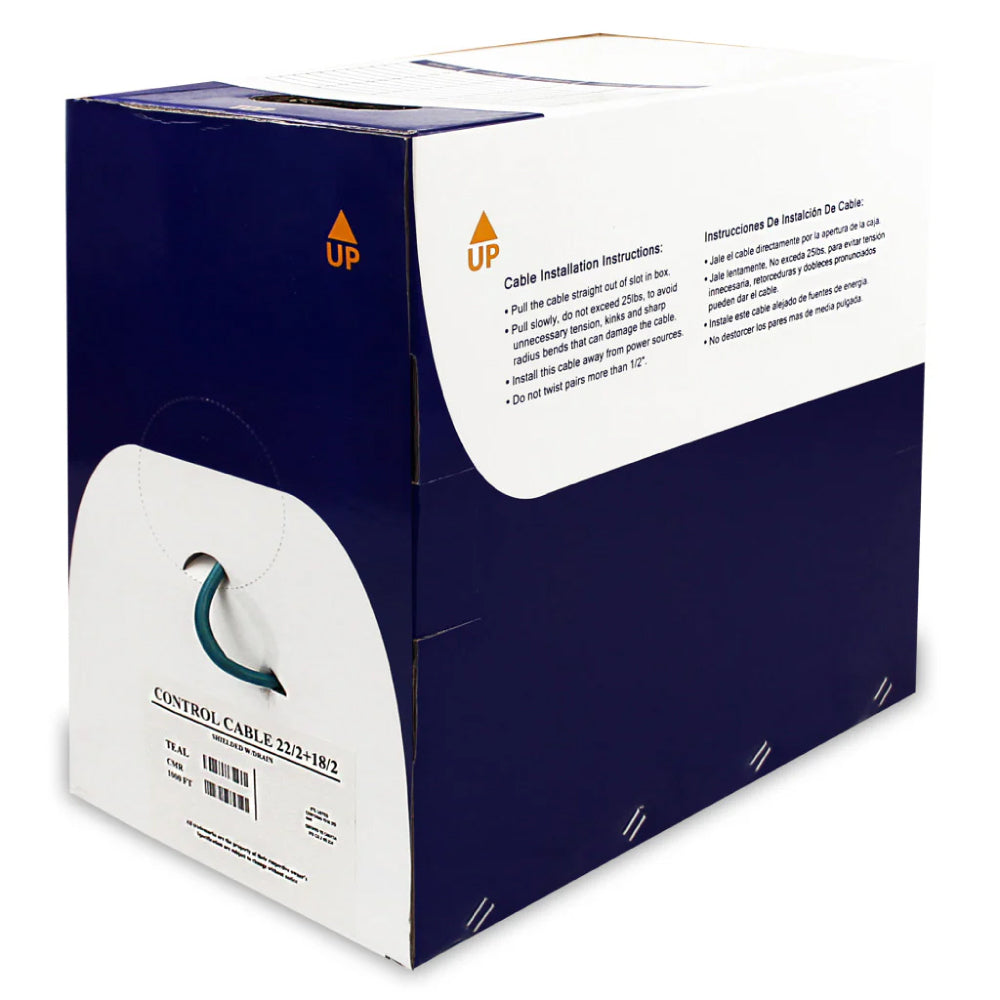

• Packaging: 1,000ft pull box
Applications: Lutron lighting control, Crestron automation, building AV control, intercoms, IP cameras, access control readers, and smart home systems requiring dedicated power and shielded data over a single cable run.
