Control Cable Shielded 22AWG 4 Conductor Plenum CMP Stranded 1000ft White
-
22AWG Stranded Bare Copper, 4 Conductors
-
AL-Foil + 24AWG Tinned Copper Drain Wire
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 3.55mm · 20.9 lbs · 1,000ft Reelex II
Control Cable Shielded 22AWG 4 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 22AWG 4 Conductor Plenum CMP Stranded 1000ft...
Control Cable Shielded 22AWG 4 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
-
𝟮𝟮𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 At 3.55mm OD and 20.9 lbs per 1000ft, the smallest-diameter shielded 4C CMP control cable available.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke Remguard rated CMP — required for 22AWG control wire above suspended ceilings.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 Full foil shield with drain wire for reliable EMI rejection on sensitive 22AWG control signals.
-
𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Four colored conductors for low-current signals: audio DSP, relay logic, and building automation.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗪𝗛𝗜𝗧𝗘 𝗖𝗢𝗜𝗟 1000ft CMP coil for complete above-ceiling 4-conductor 22AWG shielded control distribution.
Description
Description
Run shielded 4-conductor CMP control wiring through plenum spaces with the slimmest cable in the 4C lineup — this 22AWG shielded stranded bare copper control cable measures just 3.55mm in diameter and weighs only 20.9 lbs per 1,000ft. Rated CMP and CL2P, it is approved for air-handling spaces above suspended ceilings, below raised floors, and in risers and walls in residential and commercial buildings.
22AWG is ideal for low-power signal and control applications where the device draws minimal current — intercoms, door stations, card readers, sensors, low-voltage relays, and auxiliary alarm wiring. The aluminum foil shield with tinned copper drain wire blocks EMI from HVAC equipment, power wiring, and lighting ballasts for clean, noise-free signals across all four conductors. A built-in ripcord enables fast jacket removal at every termination.
C(ETL)US Listed · CMP / CL2P · UL 444
Specifications:
• Cable Type: 4-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 22AWG (7/0.24mm)
• Insulation: FR-PVC · Colors: Black, Red, White, Green

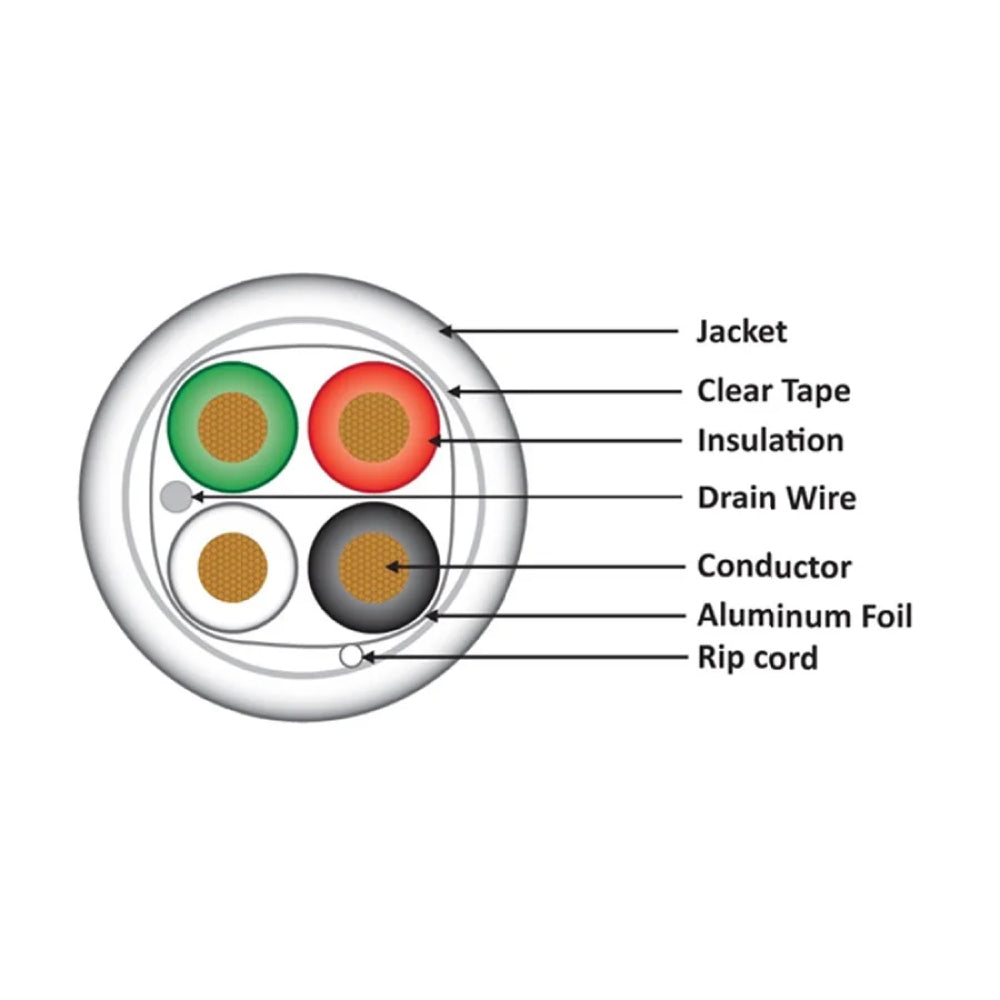

• Shield: AL-Foil (≥25% overlap) + 24AWG Tinned Copper Drain Wire
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 3.55 mm (0.140 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

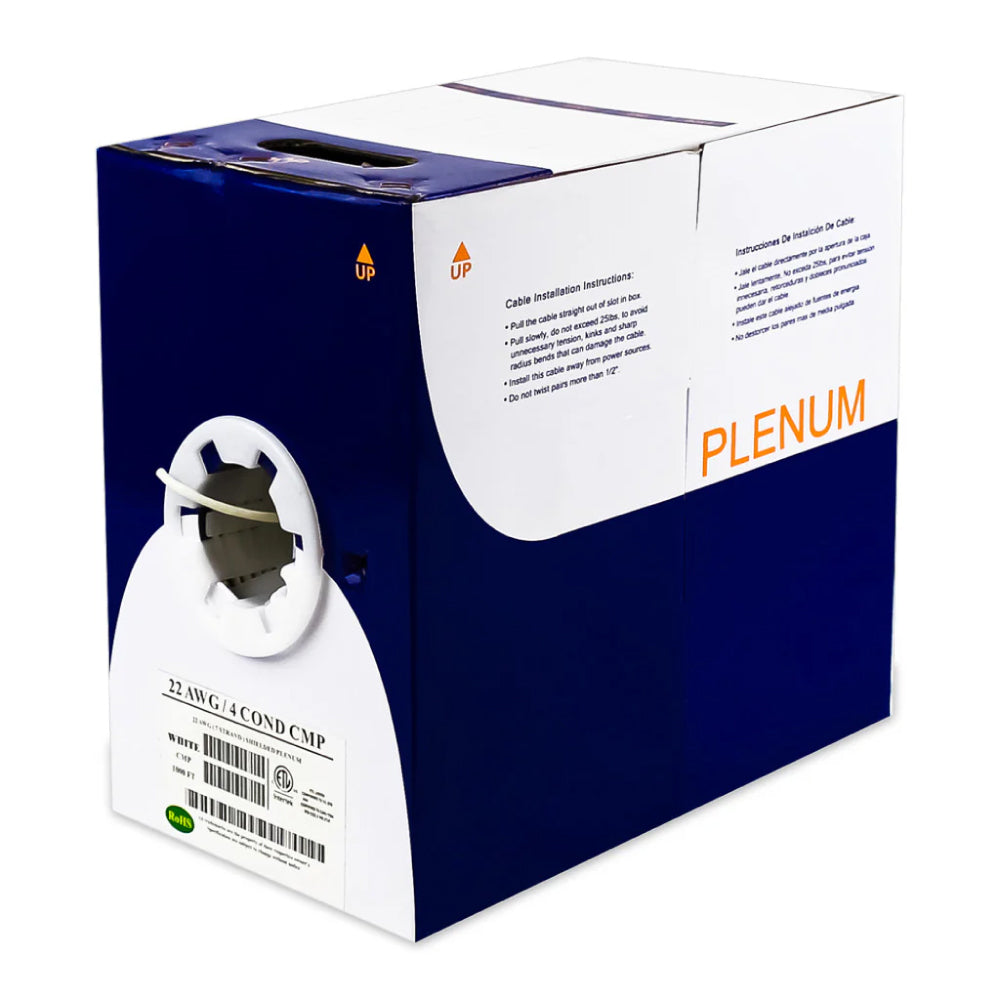

• Packaging: 1,000ft Reelex II pull box
Note: For powered devices with higher current requirements, choose the 18AWG version of this cable.
