Control Cable Unshielded 18AWG 4 Conductor Plenum CMP Stranded 1000ft White
-
18AWG Stranded Bare Copper, 4 Conductors
-
Unshielded – Lower Cost & Diameter for Clean Installs
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 5.10mm · 4-Color Coded · 1,000ft Reelex II
Control Cable Unshielded 18AWG 4 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 4 Conductor Plenum CMP Stranded 1000...
Control Cable Unshielded 18AWG 4 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 Four 18AWG CMP conductors for running multiple low-voltage signals above suspended ceilings.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke Remguard rated CMP for air-handling spaces in commercial and institutional buildings.
-
𝗖𝗠𝗣 𝗦𝗨𝗕𝗦𝗧𝗜𝗧𝗨𝗧𝗘𝗦 𝗔𝗡𝗬𝗪𝗛𝗘𝗥𝗘 Covers any installation requiring CMP, CMR, or lower — one spec for the entire building.
-
𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Four colored conductors for HVAC zone controls, audio DSP, and building automation above ceilings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗪𝗛𝗜𝗧𝗘 𝗖𝗢𝗜𝗟 1000ft white CMP coil for complete above-ceiling 4-conductor unshielded control distribution.
Description
Description
Run four-function control wiring through plenum spaces with this 18AWG 4-conductor unshielded stranded bare copper control cable. Rated CMP and CL2P, it meets the highest indoor fire safety standard and is approved for air-handling spaces above suspended ceilings, below raised floors, and in risers and walls in residential and commercial buildings.

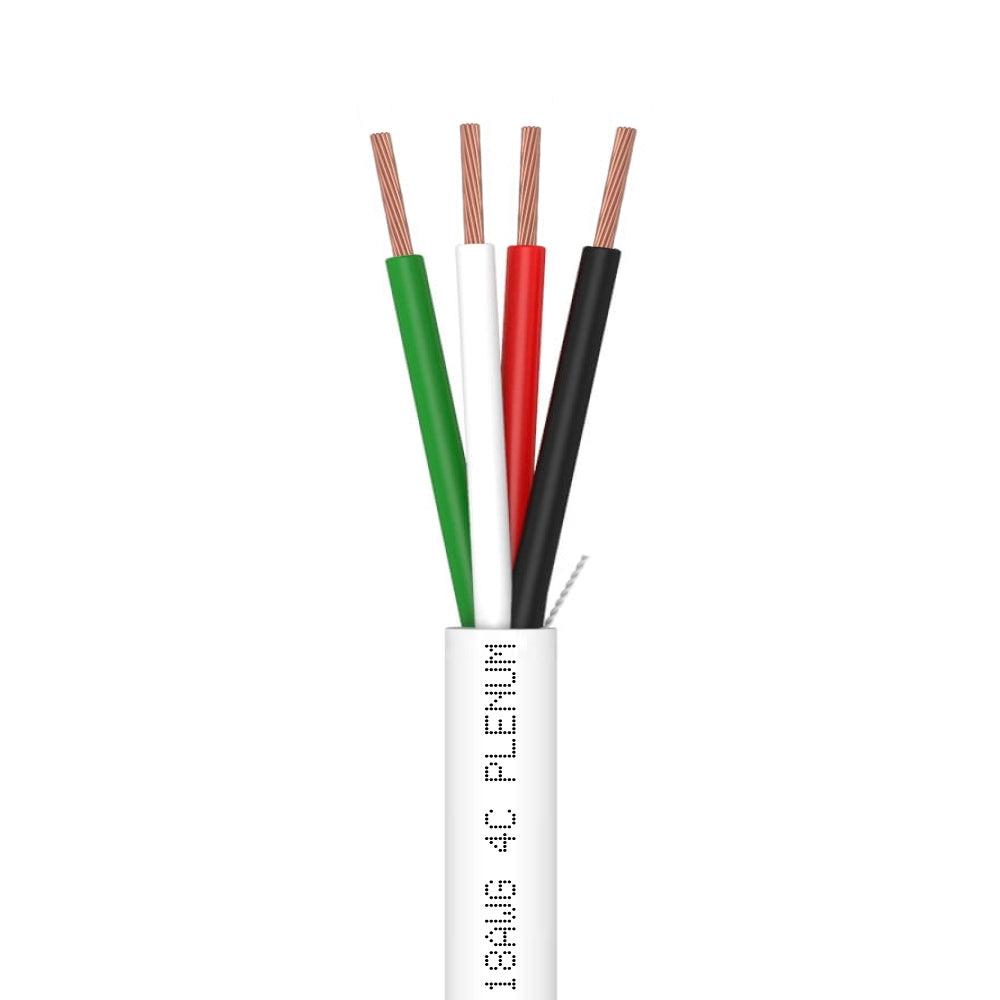

Four color-coded conductors (Black, Red, White, Green) let you handle power, signal, status, and auxiliary functions over a single cable run to a single device — reducing the number of cables needed in conduit and cable trays in commercial ceiling installations. The unshielded design keeps cost and diameter lower for installations without significant EMI from power lines, motors, or industrial equipment. A built-in ripcord enables fast, clean jacket removal at every termination point.
C(ETL)US Listed · CMP / CL2P · UL 444
Specifications:

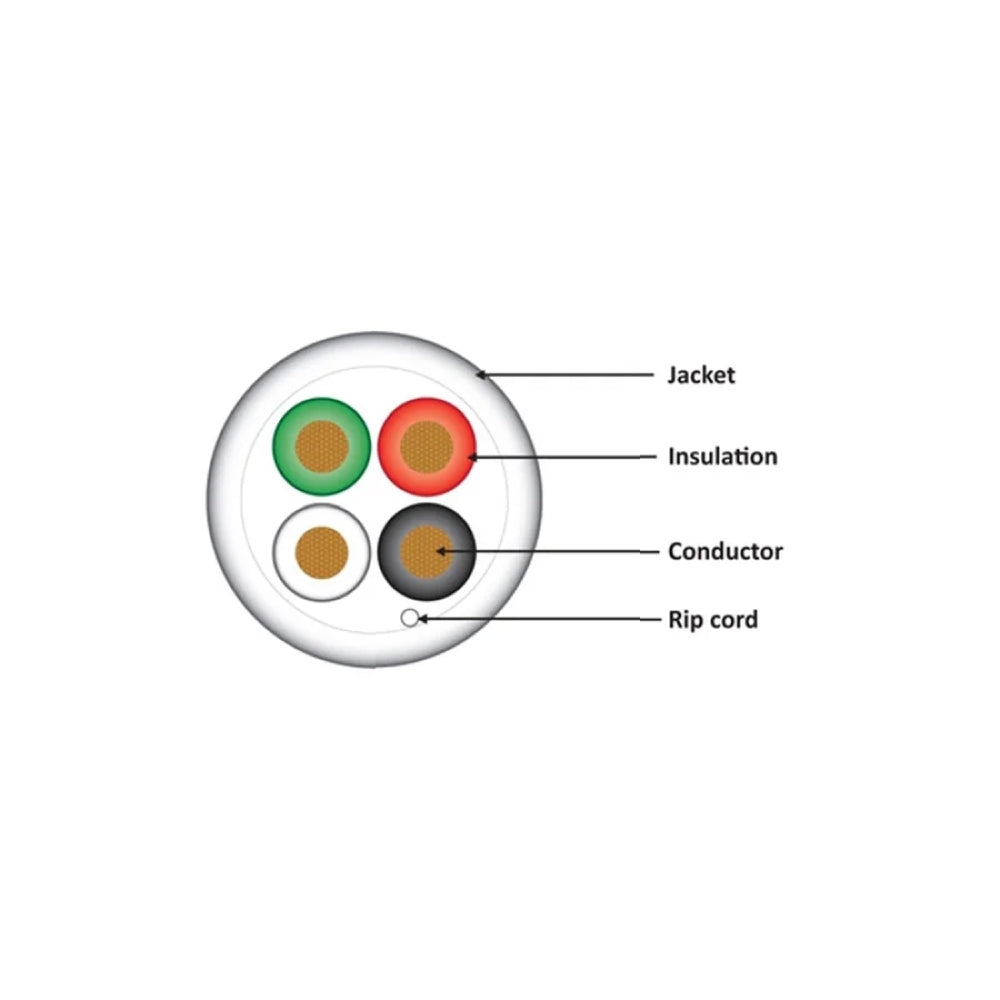

• Cable Type: 4-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.4mm)
• Insulation: FR-PVC · Colors: Black, Red, White, Green
• Shielding: None (Unshielded)
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 5.10 mm (0.201 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

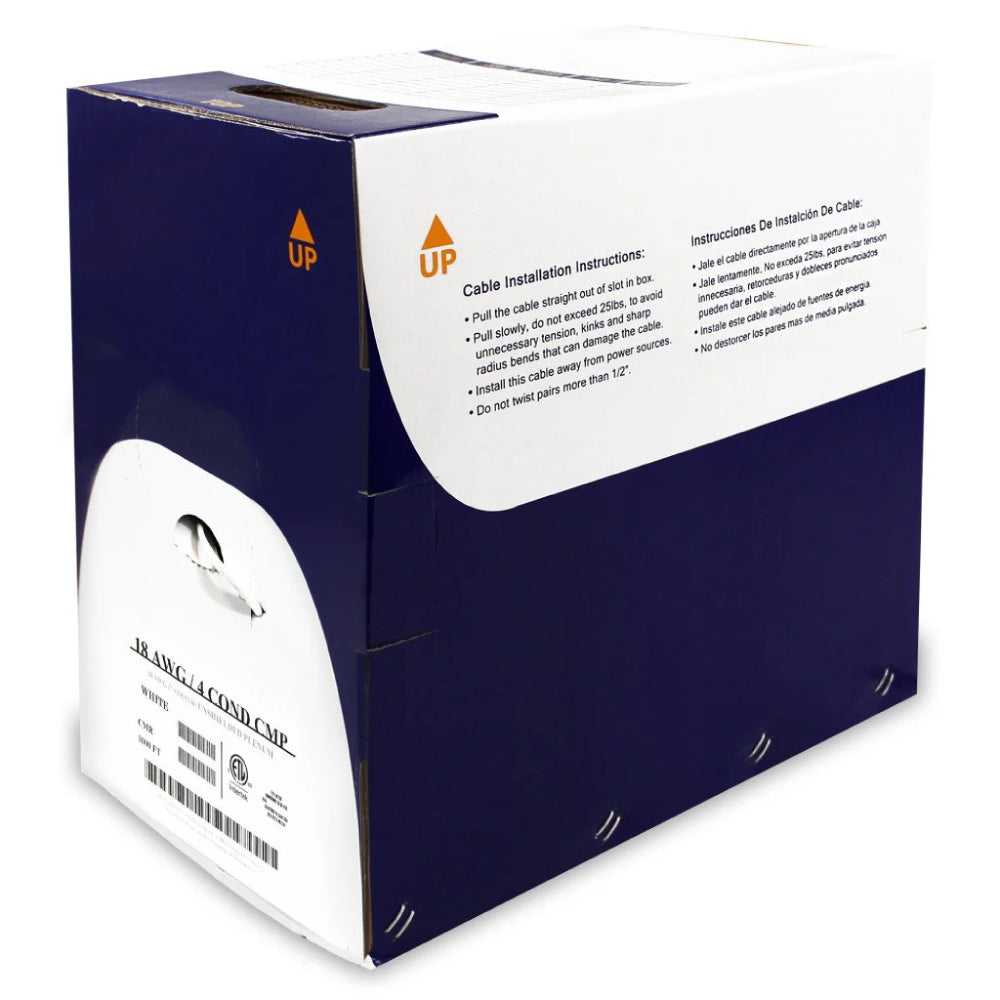

• Packaging: 1,000ft Reelex II pull box
Note: For installations near electrical panels, VFDs, or fluorescent lighting with significant EMI, choose the 4-conductor shielded CMP version of this cable.
