Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey
-
18AWG Stranded Bare Copper, 4 Conductors
-
AL-Foil + Drain Wire Shield
-
FR-PVC Jacket, CMR / FT4 Rated
-
C(ETL)US Listed · CMR / FT4 · 24 lbs/1000ft
-
OD 5.10mm · Grey Jacket · 1,000ft Reelex II
Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded 1000ft ...
Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 Four shielded 18AWG conductors for running multiple protected control signals over one riser cable.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 100% foil coverage with drain wire for reliable EMI rejection and grounding at control panels.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 CMR and FT4 rated for in-wall and riser installations in commercial control and HVAC systems.
-

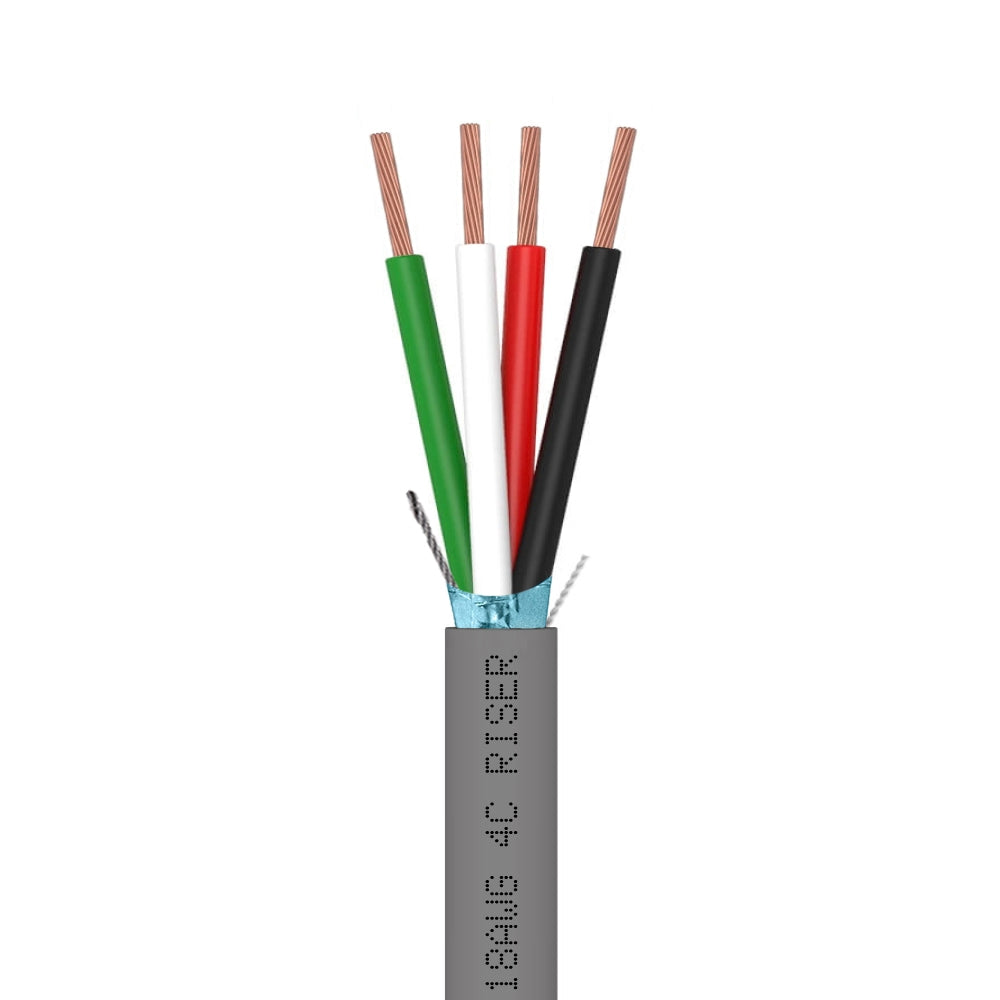

𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Four colored conductors simplify termination at control panels, junction boxes, and field devices.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗚𝗥𝗘𝗬 𝗖𝗢𝗜𝗟 1000ft shielded CMR grey coil for complete commercial control wiring in multi-floor buildings.
Description
Description
Run four-conductor shielded control wiring through walls and risers with this 18AWG 4-conductor shielded stranded bare copper control cable. Rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings — delivering shielded 4-conductor performance at a lower cost than the plenum-rated version when the cable run does not pass through air-handling spaces.
Four color-coded conductors (Black, Red, Yellow, Green) let you handle power, signal, status, and auxiliary functions over a single shielded riser cable run — reducing conduit fill in building riser shafts compared to pulling multiple 2-conductor cables. The aluminum foil shield with drain wire blocks EMI from electrical wiring, HVAC equipment, and lighting ballasts for clean, stable signals across all four conductors. At just 24 lbs per 1,000ft, it is significantly lighter than the plenum version. A built-in ripcord ensures fast jacket removal at every termination.
C(ETL)US Listed · CMR / FT4
Specifications:

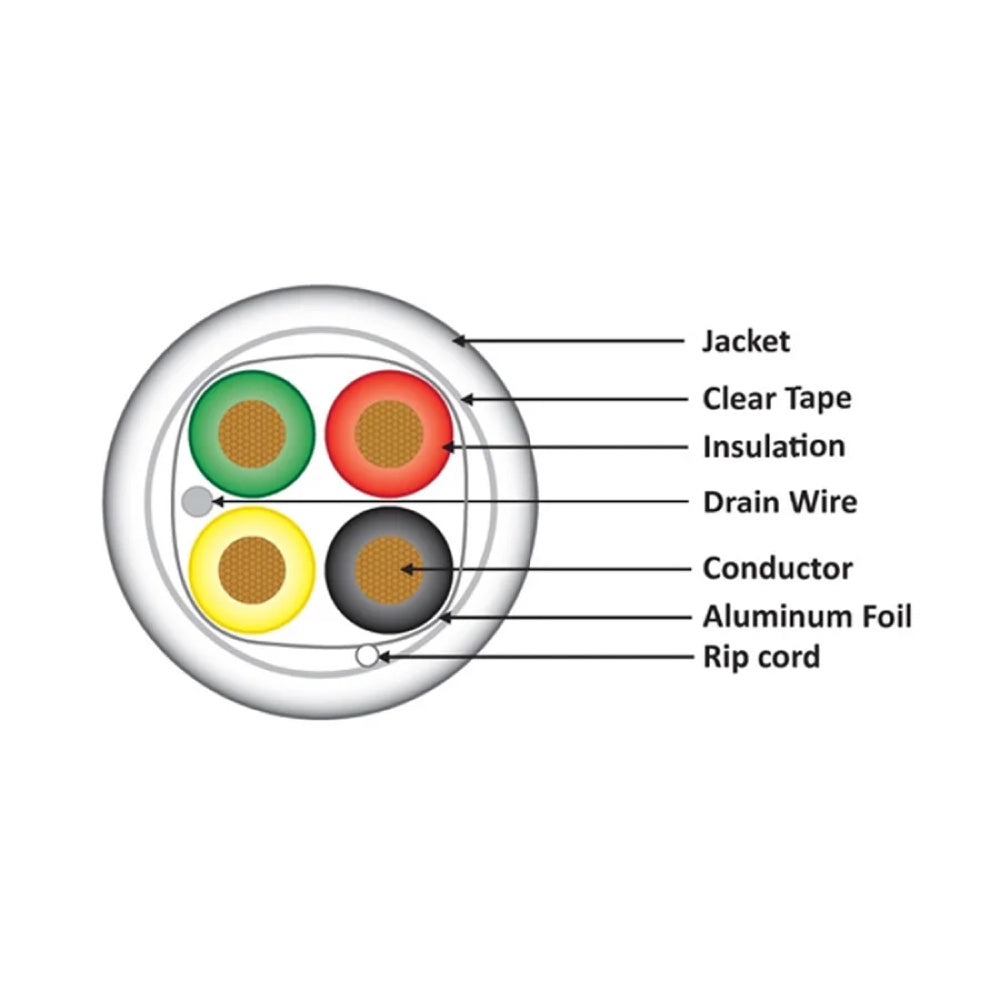

• Cable Type: 4-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.4mm)
• Insulation: PVC · Colors: Black, Red, Yellow, Green
• Shield: AL-Foil + Drain Wire
• Jacket: FR-PVC, CMR / FT4 Rated
• Jacket Color: Grey
• Nominal OD: 5.10 mm (0.201 in.)
• Certifications: C(ETL)US Listed, CMR / FT4
• Ripcord: Yes

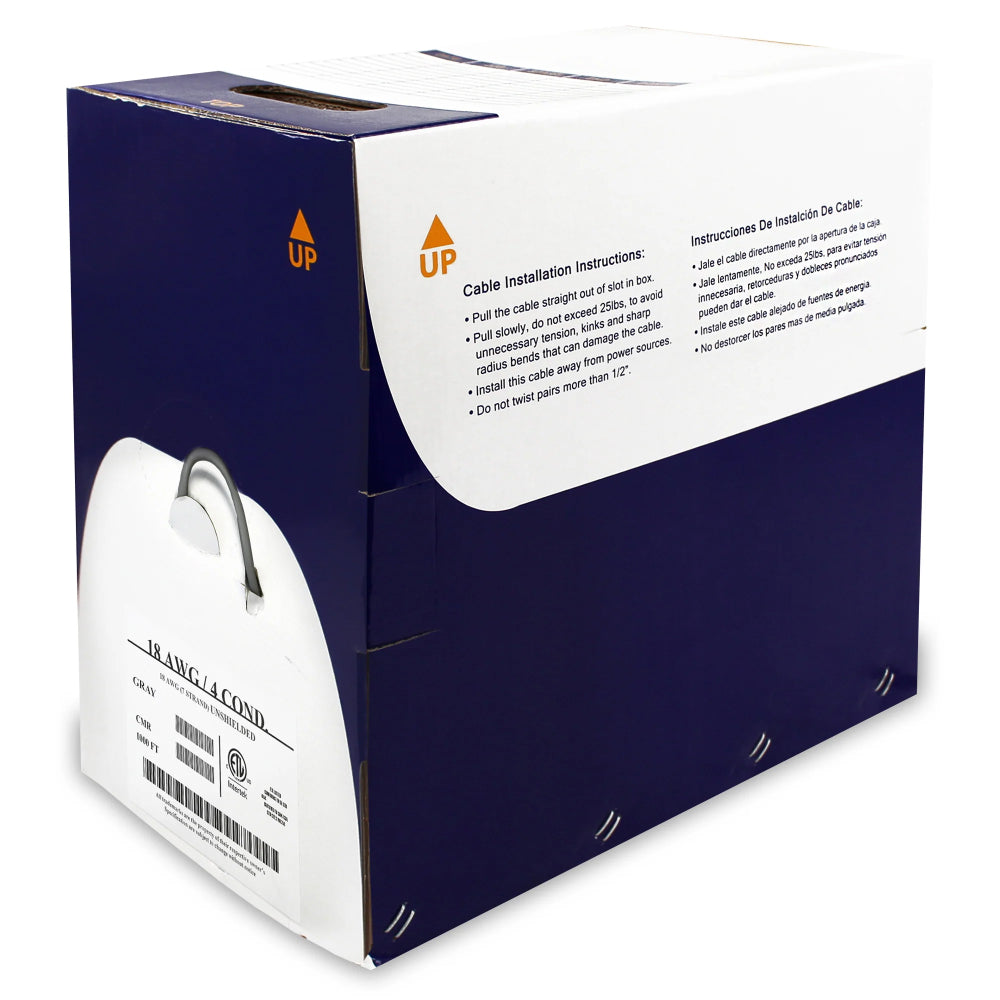

• Packaging: 1,000ft Reelex II pull box
Note: For installations in plenum air-handling spaces, choose the CMP-rated version of this cable.
