Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey
-
18AWG Stranded Bare Copper, 4 Conductors
-
Unshielded – Most Cost-Effective 4C CMR Option
-
FR-PVC Jacket, CMR / FT4 Rated
-
C(ETL)US Listed · CL2R · CM/CMR
-
OD 5.10mm · Grey Jacket · 1,000ft Reelex II
Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded 1000f...
Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 Four 18AWG conductors in a single CMR cable — reduces conduit fill and installation time in risers.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 CMR and FT4 rated for in-wall and riser installations in commercial control and HVAC systems.
-
𝟰 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Four individually colored conductors simplify termination at control panels and field devices.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗧𝗥𝗔𝗡𝗗𝗘𝗗 𝗖𝗢𝗣𝗣𝗘𝗥 Flexible stranded copper routes through conduit and terminates in screw and push-in connectors.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗚𝗥𝗘𝗬 𝗖𝗢𝗜𝗟 1000ft grey CMR coil covers complete floor-wide or building-wide 4-conductor control installs.
Description
Description
Run four-conductor CMR control wiring through walls and risers at the lowest cost in the 4-conductor lineup with this 18AWG unshielded stranded bare copper control cable. Rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings, it is the straightforward choice for clean environments without significant EMI from power lines, motors, or industrial equipment.

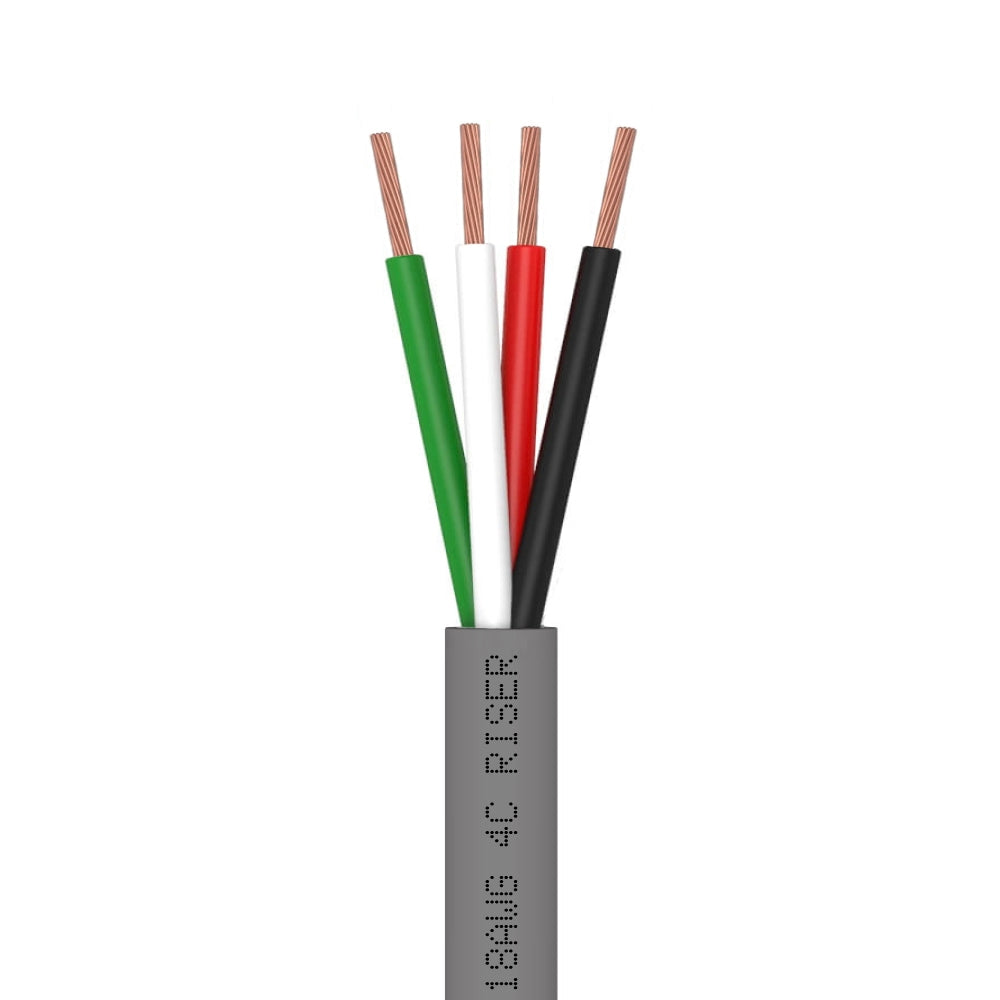

Four color-coded conductors (Black, Red, White, Green) let you handle power, signal, status, and auxiliary functions over a single cable run — reducing conduit fill in building riser shafts compared to pulling multiple 2-conductor cables. The unshielded design removes the cost of shielding for a simpler, cost-effective installation in offices, residential risers, and commercial spaces without significant interference sources. A built-in ripcord enables fast, clean jacket removal at every termination point.
C(ETL)US Listed · CMR / FT4 · CM/CMR · CL2/CL2R
Specifications:
• Cable Type: 4-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.4mm)
• Insulation: PVC · Colors: Black, Red, White, Green
• Shielding: None (Unshielded)
• Jacket: FR-PVC, CMR / FT4 Rated
• Jacket Color: Grey
• Nominal OD: 5.10 mm (0.201 in.)
• Certifications: C(ETL)US Listed, CM/CMR, CL2/CL2R
• Ripcord: Yes

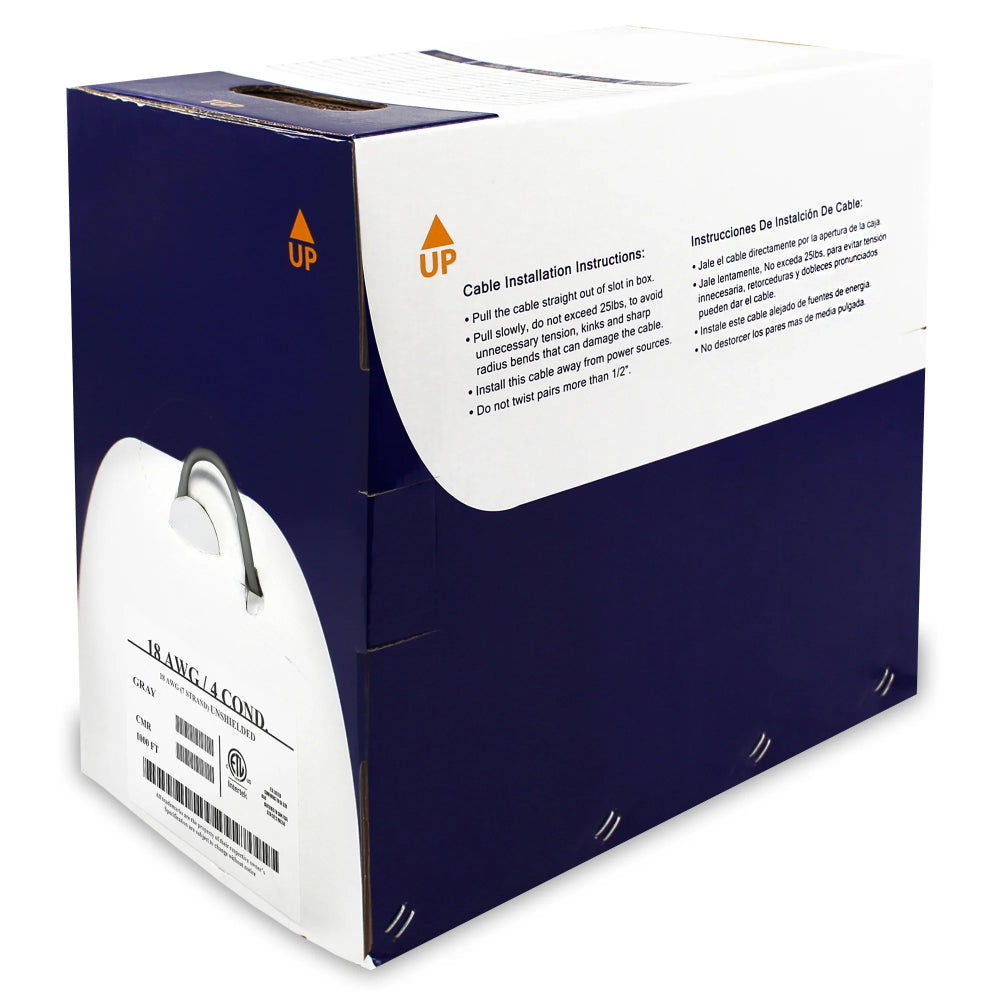

• Packaging: 1,000ft Reelex II pull box
Note: For EMI environments, choose the shielded CMR version. For plenum spaces, choose the CMP-rated version.
