Control Cable Shielded 18AWG 6 Conductor Plenum CMP Stranded 1000ft White

The most capable cable in the control cable lineup — this 18AWG 6-conductor shielded stranded bare copper control cable combines six individually color-coded conductors, a triple-layer shield system, and a Low Smoke FR-PVC CMP-rated jacket into a single cable designed for the most complex, code-critical commercial installations. Rated CMP and CL2P, it is approved for air-handling plenum spaces, suspended ceilings, raised floors, risers, and in-wall runs.

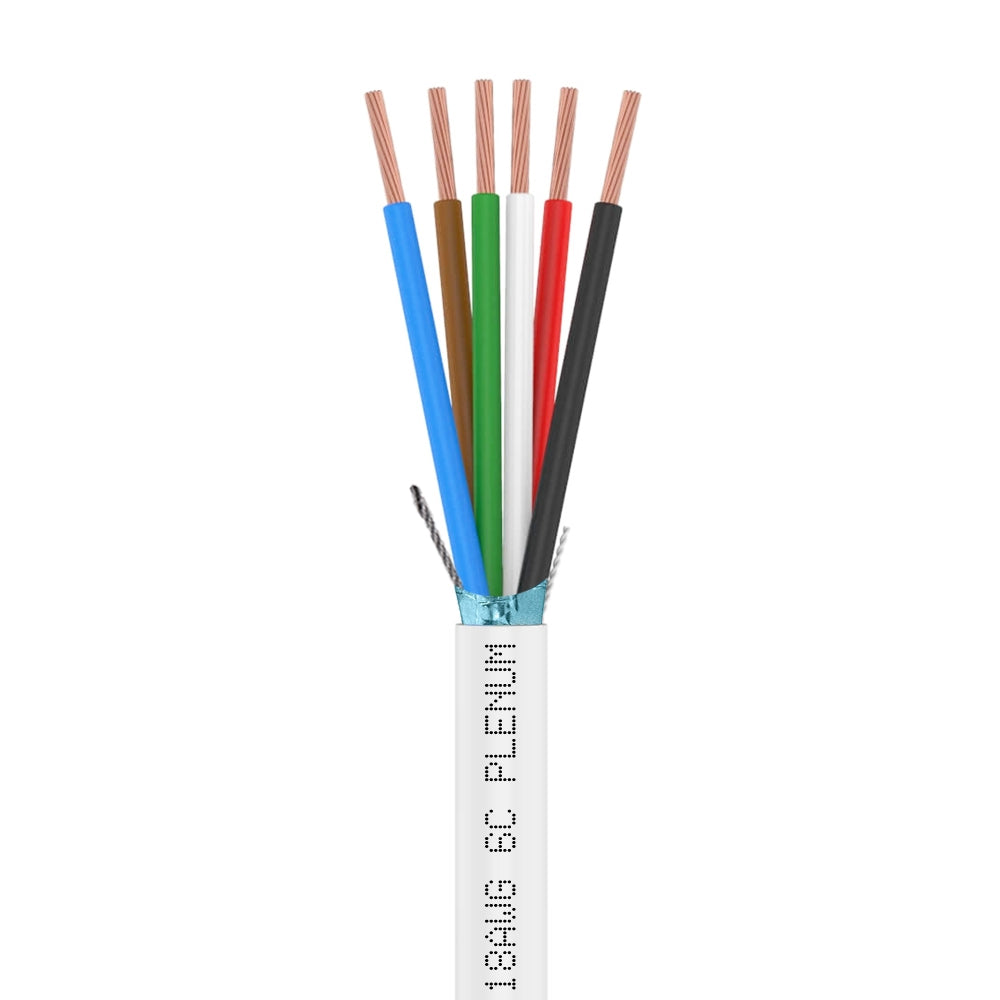

The shield system — aluminum foil, PE tape, and tinned copper drain wire — blocks EMI from all six conductors simultaneously in environments with significant electrical interference. Six color-coded conductors (Black, Red, White, Green, Brown, Blue) handle power, signal, return, tamper, status, and auxiliary functions over a single plenum cable run. A built-in ripcord enables fast, clean jacket removal at every termination point.

C(ETL)US Listed · CMP / CL2P · UL 444

Specifications:
• Cable Type: 6-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.40mm)
• Insulation: FR-PVC · Colors: Black, Red, White, Green, Brown, Blue

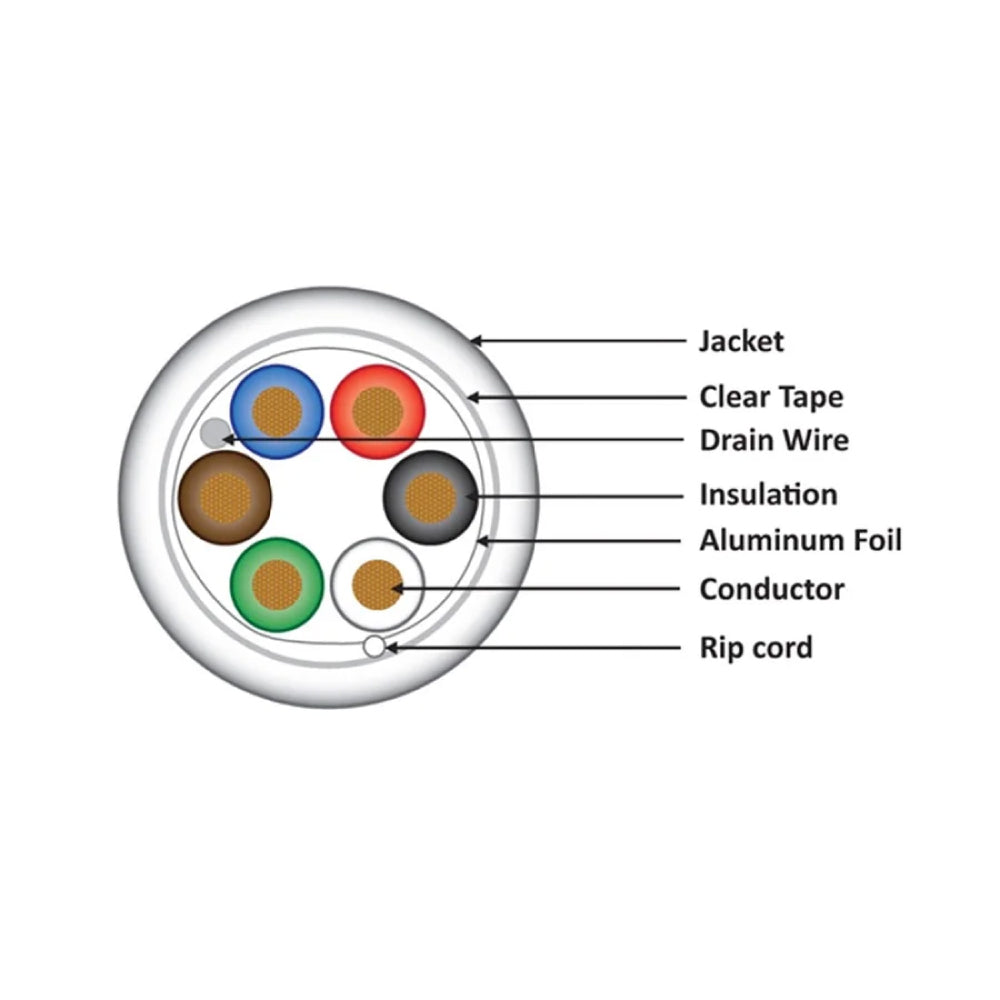

• Shield: AL-Foil + PE Tape + 7/0.18TC Tinned Copper Drain Wire
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 5.85 mm (0.230 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

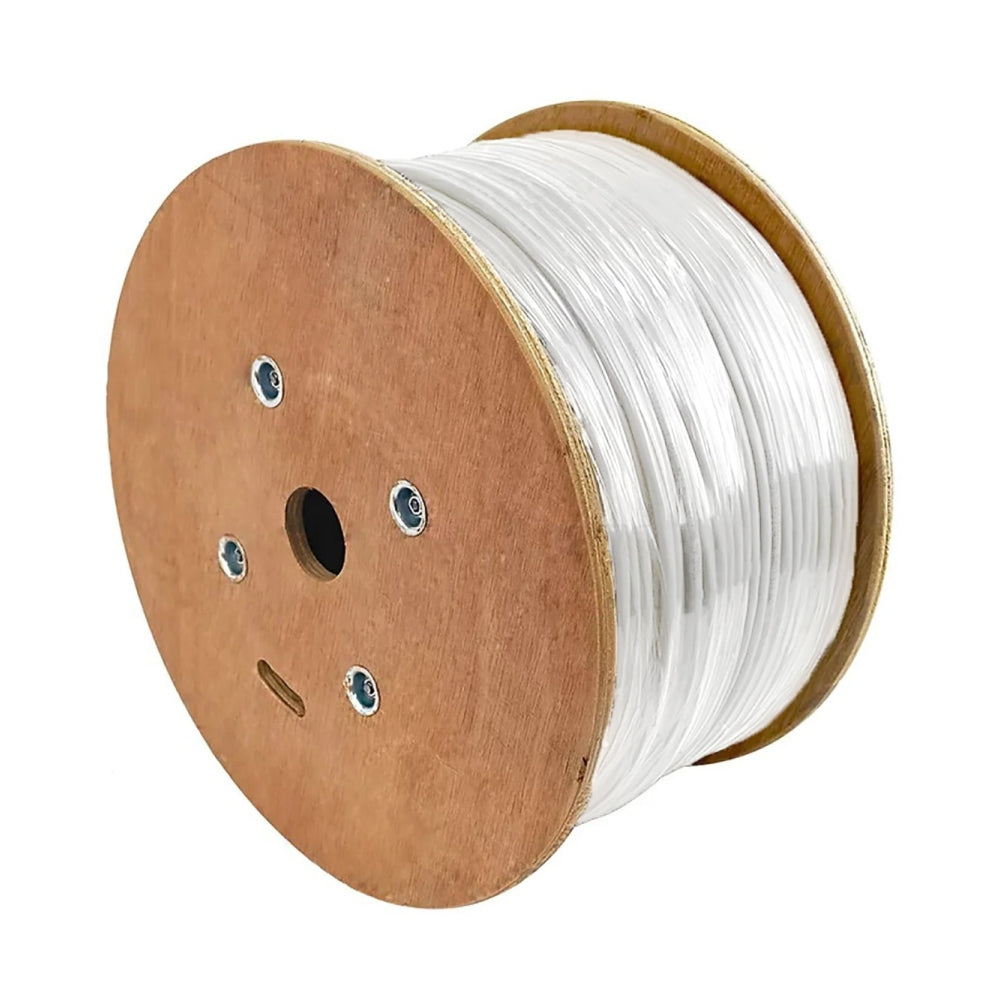

• Packaging: 1,000ft pull box

Applications: Complex multi-zone security, access control, multi-channel audio, building intercoms, HVAC automation, and any plenum-rated power-limited control circuit requiring 6 shielded conductors.
