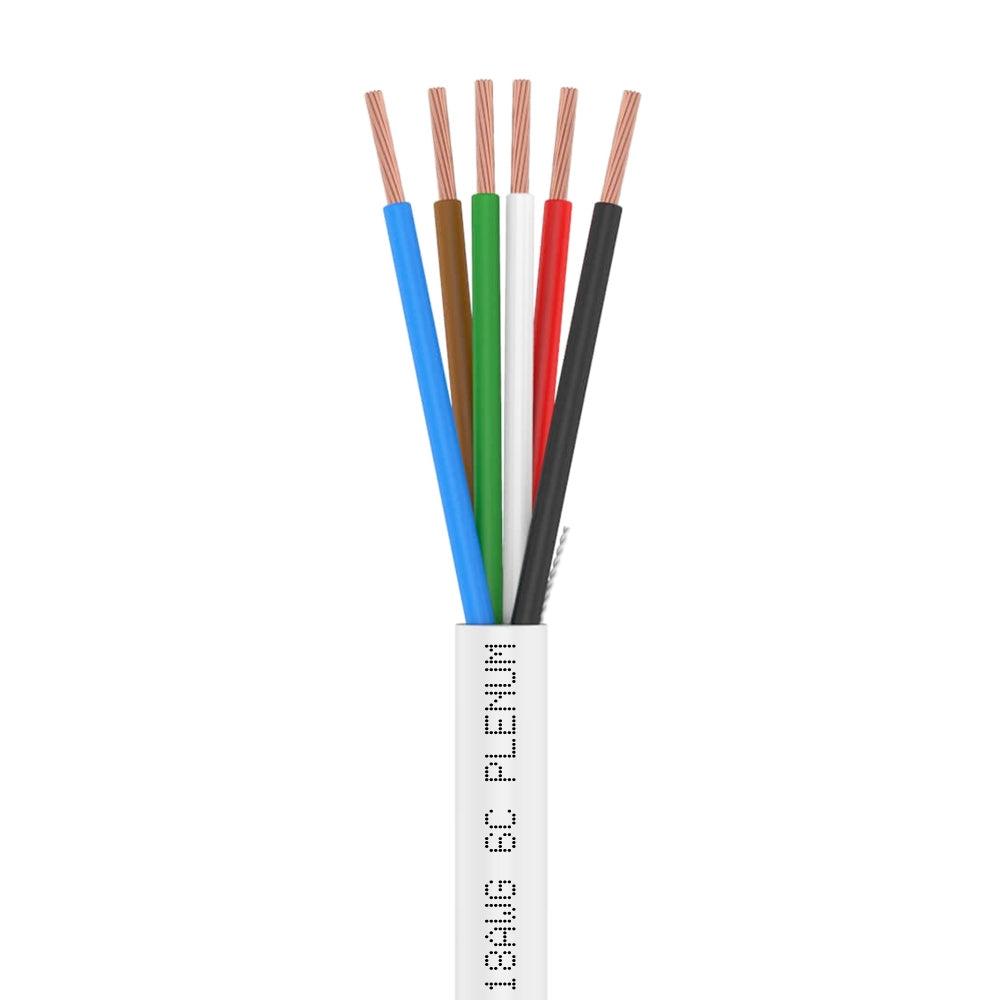

Control Cable Unshielded 18AWG 6 Conductor Plenum CMP Stranded 1000ft White
-
18AWG Stranded Bare Copper, 6 Conductors
-
Unshielded – Smaller OD & Lower Cost for Clean Installs
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 5.70mm · White Jacket · 1,000ft Reel
Control Cable Unshielded 18AWG 6 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 6 Conductor Plenum CMP Stranded 1000...
Control Cable Unshielded 18AWG 6 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 Six 18AWG CMP conductors replace three 2-conductor runs in above-ceiling spaces.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke Remguard rated CMP for air-handling plenum spaces in commercial buildings.
-
𝗖𝗠𝗣 𝗦𝗨𝗕𝗦𝗧𝗜𝗧𝗨𝗧𝗘𝗦 𝗔𝗡𝗬𝗪𝗛𝗘𝗥𝗘 Covers plenum, riser, and in-wall runs throughout a project under one cable specification.
-
𝟲 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Six colored conductors simplify termination at multi-zone panels and junction boxes above ceilings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗪𝗛𝗜𝗧𝗘 𝗖𝗢𝗜𝗟 1000ft white CMP coil for complete multi-zone 6-conductor automation above suspended ceilings.
Description
Description
Run six-conductor CMP-rated control wiring through plenum spaces at a lower cost and smaller diameter than the shielded version with this 18AWG 6-conductor unshielded stranded bare copper control cable. Rated CMP and CL2P, it meets the highest indoor fire safety standard and is approved for air-handling spaces above suspended ceilings, below raised floors, and in risers and walls in residential and commercial buildings.
Six color-coded conductors (Black, Red, White, Green, Brown, Blue) let you handle power, signal, return, tamper, status, and auxiliary functions over a single plenum cable run — eliminating three separate 2-conductor runs and cutting conduit fill in commercial ceiling spaces. The unshielded design keeps diameter and cost lower for installations without significant EMI from power lines or industrial equipment. A built-in ripcord enables fast, clean jacket removal at every termination point.
C(ETL)US Listed · CMP / CL2P · UL 444
Specifications:

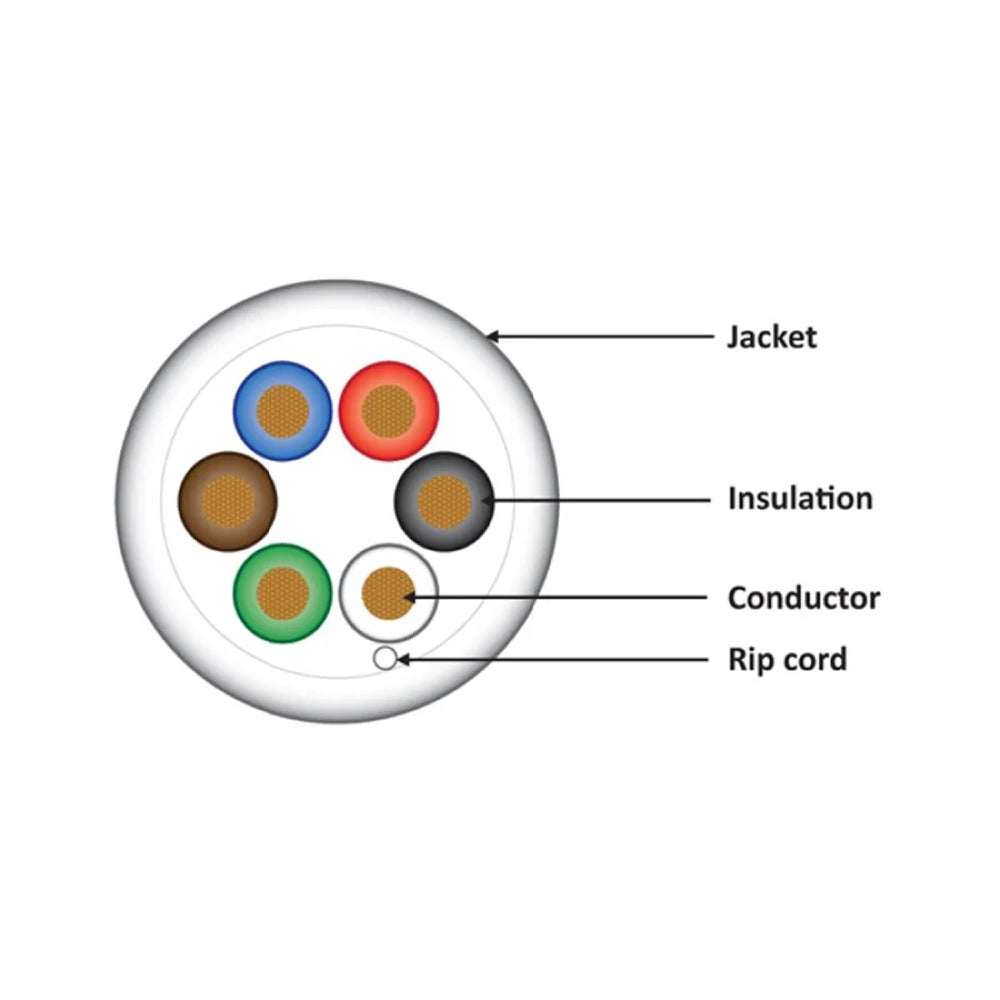

• Cable Type: 6-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.40mm)
• Insulation: FR-PVC · Colors: Black, Red, White, Green, Brown, Blue
• Shielding: None (Unshielded)
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 5.70 mm (0.224 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

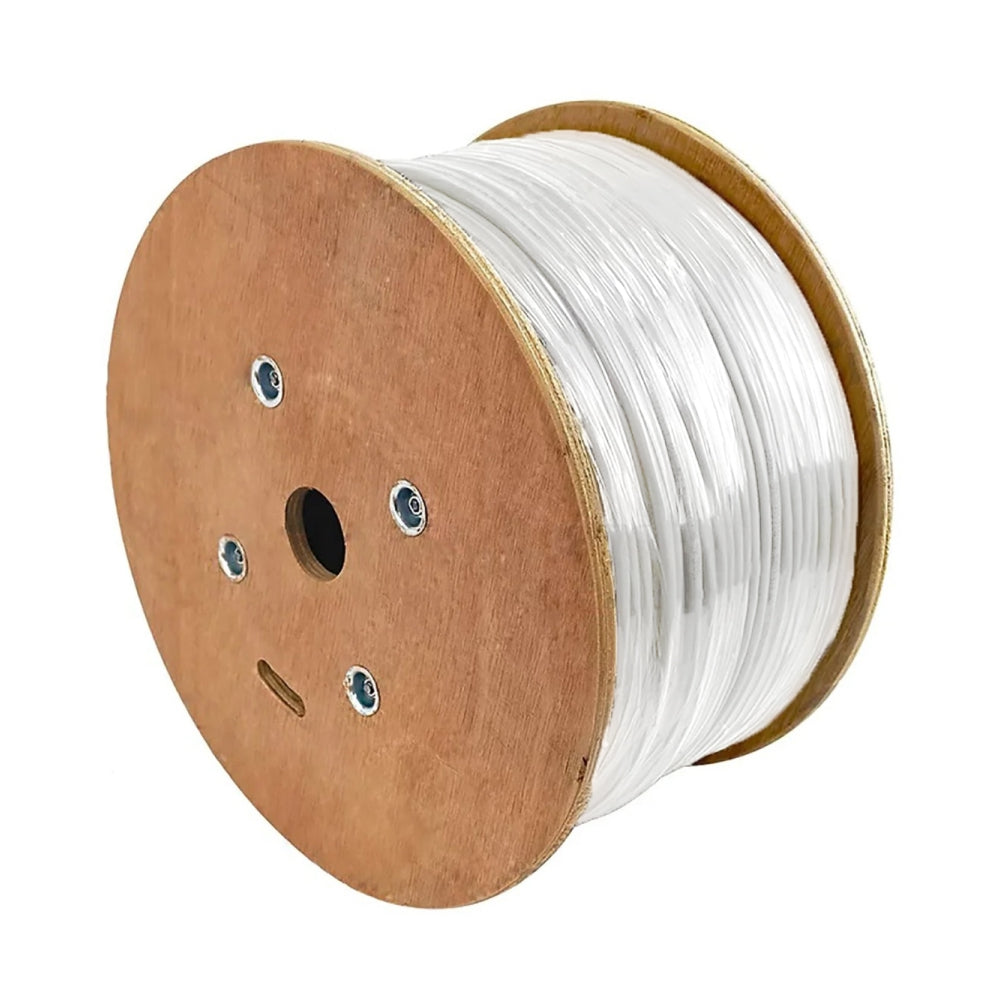

• Packaging: 1,000ft reel
Note: For installations with significant EMI from power lines or industrial equipment, choose the 6-conductor shielded CMP version of this cable.
