Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey
-
18AWG Stranded Bare Copper, 6 Conductors
-
AL-Foil + PE Tape + 7/0.18TC Drain Wire Shield
-
FR-PVC Jacket, CMR Rated
-
C(ETL)US Listed · UL 444 · 300V · CL2R
-
OD 6.15mm · Grey Jacket · 1,000ft Reel
Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded 1000ft ...
Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 Six shielded 18AWG conductors for complex control systems requiring multi-signal and EMI protection.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 Full-coverage foil shield with drain wire for single-point grounding in noisy commercial environments.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 Meets CMR and FT4 for in-wall and riser runs in multi-function security and automation projects.
-
𝟲 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Six colored conductors simplify wiring at multi-zone control panels and riser junction boxes.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗚𝗥𝗘𝗬 𝗖𝗢𝗜𝗟 1000ft shielded CMR grey coil for complete commercial 6-conductor control cable projects.
Description
Description
Run six-conductor shielded CMR control wiring through walls and risers with this 18AWG 6-conductor shielded stranded bare copper control cable. Rated CMR and C(ETL)US Listed for permanent in-wall and vertical riser installations, it delivers EMI-protected 6-conductor performance at a lower cost than the plenum-rated version when the cable run does not pass through air-handling spaces.

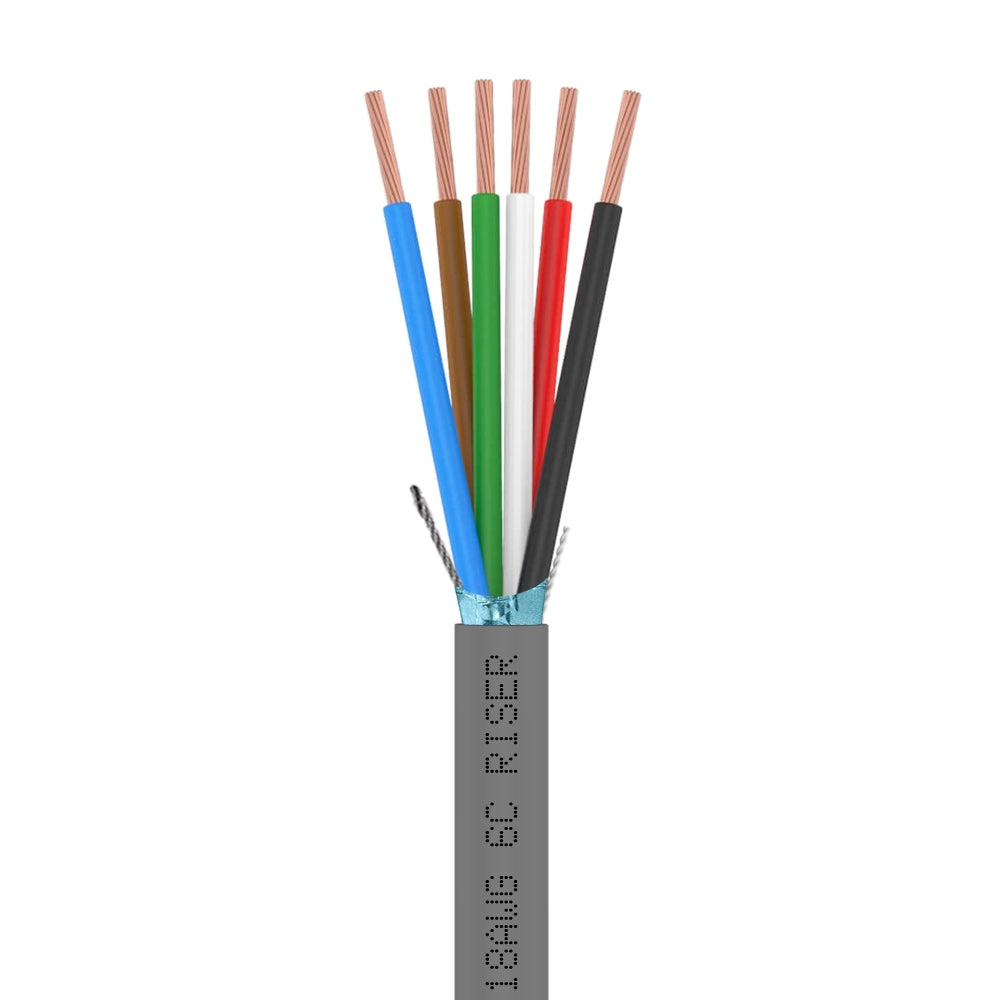

The shield system — aluminum foil, PE tape, and tinned copper drain wire — blocks electromagnetic interference from all six conductors simultaneously, keeping control signals clean in environments with HVAC equipment, power wiring, and lighting ballasts nearby. Six color-coded conductors (Black, Red, White, Green, Brown, Blue) handle power, signal, return, tamper, status, and auxiliary functions over a single shielded riser run — replacing three separate 2-conductor runs. A built-in ripcord enables fast jacket removal at every termination.
C(ETL)US Listed · CMR · CL2 / CL2R · UL 444
Specifications:
• Cable Type: 6-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.40mm)
• Insulation: PVC · Colors: Black, Red, White, Green, Brown, Blue

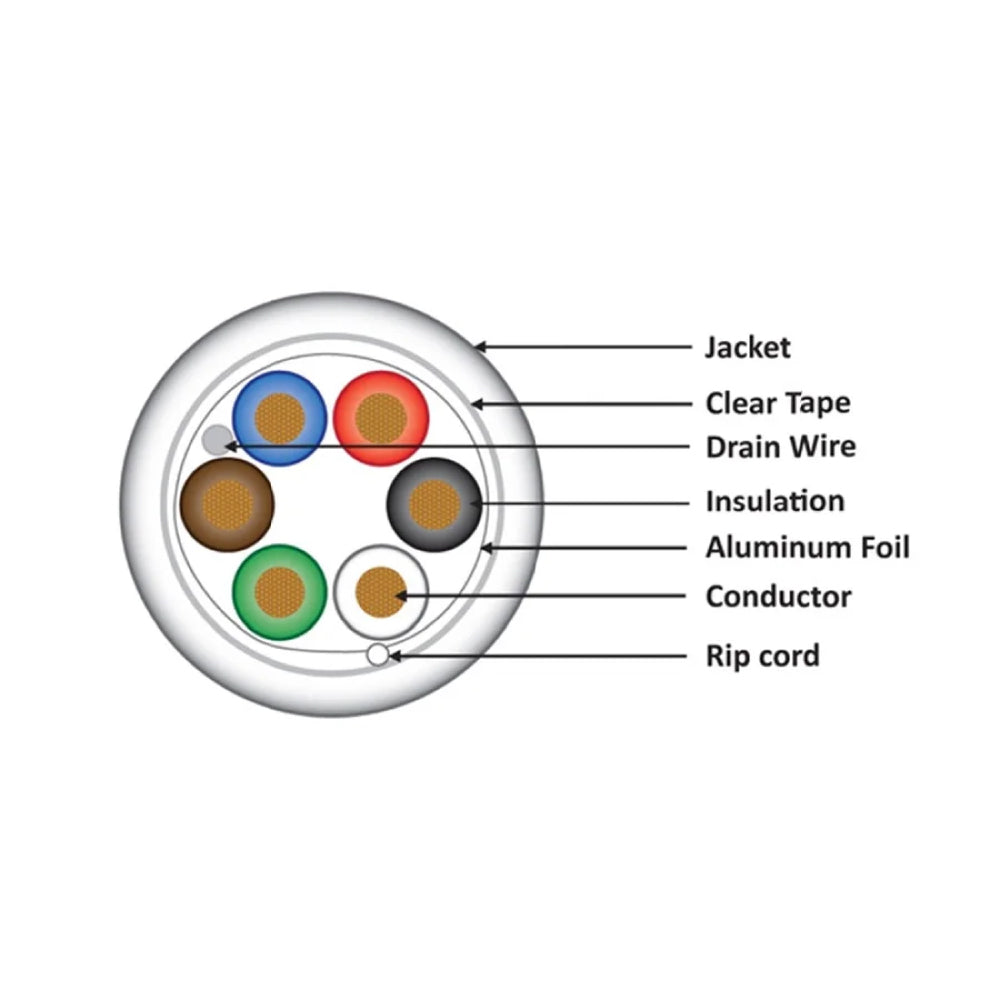

• Shield: AL-Foil + PE Tape + 7/0.18TC Drain Wire
• Jacket: FR-PVC, CMR Rated
• Jacket Color: Grey
• Nominal OD: 6.15 mm (0.242 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CMR, CL2/CL2R
• Ripcord: Yes

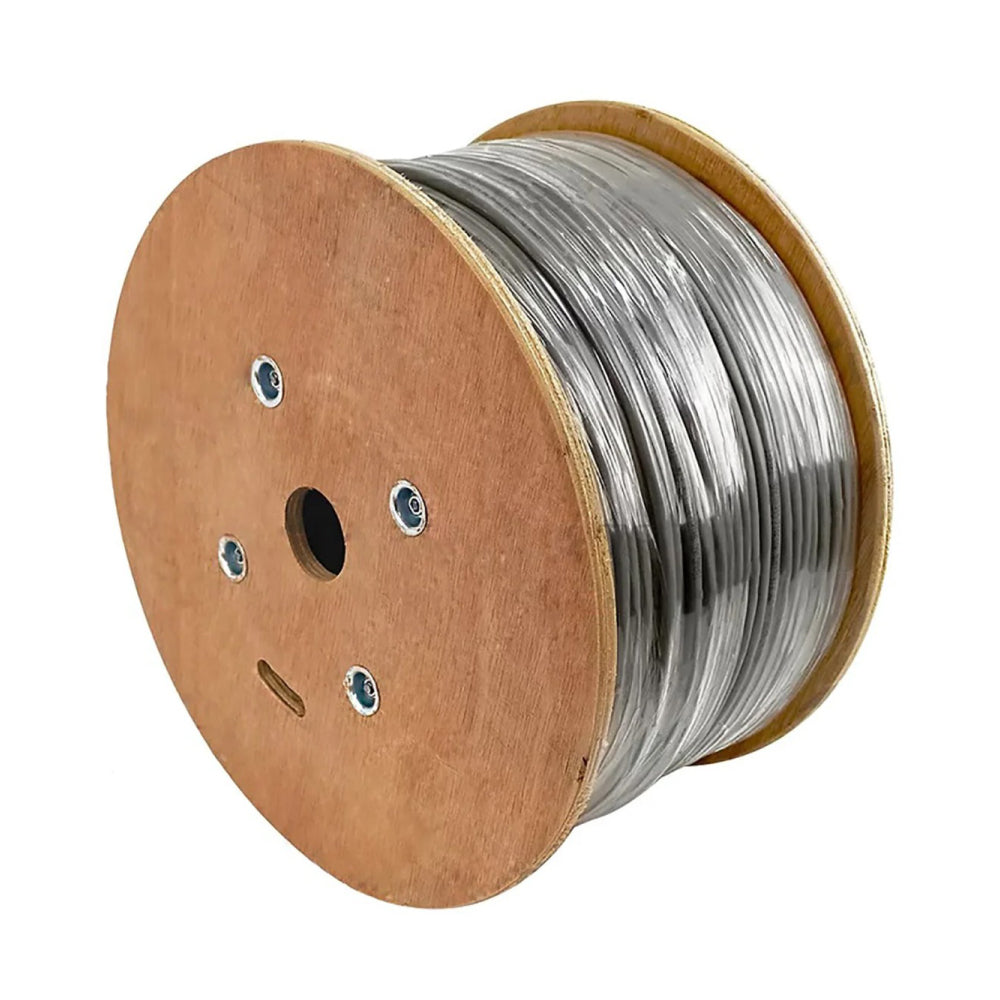

• Packaging: 1,000ft reel
Note: For installations in plenum air-handling spaces, choose the CMP-rated version of this cable.
