Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey
-
18AWG Stranded Bare Copper, 6 Conductors
-
6-Color Coded: BK, RD, WH, GN, BR, BL
-
FR-PVC Jacket, CMR Rated
-
C(ETL)US Listed · UL 444 · CL2R · 300V
-
OD 6.05mm · Grey Jacket · 1,000ft Reel
Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded 1000f...
Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded 1000ft Grey is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 Six 18AWG CMR conductors replace three 2-conductor runs — dramatically reduces conduit fill.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 CMR and FT4 rated for in-wall and riser runs in multi-zone HVAC, security, and automation.
-

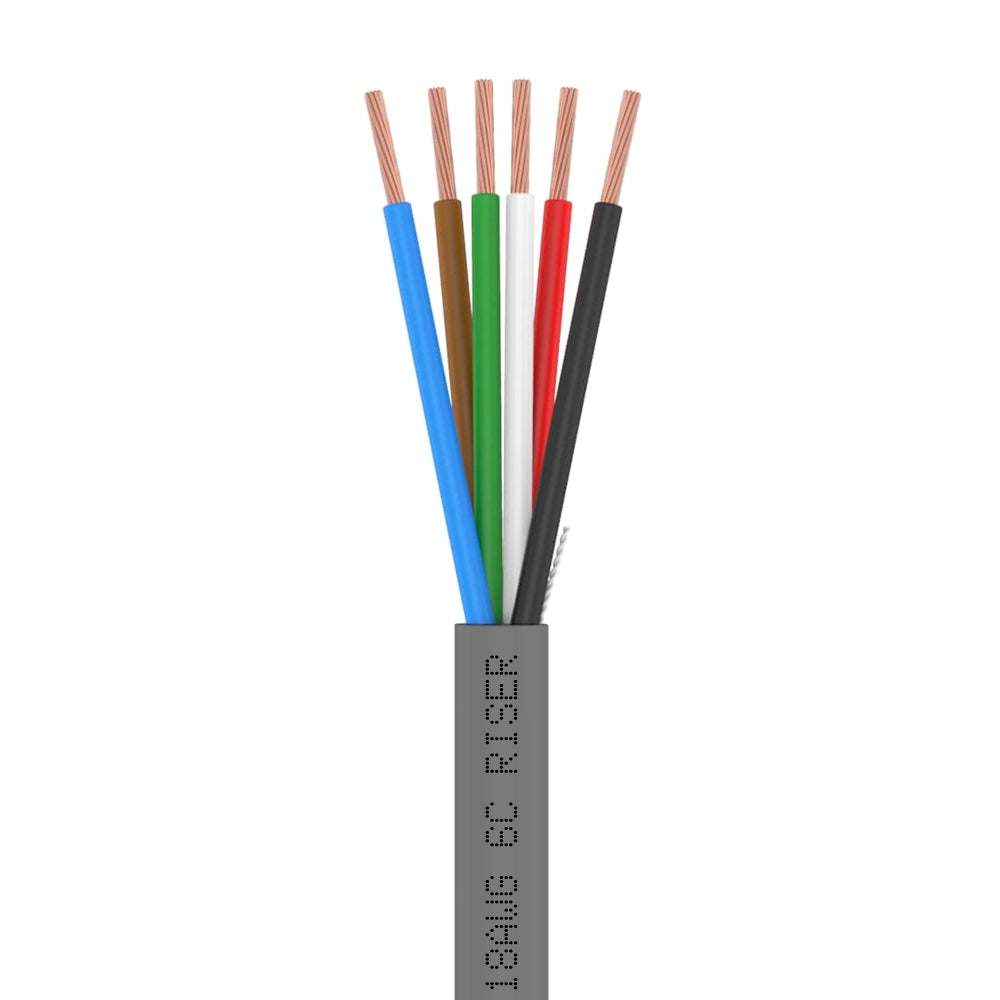

𝟲 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Six individually colored conductors simplify wiring at control panels and zone boards.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗧𝗥𝗔𝗡𝗗𝗘𝗗 𝗖𝗢𝗣𝗣𝗘𝗥 Flexible stranded copper routes through conduit and terminates reliably in push-in connectors.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗚𝗥𝗘𝗬 𝗖𝗢𝗜𝗟 1000ft grey CMR coil for complete multi-zone 6-conductor control wiring in commercial buildings.
Description
Description
Handle the most complex control and security wiring in walls and risers with this 18AWG 6-conductor unshielded stranded bare copper control cable, rated CMR and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings. With six individually color-coded conductors, one cable run replaces three separate 2-conductor cables to the same device or panel — a major reduction in conduit fill and installation time on large commercial projects.
Six conductors let you dedicate separate conductors to power, signal, return, tamper, status, and auxiliary functions for complex security panels, multi-channel audio zones, access control with door monitoring, and multi-function HVAC building automation controllers. A built-in ripcord enables fast jacket removal at every termination point.
C(ETL)US Listed · CMR · CL2 / CL2R · UL 444
Specifications:

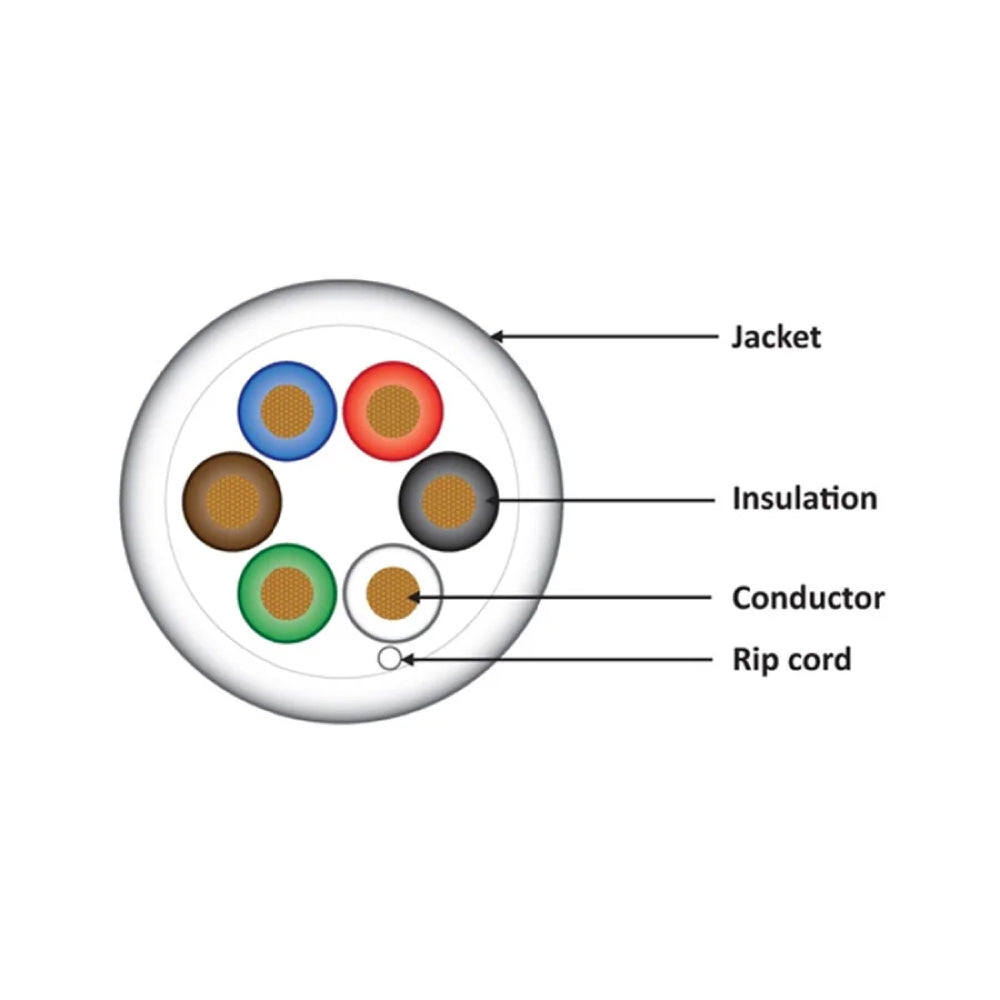

• Cable Type: 6-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.40mm)
• Insulation: PVC · Colors: Black, Red, White, Green, Brown, Blue
• Shielding: None (Unshielded)
• Jacket: FR-PVC, CMR Rated
• Jacket Color: Grey
• Nominal OD: 6.05 mm (0.238 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CMR, CL2/CL2R
• Ripcord: Yes

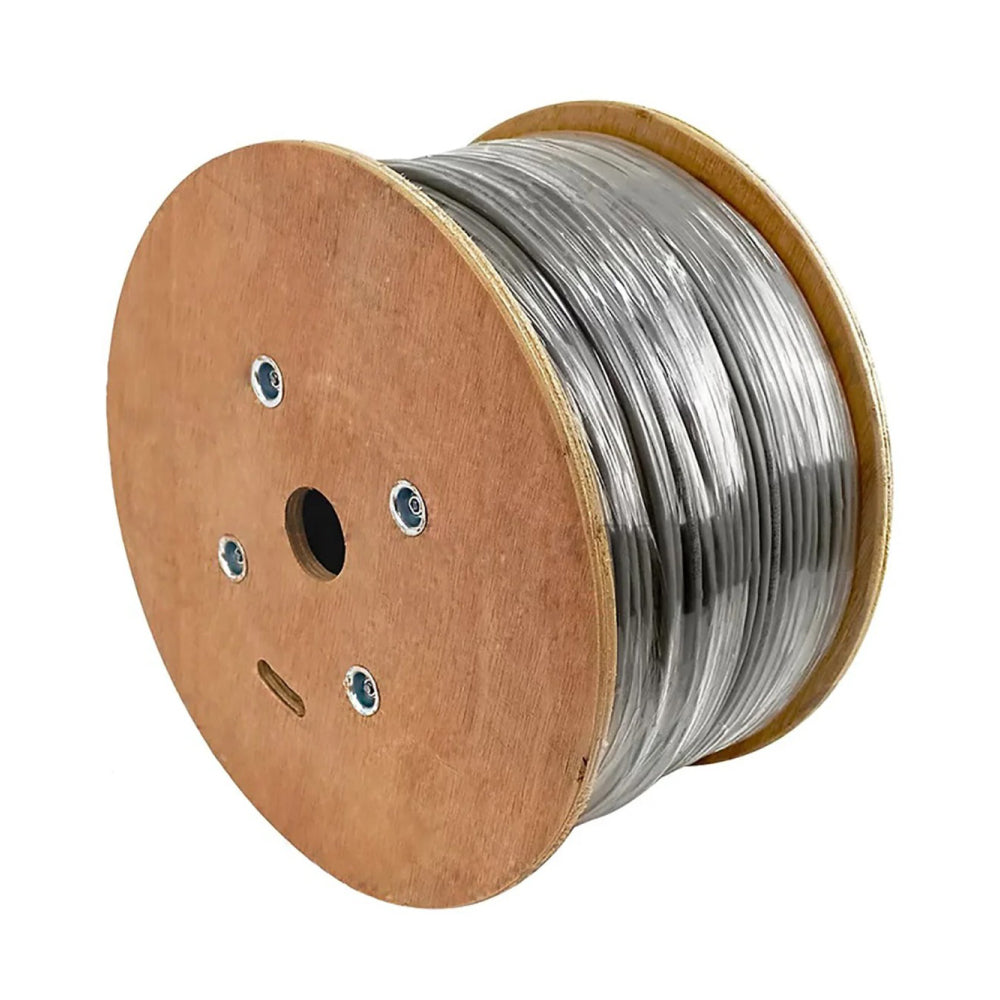

• Packaging: 1,000ft reel
Note: For installations in plenum air-handling spaces, choose the CMP-rated version. For EMI-heavy environments, choose the shielded CMR version.
