18in Structured Wiring Enclosure Combo Kit Cat6 Data Voice Video Splitter Modules White
-
18"H x 14.42"W x 3.42"D
-

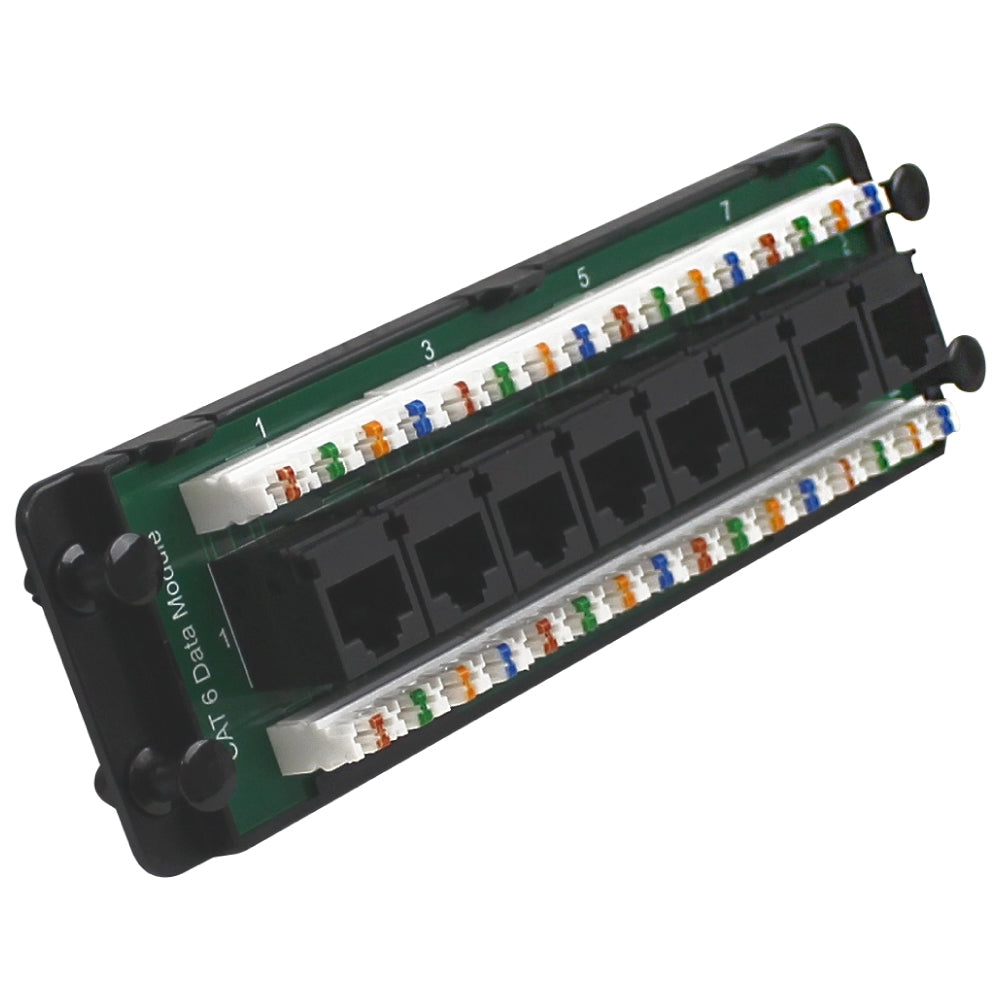

8-Port CAT6 Data Module
-
8-Port Voice Module w/RJ-31X
-
6-Port 2GHz Video Splitter Module
-
UL Listed · ANSI/TIA-568-C · RoHS
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $129.00 / unit | 3% |
| 10–19 units | $126.34 / unit | 5% |
| 20+ units | $123.68 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐓𝐇𝐑𝐄𝐄 𝐌𝐎𝐃𝐔𝐋𝐄𝐒 𝐀𝐋𝐑𝐄𝐀𝐃𝐘 𝐌𝐎𝐔𝐍𝐓𝐄𝐃 Data, voice, and video modules ship pre-installed inside the enclosure, so you terminate cable instead of sourcing and mounting hardware first.
-

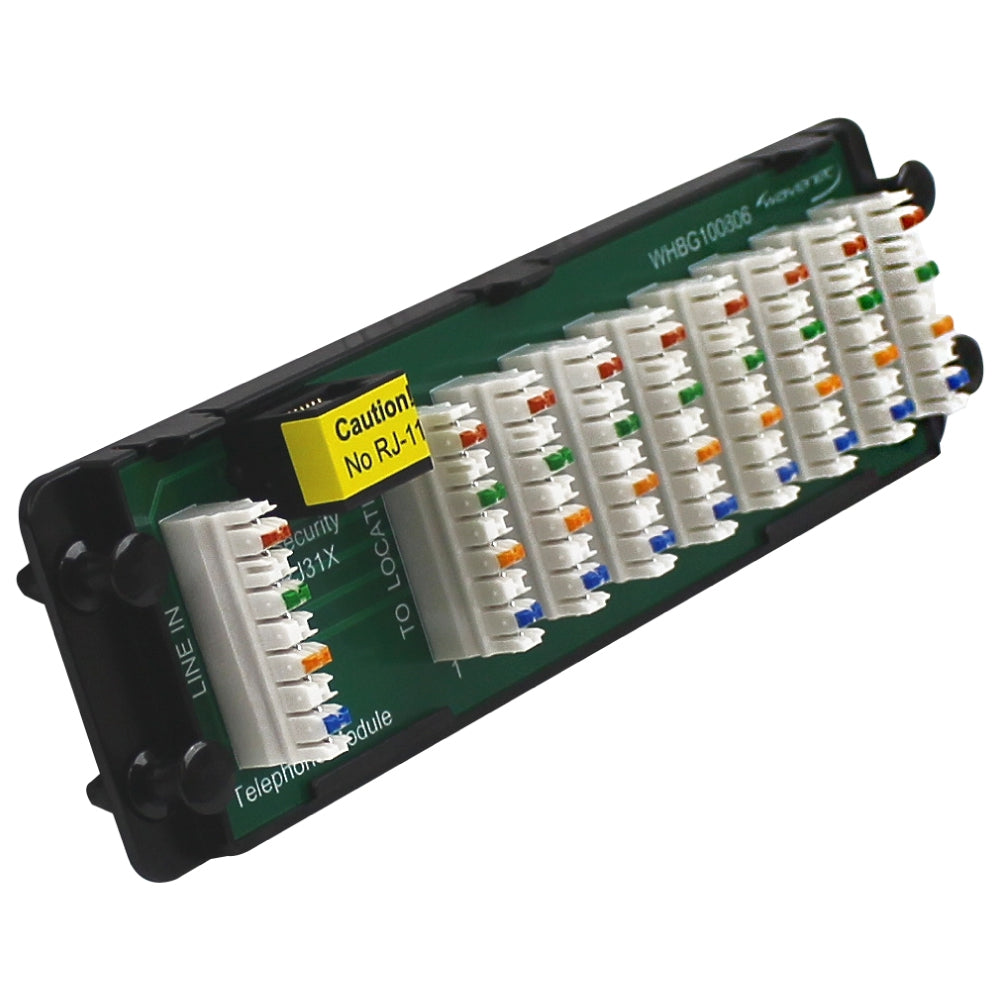

𝐑𝐉-𝟑𝟏𝐗 𝐑𝐄𝐀𝐃𝐘 𝐅𝐎𝐑 𝐀𝐋𝐀𝐑𝐌 𝐋𝐈𝐍𝐄𝐒 The voice module’s RJ-31X jack is wired in for security system line-seizure, not just a plain phone port.
-

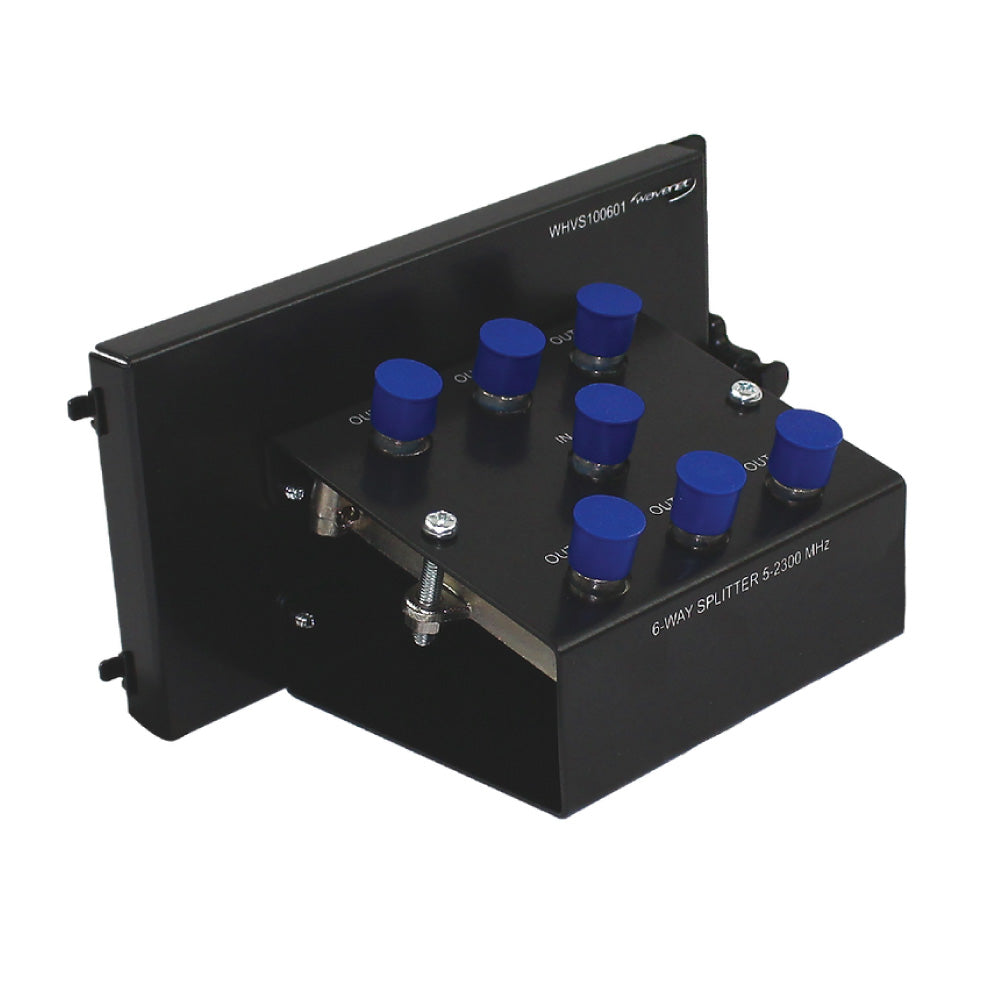

𝟔 𝐏𝐎𝐑𝐓𝐒 𝐎𝐅 𝐕𝐈𝐃𝐄𝐎 𝐒𝐏𝐋𝐈𝐓𝐓𝐈𝐍𝐆 The 2GHz video splitter module feeds up to 6 runs from a single incoming line without a separate splitter box.
-
𝐋𝐎𝐂𝐊 𝐀𝐍𝐃 𝐊𝐄𝐘 𝐎𝐏𝐓𝐈𝐎𝐍 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 The screw-on door option adds a lock and keys, so shared hallways or utility closets stay secure.
-
𝐔𝐋 𝐋𝐈𝐒𝐓𝐄𝐃 𝐅𝐎𝐑 𝐏𝐄𝐀𝐂𝐄 𝐎𝐅 𝐌𝐈𝐍𝐃 UL Listed and ANSI/TIA-568-C compliant, meeting the standards professional installers and inspectors expect.
Description
Description

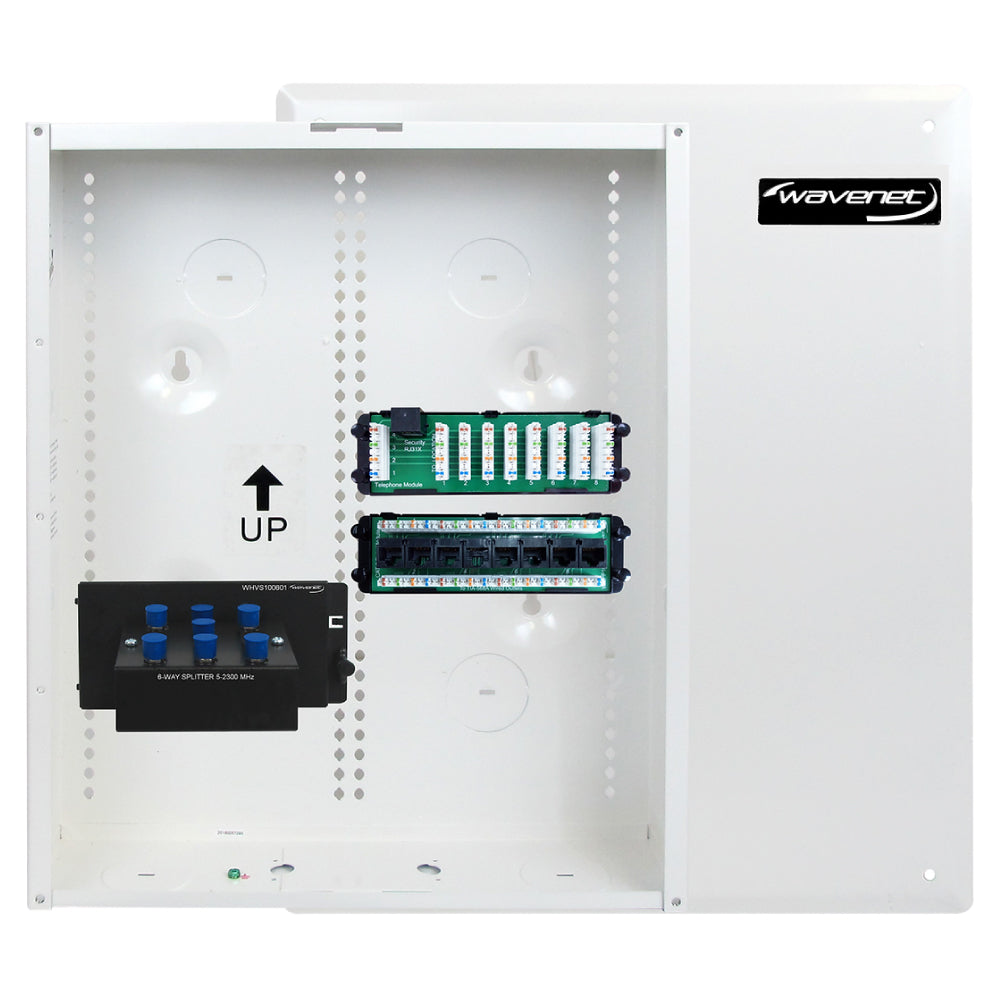

Consolidate and distribute wired, wireless, and other low-voltage cabling for a home network from one centralized location with this 18-inch structured wiring enclosure combo kit, pre-loaded with the data, voice, and video modules most installs need.
The kit includes an 8-port CAT6 data module, an 8-port telephone module with RJ-31X, and a 6-port 2GHz video splitter module, already mounted inside the enclosure and ready to terminate. 18 gauge white powder-coated steel construction includes a flush metal hinged door, with a screw-on cover option that adds a lock and keys. It mounts on the surface or flush between 16-inch on-center wood studs.
Standards: UL Listed · ANSI/TIA-568-C · RoHS
Technical Specifications:
• Dimensions: 18"H x 14.42"W x 3.42"D
• Material: 18 Gauge White Powder-Coated Steel
• Modules: 8-Port CAT6 Data · 8-Port Voice (RJ-31X) · 6-Port 2GHz Video Splitter
• Door: Flush Metal Hinged, Screw-On Option w/ Lock and Keys
• Mounting: Surface or Flush, 16in On-Center Wood Studs
• Package: Enclosure (1), Hinged Door (1), 3 Modules, Wiring Location Label (1), Mounting Hardware, Installation Instructions
Typical Applications:
• Single family homes, apartments, and condominiums
• Multi-dwelling units (MDUs)
• Retrofit and custom home installations
• Ready-to-terminate voice, data, and video distribution
