Alarm Security Wire 22/4 Solid Conductor Shielded 22AWG 500ft White
-
22AWG Solid · 4 Conductors · AL-Foil Shield
-
PVC Insulation · PVC Jacket · White
-
AL-Foil Overall Shield · Drain Wire
-
4-Conductor Power + Signal in One Run
-
500ft Pull-Out Box · White Jacket
Alarm Security Wire 22/4 Solid Conductor Shielded 22AWG 500ft White - Shielded is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22/4 Solid Conductor Shielded 22AWG 500ft White - Shielded is backordered and will ship as soon as it is back in stock.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐁𝐋𝐎𝐂𝐊𝐒 𝐑𝐅𝐈 𝐀𝐍𝐃 𝐄𝐌𝐈 AL-foil shield blocks power frequency and RF interference — fewer false alarms in systems near HVAC and electrical wiring across all four conductors.
-
𝟒-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐏𝐎𝐖𝐄𝐑 𝐀𝐍𝐃 𝐒𝐈𝐆𝐍𝐀𝐋 Use two conductors for signal and two for low-voltage power — motion detectors, cameras, and powered accessories all connect in a single shielded run.
-
𝐒𝐎𝐋𝐈𝐃 𝐑𝐄𝐋𝐈𝐀𝐁𝐋𝐄 𝐋𝐎𝐍𝐆 𝐑𝐔𝐍𝐒 Solid construction delivers low-resistance performance over long fixed runs — ideal for wall-mounted devices and permanent security installations.
-
𝐒𝐄𝐂𝐔𝐑𝐈𝐓𝐘 𝐀𝐍𝐃 𝐀𝐋𝐀𝐑𝐌 𝐒𝐘𝐒𝐓𝐄𝐌𝐒 For multi-zone security systems, motion detectors, door contacts, keypads, sirens, CCTV camera power, and any low-voltage 4-wire security application.
-

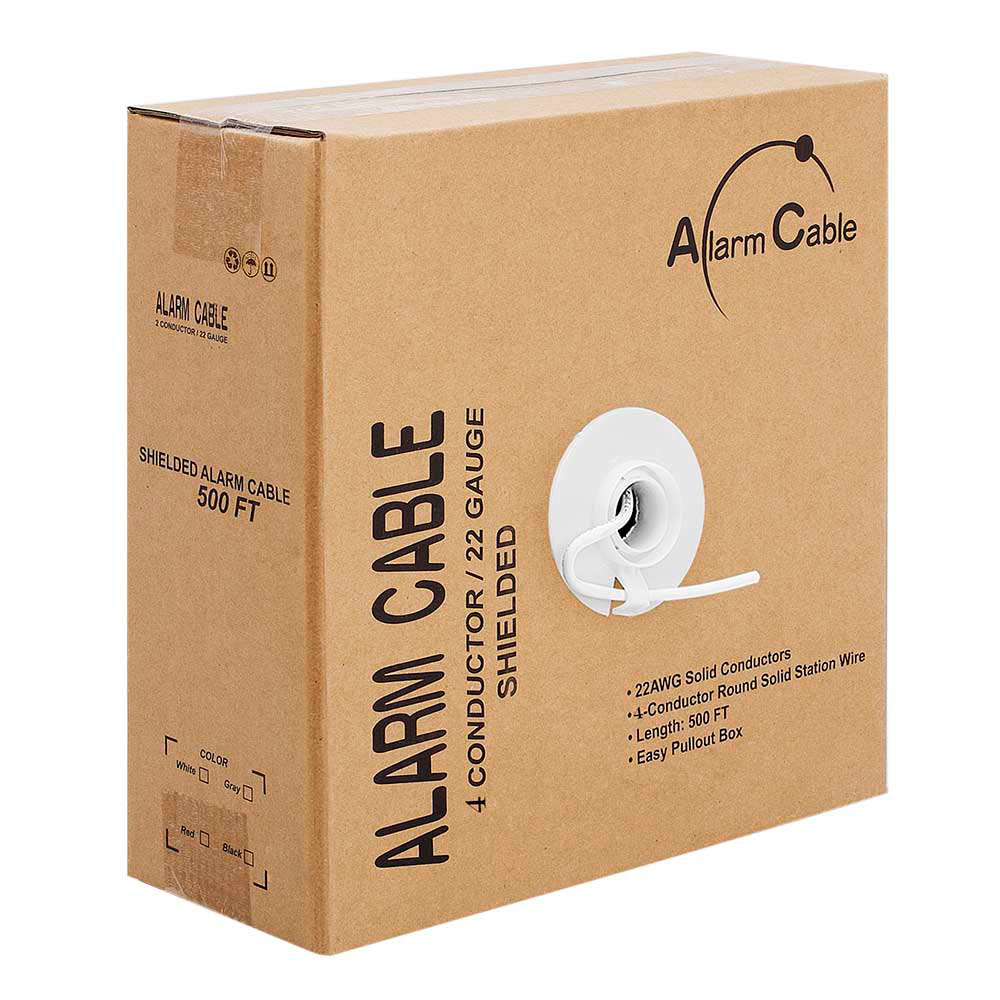

𝟓𝟎𝟎𝐅𝐓 𝐏𝐔𝐋𝐋-𝐎𝐔𝐓 𝐁𝐎𝐗 Ships in a 500ft pull-out box for tangle-free dispensing. White jacket blends into walls and ceilings for a clean, professional installation finish.
Description
Description

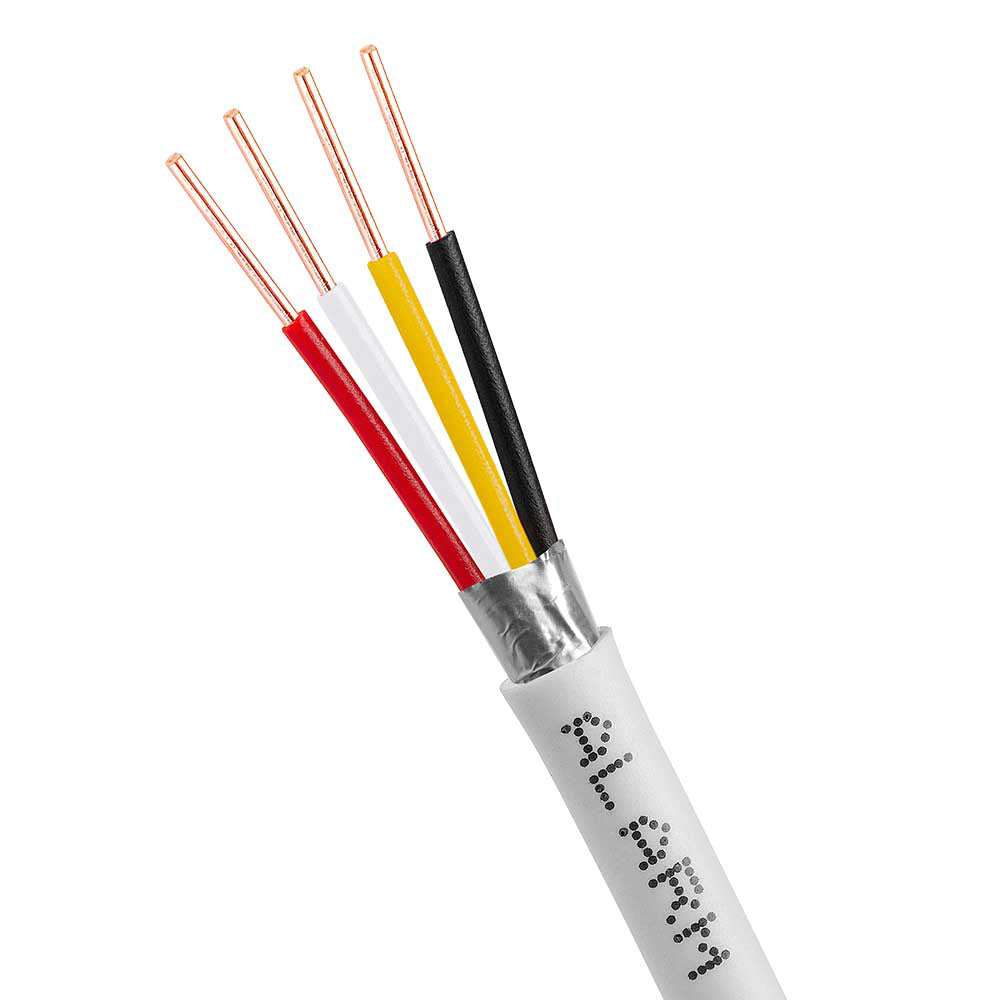

Keep your multi-zone security system running clean and interference-free with this 22/4 shielded solid alarm security wire. The overall aluminum foil shield wraps all four conductors, blocking power frequency interference (PFI) and radio frequency interference (RFI) from nearby electrical wiring and HVAC equipment — one of the most common causes of nuisance false alarms in hardwired security systems.
The 4-conductor design lets you power and signal devices over a single shielded cable run. Use two conductors for low-voltage power and two for signal or data, or dedicate all four to multi-zone sensor wiring back to the alarm panel. Solid construction delivers consistent, low-resistance performance over long permanent runs. Pull-out box keeps cable tangle-free on the job.
• Conductor: CCA (Copper-Clad Aluminum) · AWG: 22 · Conductors: 4
• Shield: Aluminum Foil (Overall) · Drain Wire: Yes
• Insulation: PVC · Jacket: PVC · Color: White
• Low-Voltage Security and Alarm Applications
• Packaging: 500ft Pull-Out Box · Length: 500ft
Specifications
Specifications
-
Cable Type
-
Conductor
-
Pairs
-
Shielding
-
Insulation
-
Jacket
-
Colors
