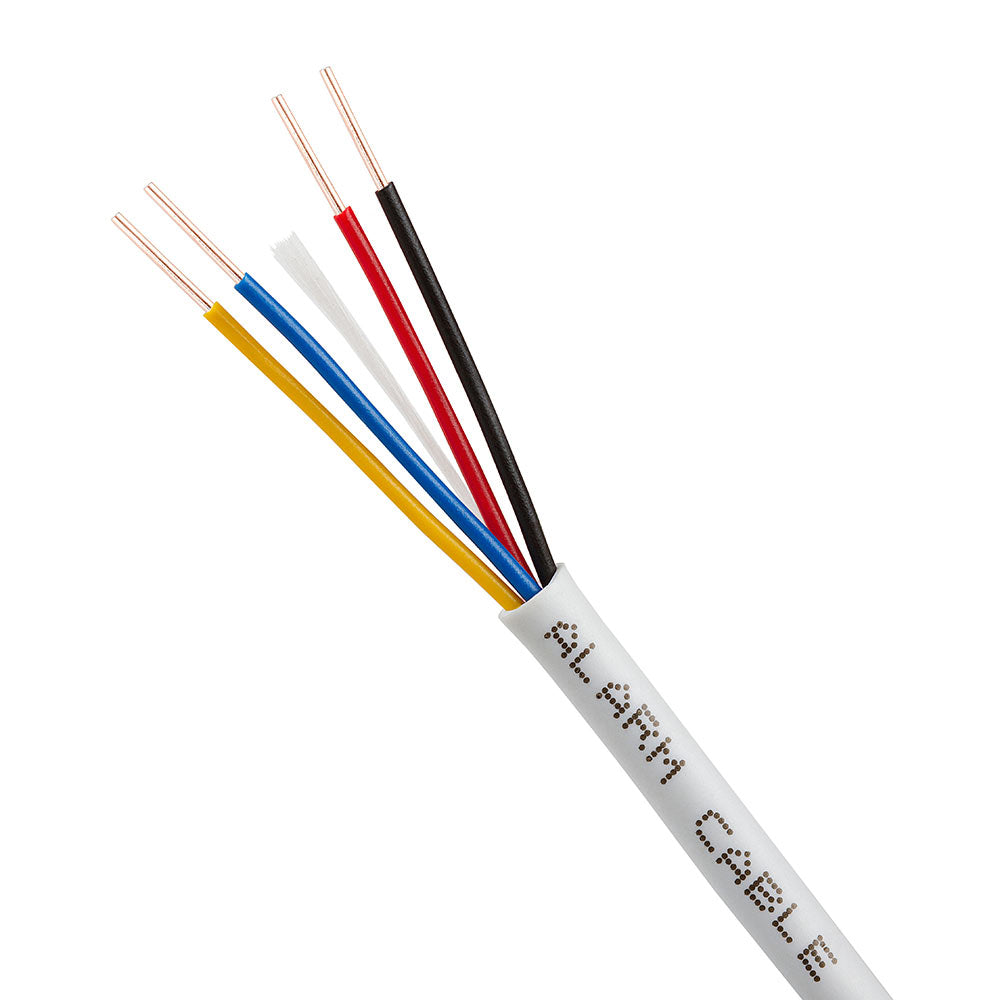

Alarm Security Wire 22AWG 4 Solid Bare Copper Conductors CMR CL2R ETL Listed 500ft White
SKU:
1089-Big
Sale price
$79.99
Regular price
$119.99
Unit price
Sold out
33% off
-
Solid Bare Copper · 22AWG · 4 Conductors
-
PVC Insulation · Green/White/Black/Red
-
CMR/FT4 Rated PVC Jacket · Class 2 CL2R
-
C(ETL)US Listed · 300V RMS · Temp 75°C
-
OD 3.20 mm · 500ft Coil Pack · White Jacket
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
SKU:
1089-Big
Sale price
$79.99
Regular price
$119.99
Unit price
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟐𝐀𝐖𝐆 Solid bare copper delivers consistent signal quality over long fixed runs — ideal for permanent security wiring in walls and riser installations.
-
𝟒-𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 𝐏𝐎𝐖𝐄𝐑 𝐀𝐍𝐃 𝐒𝐈𝐆𝐍𝐀𝐋 Use two conductors for signal and two for low-voltage power — motion detectors, keypads, cameras, and powered accessories all run in a single cable.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 CMR/FT4 jacket meets fire code for permanent in-wall and riser installations between floors in residential and commercial buildings. C(ETL)US Listed.
-
𝟒 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Green, White, Black, and Red conductors eliminate wiring confusion — signal, power, and ground all terminate correctly at every connection point.
-

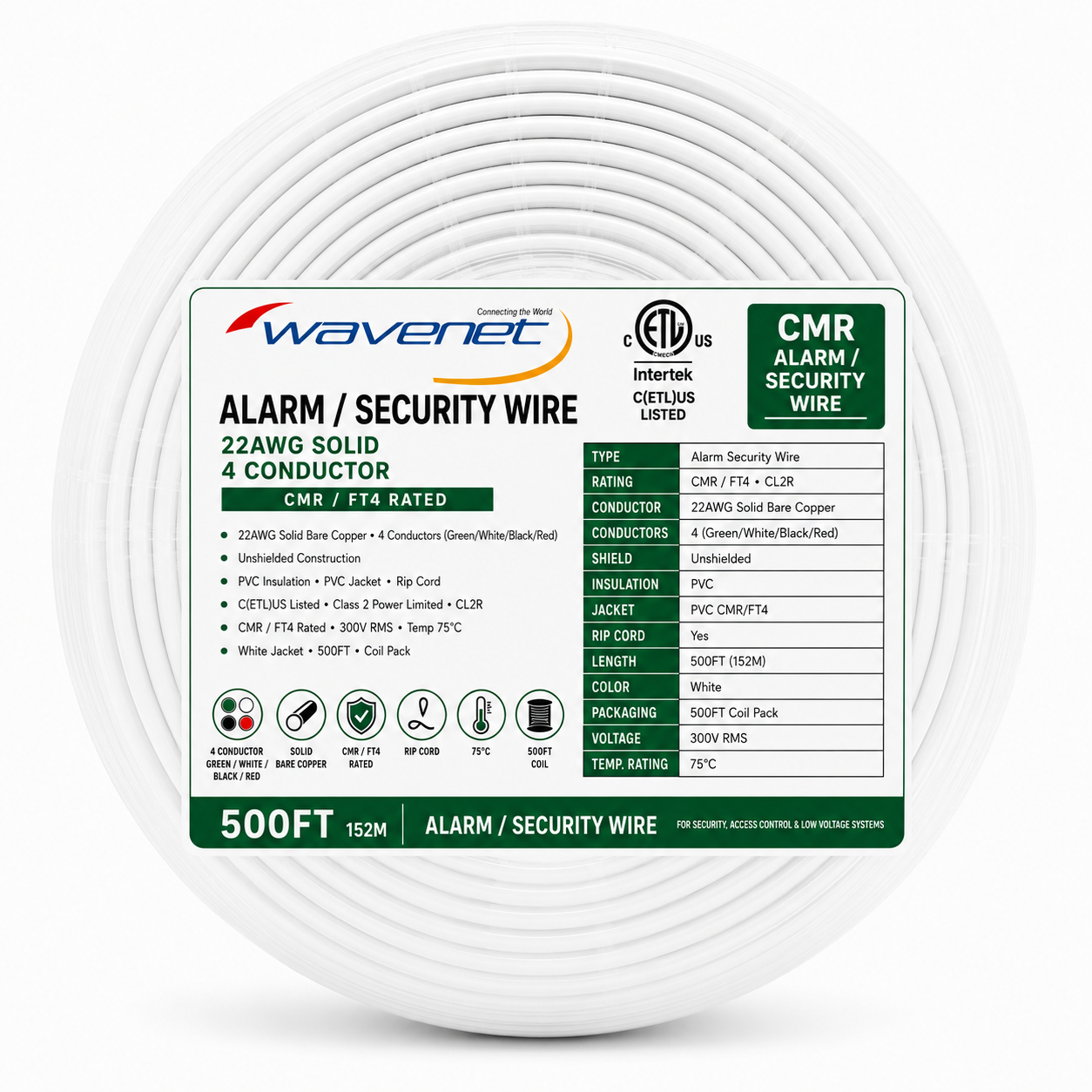

𝟓𝟎𝟎𝐅𝐓 𝐂𝐎𝐈𝐋 𝐏𝐀𝐂𝐊 𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 Compact 500ft coil pack pulls tangle-free from the center — easy to carry, store, and dispense on any security system installation job.
Description
Description
Power and signal your security devices with this 22/4 solid bare copper alarm security wire — rated CMR/FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings. The 4-conductor design is the go-to choice for powered security devices — two conductors carry signal while the other two deliver low-voltage power, all in a single cable run.
Solid conductor construction delivers consistent, low-resistance performance over long fixed runs. Four color-coded conductors (Green/White/Black/Red) eliminate wiring confusion and make polarity identification fast at every connection. Class 2 Power Limited rated (CL2R) up to 300V RMS.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · Class 2 Power Limited · CL2R
Technical Specifications:
• Conductor: Solid Bare Copper · AWG: 22 · Conductors: 4 (Green/White/Black/Red)
• Insulation: PVC · Jacket: PVC CMR/FT4 · Color: White · Rip Cord: Yes
• OD: 3.20 mm · Voltage: 300V RMS · Rated Temp: 75°C
• Packaging: 500ft Coil Pack
Typical Applications:
• Powered motion detectors, keypads, and cameras
• Combined signal and low-voltage power in one cable
• Access control and intercom systems
• Fixed point-to-point hardwired security runs
• In-wall and vertical riser runs in residential and commercial buildings
