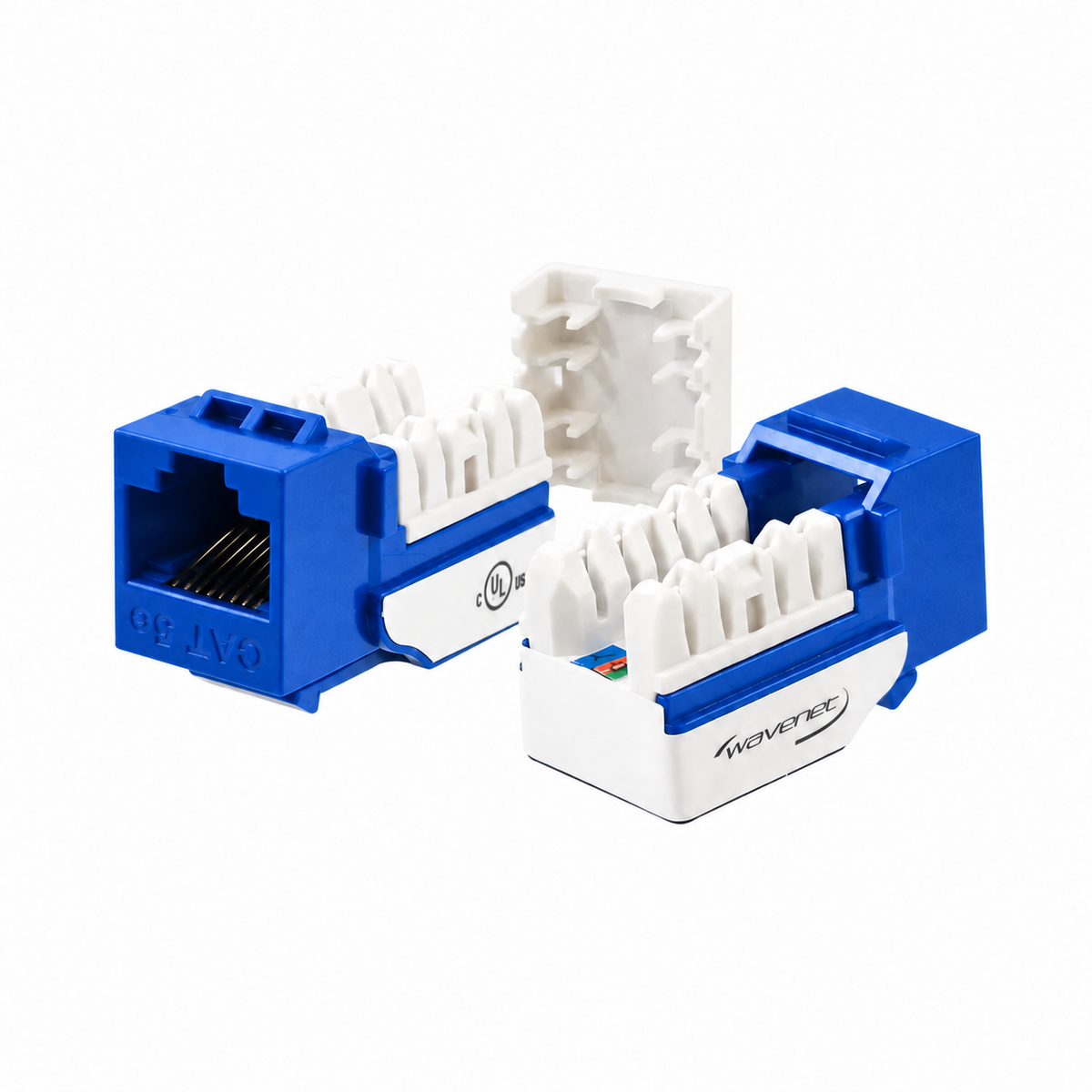

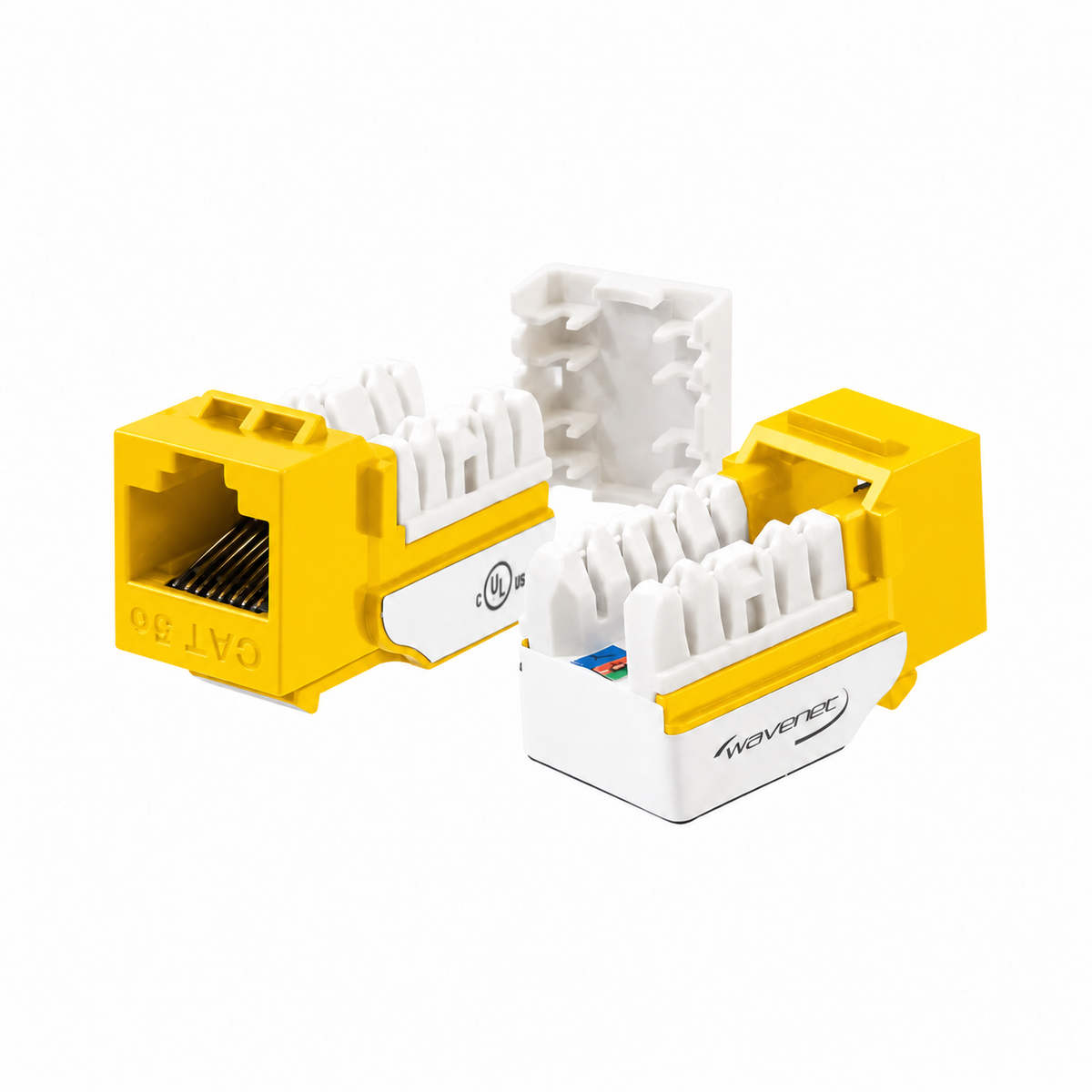

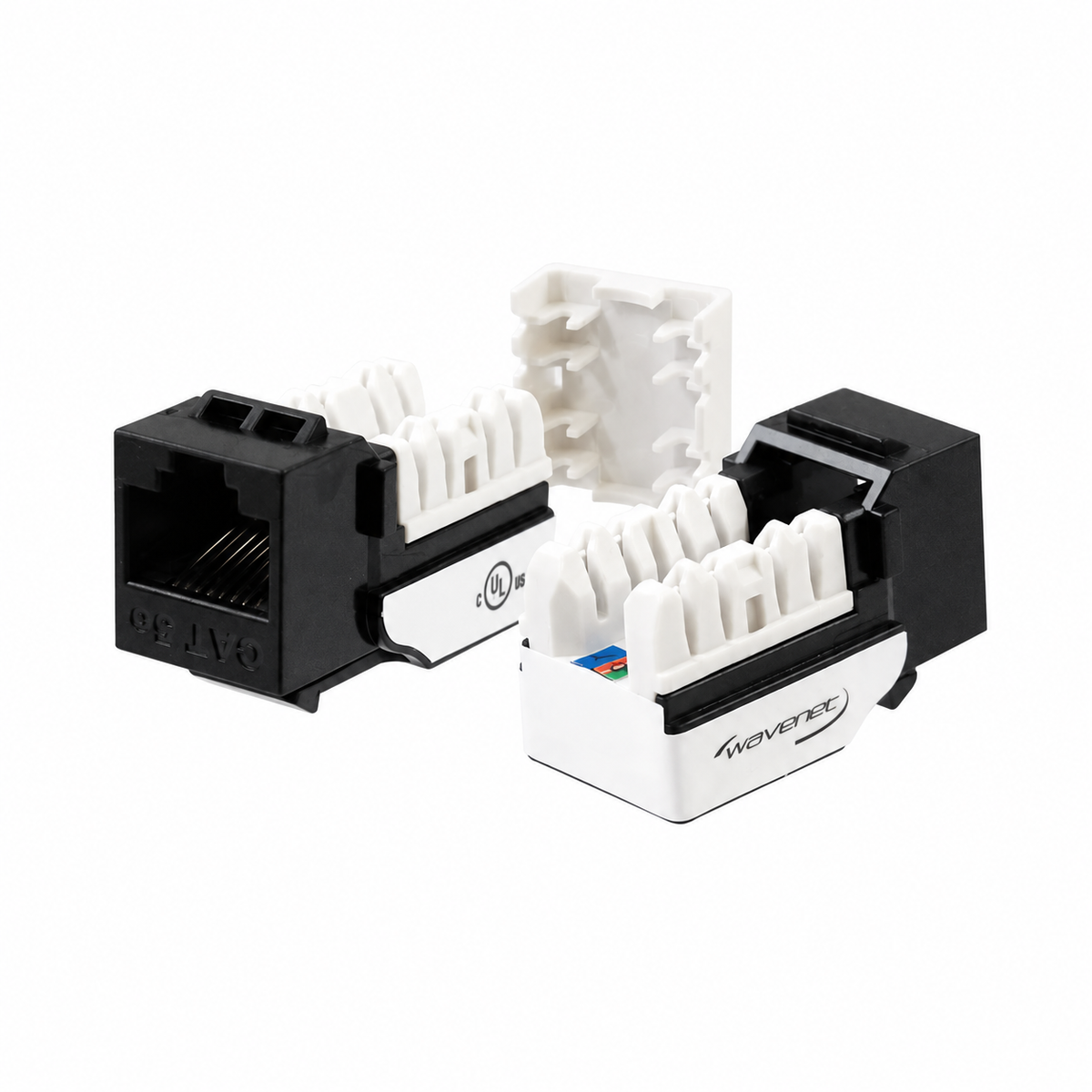

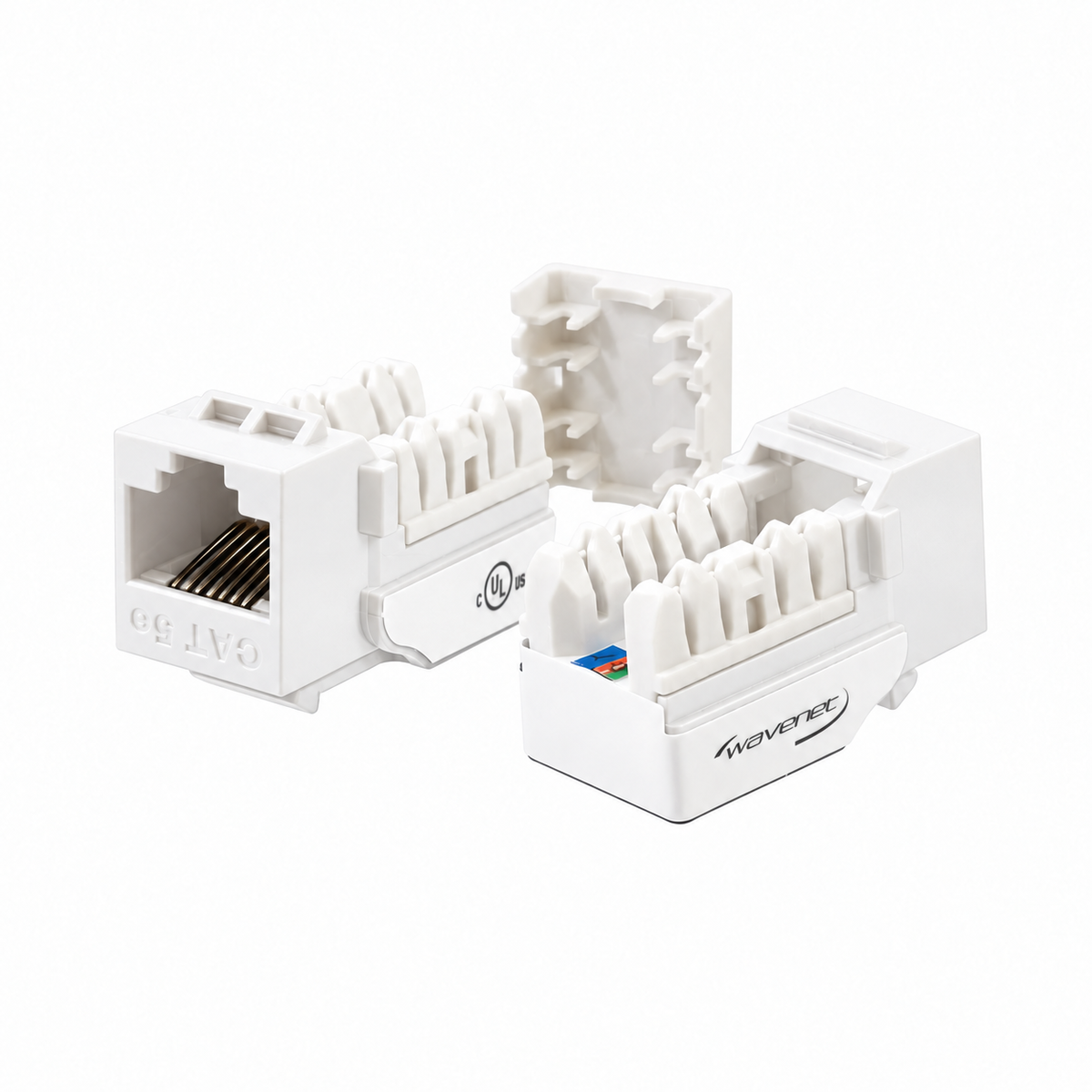

Cat5e Keystone Jack 90-Degree 25-Pack SDJ Series RJ45 110 Type for 22-24AWG Solid Wire
-
25-Pack · 90-Degree Punchdown Keystone Jack
-
T568A/B · 110-Type · 8P8C · RJ-45 Wiring
-
50μ" Gold-Plated Pins · 750 Insertion Cycles
-
Accepts 22-24 AWG UTP Solid Wire
-
Supports Gigabit 1000BASE-T up to 100m
-
𝐒𝐋𝐈𝐌 𝟗𝟎-𝐃𝐄𝐆𝐑𝐄𝐄 𝐏𝐔𝐍𝐂𝐇𝐃𝐎𝐖𝐍 The 90-degree punchdown angle keeps a low profile behind faceplates and patch panels for tight, clean installs.
-
𝐆𝐎𝐋𝐃-𝐏𝐋𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐌𝐀𝐗 𝐁𝐀𝐍𝐃𝐖𝐈𝐃𝐓𝐇 50 micro-inch gold-plated contact pins and a minimum of 750 insertion cycles keep every connection reliable long-term.
-
𝐆𝐈𝐆𝐀𝐁𝐈𝐓 𝐒𝐏𝐄𝐄𝐃𝐒 𝐀𝐓 𝐅𝐔𝐋𝐋 𝟏𝟎𝟎𝐌 Tested to TIA-568-C.2 Category 5e, delivering Gigabit (1000BASE-T) network speeds across the full 100-meter channel.
-

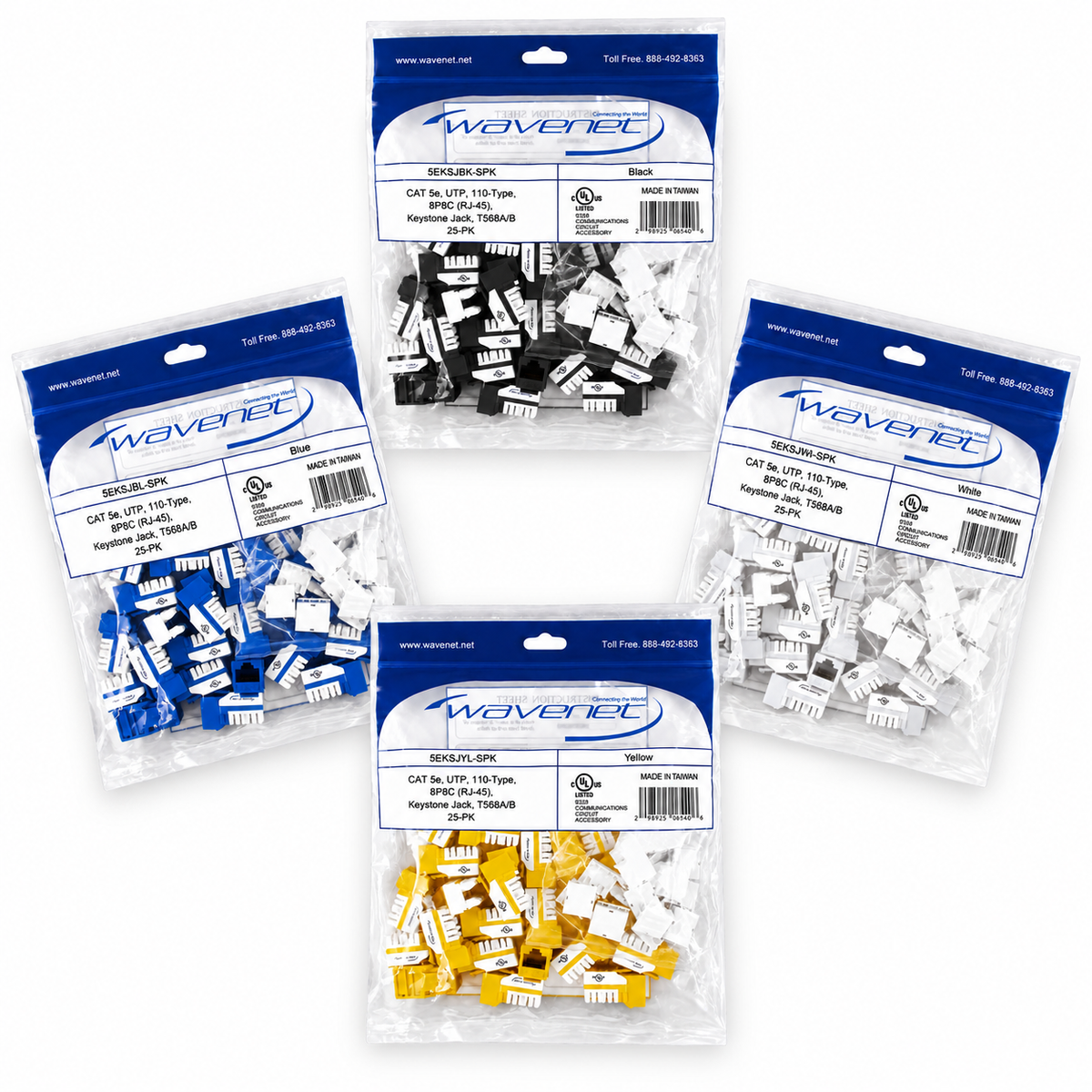

𝟐𝟓 𝐉𝐀𝐂𝐊𝐒 𝐏𝐋𝐔𝐒 𝐖𝐈𝐑𝐄 𝐂𝐀𝐏𝐒 A full 25-pack ships with matching wire caps included, so one box covers a room's worth of drops without extra ordering.
-
𝐃𝐑𝐎𝐏𝐒 𝐈𝐍𝐓𝐎 𝐘𝐎𝐔𝐑 𝐄𝐗𝐈𝐒𝐓𝐈𝐍𝐆 𝐒𝐄𝐓𝐔𝐏 Compatible with all Wavenet faceplates, blank patch panels, and surface mount boxes for a matched, uniform install.
Description
Description
Terminate Cat5e runs fast with this 25-pack of SDJ Series 90-degree keystone jacks, built with printed circuit board (PCB) technology for consistent, component-rated performance in faceplates, blank patch panels, and surface mount boxes.
The 90-degree punchdown style keeps a low profile behind faceplates and patch panels, and 50 micro-inch gold-plated contact pins deliver maximum bandwidth with a minimum of 750 plug insertion cycles. Each jack accepts 22-24 AWG UTP solid wire and is wired 110-Type, 8P8C, RJ-45, T568A/B, tested to meet and exceed TIA-568-C.2 Category 5e 100-meter channel performance. Wire caps are included for a finished termination.
Standards: UL Listed · TAA Compliant · RoHS · ANSI/TIA-568-C · ISO/IEC 11801 · IEC 60603-7-2
Technical Specifications:
• Style: 90-Degree Punchdown · Wiring: 110-Type, 8P8C, RJ-45, T568A/B
• Contact Pins: 50 Micro-Inch Gold-Plated · Min. 750 Insertion Cycles
• Wire Gauge: Accepts 22-24 AWG UTP Solid Wire
• Network Speed: Gigabit (1000BASE-T) up to 100m

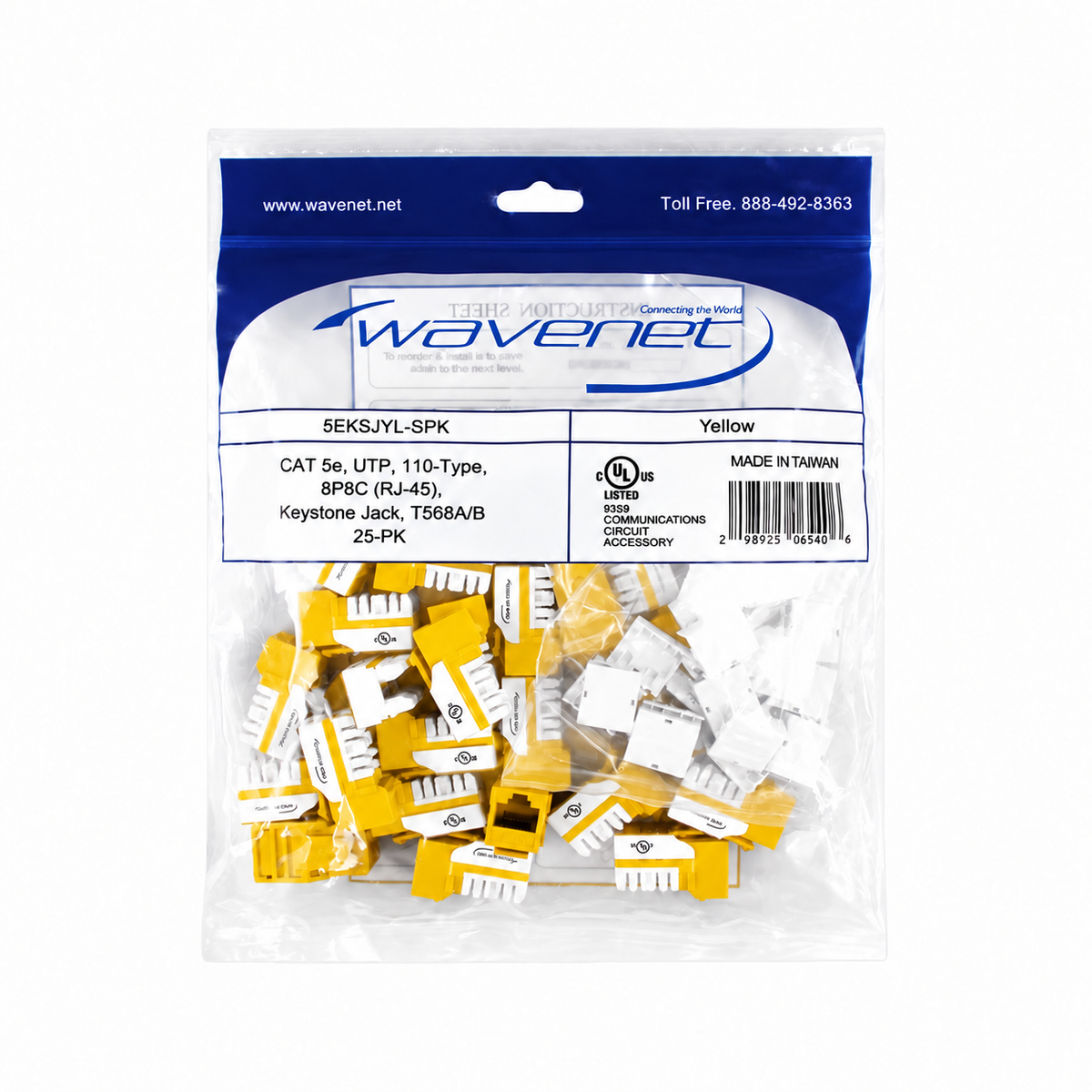

• Package: 25 Keystone Jacks + 25 Wire Caps
Typical Applications:
• Structured wiring enclosures and IDF/MDF wiring closets
• Faceplates, blank patch panels, and surface mount boxes
• New Cat5e horizontal cable runs and jack replacements
• Residential and light commercial network installations
