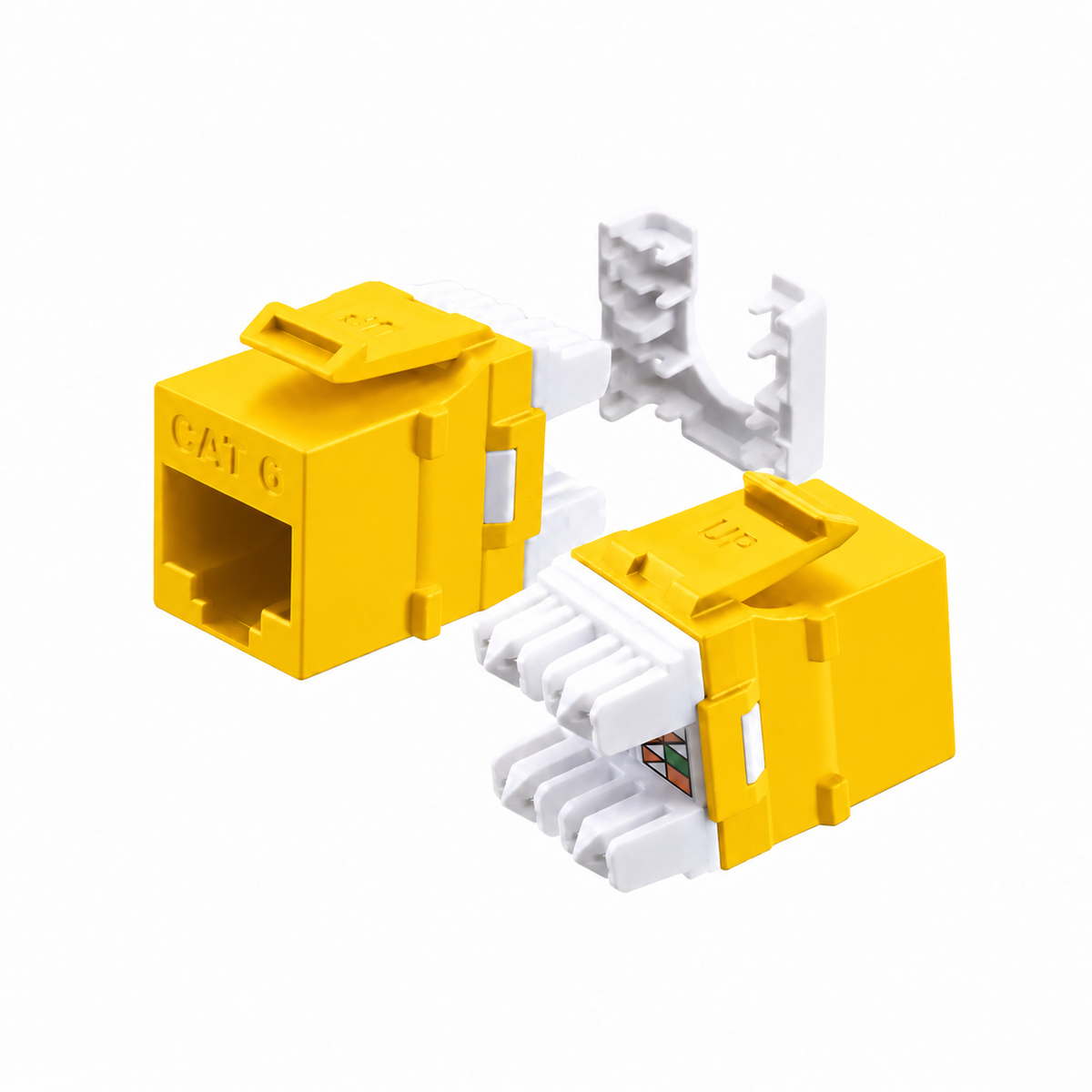

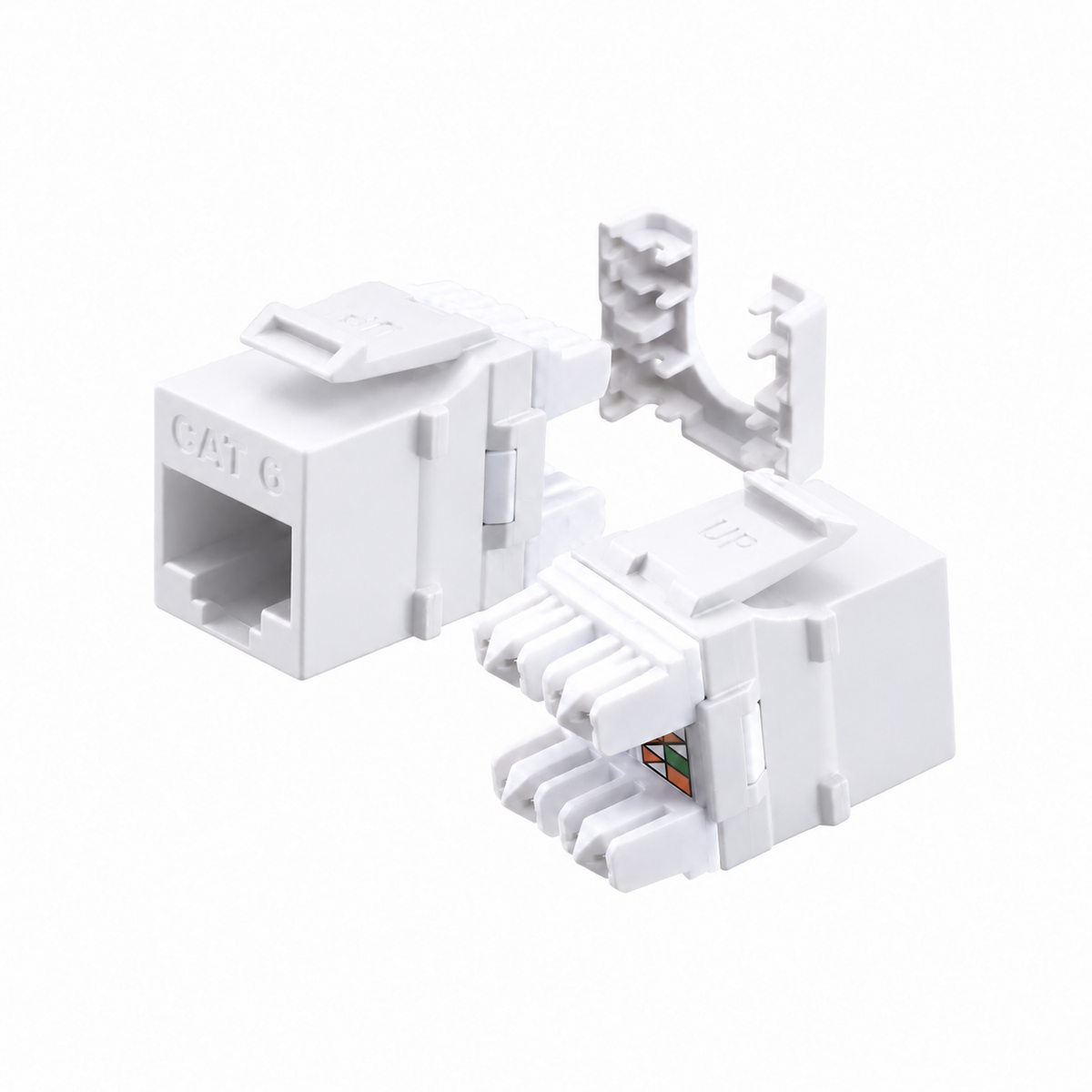

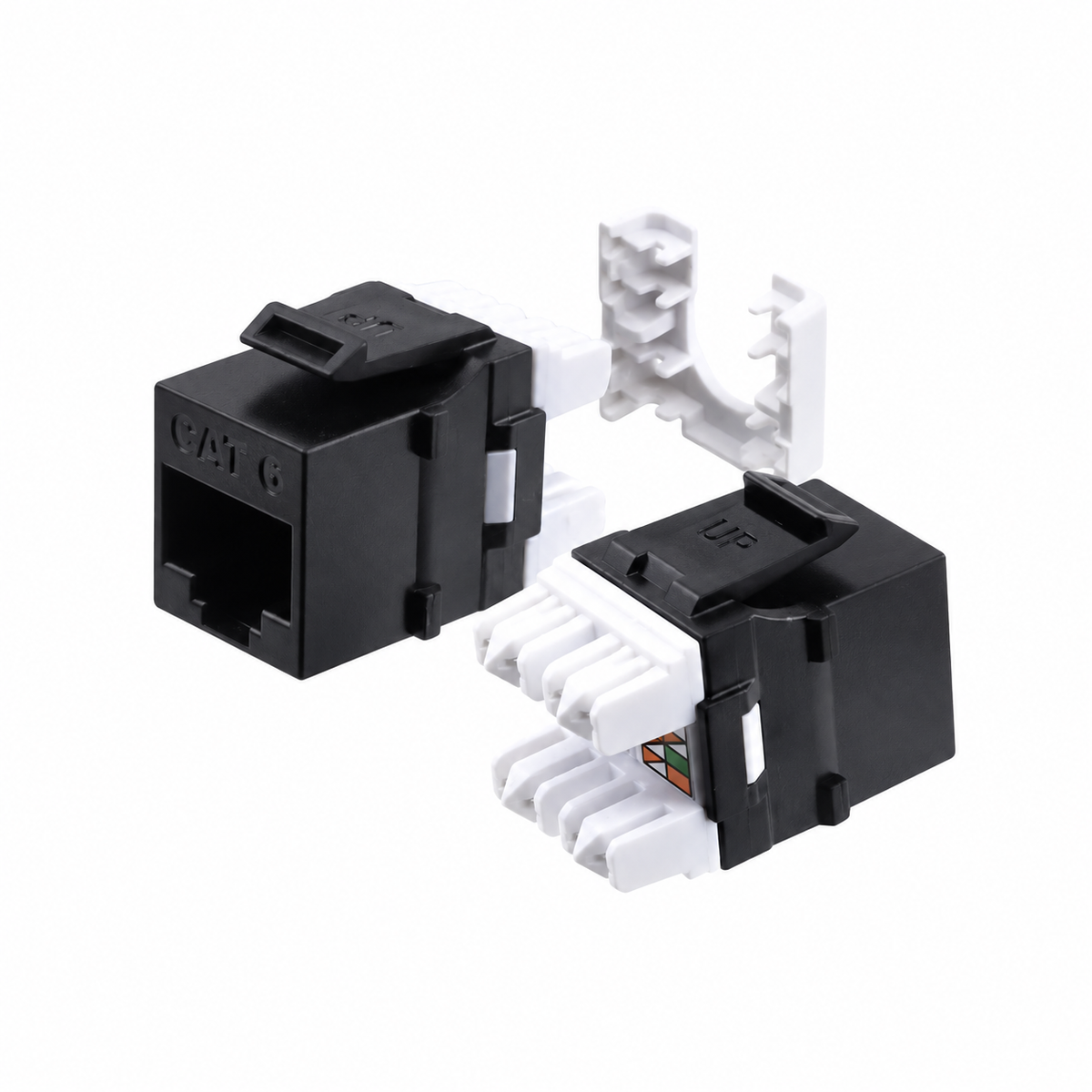

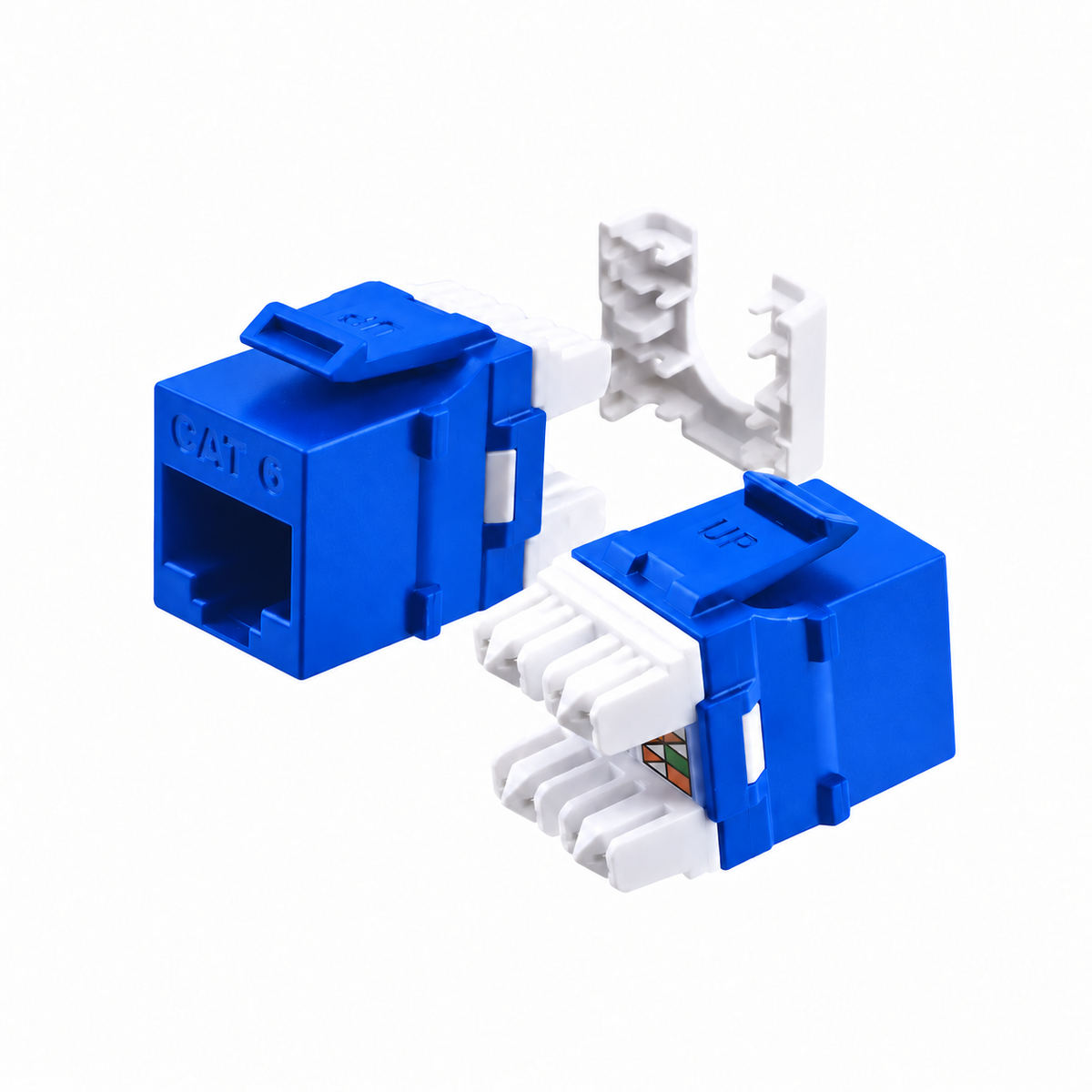

Cat6 Keystone Jack 180-Degree 25-Pack HDJ Series RJ45 110 Type for 22-24AWG Solid Wire
-
25-Pack · 180-Degree Punchdown Keystone Jack
-
T568A/B · 110-Type · 8P8C · RJ-45 Wiring
-
50μ" Gold-Plated Pins · 750 Insertion Cycles
-
Accepts 22-24 AWG UTP Solid Wire
-
Supports 10GBASE-T to 55m · Gigabit to 100m
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $67.89 / unit | 3% |
| 10–19 units | $66.49 / unit | 5% |
| 20+ units | $65.09 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐅𝐀𝐒𝐓 𝟏𝟖𝟎-𝐃𝐄𝐆𝐑𝐄𝐄 𝐏𝐔𝐍𝐂𝐇𝐃𝐎𝐖𝐍 The 180-degree punchdown angle speeds up termination in tight wiring enclosures compared to straight-body jacks.
-
𝐆𝐎𝐋𝐃-𝐏𝐋𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐌𝐀𝐗 𝐁𝐀𝐍𝐃𝐖𝐈𝐃𝐓𝐇 50 micro-inch gold-plated contact pins and a minimum of 750 insertion cycles keep every connection reliable long-term.
-
𝟏𝟎𝐆𝐁𝐀𝐒𝐄-𝐓 𝐑𝐄𝐀𝐃𝐘 Tested to TIA-568-C.2 Category 6, supporting 10 Gigabit (10GBASE-T) at shorter runs and Gigabit at the full 100m.
-

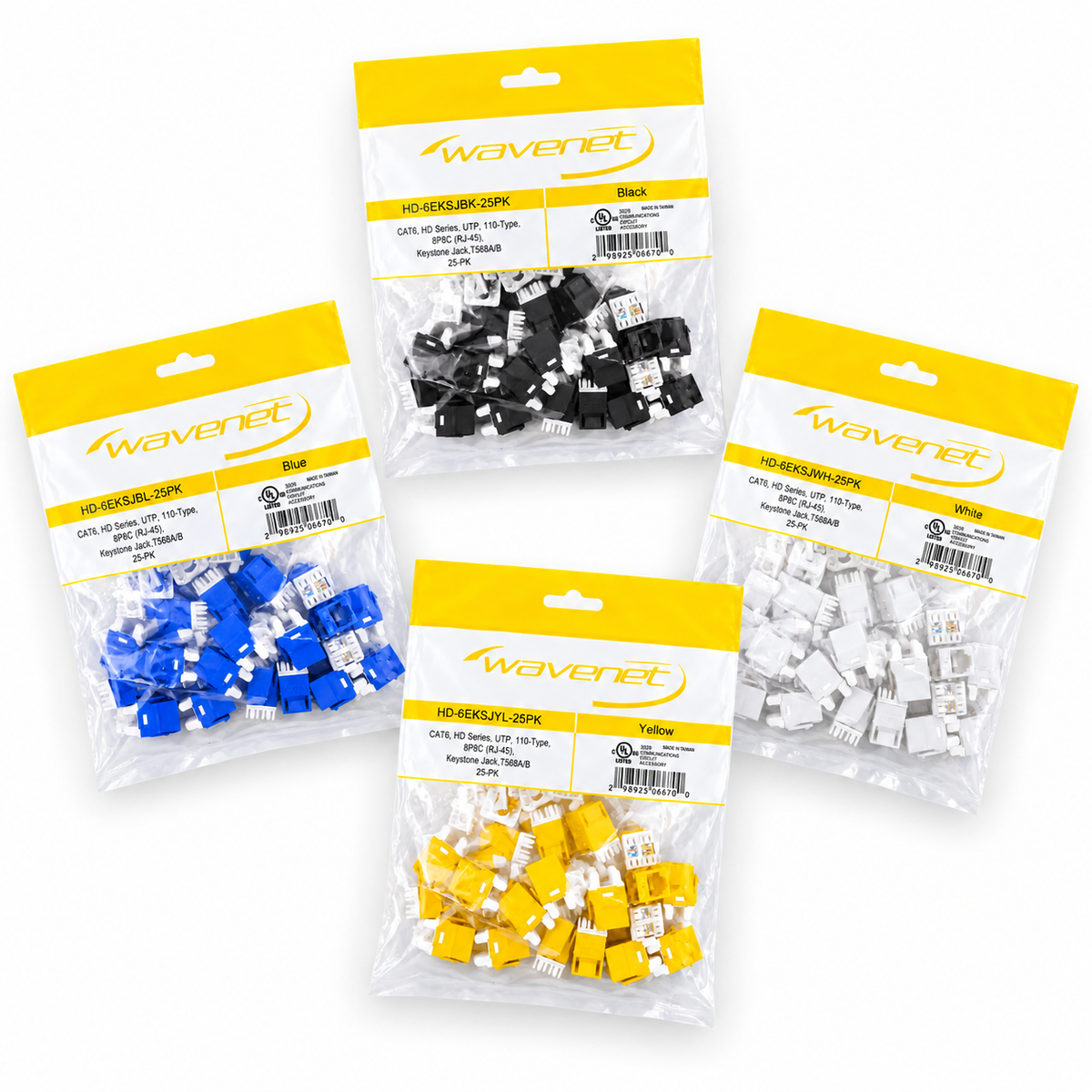

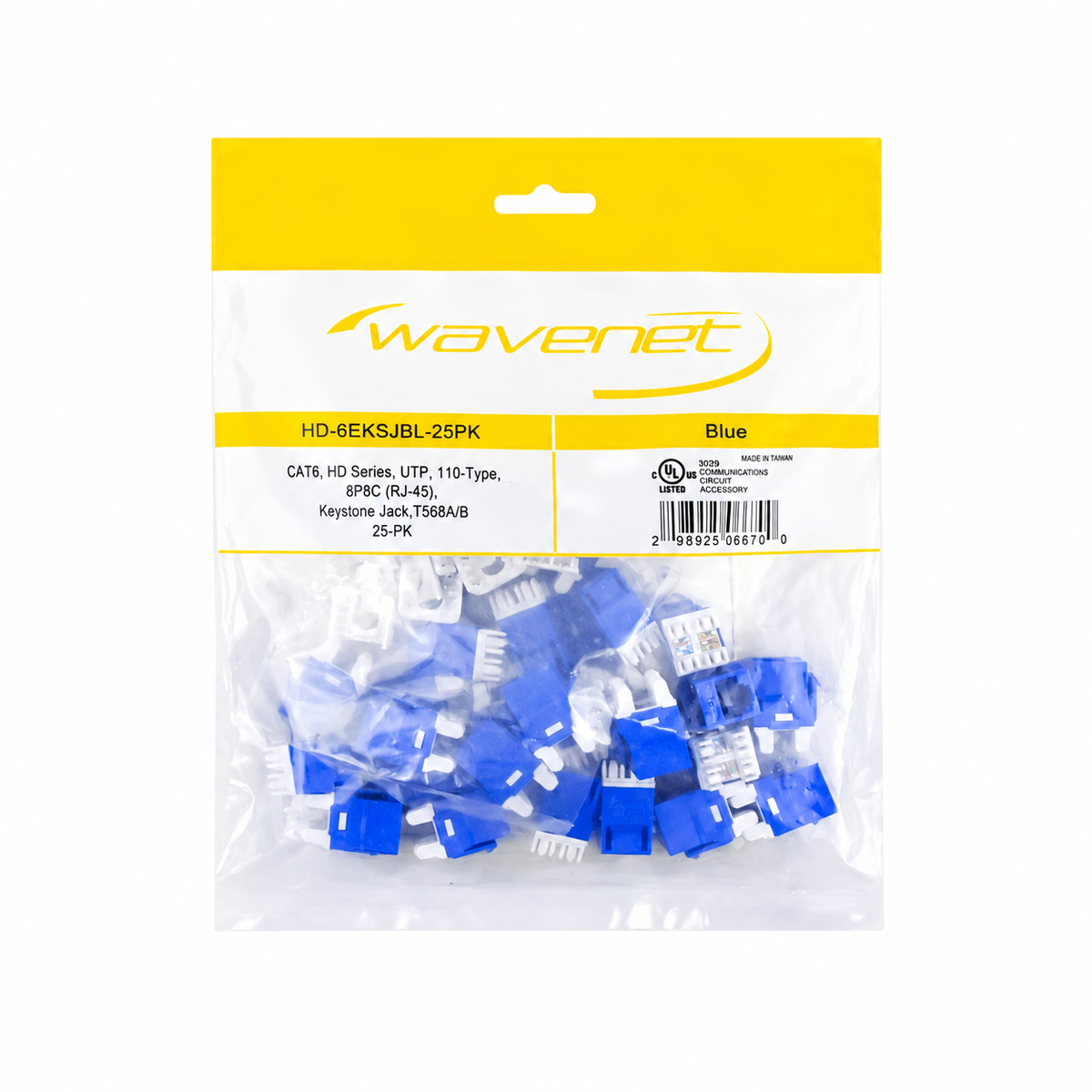

𝟐𝟓 𝐉𝐀𝐂𝐊𝐒 𝐏𝐋𝐔𝐒 𝐖𝐈𝐑𝐄 𝐂𝐀𝐏𝐒 A full 25-pack ships with matching wire caps included, so one box covers a room's worth of drops without extra ordering.
-
𝐃𝐑𝐎𝐏𝐒 𝐈𝐍𝐓𝐎 𝐘𝐎𝐔𝐑 𝐄𝐗𝐈𝐒𝐓𝐈𝐍𝐆 𝐒𝐄𝐓𝐔𝐏 Compatible with all Wavenet faceplates, blank patch panels, and surface mount boxes for a matched, uniform install.
Description
Description
Terminate Cat6 runs fast with this 25-pack of HDJ Series 180-degree keystone jacks, built with printed circuit board (PCB) technology for consistent, component-rated performance in faceplates, blank patch panels, and surface mount boxes.
The 180-degree punchdown style speeds up installation in tight wiring enclosures, and 50 micro-inch gold-plated contact pins deliver maximum bandwidth with a minimum of 750 plug insertion cycles. Each jack accepts 22-24 AWG UTP solid wire and is wired 110-Type, 8P8C, RJ-45, T568A/B, tested to meet and exceed TIA-568-C.2 Category 6 100-meter channel performance. Wire caps are included for a finished termination.
Standards: UL Listed · TAA Compliant · RoHS · ANSI/TIA-568-C · ISO/IEC 11801 · IEC 60603-7-4
Technical Specifications:
• Style: 180-Degree Punchdown · Wiring: 110-Type, 8P8C, RJ-45, T568A/B
• Contact Pins: 50 Micro-Inch Gold-Plated · Min. 750 Insertion Cycles
• Wire Gauge: Accepts 22-24 AWG UTP Solid Wire
• Network Speed: 10GBASE-T up to 55m · Gigabit up to 100m
• Package: 25 Keystone Jacks + 25 Wire Caps
Typical Applications:
• Structured wiring enclosures and IDF/MDF wiring closets
• Faceplates, blank patch panels, and surface mount boxes
• New Cat6 horizontal cable runs and jack replacements
• Gigabit and higher-bandwidth network installations
