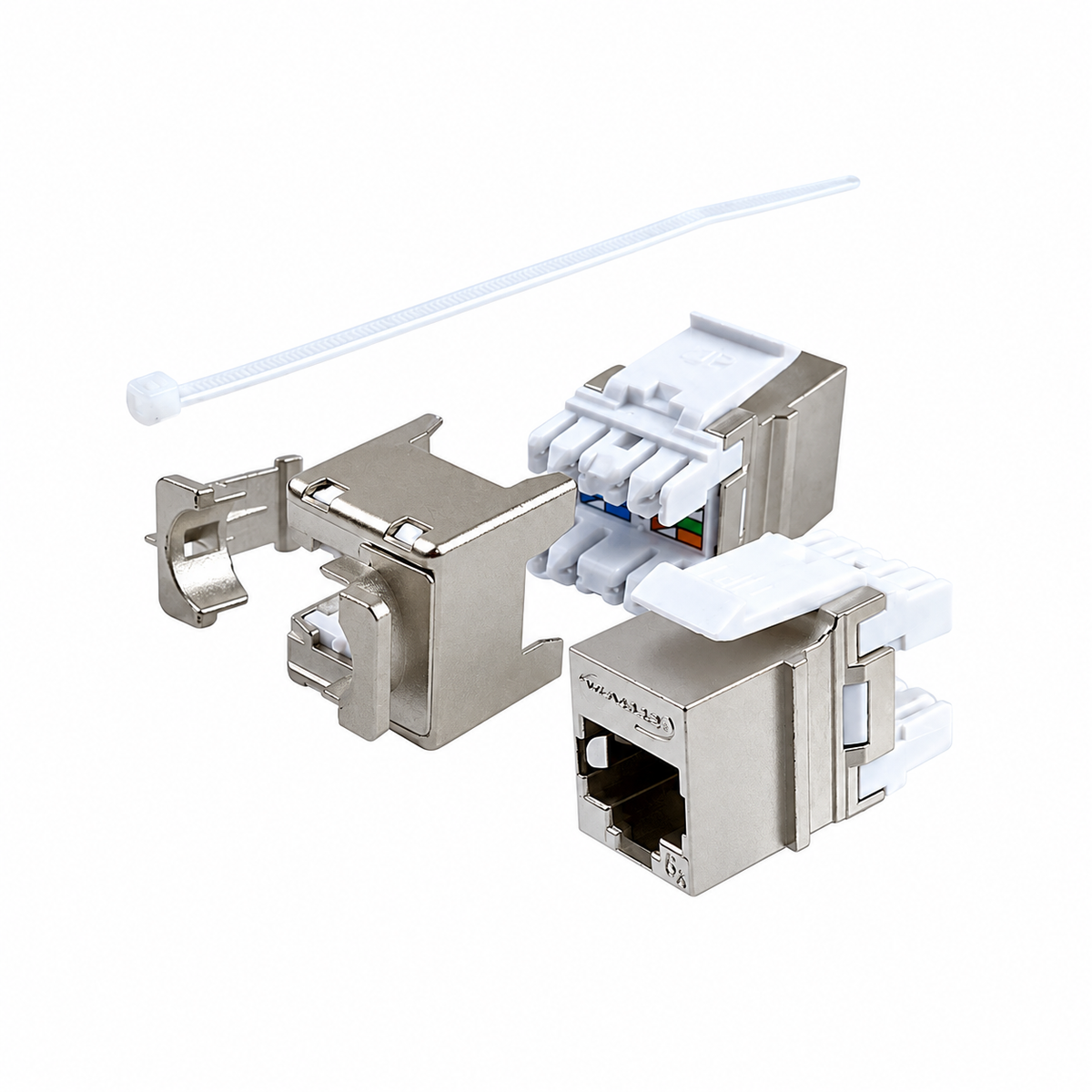

Cat6A Shielded Keystone Jack 180-Degree HDJ Series RJ45 F/UTP 110 Punchdown for 22-24AWG Wire
-
180-Degree Punchdown · F/UTP Shielded Jack
-
T568A/B · 110-Type · 8P8C · RJ-45 Wiring
-
Zinc Alloy Shell · 50μ" Gold-Plated Pins
-
Accepts 22-24 AWG F/UTP Solid Wire
-
Up to 500MHz · 10GBASE-T at Full 100m
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $16.48 / unit | 3% |
| 10–19 units | $16.14 / unit | 5% |
| 20+ units | $15.80 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐙𝐈𝐍𝐂 𝐒𝐇𝐄𝐋𝐋 𝐁𝐋𝐎𝐂𝐊𝐒 𝐄𝐌𝐈/𝐑𝐅𝐈 The metal F/UTP shell blocks electromagnetic and radio-frequency interference that a plastic unshielded jack can't stop.
-
𝟓𝟎𝟎𝐌𝐇𝐳 𝐅𝐎𝐑 𝐂𝐋𝐄𝐀𝐍 𝟏𝟎𝐆 𝐄𝐓𝐇𝐄𝐑𝐍𝐄𝐓 Rated to 500MHz, well above the 100MHz Cat6A needs, giving your 10-Gigabit signal real headroom against noise.
-
𝐆𝐑𝐎𝐔𝐍𝐃𝐈𝐍𝐆 𝐓𝐈𝐄 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 Ships with a nylon grounding tie so the shield terminates correctly on install, not as an afterthought you have to source.
-
𝐅𝐀𝐒𝐓 𝟏𝟖𝟎-𝐃𝐄𝐆𝐑𝐄𝐄 𝐏𝐔𝐍𝐂𝐇𝐃𝐎𝐖𝐍 The 180-degree punchdown angle speeds up termination in tight wiring enclosures compared to straight-body jacks.
-
𝐌𝐀𝐓𝐂𝐇𝐄𝐒 𝐘𝐎𝐔𝐑 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐏𝐀𝐍𝐄𝐋𝐒 Built to drop into Wavenet F/UTP shielded blank patch panels for a consistent, fully-shielded run end to end.
Description
Description
Shield your Cat6A runs from EMI/RFI with this HDJ Series F/UTP keystone jack, built with PCB technology and a zinc alloy shell for consistent, component-rated performance in F/UTP shielded blank patch panels.
The 180-degree punchdown style speeds up installation in tight enclosures, and 50 micro-inch gold-plated pins deliver maximum bandwidth with a minimum of 750 insertion cycles. The jack accepts 22-24 AWG F/UTP solid wire, wired 110-Type, 8P8C, RJ-45, T568A/B, tested to meet and exceed TIA-568-C.2 Category 6A performance at frequencies up to 500MHz for 10G Ethernet. A grounding nylon tie and wire cap are included.
Standards: UL Listed · TAA Compliant · RoHS · ANSI/TIA-568-C · ISO/IEC 11801 · IEC 60603-7-41
Technical Specifications:
• Style: 180-Degree Punchdown · Wiring: 110-Type, 8P8C, RJ-45, T568A/B
• Shielding: F/UTP · Shell: Zinc Alloy · Contact Pins: 50 Micro-Inch Gold-Plated
• Wire Gauge: Accepts 22-24 AWG F/UTP Solid Wire · Insertion Cycles: Min. 750
• Network Speed: 10GBASE-T · Up to 500MHz for 10G Ethernet

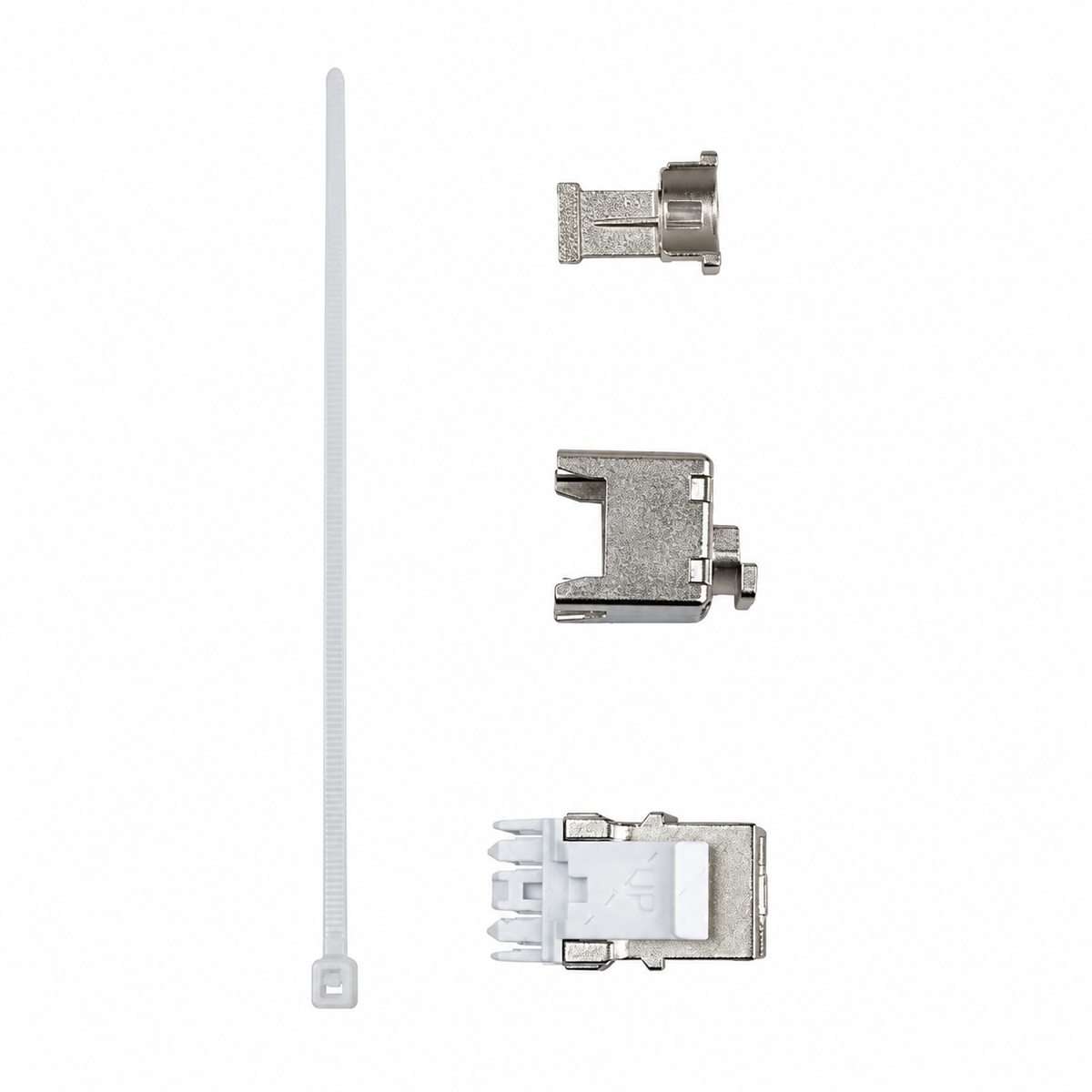

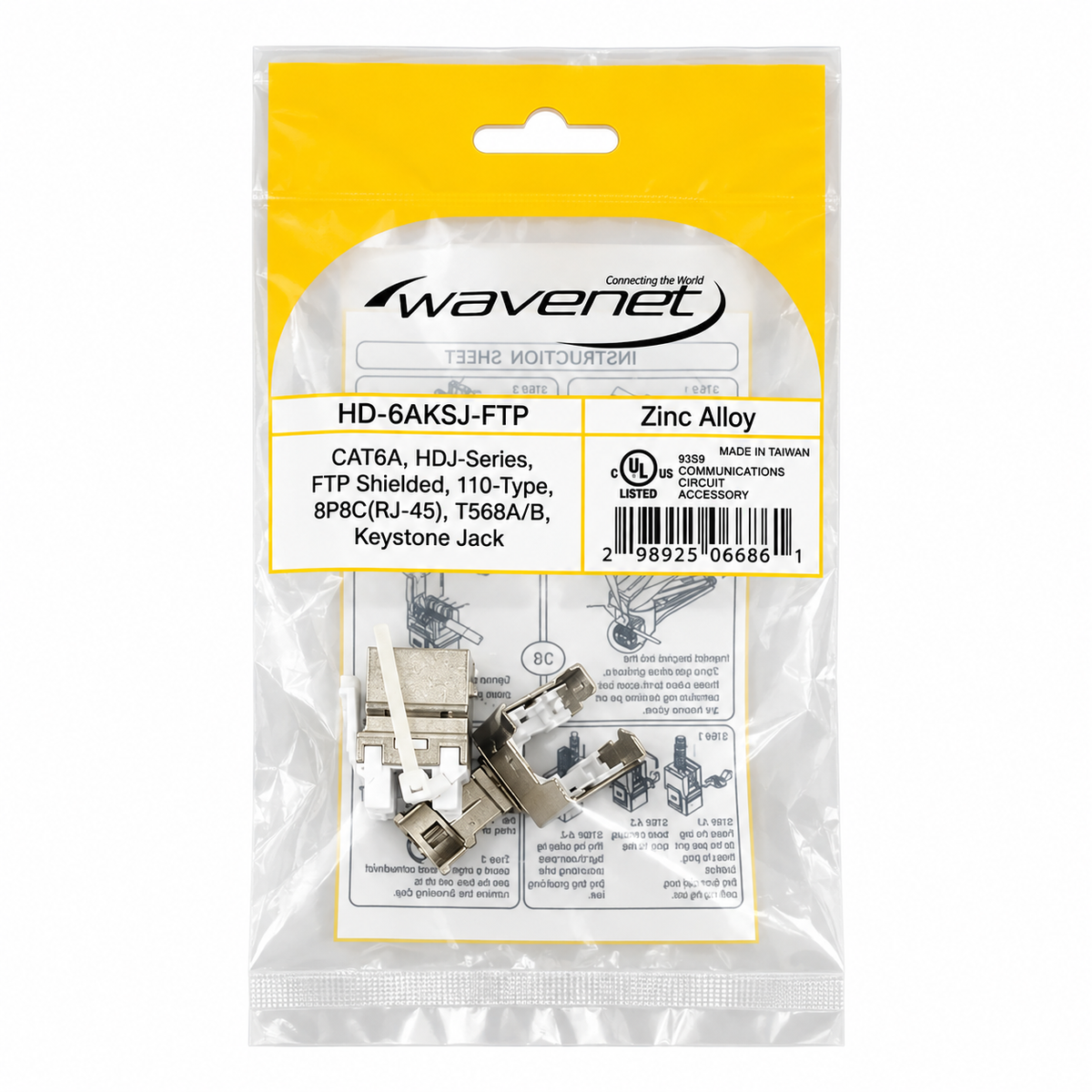

• Package: 1 Keystone Jack + 1 Wire Cap + 1 Grounding Nylon Tie
Typical Applications:
• EMI/RFI-sensitive wiring enclosures and data centers
• F/UTP shielded blank patch panels and surface mount boxes
• New Cat6A shielded cable runs
• 10-Gigabit installs near motors, lighting ballasts, or other EMI sources
