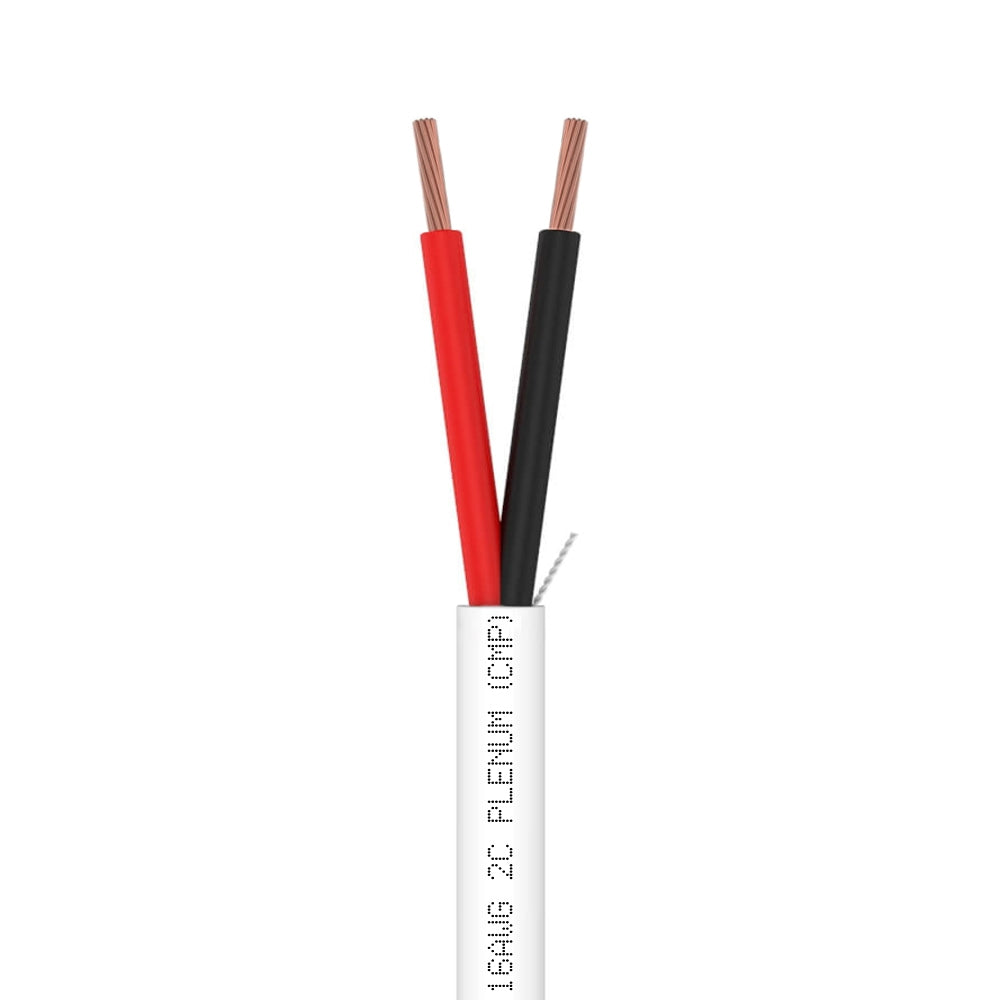

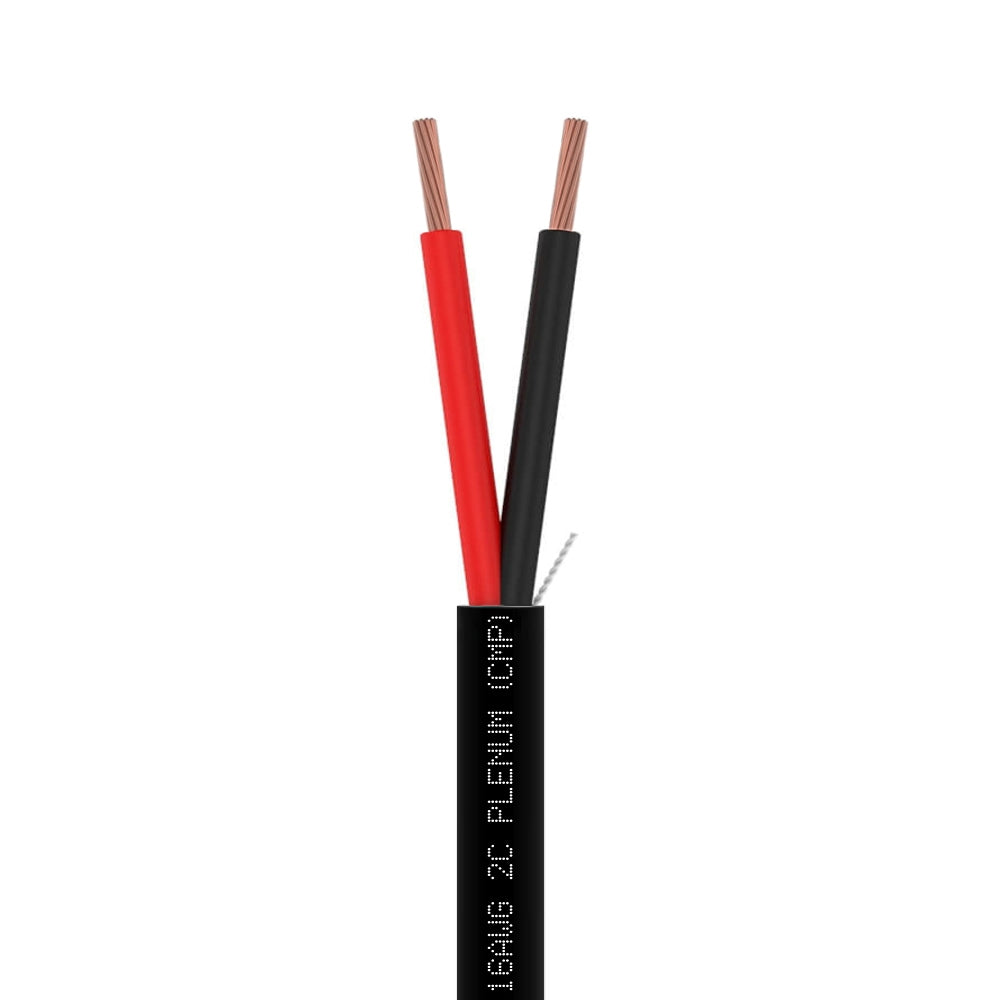

Control Cable Unshielded 16AWG 2 Conductor Plenum CMP Stranded 1000ft
-
16AWG Stranded Bare Copper, 2 Conductors (19 strands)
-
Unshielded – Clean Installs in Low-EMI Environments
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 4.60mm · Black & White · 1,000ft Reelex II
Control Cable Unshielded 16AWG 2 Conductor Plenum CMP Stranded 1000ft - White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 16AWG 2 Conductor Plenum CMP Stranded 1000ft
Control Cable Unshielded 16AWG 2 Conductor Plenum CMP Stranded 1000ft - White is backordered and will ship as soon as it is back in stock.
-
𝟭𝟲𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 16AWG stranded copper in a CMP-rated cable for HVAC actuators and relay coils above suspended ceilings.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Low-smoke Remguard rated CMP — required for 16AWG unshielded control wire in plenum air-handling spaces.
-
𝗖𝗠𝗣 𝗦𝗨𝗕𝗦𝗧𝗜𝗧𝗨𝗧𝗘𝗦 𝗔𝗡𝗬𝗪𝗛𝗘𝗥𝗘 CMP rating covers any environment requiring CMP, CMR, or lower — one spec for the entire building.
-
𝟯𝟬𝟬𝗩 𝗥𝗔𝗧𝗘𝗗 Rated to 300V for HVAC actuators, motorized dampers, relay coils, and low-voltage control in plenum buildings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 1000ft unshielded CMP coil for complete above-ceiling 16AWG control cable distribution projects.
Description
Description
Keep your control wiring code-compliant and fire-safe with this 16AWG unshielded stranded bare copper control cable. Rated CMP and CL2P, it is approved for air-handling spaces above suspended ceilings, below raised floors, and in risers and walls in residential and commercial buildings — the highest indoor fire safety rating that covers every indoor installation environment.
The 16AWG gauge provides more current capacity and lower voltage drop over long runs than 18AWG — the right choice for powered security devices, audio amplifiers, door strikes, and access control equipment where maintaining the correct voltage at the end of a long run matters. The unshielded design is ideal for clean installations in environments without significant EMI sources. A built-in ripcord enables fast, clean jacket removal at every termination point. Available in Black or White jacket to match your installation environment.
C(ETL)US Listed · CMP / CL2P · UL 444

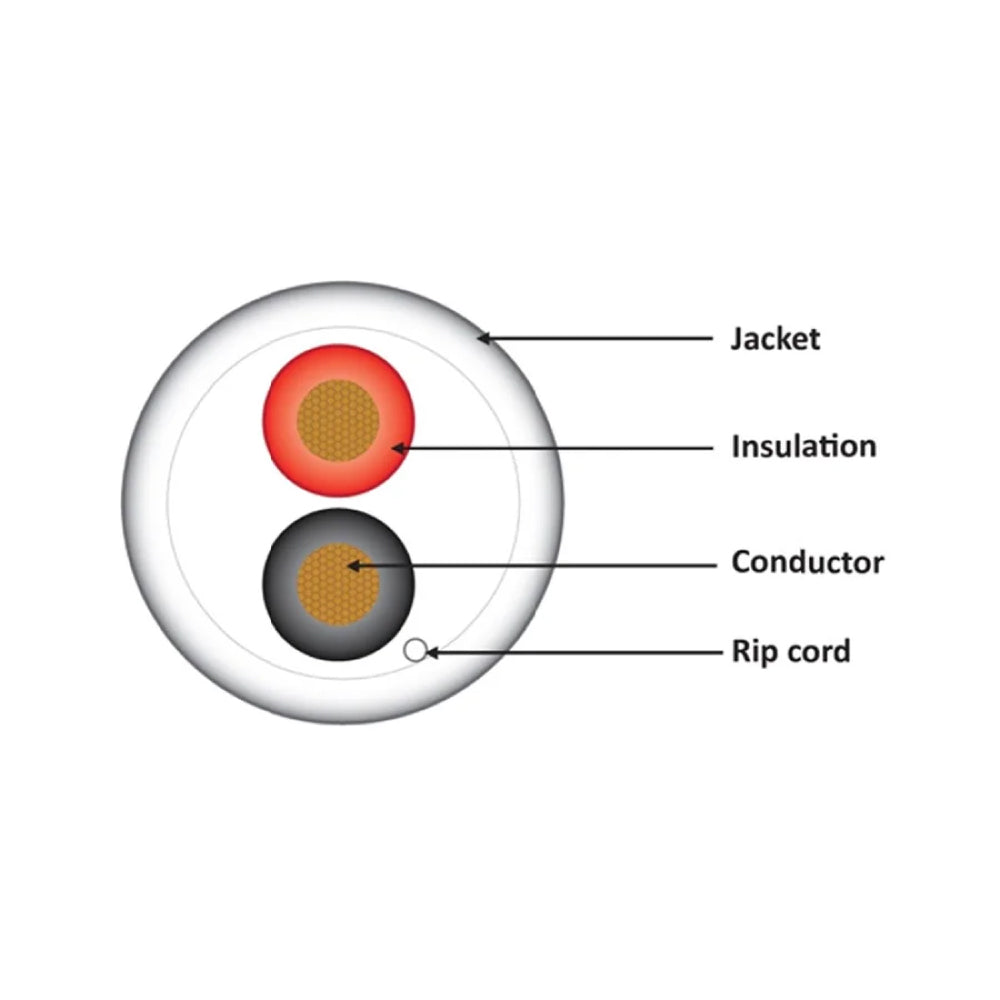

Specifications:
• Cable Type: 2-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 16AWG (19/0.295mm)
• Insulation: FR-PVC · Colors: Black, Red
• Shielding: None (Unshielded)
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Colors: Black, White
• Nominal OD: 4.60 mm (0.181 in.)
• Voltage Rating: 300V
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

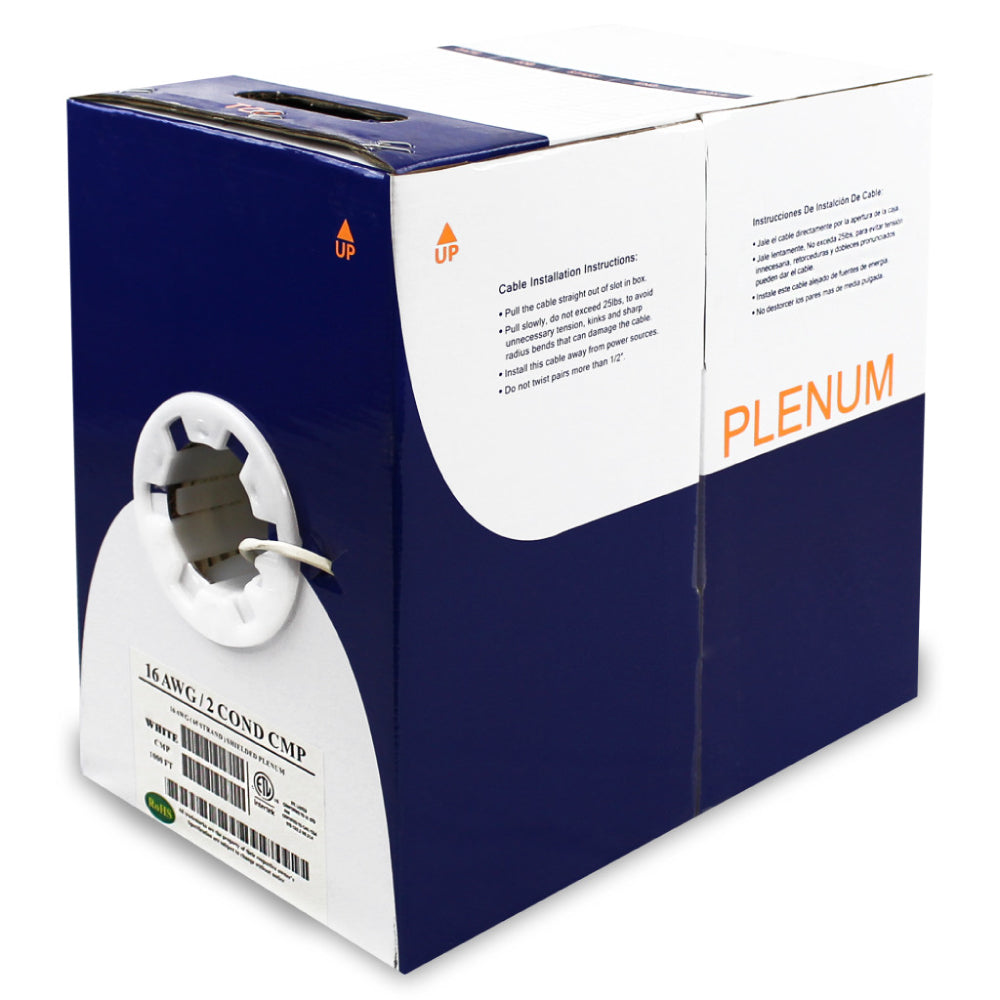

• Packaging: 1,000ft Reelex II pull box
Note: For installations near electrical panels, motors, or fluorescent lighting with significant EMI, choose the shielded version of this cable.
