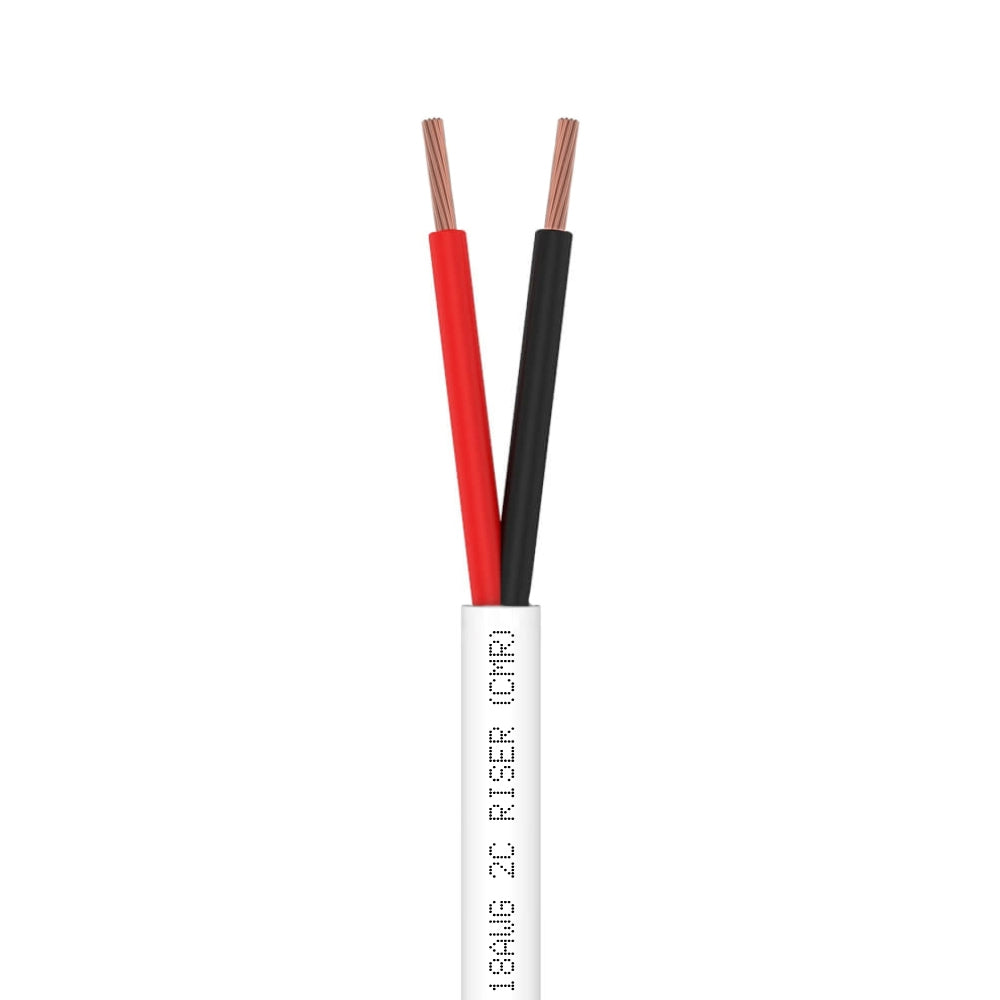

Control Cable Unshielded 18AWG 2 Conductor Riser CMR Stranded Copper
-
18AWG Stranded Bare Copper, 2 Conductors (7 strands)
-
Unshielded – 21 lbs/1000ft, Lightest CMR Control Cable
-
FR-PVC Jacket, CMR / FT4 Rated
-
C(ETL)US Listed · CL2R · UL444
-
OD 3.96mm · White & Grey · 500ft or 1,000ft
Control Cable Unshielded 18AWG 2 Conductor Riser CMR Stranded Copper - White / 500 Feet is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 2 Conductor Riser CMR Stranded Copper
Control Cable Unshielded 18AWG 2 Conductor Riser CMR Stranded Copper - White / 500 Feet is backordered and will ship as soon as it is back in stock.
-
𝟭𝟴𝗔𝗪𝗚 𝗨𝗡𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 Lightest control cable at 21 lbs per 1000ft for standard in-wall HVAC and control runs.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 Meets CMR and FT4 for in-wall and riser runs in residential and commercial control systems.
-
𝟭𝟴𝗔𝗪𝗚 𝗦𝗧𝗥𝗔𝗡𝗗𝗘𝗗 𝗖𝗢𝗣𝗣𝗘𝗥 Flexible stranded copper for HVAC thermostat wiring, zone controls, and general control applications.
-
𝟯𝟬𝟬𝗩 𝗥𝗔𝗧𝗘𝗗 Rated to 300V for the full range of low-voltage HVAC and building control applications.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗖𝗢𝗜𝗟 1000ft coil for complete in-wall and riser unshielded 18AWG 2-conductor control installations.
Description
Description
Get reliable CMR-rated control cable performance in walls and risers at the lowest cost and weight in the lineup with this 18AWG unshielded stranded bare copper control cable. Rated CMR / FT4 and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings, it is the straightforward choice for clean environments without significant EMI from power lines or industrial equipment.
At just 21 lbs per 1,000ft, this is the lightest CMR control cable in the series — easy to handle, pull in conduit, and route through walls. The 18AWG gauge is appropriate for control and signal applications with moderate current and run-length requirements. A built-in ripcord enables fast, clean jacket removal at every termination. Choose White for a cleaner finish in exposed runs, or Grey for standard cable tray and conduit installations. Available in 500ft for smaller projects and 1,000ft for large-scale commercial jobs.
C(ETL)US Listed · CMR / FT4 · CL2 / CL2R · UL444

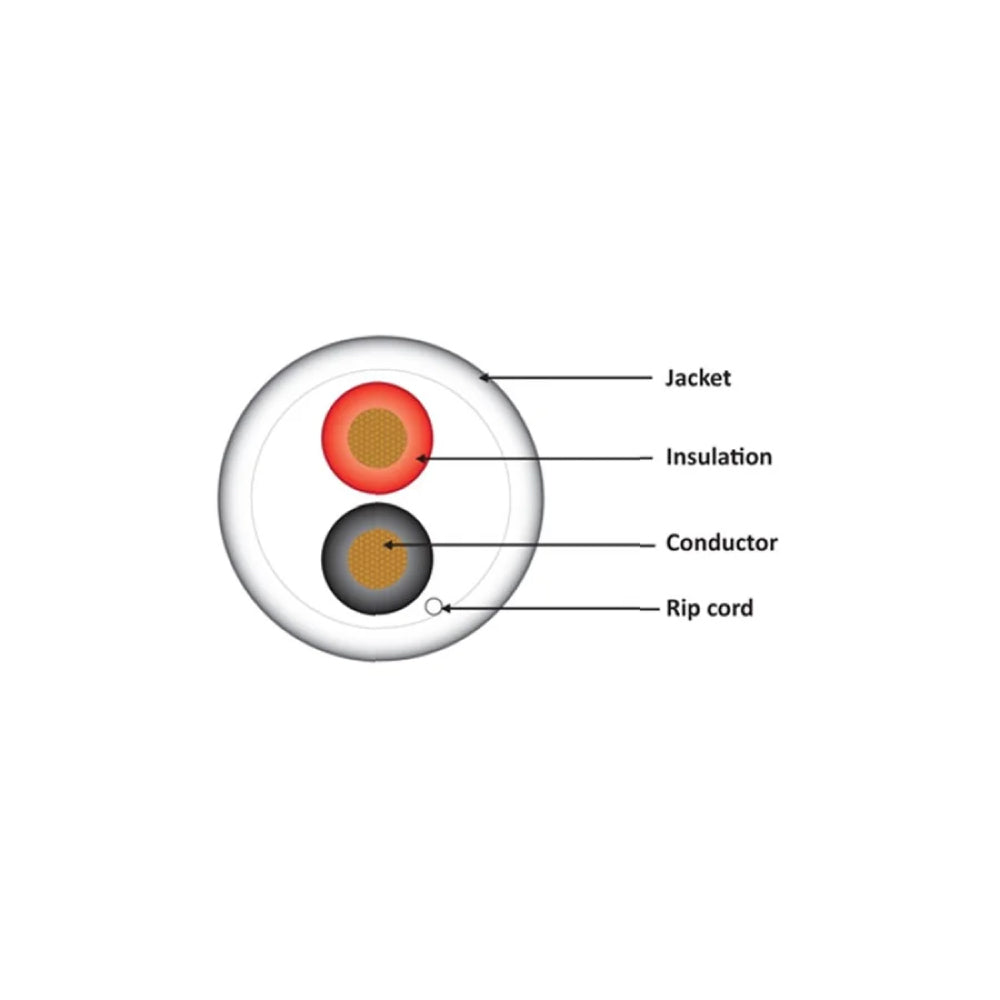

Specifications:
• Cable Type: 2-Conductor Unshielded Control Cable
• Conductor: Stranded Bare Copper, 18AWG (7/0.4mm)
• Insulation: PVC · Colors: Black, Red
• Shielding: None (Unshielded)
• Jacket: FR-PVC, CMR / FT4 Rated

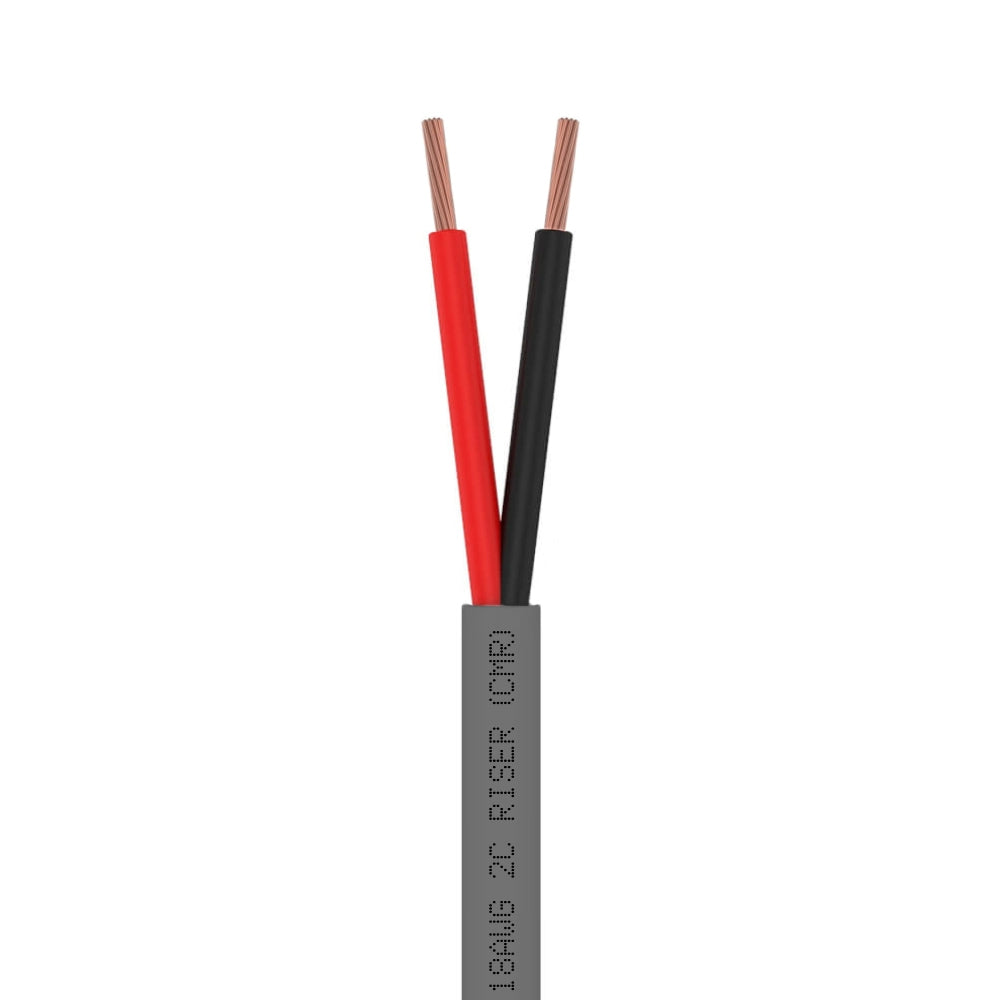

• Jacket Colors: White, Grey
• Nominal OD: 3.96 mm (0.156 in.)
• Certifications: C(ETL)US Listed, UL444, CL2/CL2R
• Ripcord: Yes

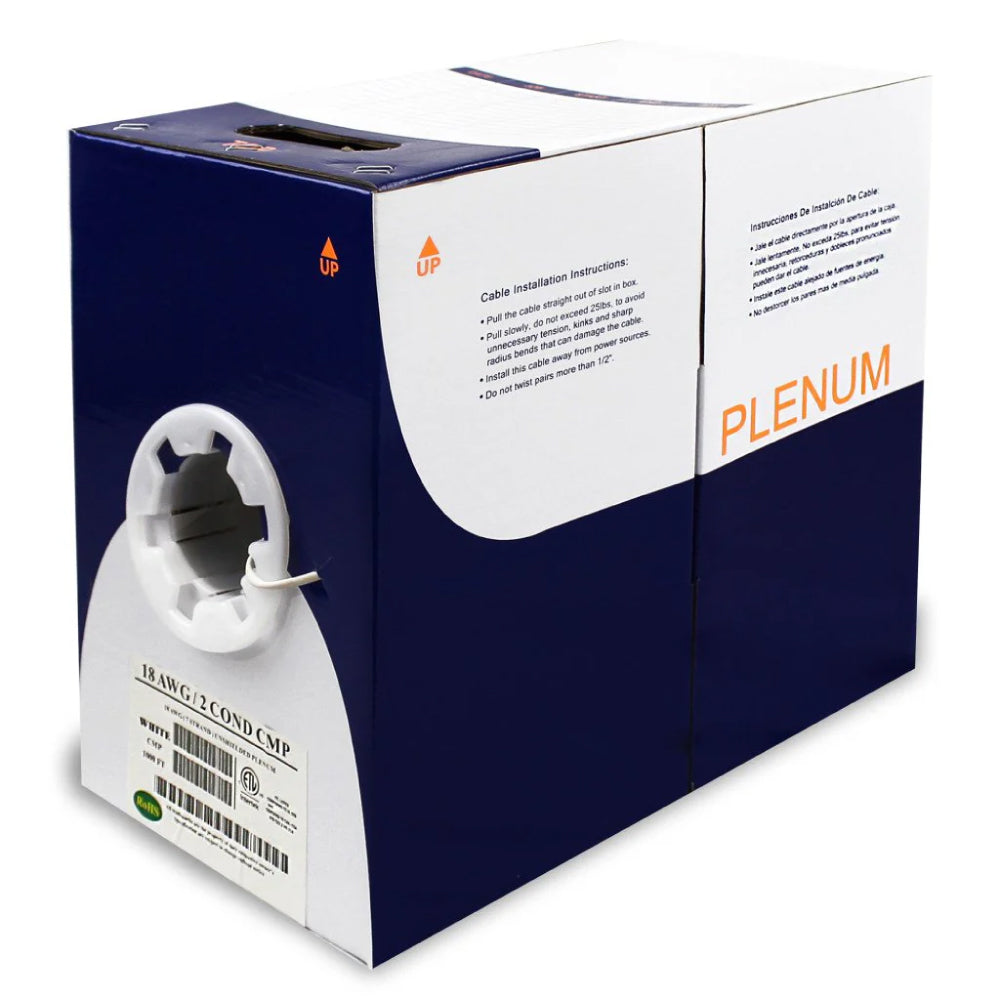

• Packaging: 500ft or 1,000ft Reelex II pull box
Note: For EMI environments, choose the shielded CMR version. For plenum spaces, choose the CMP version.
