Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 1000ft Teal
-
18AWG Power Pair + 22AWG Shielded Signal Pair
-
Stranded Bare Copper · AL-Tape Shield (22AWG)
-
PVC Jacket · CMR/FT4 Rated · CL3
-
C(ETL)US Listed · CMR · Automation Cable
-
OD 6.35mm · 1000ft Pull Box · Teal/Yellow
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $295.80 / unit | 3% |
| 10–19 units | $289.70 / unit | 5% |
| 20+ units | $283.60 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable 18AWG 2C + 22AWG 2C Shielded Riser CMR Automation 1000ft Teal
-
𝐏𝐎𝐖𝐄𝐑 𝐀𝐍𝐃 𝐒𝐈𝐆𝐍𝐀𝐋 𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 18AWG carries control power while the shielded 22AWG pair carries communication signal — no separate cables for automation and fieldbus wiring.
-
𝐁𝐔𝐈𝐋𝐓 𝐅𝐎𝐑 𝐂𝐀𝐍𝐁𝐔𝐒 𝐀𝐍𝐃 𝐅𝐈𝐄𝐋𝐃𝐁𝐔𝐒 The genuine construction pattern for CANbus, DeviceNet, Modbus, and Profibus wiring — heavier power conductors, separately shielded signal pair.
-
𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐖𝐇𝐄𝐑𝐄 𝐈𝐓 𝐌𝐀𝐓𝐓𝐄𝐑𝐒 100% AL-tape coverage with drain wire protects the 22AWG signal pair from EMI — clean communication on long automation runs.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 Meets CMR/FT4 fire code for permanent in-wall and riser installations. C(ETL)US Listed for automation and industrial control panels.
-
𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 𝐅𝐎𝐑 𝐄𝐀𝐒𝐘 𝐃𝐈𝐒𝐏𝐄𝐍𝐒𝐈𝐍𝐆 1000ft pull box delivers tangle-free payout — professional packaging for professional automation and control installations.
Description
Description

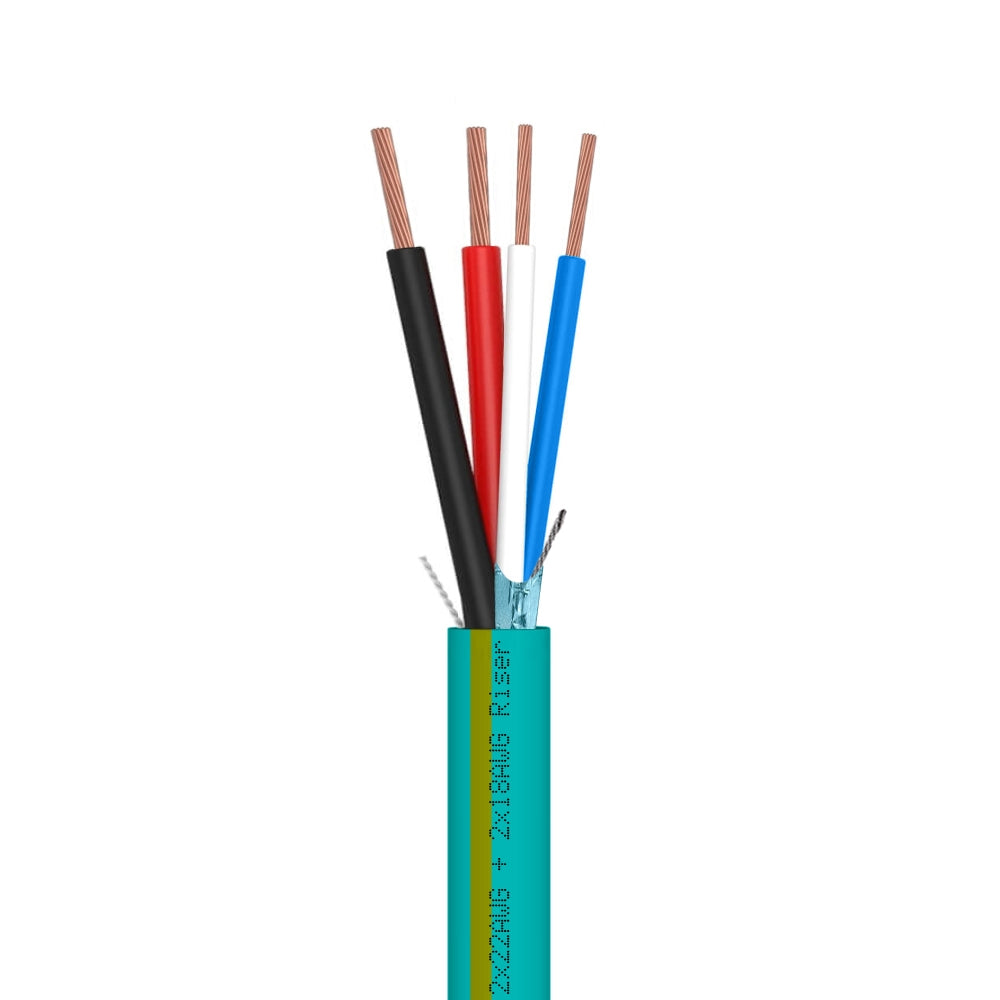

Wire power and communication in a single run with this hybrid control cable — two 18AWG conductors for control power alongside a shielded 22AWG pair for signal, all in one CMR-rated jacket. This is the common construction for automation and fieldbus wiring (CANbus, DeviceNet, Modbus, Profibus), where heavier conductors carry DC power and a shielded pair carries communication signals needing EMI protection.
The 22AWG pair's 100%-coverage AL-tape shield with drain wire keeps communication signals clean, while the 18AWG pair handles control power without a shield. Stranded bare copper throughout for reliable conductivity and flexibility.
Standards: C(ETL)US Listed · CMR/FT4 · CL3
Technical Specifications:

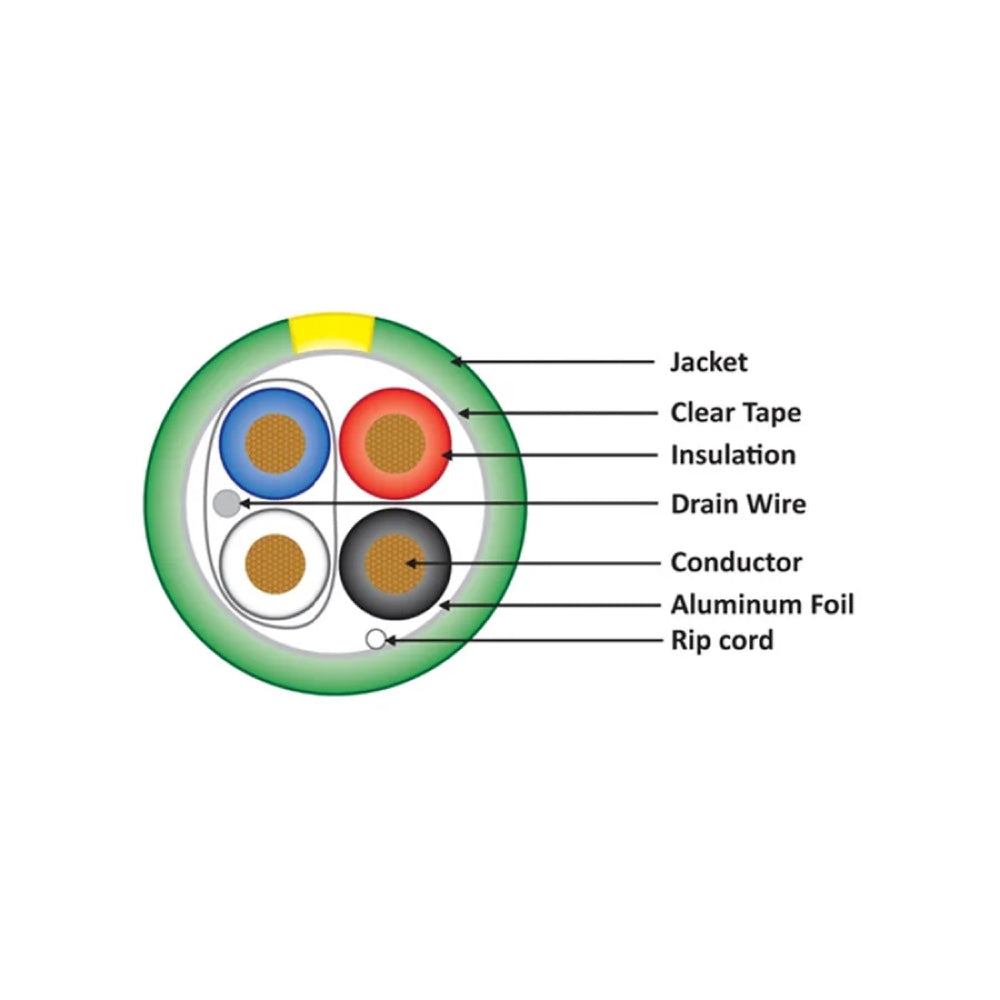

• 18AWG Pair: Stranded Bare Copper · PVC Insulation · Black/Red · Unshielded
• 22AWG Pair: Stranded Bare Copper · Foam PE Insulation · White/Blue · AL-Tape Shield
• Jacket: PVC, CMR/FT4 Rated · Color: Teal w/ Yellow Stripe
• OD: 6.35 mm · Weight: 33 lbs/1000ft · Voltage: 80V

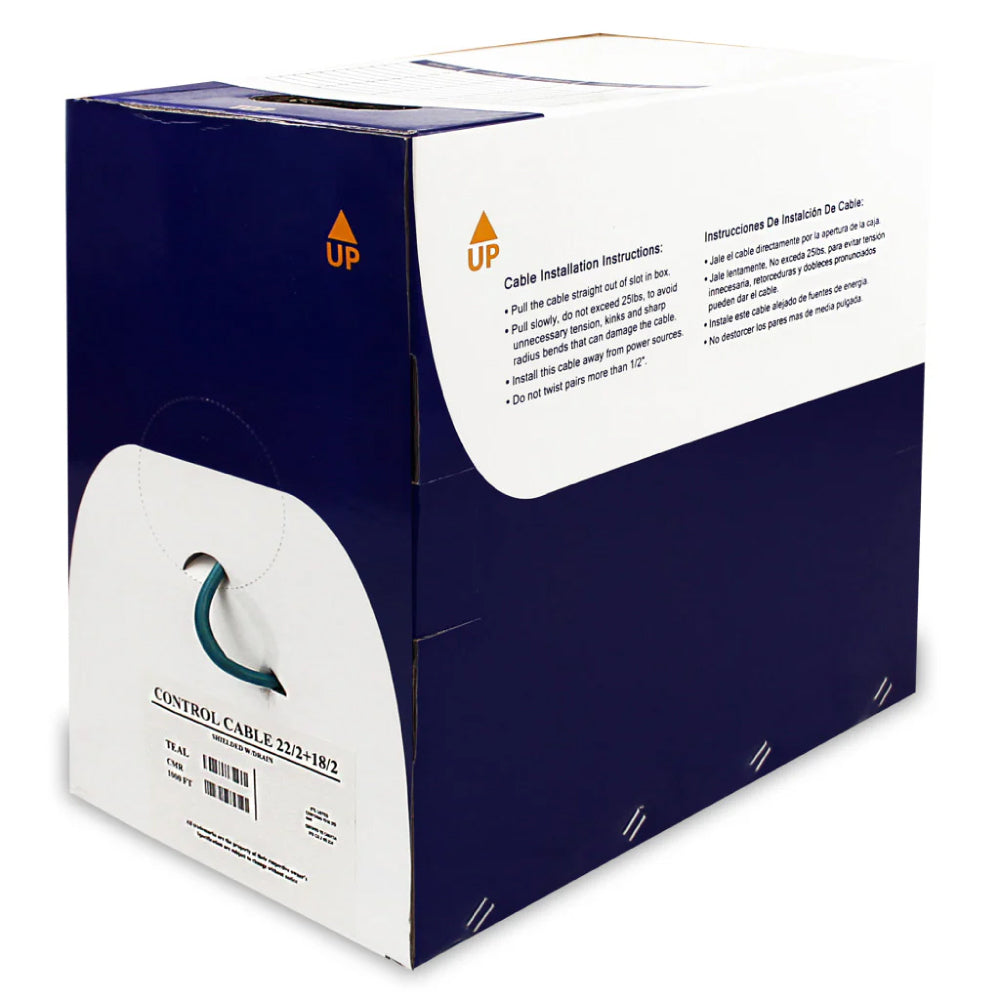

• Packaging: 1000ft Pull Box
Typical Applications:
• Automation and fieldbus wiring (CANbus, DeviceNet, Modbus)
• Combined power and communication runs for building automation
• Instrumentation and process control wiring
• Any application needing power and shielded signal in one cable
• Industrial and commercial control panel wiring
