Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded 1000/500 Feet
-
22AWG Stranded Bare Copper, 6 Conductors
-
AL-PET Tape + 7x0.254 Tinned Copper Drain Wire
-
FR-PVC Jacket, CMR / CL2R Rated
-
C(ETL)US Listed · UL 444 · CMR
-
OD 3.70mm · White & Grey · 500ft or 1000ft
Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded 1000/500 Feet - 500 Feet is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded 1000/50...
Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded 1000/500 Feet - 500 Feet is backordered and will ship as soon as it is back in stock.
-
𝟮𝟮𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗥 At 3.70mm OD, the slimmest shielded 6-conductor riser control cable for tight conduit and riser fills.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 Full aluminum foil coverage with drain wire for reliable single-point EMI grounding at the control panel.
-
𝗖𝗠𝗥 + 𝗙𝗧𝟰 𝗥𝗔𝗧𝗘𝗗 Meets CMR and FT4 for in-wall and riser runs in commercial control, HVAC, and automation systems.
-
𝟲 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Six individually colored conductors simplify termination at multi-zone control panels and junction boxes.
-
𝗪𝗛𝗜𝗧𝗘 𝟱𝟬𝟬𝗙𝗧 𝗔𝗡𝗗 𝗚𝗥𝗘𝗬 𝟭𝟬𝟬𝟬𝗙𝗧 Available in White 500ft or Grey 1000ft to match the project size and installation environment.
Description
Description
The slimmest shielded 6-conductor CMR control cable in the lineup at just 3.70mm OD — this 22AWG shielded stranded bare copper cable is rated CMR and C(ETL)US Listed for permanent in-wall and vertical riser installations in residential and commercial buildings. Its compact diameter maximizes conduit fill capacity compared to the 18AWG CMR version (6.15mm OD), making it the right choice when six shielded conductors are needed but current draw is low and tight conduit space is a concern.

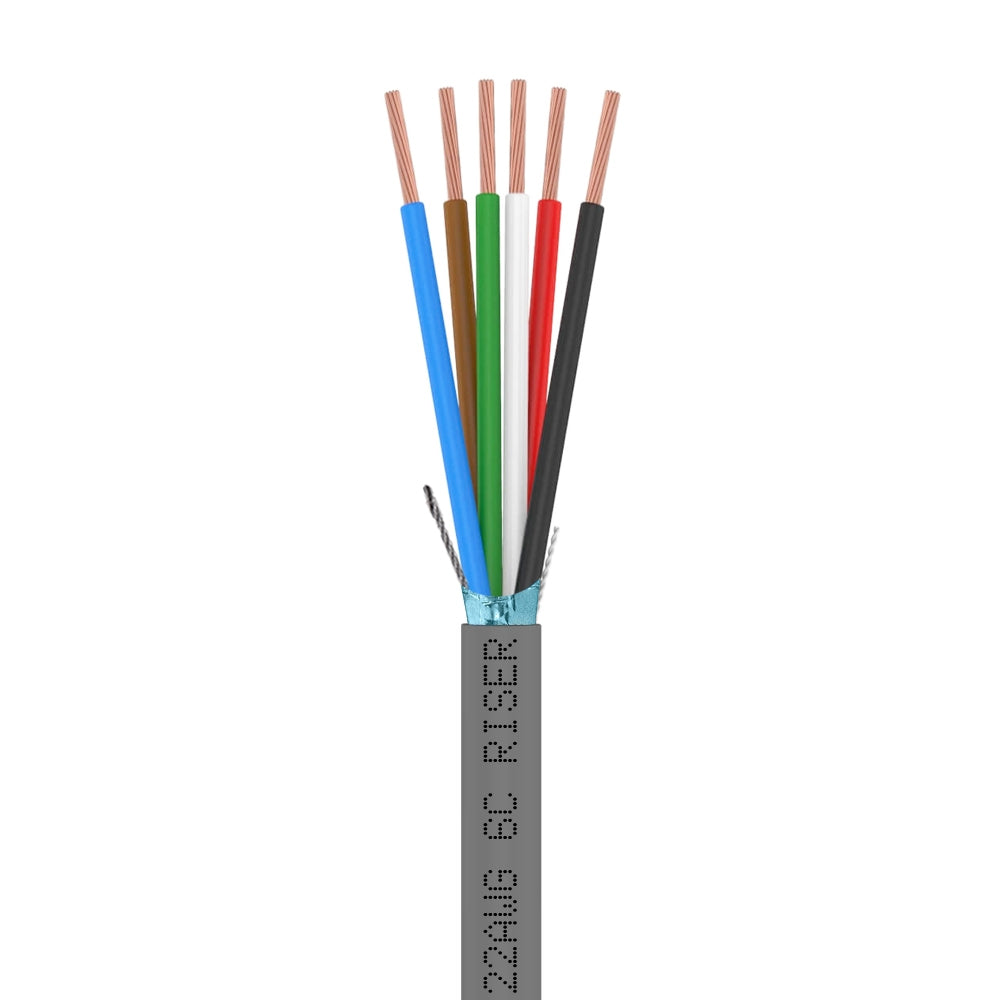

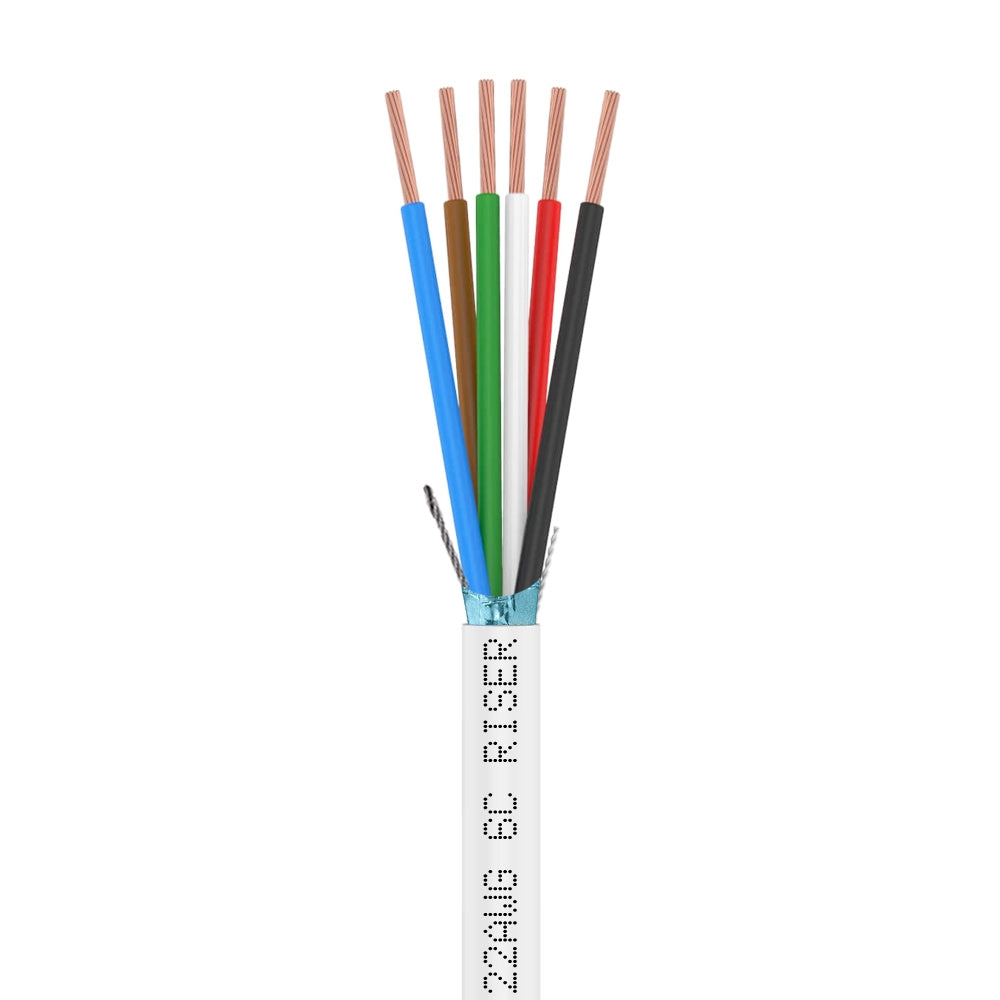

Six color-coded conductors (Black, Red, White, Green, Brown, Blue) handle signal, control, and auxiliary functions to intercoms, door stations, card readers, sensors, and multi-zone alarm devices. The AL-PET tape shield with tinned copper drain wire blocks EMI across all six conductors. A built-in ripcord enables fast jacket removal at every termination. Available in White or Grey to suit your installation environment.
C(ETL)US Listed · CMR · CL2 / CL2R · UL 444
Specifications:
• Cable Type: 6-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 22AWG (7/0.254mm)
• Insulation: PVC · Colors: Black, Red, White, Green, Brown, Blue
• Shield: AL-PET Tape + 7x0.254 Tinned Copper Drain Wire
• Jacket: FR-PVC, CMR Rated
• Jacket Colors: White (500ft) / Grey (1000ft)
• Nominal OD: 3.70 mm (0.146 in.)
• Certifications: C(ETL)US Listed, UL 444, CMR, CL2/CL2R
• Ripcord: Yes

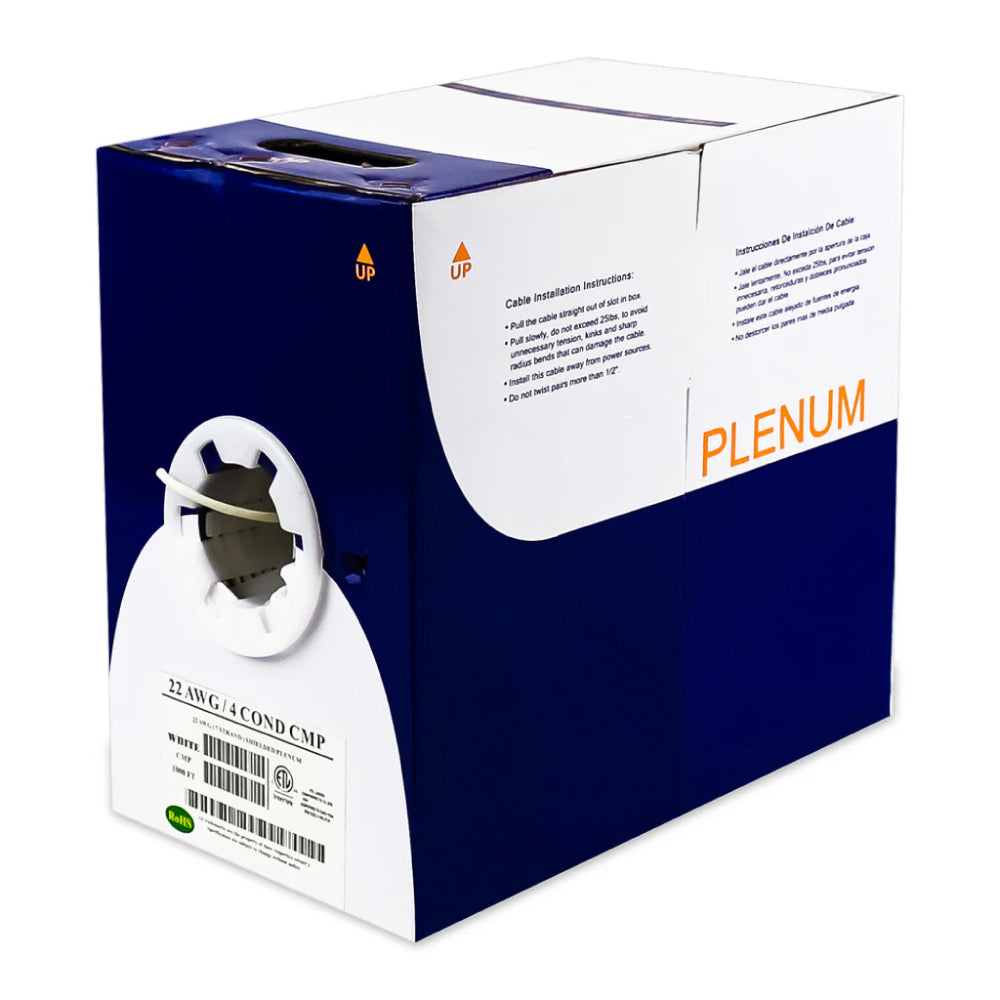

• Packaging: 500ft Reelex II (White) / 1,000ft Reelex II (Grey)
Note: For plenum spaces, choose the CMP version. For higher-current devices, choose the 18AWG CMR version.
