Control Cable Shielded 22AWG 6 Conductor Plenum CMP Stranded 1000ft White
-
22AWG Stranded Bare Copper, 6 Conductors
-
AL-Foil + 24AWG Tinned Copper Drain Wire
-
Low Smoke FR-PVC Jacket, CMP / CL2P
-
C(ETL)US Listed · UL 444 · 23.3 lbs
-
OD 4.20mm · White Jacket · 1,000ft Reelex II
Control Cable Shielded 22AWG 6 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 22AWG 6 Conductor Plenum CMP Stranded 1000ft...
Control Cable Shielded 22AWG 6 Conductor Plenum CMP Stranded 1000ft White is backordered and will ship as soon as it is back in stock.
-
𝟮𝟮𝗔𝗪𝗚 𝗦𝗛𝗜𝗘𝗟𝗗𝗘𝗗 𝗖𝗠𝗣 At 4.20mm OD and 23.3 lbs, the smallest shielded 6-conductor CMP control cable in the lineup.
-
𝗥𝗘𝗠𝗚𝗨𝗔𝗥𝗗 𝗣𝗟𝗘𝗡𝗨𝗠 𝗣𝗢𝗟𝗬𝗠𝗘𝗥 Required low-smoke CMP jacket for 22AWG 6-conductor above-ceiling control wiring in commercial buildings.
-
𝗔𝗟-𝗙𝗢𝗜𝗟 + 𝗗𝗥𝗔𝗜𝗡 𝗪𝗜𝗥𝗘 Full foil shield with drain wire protects six 22AWG signals from EMI in noisy plenum environments.
-
𝟲 𝗖𝗢𝗟𝗢𝗥-𝗖𝗢𝗗𝗘𝗗 𝗖𝗢𝗡𝗗𝗨𝗖𝗧𝗢𝗥𝗦 Six colored conductors for multi-channel DSP, relay logic, and automation terminations above ceilings.
-
𝟭𝟬𝟬𝟬𝗙𝗧 𝗪𝗛𝗜𝗧𝗘 𝗖𝗢𝗜𝗟 1000ft shielded CMP coil for complete above-ceiling multi-zone 22AWG 6C control installations.
Description
Description
Maximize conduit fill capacity in plenum spaces with the slimmest shielded 6-conductor CMP control cable in the lineup. At just 4.20mm OD and 23.3 lbs per 1,000ft, this 22AWG shielded stranded bare copper cable delivers shielded 6-conductor plenum performance in a significantly smaller footprint than the 18AWG version (5.85mm OD) — leaving more room in conduit when fill capacity is a priority.

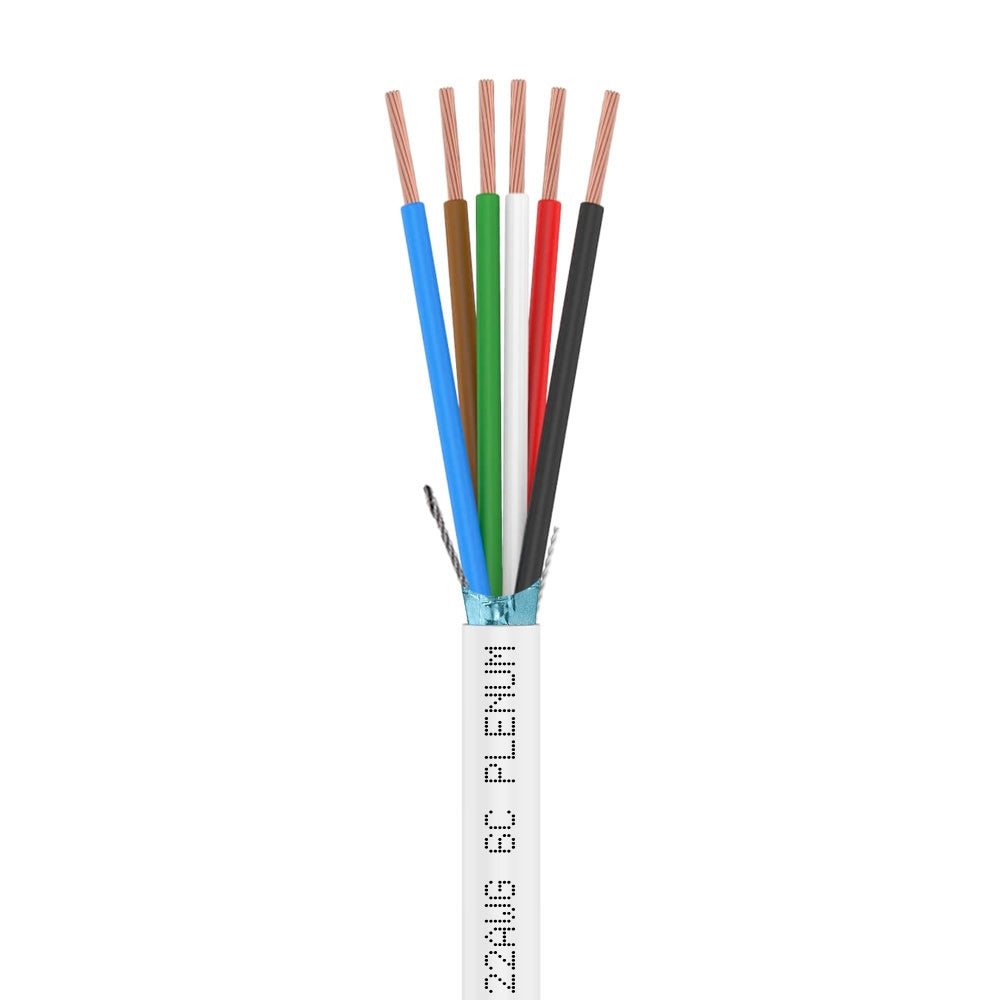

Six color-coded conductors (Black, Red, White, Green, Blue, Brown) handle power, signal, return, tamper, status, and auxiliary functions over a single plenum cable run. The aluminum foil shield with tinned copper drain wire blocks EMI from HVAC systems, power wiring, and lighting ballasts. A built-in ripcord enables fast jacket removal at every termination point.
C(ETL)US Listed · CMP / CL2P · UL 444
Specifications:

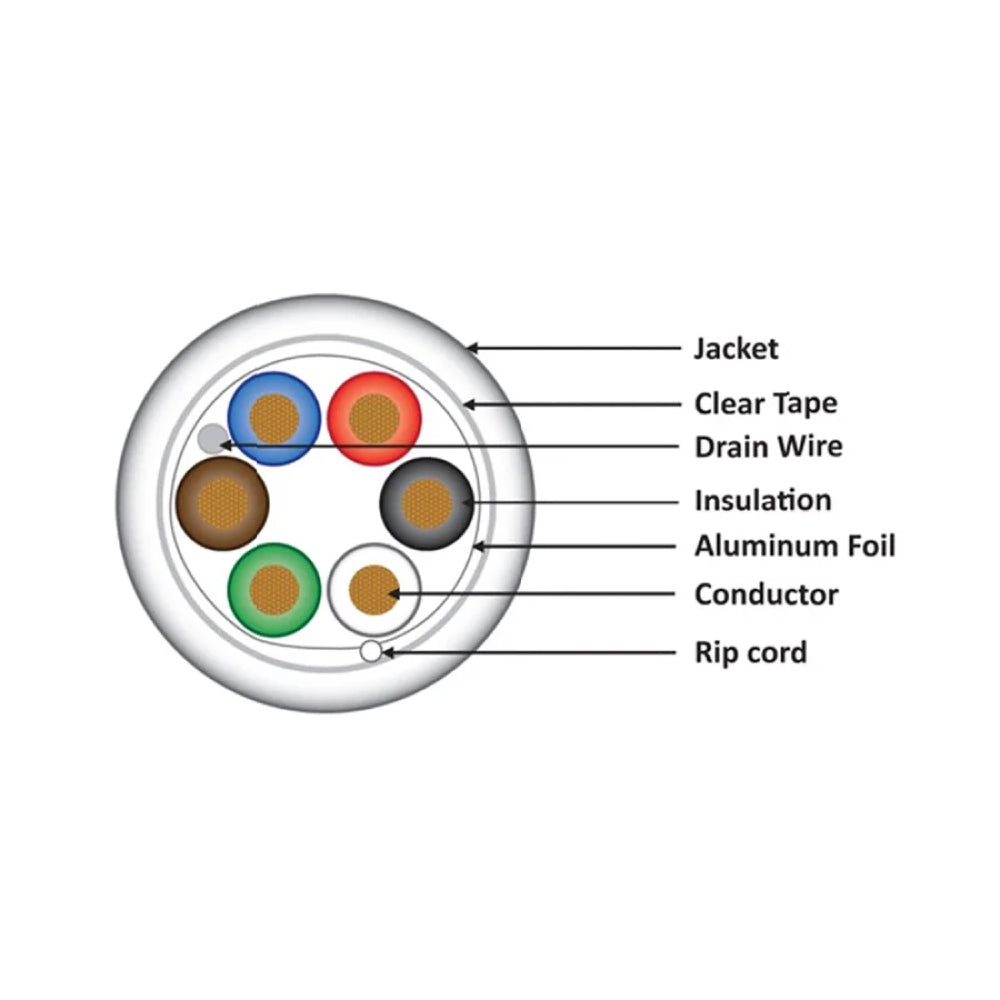

• Cable Type: 6-Conductor Shielded Control Cable
• Conductor: Stranded Bare Copper, 22AWG (7/0.24mm)
• Insulation: FR-PVC · Colors: Black, Red, White, Green, Blue, Brown
• Shield: AL-Foil (≥25% overlap) + 24AWG Tinned Copper Drain Wire
• Jacket: Low Smoke FR-PVC, CMP / CL2P Rated
• Jacket Color: White
• Nominal OD: 4.20 mm (0.165 in.)
• Operating Temp: -20°C to +60°C
• Certifications: C(ETL)US Listed, UL 444, CL2P/CMP
• Ripcord: Yes

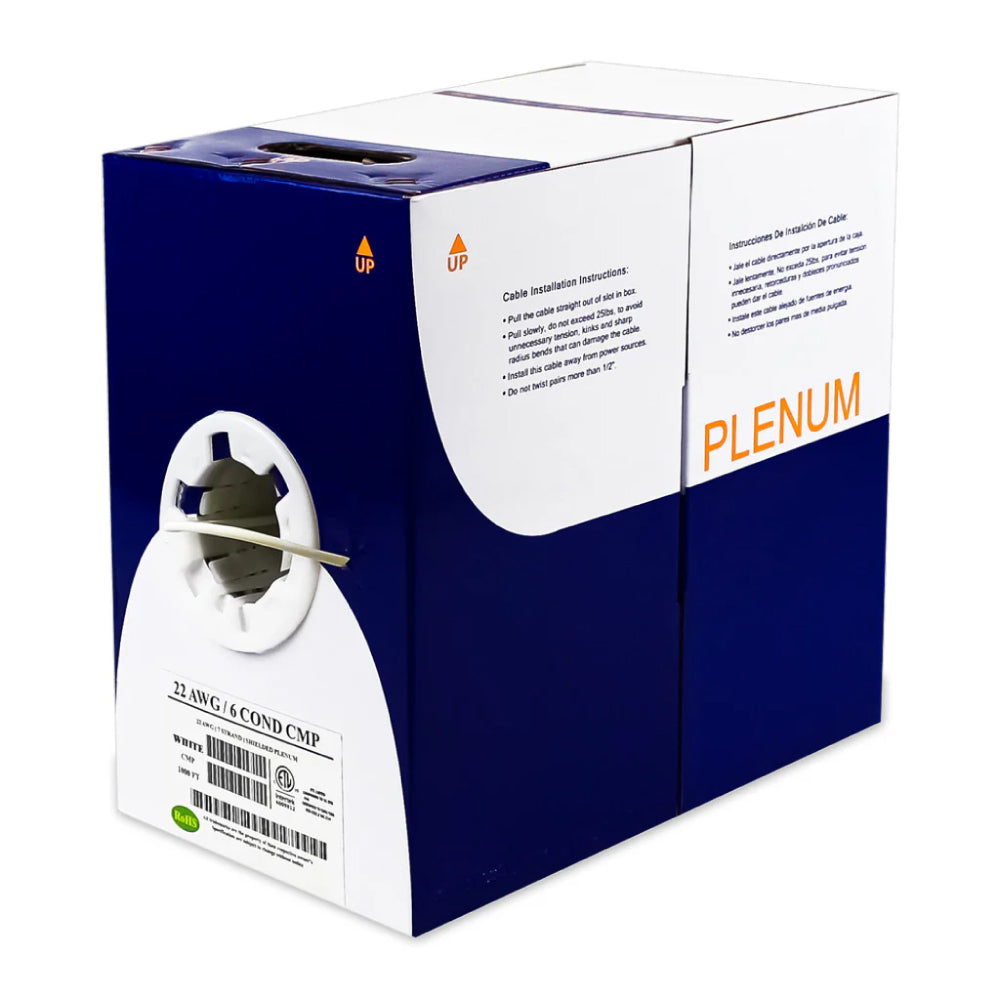

• Packaging: 1,000ft Reelex II pull box
Note: For powered devices with higher current requirements, choose the 18AWG 6C CMP version.
