Control Cable Shielded 18AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray White
-
Stranded Bare Copper · 18AWG · 2 Conductors
-
AL-Foil + 7/0.20TC Drain Wire Shield
-
AL-Foil + 7/0.20TC Drain Wire Shield
-
C(ETL)US Listed · CL2R · CMR/FT4
-
OD 3.96mm · Grey & White · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $213.35 / unit | 3% |
| 10–19 units | $208.95 / unit | 5% |
| 20+ units | $204.55 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 18AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray White
-
𝐒𝐊𝐈𝐏 𝐓𝐇𝐄 𝐏𝐋𝐄𝐍𝐔𝐌 𝐏𝐑𝐄𝐌𝐈𝐔𝐌 CMR delivers EMI protection at a lower cost than the plenum-rated version — don't overpay for CMP if your run never enters a plenum space.
-
𝐋𝐈𝐆𝐇𝐓𝐄𝐑 𝐓𝐇𝐀𝐍 𝟏𝟔𝐀𝐖𝐆 𝐎𝐍 𝐓𝐇𝐄 𝐏𝐔𝐋𝐋 18AWG is lighter and easier to handle than 16AWG in conduit-dense installations — less bulk, less strain, faster pulls through tight runs.
-
𝐊𝐍𝐎𝐖 𝐖𝐇𝐄𝐍 𝐓𝐎 𝐔𝐏𝐆𝐑𝐀𝐃𝐄 In a plenum space, go CMP. Need longer runs or higher current? Step up to 16AWG. This listing tells you honestly which one you actually need.
-
𝐒𝐓𝐎𝐏𝐒 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐂𝐎𝐋𝐃 AL-foil and a drain wire ground out EMI from HVAC motors and lighting ballasts — no more flaky signals near equipment rooms.
-
𝐆𝐑𝐄𝐘 𝐎𝐑 𝐖𝐇𝐈𝐓𝐄 𝐅𝐎𝐑 𝐀𝐍𝐘 𝐒𝐏𝐀𝐂𝐄 Choose the jacket color that matches your ceiling or wall environment — same cable, same certs, your call on the finish.
Description
Description
Run shielded, interference-resistant control wiring through walls and risers with this 18AWG shielded stranded bare copper control cable. Rated CMR/FT4 and C(ETL)US Listed, it delivers EMI protection at a lower cost than the plenum-rated version when the run doesn't pass through air-handling spaces.
The AL-foil shield with tinned copper drain wire blocks EMI from nearby electrical wiring, HVAC equipment, and lighting ballasts for clean, stable signals. At 18AWG, the cable is lighter and easier to handle than 16AWG in conduit-dense installations — the right choice for security, audio, and HVAC control with moderate run lengths. For plenum spaces, choose CMP; for longer runs or higher current, choose 16AWG shielded instead.
Standards: C(ETL)US Listed · CMR/FT4 · CL2/CL2R
Technical Specifications:

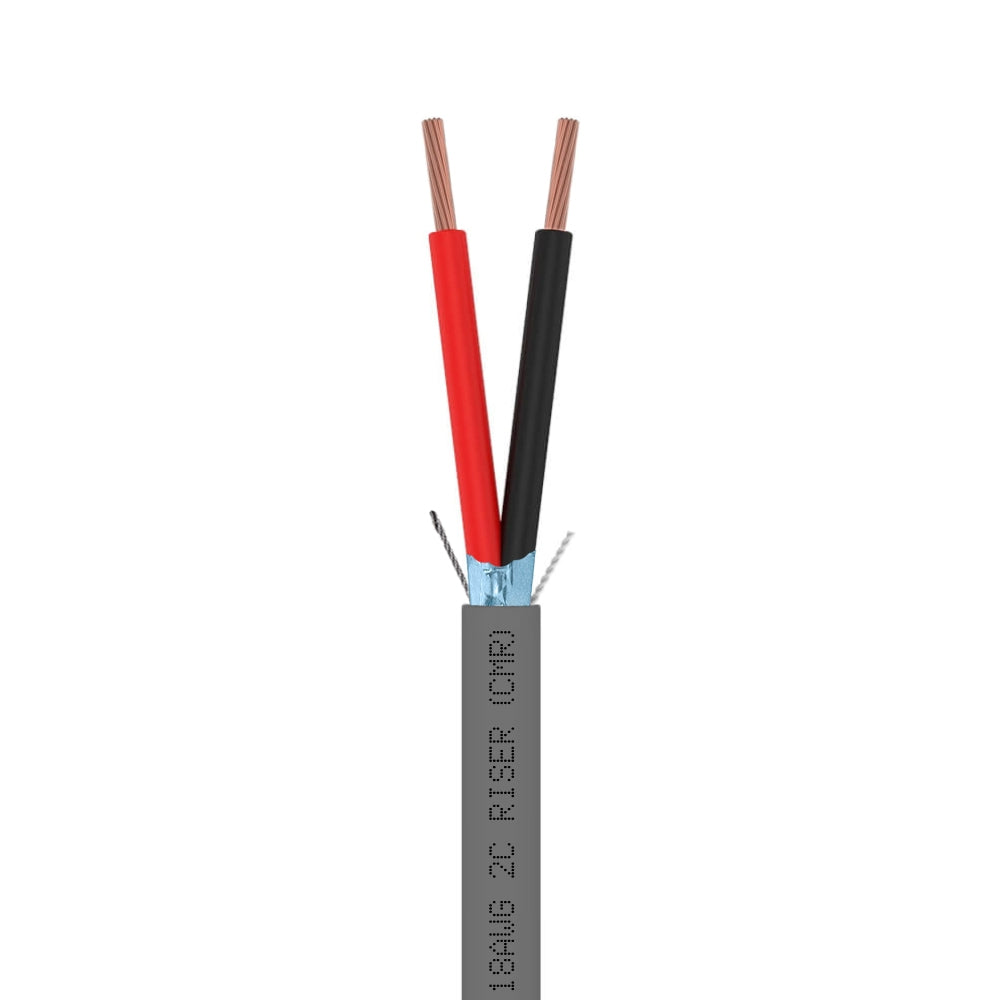

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 2 (Black/Red)

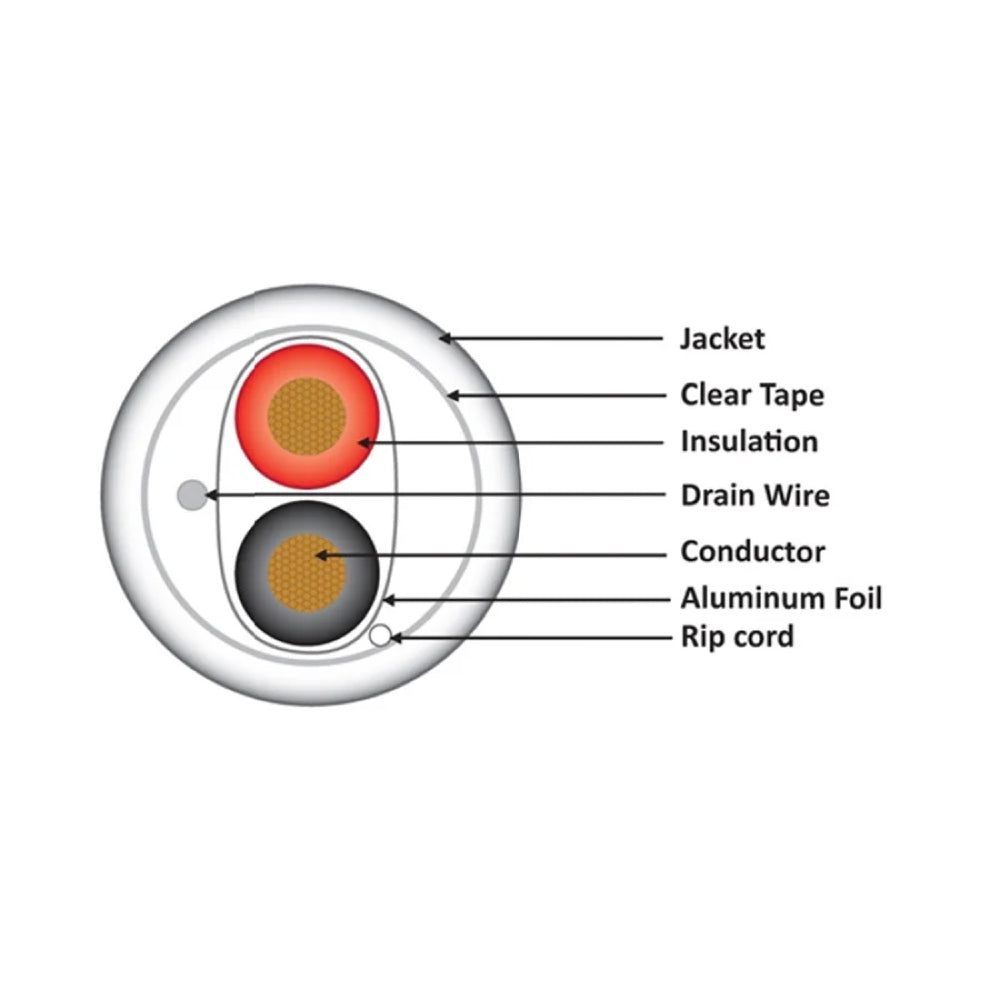

• Shield: AL-Foil + 7x0.20mm Tinned Copper Drain Wire
• Jacket: FR-PVC, CMR/FT4 Rated · Colors: Grey or White
• OD: 3.96 mm · Voltage: 300V · Ripcord: Yes
• Packaging: 1000ft Reelex II
Typical Applications:
• Security systems, audio, and background music distribution
• Access control and intercom systems
• HVAC actuators, relay coils, and motorized dampers
• Any CMR-rated power-limited control circuit
• In-wall and riser runs outside air-handling spaces
