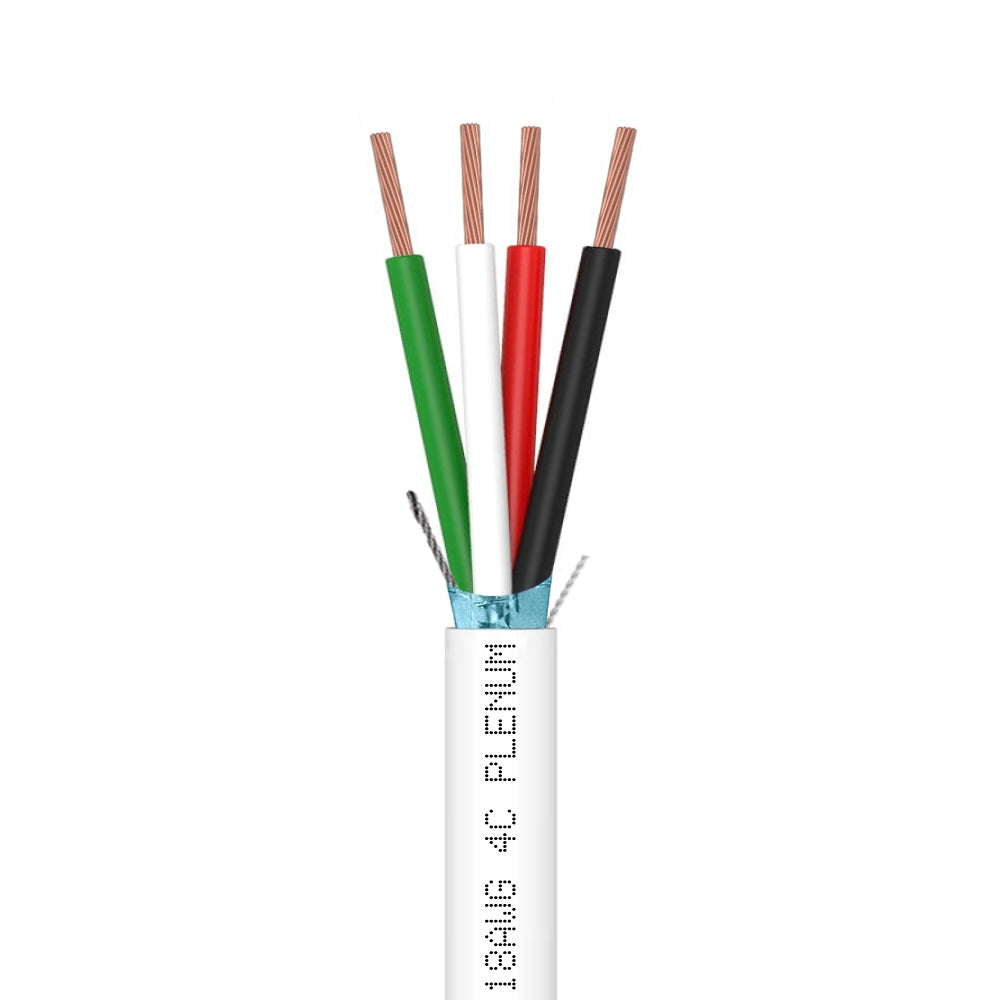

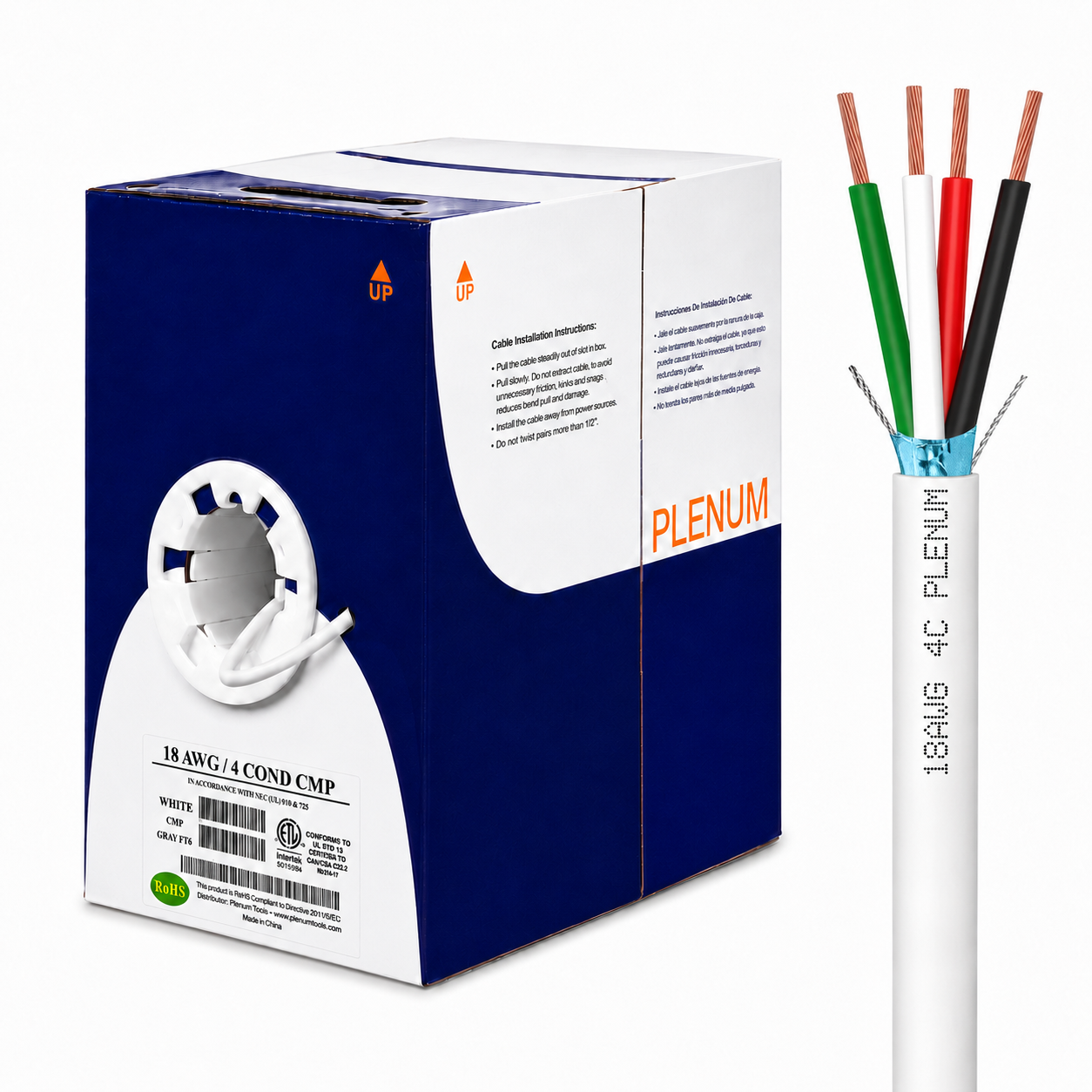

Plenum Control Cable Shielded 18AWG 4 Conductor CMP Stranded Copper 1000ft White
-
Stranded Bare Copper · 18AWG · 4 Conductors
-
AL-Foil + Tinned Copper Drain Wire Shield
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · CL2P · 300V
-
OD 4.75mm · 1000ft Reelex II · White
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $436.45 / unit | 3% |
| 10–19 units | $427.45 / unit | 5% |
| 20+ units | $418.45 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Shielded 18AWG 4 Conductor CMP Stranded Copper 1000ft White
-
𝟒 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 𝐑𝐔𝐍 Run power, signal, and auxiliary functions to the same panel in a single pull — no separate 2-conductor cables to route, label, and terminate.
-
𝐏𝐀𝐒𝐒𝐄𝐒 𝐈𝐍𝐒𝐏𝐄𝐂𝐓𝐈𝐎𝐍 𝐄𝐕𝐄𝐑𝐘 𝐓𝐈𝐌𝐄 CMP/CL2P and C(ETL)US Listing mean your above-ceiling control run meets the strictest code the first time — no rework, no failed inspection.
-
𝐒𝐓𝐎𝐏𝐒 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐂𝐎𝐋𝐃 AL-foil and a drain wire ground out EMI from HVAC motors and fluorescent ballasts — no more flaky signals near equipment rooms.
-
𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 𝐂𝐎𝐕𝐄𝐑𝐒 𝐄𝐕𝐄𝐑𝐘 𝐒𝐏𝐀𝐂𝐄 CMP is the highest fire rating in the building — this cable also satisfies riser and in-wall requirements, so one spec works everywhere.
-
𝐑𝐄𝐀𝐃𝐘 𝐅𝐎𝐑 𝐓𝐇𝐄 𝐖𝐇𝐎𝐋𝐄 𝐉𝐎𝐁 1000ft Reelex II pull box means fewer splices and reel changes across a full above-ceiling control or HVAC distribution run.
Description
Description
Wire multiple control circuits through one shielded cable with this 18AWG 4-conductor stranded bare copper control cable. Rated CMP and CL2P, approved for air-handling spaces above suspended ceilings and below raised floors — the highest indoor fire safety rating, also covering riser and in-wall installations with the same cable.
Four color-coded conductors (Black/Red/White/Green) let you run power, signal, and auxiliary functions back to the same control panel in a single pull, instead of running separate 2-conductor cables. The AL-foil + drain wire shield blocks EMI from nearby electrical equipment, HVAC systems, and fluorescent lighting for clean, reliable signals across all four conductors.
Standards: C(ETL)US Listed · CL2P/CMP
Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 4 (Black/Red/White/Green)

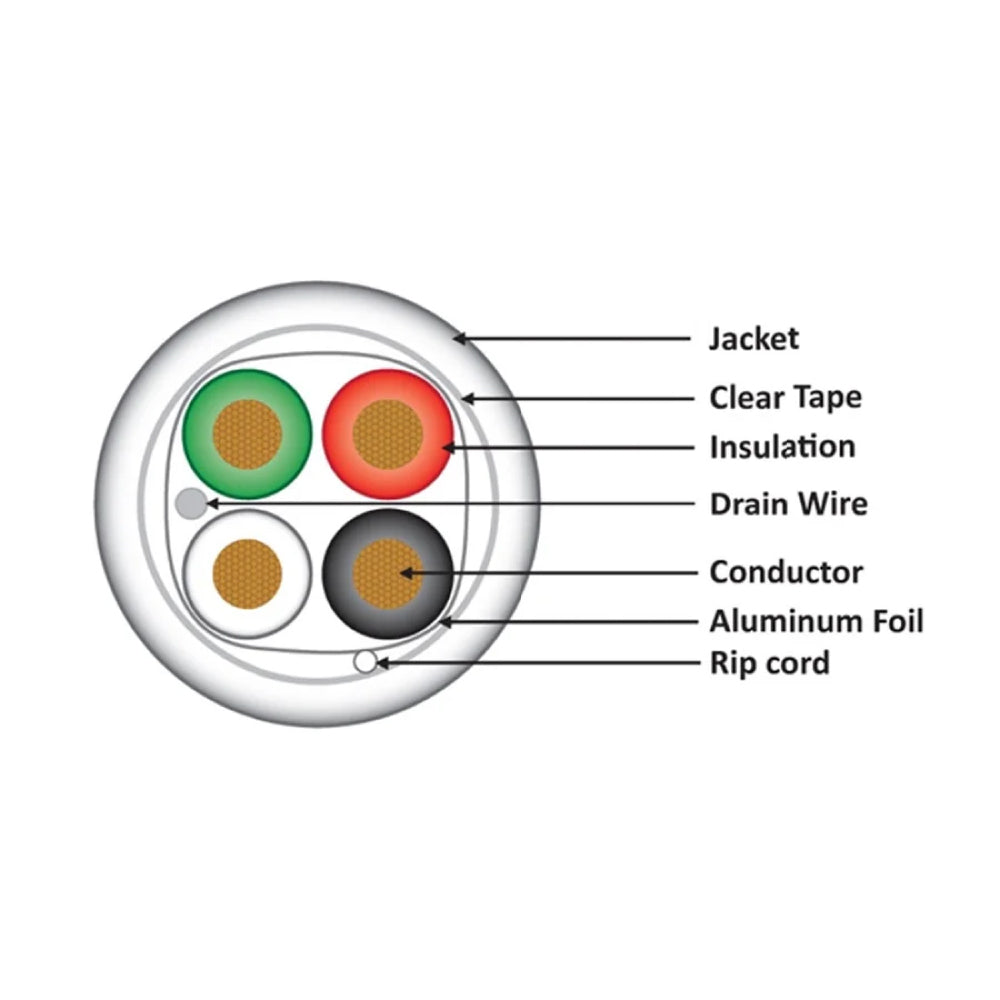

• Shield: AL-Foil + 7x0.20mm Tinned Copper Drain Wire
• Jacket: Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 4.75 mm · Weight: 36 lbs/1000ft · Voltage: 300V

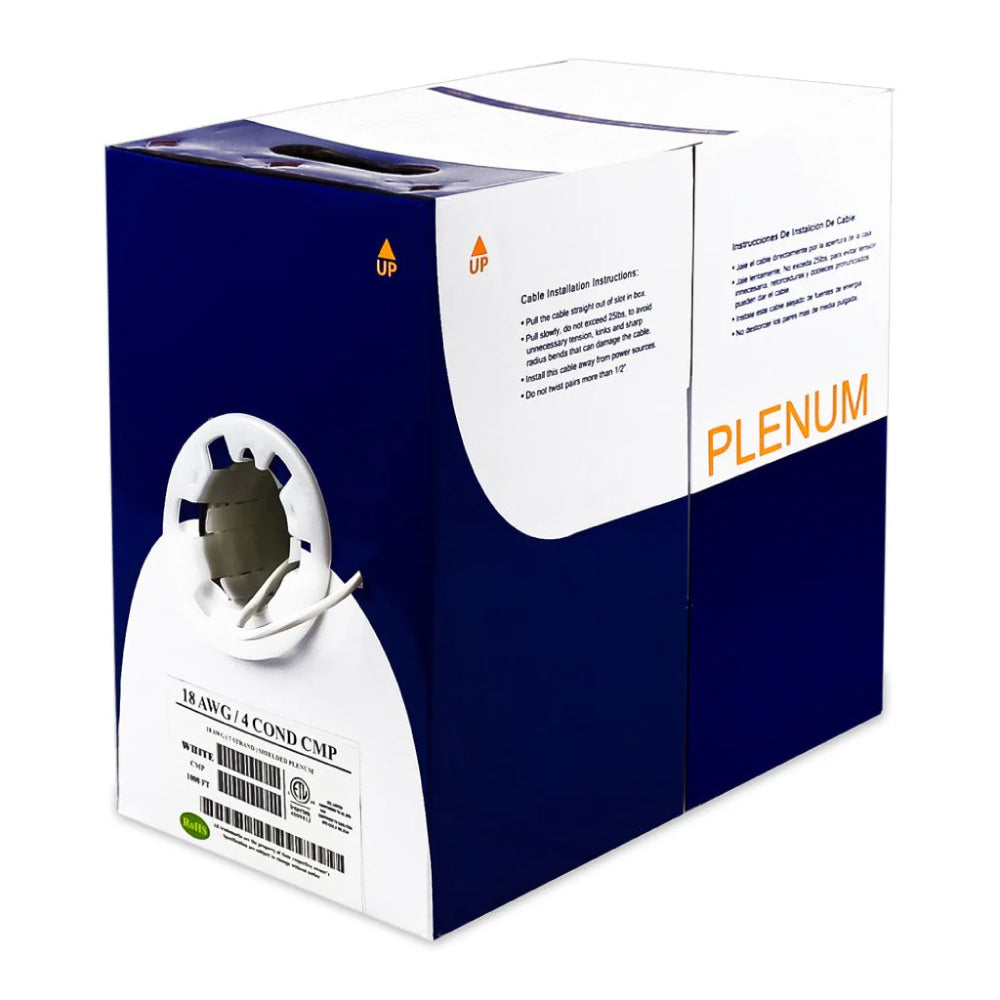

• Packaging: 1000ft Reelex II
Typical Applications:
• Security systems, audio, and background music distribution
• Multi-zone access control and intercom systems
• HVAC building automation with multiple control points
• Any CMP-rated power-limited control circuit
• Above-ceiling plenum runs requiring EMI shielding
