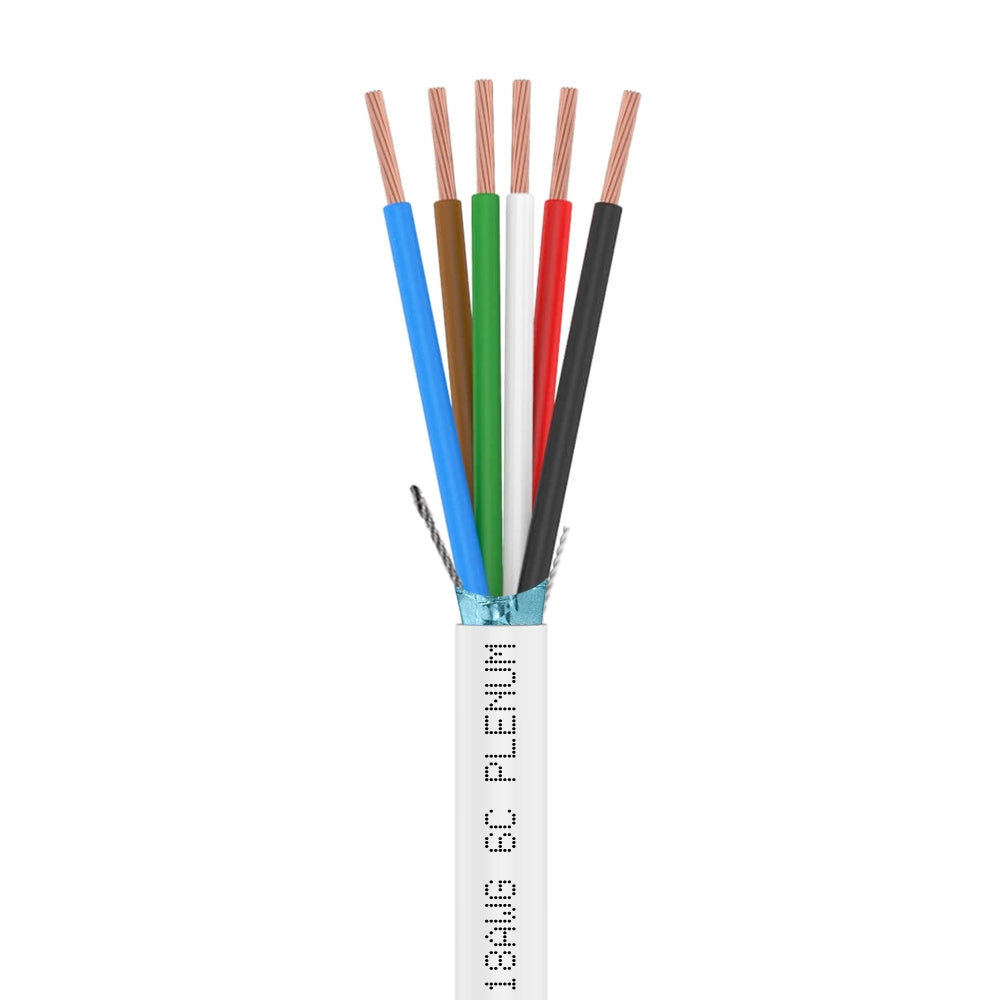

Plenum Control Cable Shielded 18AWG 6 Conductor CMP Stranded Copper 1000ft White
-
18AWG Stranded Bare Copper · 6 Conductors
-
AL-Foil + PE-Tape + Drain Wire Shield
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 5.85mm · White · 1000ft Pull Box
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $581.95 / unit | 3% |
| 10–19 units | $569.95 / unit | 5% |
| 20+ units | $557.95 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Shielded 18AWG 6 Conductor CMP Stranded Copper 1000ft White
-
𝟏𝟖𝐀𝐖𝐆 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐏 Six 18AWG shielded conductors replace three 2-conductor runs — dramatically reduces plenum conduit fill with EMI protection.
-
𝐂𝐌𝐏 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐀𝐍𝐘 𝐒𝐏𝐀𝐂𝐄 CMP is the highest fire rating in the building — satisfies riser and in-wall runs too, so one cable works everywhere.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐏𝐋𝐔𝐒 𝐃𝐑𝐀𝐈𝐍 𝐖𝐈𝐑𝐄 Full foil shield with drain wire protects all six 18AWG signals from EMI in noisy plenum environments.
-
𝟔 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Six individually colored conductors simplify wiring at control panels and zone boards above the ceiling.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 1000ft pull box delivers tangle-free payout for complete multi-zone 6-conductor shielded plenum installations.
Description
Description
Handle complex above-ceiling control and security wiring with EMI protection using this 18AWG 6-conductor shielded stranded bare copper control cable, rated CMP and C(ETL)US Listed for demanding air-handling plenum spaces. With six color-coded conductors, one shielded cable run replaces three separate 2-conductor cables to the same device or panel.
Six conductors let you dedicate separate conductors to power, signal, return, tamper, status, and auxiliary functions for complex security panels, multi-channel audio zones, access control with door monitoring, and HVAC automation controllers. The AL-foil shield with drain wire blocks EMI from HVAC systems, power wiring, and lighting ballasts across all six conductors.
Standards: C(ETL)US Listed · CMP/CL2P · UL 444
Technical Specifications:

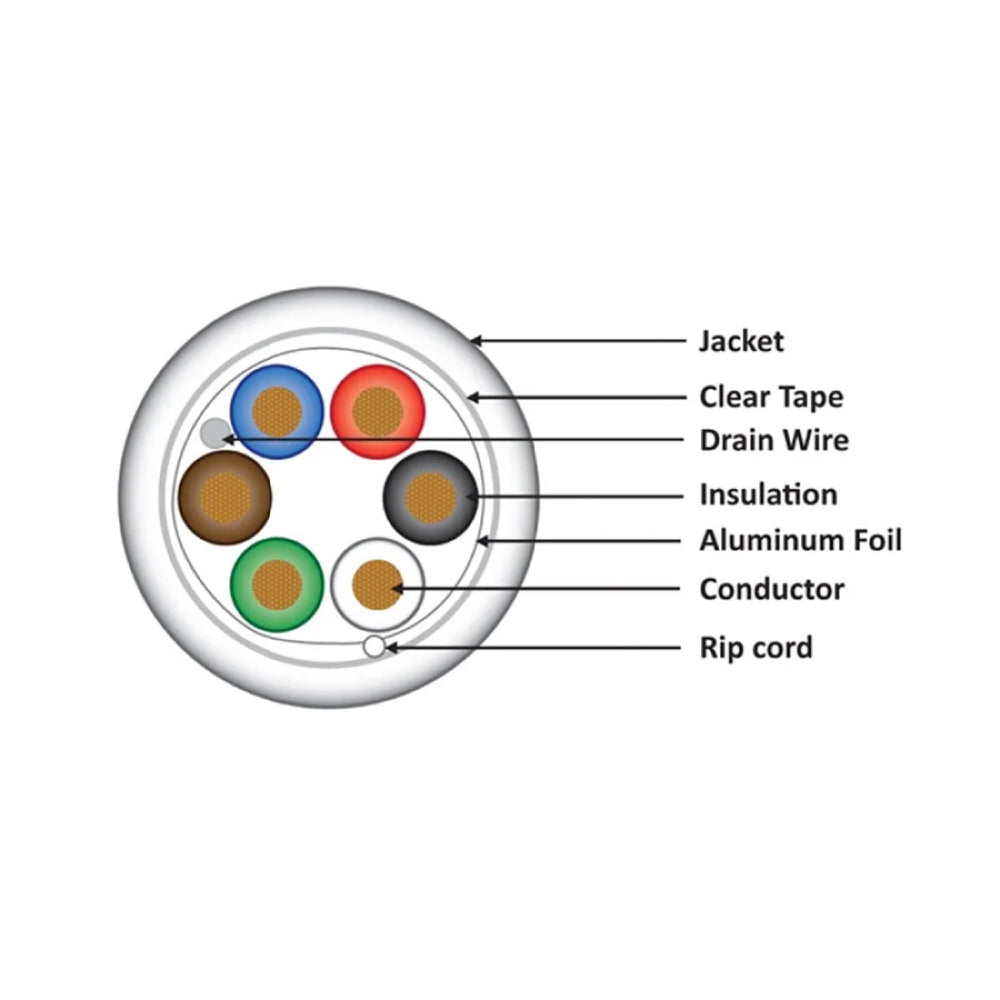

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 6 (Black/Red/White/Green/Brown/Blue)
• Shield: AL-Foil + PE-Tape + 7x0.18mm Tinned Copper Drain Wire
• Jacket: Remguard Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 5.85 mm · Weight: 54 lbs/1000ft · Voltage: 300V
• Packaging: 1000ft Pull Box
Typical Applications:
• Complex security panels and multi-zone alarm systems
• Multi-channel audio zone wiring
• Access control with door monitoring
• HVAC building automation controllers
• Above-ceiling plenum runs requiring EMI shielding
